Volt VFL-120V Series Manuel utilisateur

VOLT®Landscape Lighting

LED Floodlights

VFL-120V Series

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 1 -

VOLT®Landscape Lighting

VFL 120V Floodlights

Important: Please Read Before Installation

Important Safety Instructions

INSTALLATION INSTRUCTIONS

1. This LED Floodlight uses the latest in solid state lighting technology for

long life, low maintenance, and high efciency.

2. An internal power-factor-corrected switch mode supply allows this

xture to be used from any nominal 100V-277V, 60Hz AC supply without

any variation in light output.

3. Suitable for use in:

a. Ambient Temperatures of: -20~+40°C (-4~+104°F)

a. Wet Locations

Note: Save these instructions for future reference.

To avoid the risk of re, explosion, or electric shock, this product should

be installed, inspected, and maintained by a qualied electrician only, in

accordance with all applicable electrical codes.

To avoid electric shock:

1. Be certain electrical power is OFF before and during installation and

maintenance.

2. Luminaire must be connected to a wiring system with an equipment-

grounding conductor.

To avoid explosion:

1. Make sure the supply voltage is the same as the rated luminaire voltage.

2. Do not install where the marked operating temperatures exceed the

ignition temperature of the hazardous atmosphere.

3. Do not operate in ambient temperatures above those indicated on the

luminaire.

For supply connections use wire rated for at least 90°C (194°F)

Warning: these luminaire should ONLY be installed by a qualied electrician.

www.voltlighting.com

- 2 -

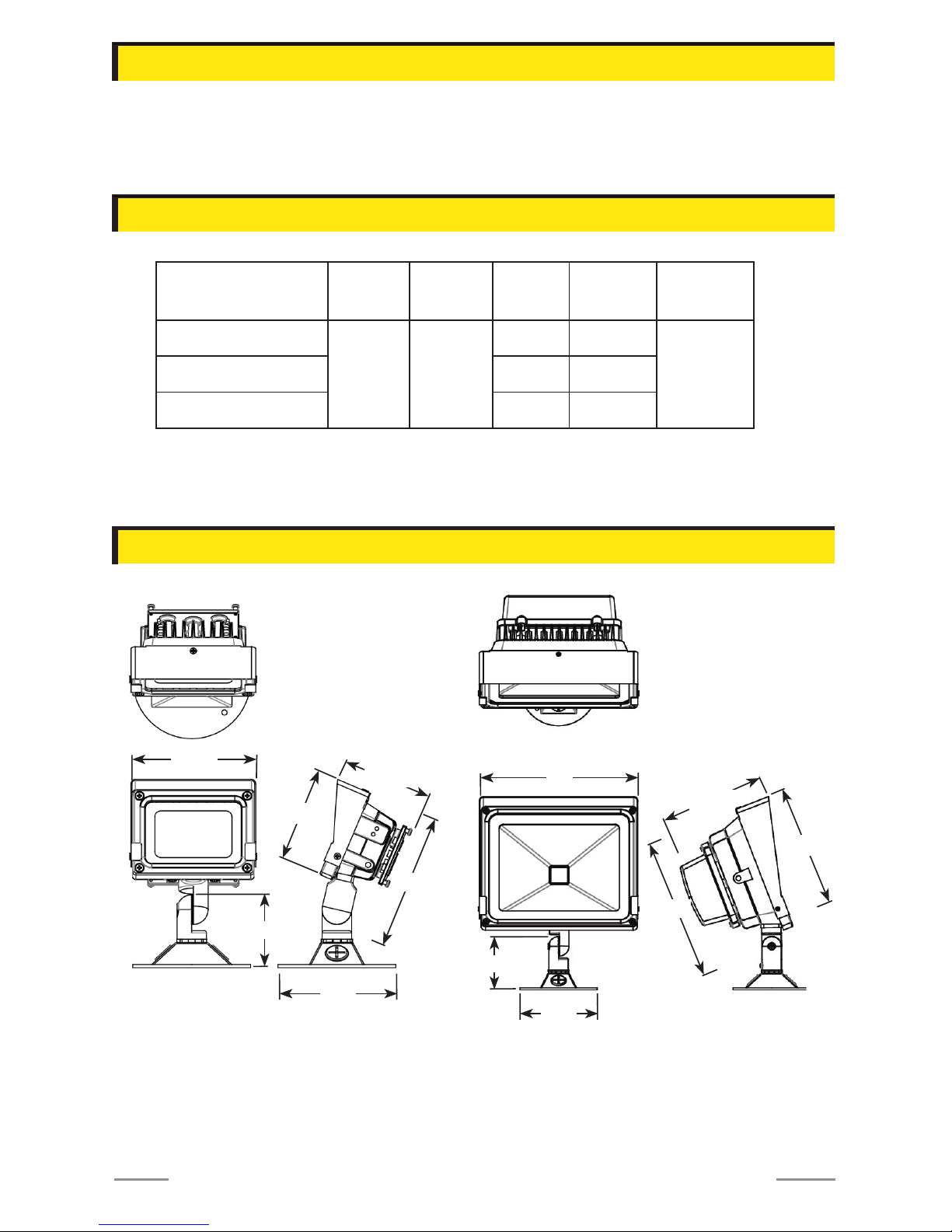

Package Contents

Products Model #

A. (1) Lampbody

[email protected] • 813.978.3700

- 3 -

Model Input

Voltage

Power

Factor Watt Input

Current Mounting

VFL-4000-LI-ABZ

100-

277V ≥0.95

10W 0.3A

Knuckle

VFL-4003-LI-ABZ 30W 0.5A

VFL-4005-LI-ABZ 50W 0.8A

Product Dimensions

2.75”

4.75” 3.25”

4.5”

VFL-4000-ABZ

9”

VFL-4003-ABZ

3.5”

5”

4.5”

2.75”

7.25”

6.25”

8.5”

www.voltlighting.com

INSTALLATION INSTRUCTIONS

- 4 -

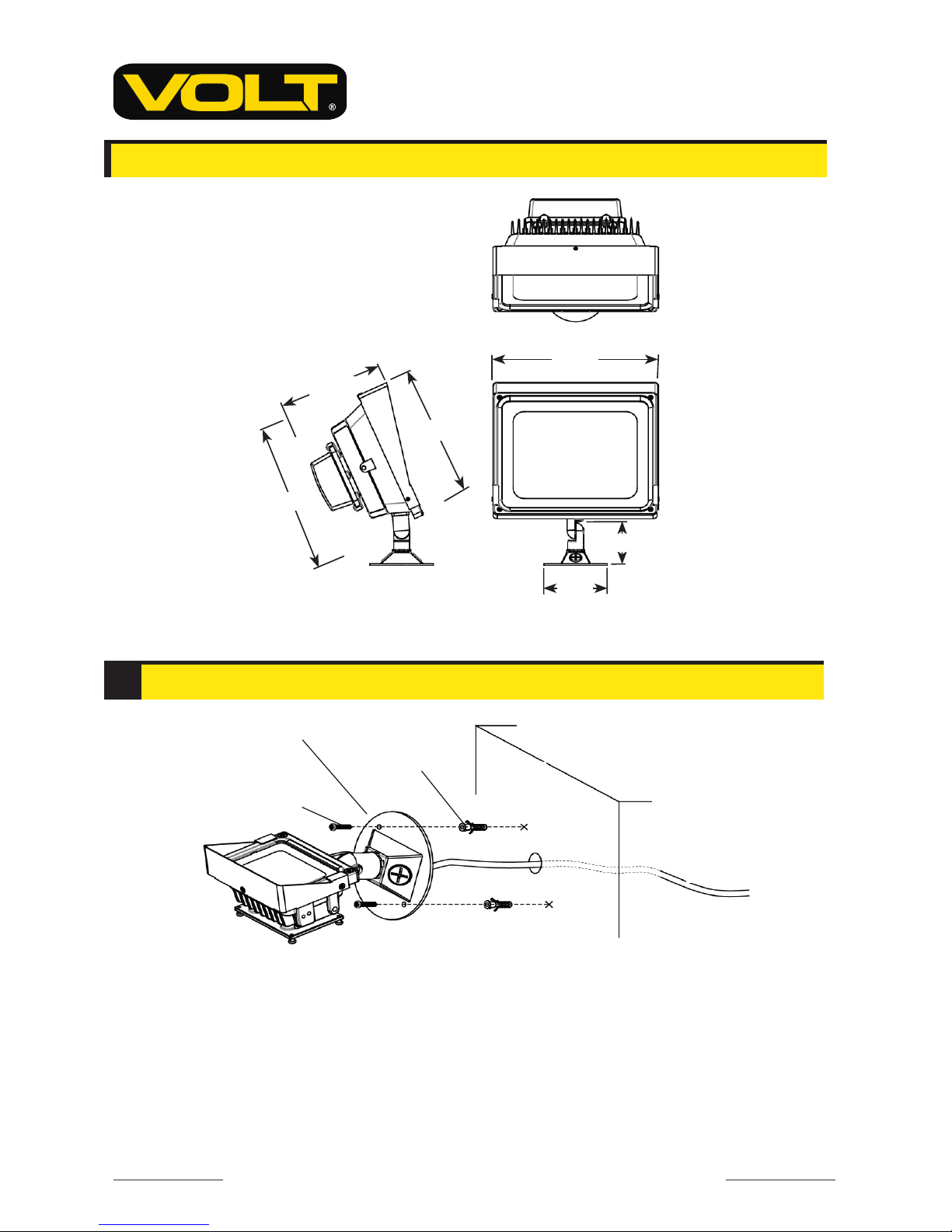

Install Lampbody

Pass supply wire from lampbody through the hole on the wall or J box.

Attach the lampbody to the wall and secure with self-tapping screws.

Hand tighten until snug.

NOTE: Wall Anchors are required for brick walls or concrete walls. To

determine anchor locations, place the backplate of the lampbody onto

your desired location and mark points from the holes on the backplate.

Wall

Lampbody

Mark

Product Dimensions - Continued

2.75”

11.5”

7.25”

4.5”

VFL-4005-ABZ

9.25”

10.25”

VOLT®Landscape Lighting

VFL 120V Floodlights

Self-tapping

Screw

Anchor

(Optional)

Supply Wire

Canopy Mount

(Optional)

[email protected] • 813.978.3700

- 5 -

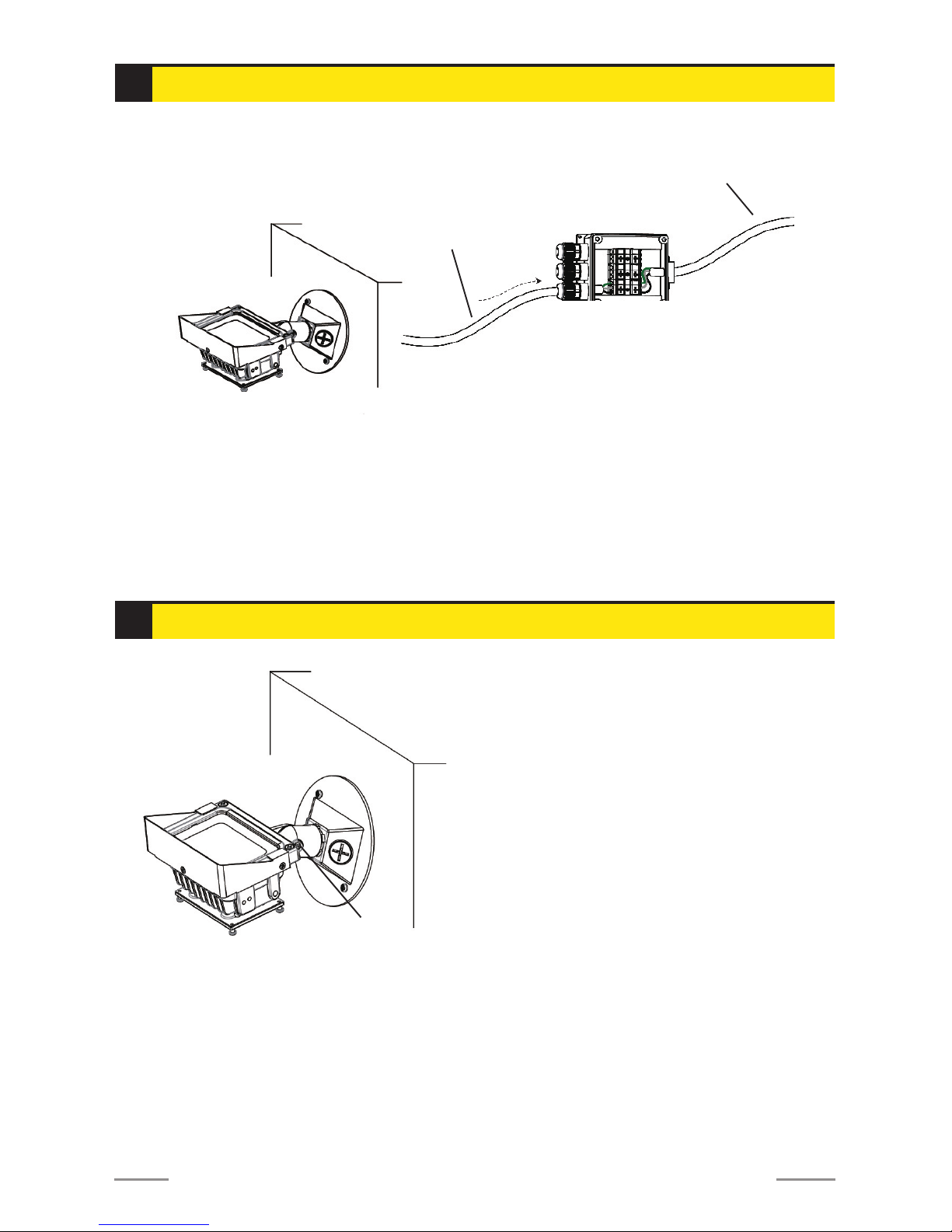

Wire Connections

Allow enough wire from the lampbody for adjustment purposes.

Connect wires from the xture into the wiring terminal. The white

wire goes to the “Neutral” terminal;the black wire goes to the

“Live” terminal; and the green wire goes to the “Ground” terminal.

Fix them in place with the connector screws.

Lampbody

Wiring Terminal

Main Supply Cable

Supply Wire

from Luminaire

Adjust Lampbody

Adjust the lampbody to your

desired orentation and tighten the

set screw on the knuckle with a

screwdriver.

Wall

Lampbody

Screw

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 6 -

After installation, please

A. Double check whether the lighting xture is rmly xed.

B. Double check the wires are connected correctly.

Lastly, turn on the power and check if the lighting xture is working properly. If

not, please turn off the power and contact us at 813-978-3700.

VOLT®Landscape Lighting

VFL 120V Floodlights

[email protected] • 813.978.3700

- 7 -

IS-VFL-120V Series-ver1.pdf

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 8 -
