VOGELS 6VO PFW 6851 Manuel utilisateur
MOUIN_PFW6851_V02
Max: 80 kg/175 lbs
PFW 6851
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione,
Guide d’Installation, Installatie gids
Maximum Flat Panel Weight:
175 lb. / 80 kg.
PFW 6851
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
www.vogels.com
Included components
Required for installation
Swingout Mount
Channel Covers
Mounting
Bracket
Griplate™
Washer
5/16" Flat
Washer
Universal
Spacers
Thread Depth
Indicator
(Supplied)
Extension Adapter M8 Nylon Nut
5/16" x 3"
Lag Bolt
M4 x 16mm M4 x 25mm M4 x 30mm
M6 x 16mm M8x 16mm M8 x 25mm M8 x 30mm
M6 x 25mm M6 x 30mm
x1 x1 Pair x8
x4 x4 x4 x4 x4
x8
x4 x4 x4
x6
x4 x4 x4 x4 x1 x4 x4
M6 or 1/4"
Wood Drill bit
3/8" Masonry
Drill bit
13mm or 1/2"
Socket
Finned Anchor
Level
You must secure the mount to two (2) wall studs with a minimum of four
(4) lag bolts (2 lag bolts for each stud found).
1) Use a stud nder to determine the exact center of wall studs in the vicinity
of the wall plate.
2) Use a pencil to mark the exact center of each of the wall studs.
XX
Minimum of 2 x 4 wood stud to be used
Wood Installation
1
Directional Mounting Arrow
The Directional Mounting Arrow stamped into the PFW 6851 Mount
indicates which edge is the top.
Mounting Safety
Two people are recommended for this step
Introduction
Page 2
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
PFW 6851
www.vogels.com
www.vogels.com
Two people are recommended for this step; one person to level the
Mount and another person to mark the wall stud location.
1) Place the mount against the wall in the desired viewing location.
2) Adjust the mount to align the mount slots in the wall plate with the center
of the wall studs.
3) Level the mount.
4) Use a pencil to mark the upper right mounting location along the center of
the wall stud.
2
3
4
Drill a “pilot hole” in the center of the upper right mark using a 1/4" drill bit and
power drill.
Only use a 1/4" drill bit when drilling pilot holes.
XX
1) Place the Mount against the wall and align it with the pilot hole.
2) Insert one (1) 5/16"x 3˝ lag bolt and one (1) 5/16" washer into the upper
right pilot hole.
3) Use a socket wrench and a 1/2" socket to tighten the lag bolt.
Do not over tighten the lag bolt.
Page 3
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
PFW 6851
www.vogels.com
5
6
7
1) Level the Mount.
2) Use a pencil to mark the remaining three (3) mounting locations along the
center of each wall stud.
Two people are recommended for this step; one person to level the
Mount and another person to drill the pilot holes.
Drill a “pilot hole” in the center of each of the marks with a power drill and a
1/4" drill bit.
Only use 1/4" drill bit when drilling the pilot holes.
1) Insert one (1) 5/16" x 3" lag bolt and one (1) 5/16" washer into each pilot holes.
2) Tighten all lag bolts using a socket wrench and 1/2" socket.
Do not over tighten the lag bolts when attaching the mount to the wall.
Improper installation may result in personal injury or property damage.
Page 4
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
PFW 6851
www.vogels.com
www.vogels.com
Two people are recommended for this step: one person to
level the mount and another person to mark the mounting
locations.
Concrete Installation
5/16" Flat Washer 5/16" x 3" Lag Bolt
x4 x4
Insert the lag bolts and washers into the Finned anchors.Tighten all lag
bolts using a socket wrench and 1/2″ socket.
Do not over tighten the lag bolts.
8
9
10
11
Drill four (4) pilot holes of each mark using a drill and 3/8” masonary drill
bit. Drill 3 inches deep.
Only use a 3/8" masonary drill bit when drilling pilot holes.
Insert a Finned Anchor into each hole. Lightly tap each Finned Anchors
into place with a hammer.
Finned Anchor
x4
Page 5
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
PFW 6851
www.vogels.com
12
13

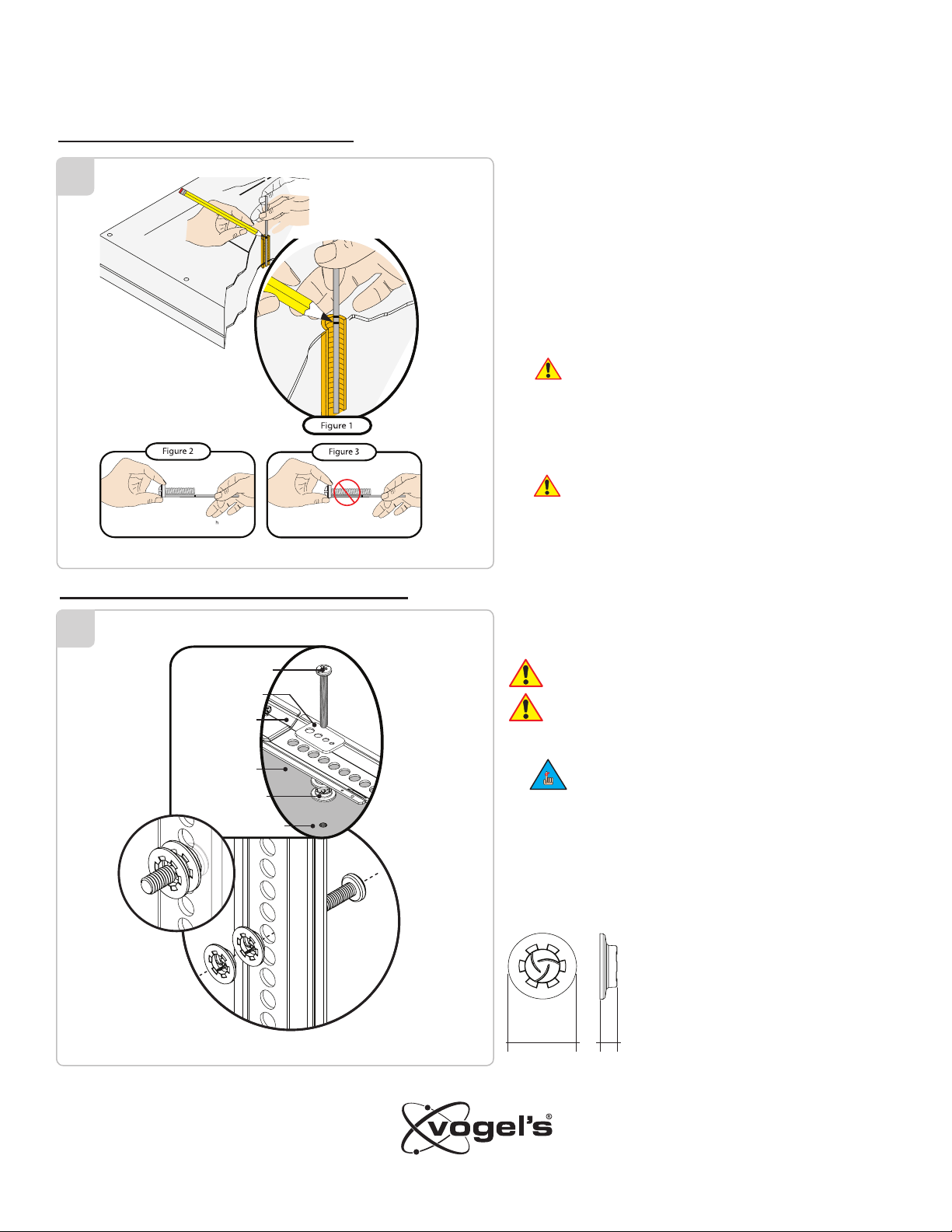

Selecting the Mounting Hardware
1) Insert a small straw or toothpick into the threaded inserts found
on the back of the at panel.
2) Use a pencil to mark the depth of the threaded insert on the small
straw or toothpick.
3) Mark the straw or toothpick 1/8” above the depth of the threaded
insert, as shown in Figure 1.
4) Insert the small straw or toothpick into the remaining threaded
inserts to compare and verify their depth using the straw or
toothpick’s 1/8” allowance mark.
5) Locate the correct diameter screw for the threaded insert.
If the screw you selected is longer than the 1/8” allowance
mark on the small straw or toothpick, as shown in Figure 2 and
Figure 3, do not use this screw. The screw length must not
bypass the mark.
6) Test each size of the screws provided.
The correct screws should thread easily into the mounting
point and not pull out when tension is applied.
1˝ ¼˝
Flat Panel
Universal Washer
Universal Spacer
Mounting Bracket
Mount Point
Mounting Screw
Universal Spacers allow you to attach the mounting bracket to at-panels which
have recessed or uneven mount points. Each Universal Spacer adds 1/4” to the
distance between the mounting bracket and your at-panel.
The Universal Spacers must be stacked and oriented as shown.
The Universal Spacers must only be installed between the mounting
bracket and your at-panel.
Universal Spacer Installation (Optional)
If your at panel has uneven mounting points, or recessed
mounting points, please use the provided universal spacers.
Page 6
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
PFW 6851
www.vogels.com
www.vogels.com
14

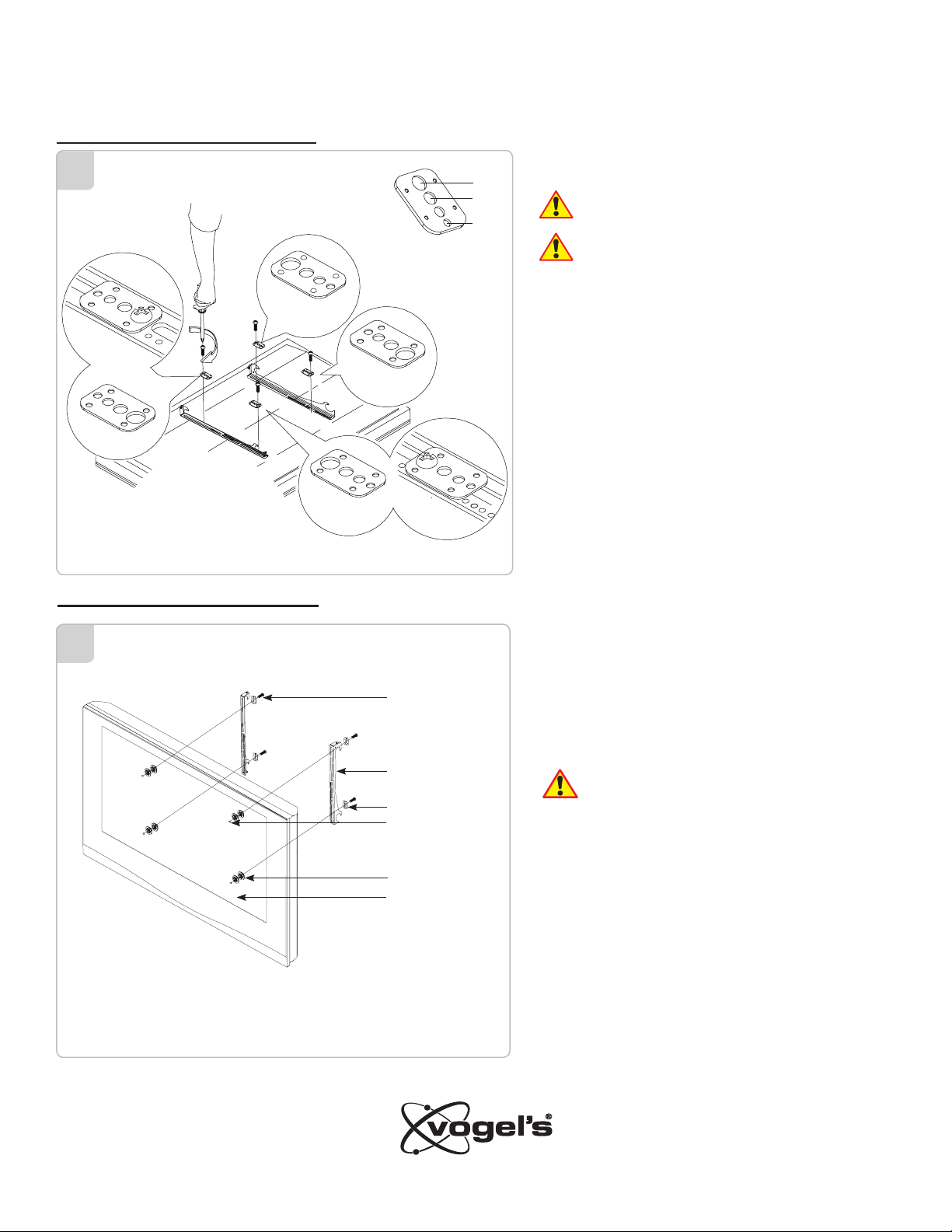

Universal Washer Installation
M8
M6
M4
Universal Washers are designed to accommodate the various M4, M6,
and M8 hole sizes required by at panels.
Do not place excessive pressure on the back of the at panel,
as this may damage your at panel.
The Universal Washer must be installed between the head of
the mounting screw and the mounting bracket as shown.
1) Place your at panel screen-side down on a soft, at surface.
2) Identify the number and location of the thread inserts on the back
of your at panel.
3) Aligning the holes on each mounting bracket with the thread
inserts on the back of your at panel.
4) Secure each mounting bracket to your at panel by inserting a
minimum of two (2) screws per bracket.
Do not over tighten the mounting hardware.
15
DIMPLES
FACING UP
DIMPLES
FACING DOWN
DIMPLES
FACING UP
DIMPLES
FACING DOWN
Mounting Hardware
Mounting Bracket
Mounting Point
Universal Spacer
Flat
Griplate™
Mounting Bracket Installation
Page 7
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
PFW 6851
www.vogels.com
The adapter plate can be used with mounting patterns from 200mm x 200mm x to 650mm x 840mm.
In the event that you're at panel has recessed or uneven mounting surface, universal spacers may be stacked to achieve proper spacing. Select the amount
of universal spacer (s) that is closest in depth to keep your adapter plate as close to the at panel as possible. The universal spacer must be secured between
the at panel and the adapter plates.
Do NOT over tighten the screws.
Step 1. Determine if your at panel will need the
adapter plates.
Step 2. Locate the mounting points on the back
of the at panel.
Step 3. Using a screwdriver, insert and tighten the
mounting hardware and adapter plates to the
back of the at panel. Do not over tighten the
screws.
Step 4. Place the universal mounting brackets over the
threaded mounting studs that are on the
adapter plate.
Step 5. Place one (1) 5 / 16" at washer onto each
threaded mounting stud.
Step 6. Thread one (1) M8 Nylon nut onto each threaded
mounting stud.
Step 7. Once the universal mounting brackets are level,
use a 1/2" socket and socket wrench to tighten
the M8 nylon nuts. Do not over tighten the
screws.
Before tightening the nylon nut, be sure that both universal
mounting bracket are level and aligned with each other.
If they are not aligned and level, the at panel will not sit
properly when mounted to the PFW 6851
Adapter Plate
Griplate
Mounting Hardware
Flat Panel
Adapter Plate
Socket Wrench
Nylon Nut
Flat Washer
Universal Mounting
Bracket
16
Adapter Plate Installation (Optional)
Page 8
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
PFW 6851
www.vogels.com
www.vogels.com
Upper Mounting Bar
Lower Mounting Bar
Flat Panel
Two people are required for this step.
Step 1. Place the universal brackets and the at panel over and onto the upper and lower mounting bars of the PFW 6851 and lower it down. Do not release the at
panel until the at panel is resting securely on the upper and lower mounting bars.
Screwdriver
Leveling Screw
(Pre-installed)
Locking Screw
(Pre-installed)
Step 1. Use a screwdriver to adjust the two (2) M6 x 30
leveling screws, located on the top of the mounting
brackets.
Step 2. Once the at panel panel is level, ues a screwdriver
to tighten the two (2) M6 x 30 locking screws,
located on the bottom of the mounting brackets. Do
not over tighten these screws.
17
18
Attaching the Flat Panel to the Wall Plate
Securing the Leveling the Flat Panel
Do not release the at panel until verifying the connection
between the universal brackets and the upper and lower
mounting bars.
In the event that the at panel is tilted too far to one
side, the leveling screws will allow you to compensate
for this tilt by simply adjusting the screws with a screw-
driver (see illustration to the right for a clear view).
Page 9
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
PFW 6851
www.vogels.com
19
20
Ajusting the Flat Panel Tilt
Plastic Channel Cover Installation
TO ADJUST THE TILT TENSION OF THE PFW 6851, LOOSEN THE TENSION BOLTS LOCATED ON THE BOTTOM RIGHT AND LEFT SIDE OF THE
MAIN ARM ASSEMBLY. RE-TIGHTEN THESE BOLTS TO ACHIEVE YOUR DESIRED TENSION.
Tension
Bolt
Tension
Bolt
Adjusting the Flat Panel Down Adjusting the Flat Panel Down
Step 1. Place one hand at the center top edge of
the at panel.
Step 2. Place the other hand on the center bottom
edge of the at panel.
Step 3. Using the upper hand, gently pull the top
of the at panel away from the wall while
the lower hand gently pushes the bottom of
the at panel towards the wall.
Step 1. Place one hand at the center top edge of
the at panel.
Step 2. Place the other hand on the center bottom
edge of the at panel.
Step 3. Using the upper hand, gently push the top
of the at panel towards the wall while
the lower hand gently pulls the bottom of
the at panel towards the wall.
Side Cover
(Long)
Center Cover
(Short)
Side Cover
(Long)
Step 1. Place the plastic channel covers over the
Mounting plate (2 side covers and 1 center cover).
Step 2. Gently push each cover into place, covering the mounting
slots of the mounting place.
Repeats steps 1 and 2 for the installation for
of the lower plastic channel covers.
Page 10 95V0-000-016-0X_1
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels VOGELS Support et étagère
VOGELS
VOGELS WALL 2125 Manuel utilisateur
VOGELS
VOGELS THIN 345 Manuel utilisateur
VOGELS
VOGELS EFW 8305 Manuel utilisateur
VOGELS
VOGELS PLW 1003 Manuel utilisateur
VOGELS
VOGELS W53060 Manuel utilisateur
VOGELS
VOGELS EFW 8245 Manuel utilisateur
VOGELS
VOGELS SOUND 3550 Manuel utilisateur
VOGELS
VOGELS EFW 6225 - EFW 6125 EFW 6325 Manuel utilisateur
VOGELS
VOGELS EFW 8125 Manuel utilisateur
VOGELS
VOGELS PFW6855 Manuel utilisateur
VOGELS
VOGELS TMM 106 RingO Manuel utilisateur
VOGELS
VOGELS WALL 2325 Manuel utilisateur
VOGELS
VOGELS WALL 1225 Manuel utilisateur
VOGELS
VOGELS TVM 3840 Series Manuel utilisateur
VOGELS
VOGELS PFA 9033 Manuel utilisateur
VOGELS
VOGELS EFW 8305 Manuel utilisateur
VOGELS
VOGELS TVA 6950 Manuel utilisateur
VOGELS
VOGELS WALL 1325 Manuel utilisateur
VOGELS
VOGELS PFW6857 Manuel utilisateur
VOGELS
VOGELS PFW 6870 Manuel utilisateur
Manuels Support et étagère populaires d'autres marques
Salamander
Salamander Acadia AC/W/L400/WH Manuel utilisateur
Fohhn
Fohhn VAT-09 Guide de l'utilisateur
ricoo
ricoo FS0522 Manuel utilisateur
AMSOIL
AMSOIL BMK-22 Guide rapide
Kargo Master
Kargo Master 48220 Manuel utilisateur
Milestone AV Technologies
Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur
