VOGELS TVA 6950 Manuel utilisateur

TVA 6950

Stud Adapter

Full Installation Guide

Everything you need to get your TV safely on the wall, in no time

Before you start

…we just wanted to say thanks for choosing Vogel’s. Smart choice.

And you’re already making another smart choice – reading the manual! Keep reading to learn all

about safe, efficient installation, and how to use your new mount.

Stay safe

Warning

Always read these safety instructions carefully before installing and using this product.

Following these instructions is strictly required. Incorrect mounting and/or installation could

put you, your TV, and your family at substantial risk.

TVA 6950 Stud Adapter - English 1

Don’t dare risk it… Read all

lVogel’s recommends that the mounting and/or installation of this product should be carried

out by a suitably qualified expert.

lVogel’s cannot be held responsible for any injury and/or damage caused by incorrect

installation.

lPlease consult the manual for your TV and ensure that the weight and size of the TV is within

the maximum weight and size limits specified for this product, and that the TV mounting bolts

used are of a suitable length and diameter. Note that not all the TV mounting accessories

provided are required for the installation of any one TV.

lThe wall mounting accessories provided are exclusively intended for installation on walls

made of solid brick, solid concrete or solid wood columns.

lAny material covering the wall must not exceed 3 mm/ 0.12 inch.

lFor mounting on walls made of other materials, such as hollow bricks, wood panels or

plasterboard, please consult your installer and/or specialist supplier.

lClean the product with a dry, lint-free cloth. Do not use detergents or other solvents to clean

the product.

lOnly qualified, certified personnel may repair the product. Use only original spare parts. The

use of other parts will result in voiding the warranty, and could lead to injuries.

lAlterations to the product and technical modifications are not permitted. This will void the

warranty, and could lead to injuries.

lAlways store the product in a dry and safe place with a temperature between -10°C to +50°C.

lHandle and transport the product with care.

lRepack the product when transporting or not using it for a longer period of time.

lLifting your TV is a two-person job. Don’t be bold!

TVA 6950 Stud Adapter - English 2

What’s in the box?

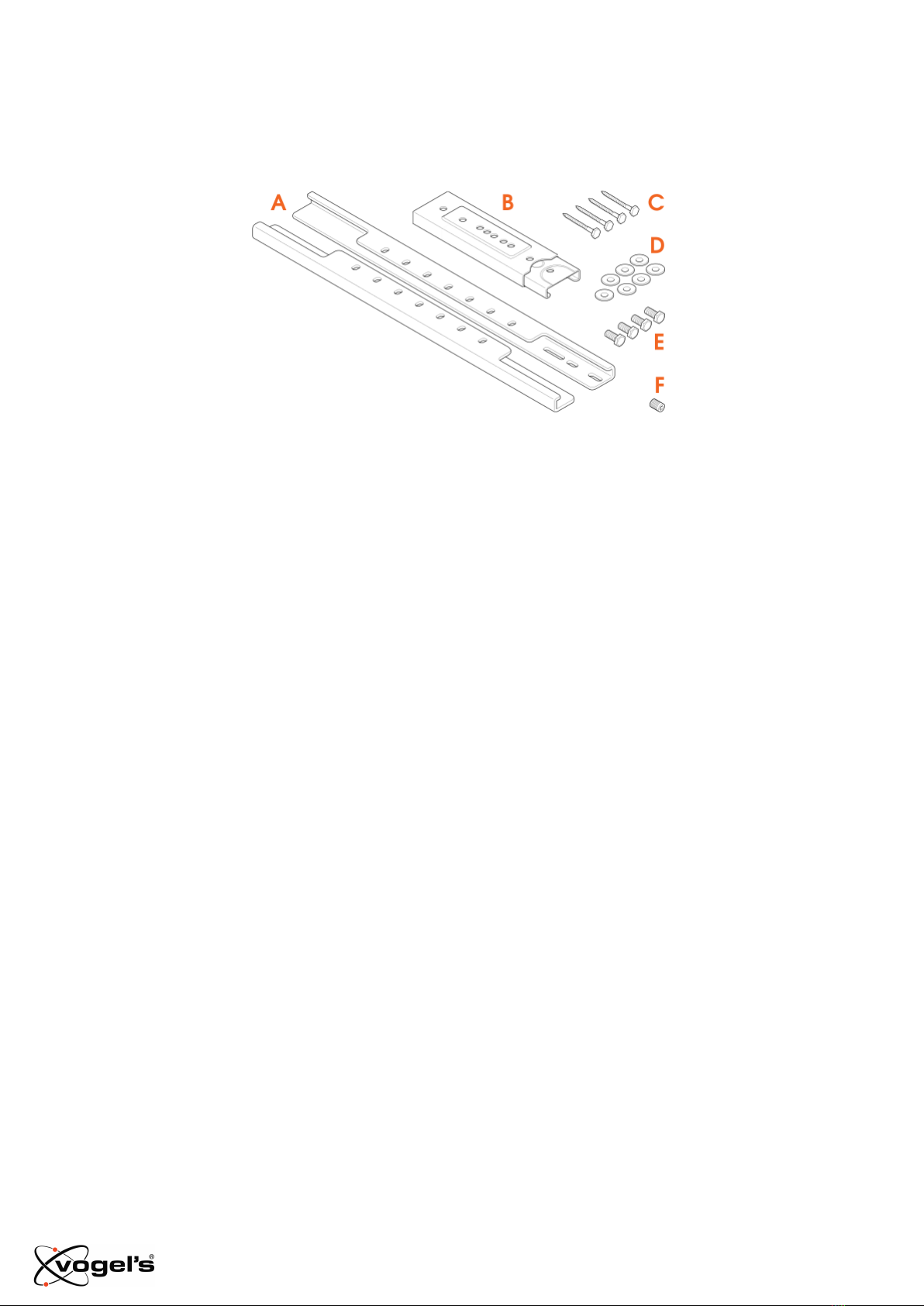

lSomething missing? Make sure your packaging has everything in place:

A. Horizontal bar (2x)

B. Vertical bracket

C. 4x Screws

D. 7x M8 washer

E. 4x M8*18mm bolts

F. 1x DIN916 set screw

TVA 6950 Stud Adapter - English 3

Got your tools ready?

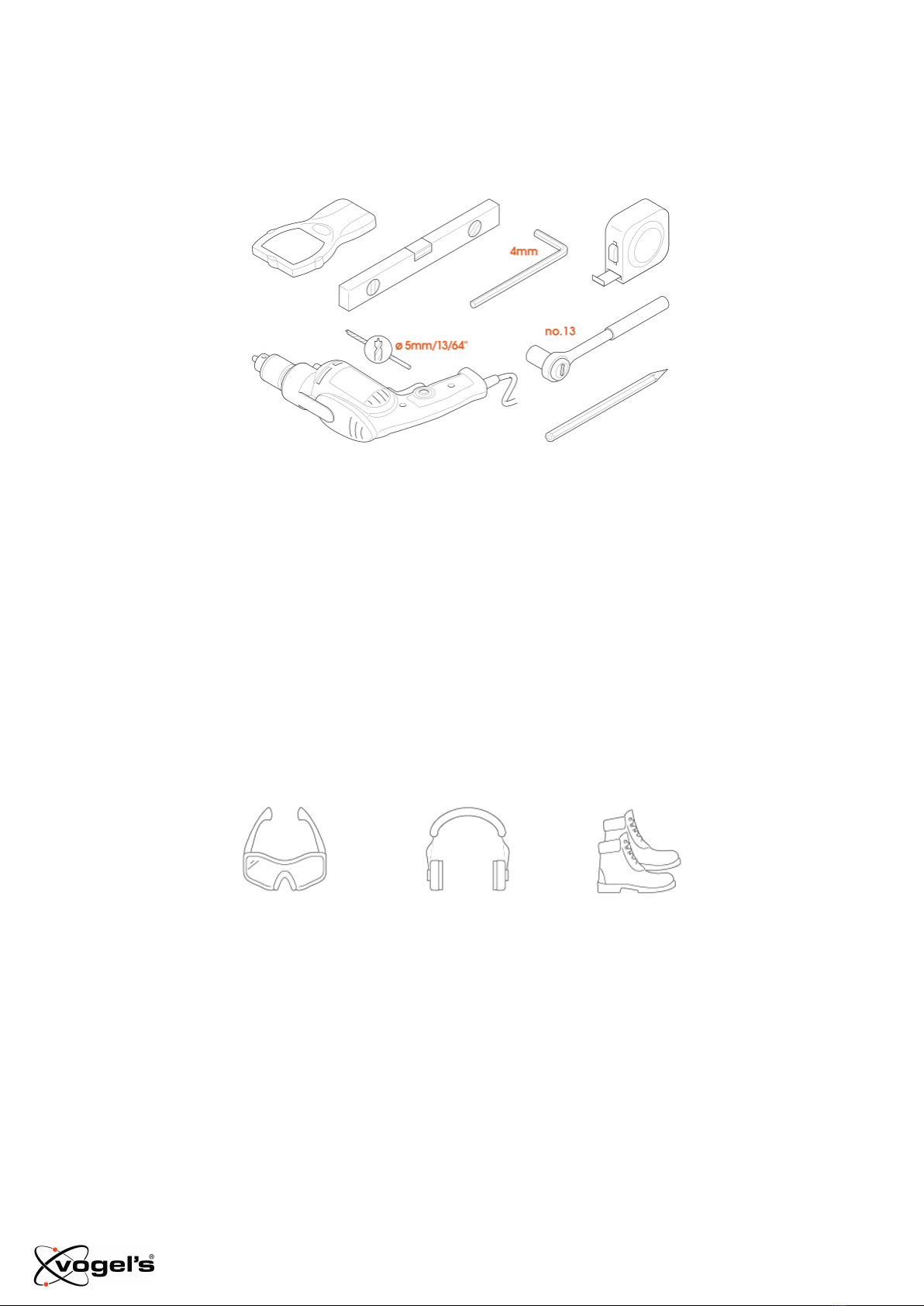

lDon’t start without all the necessary tools:

lDrilling machine

lStud finder

lTape-measure

l5mm or 13/64” wood drill (for wooden walls only)

lSpirit level

lSocket wrench no. 13

lM4 (4mm) Allen key

lPencil

Take care of your safety

lWho cares about looking cool? Always wear personal protective equipment:

lEye protection

lEar protection

lSafety shoes

TVA 6950 Stud Adapter - English 4

Watch the maximum weight

Model Max weight Model Max weight Model Max weight

TVM 3225 15 kg TVM 3425 25 kg TVM 3625 35 kg

TVM 3245 15 kg TVM 3445 25 kg TVM 3645 35 kg

TVM 1225 15 kg TVM 3465 25 kg TVM 3665 35 kg

TVM 1245 15 kg TVM 1425 25 kg TVM 1625 35 kg

  TVM 1445 35 kg TVM 1645 35 kg



Model Max weight Model Max weight Model Max weight

TVM 5445 35 kg TVM 5855 75 kg TVM 7655 35 kg

TVM 5645 45 kg   TVM 7675 35 kg

TVM 5845 55 kg    

TVA 6950 Stud Adapter - English 5

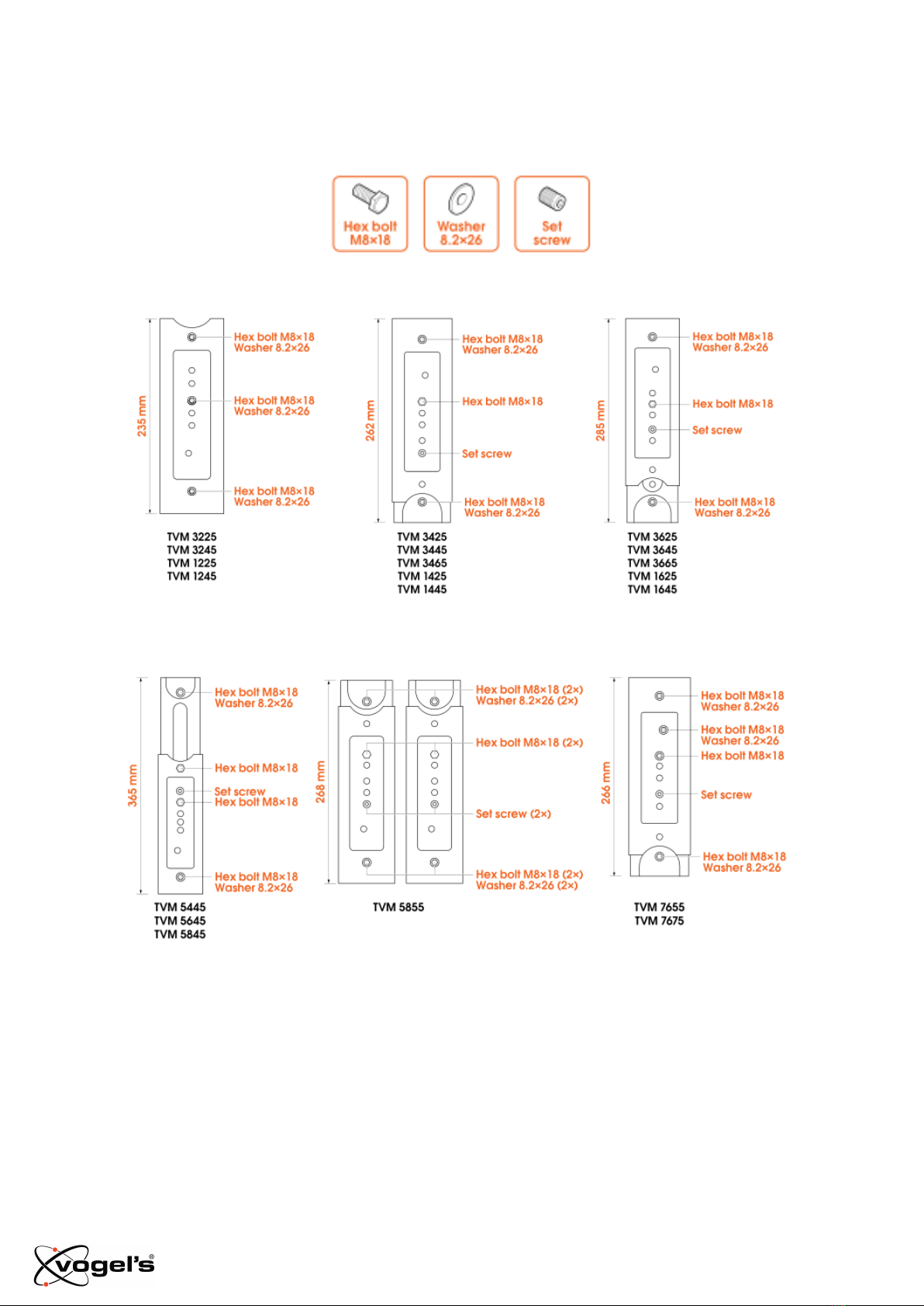

Important positioning information

TVA 6950 Stud Adapter - English 6

Ready… set… get installing!

Step 1: Attach the bottom horizontal bar to the wall

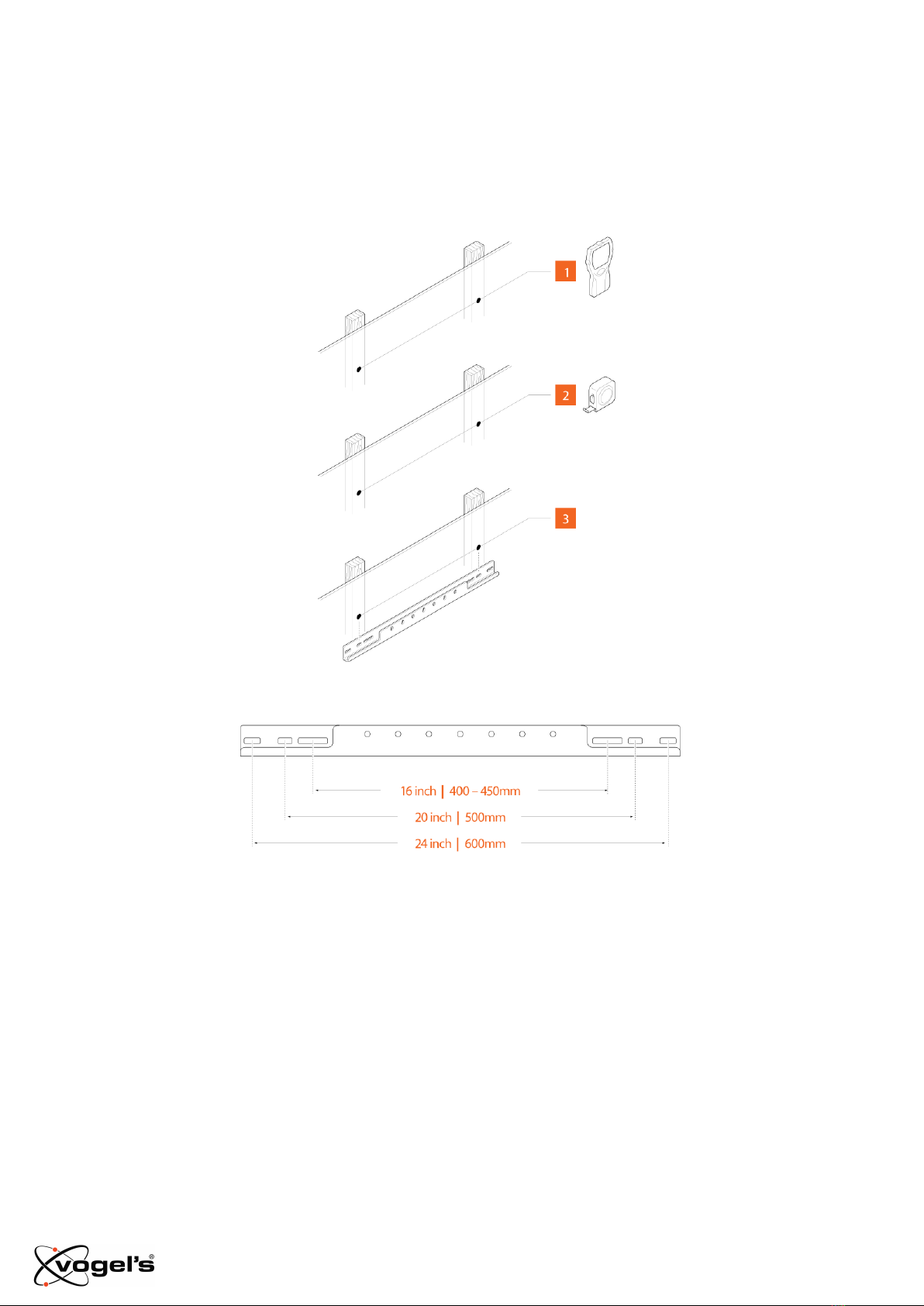

1. Don’t just guess! Use a stud finder to determine the position of the studs.

2. Use a tape-measure to determine the spacing between the studs.

3. Determine which lock holes to use that correspond with the spacing between the studs.

TVA 6950 Stud Adapter - English 7

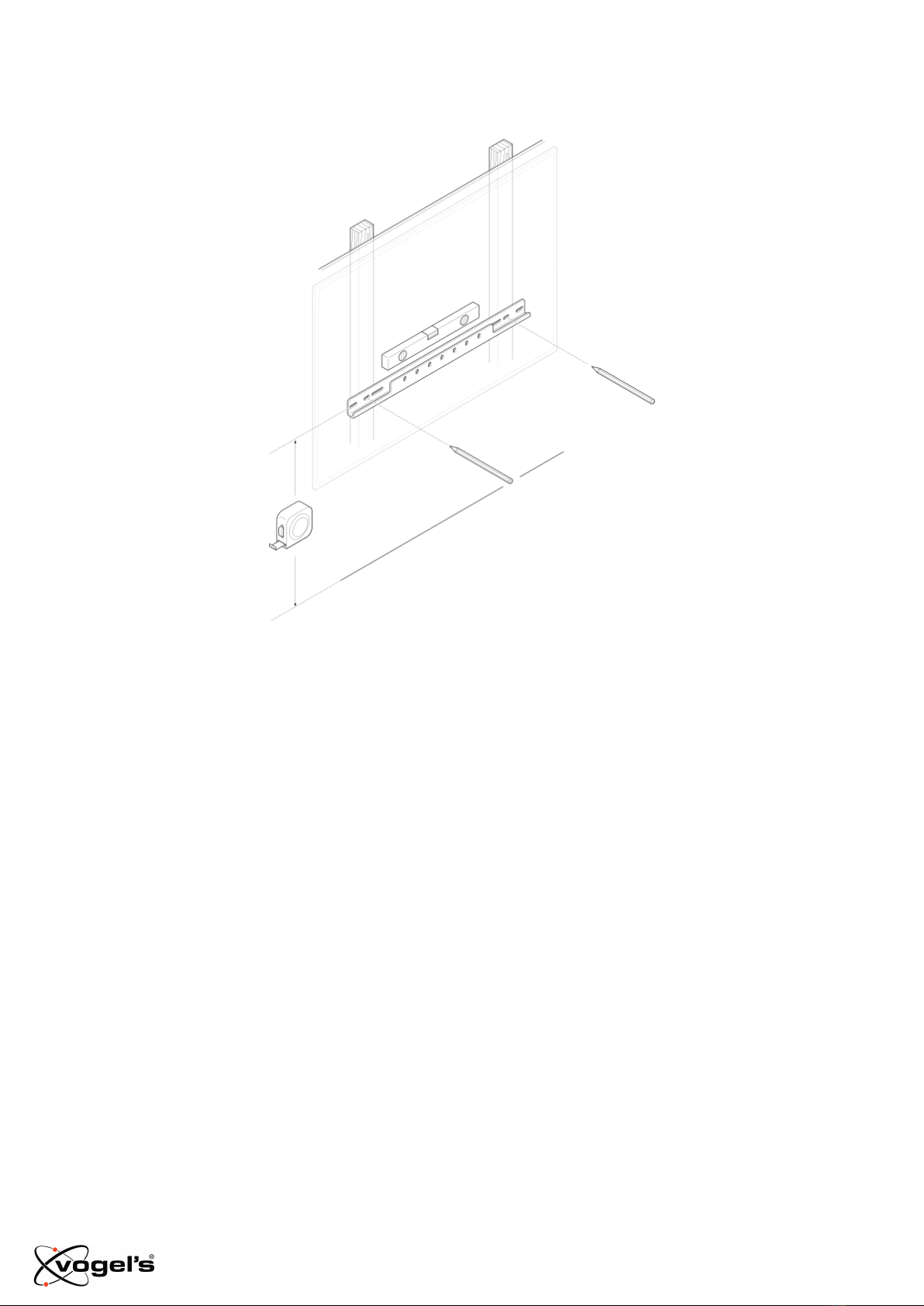

4. Determine the height of your stud adapter and mark the drilling holes using the bottom

horizontal bar.

TVA 6950 Stud Adapter - English 8

5. Remove the bottom horizontal bar.

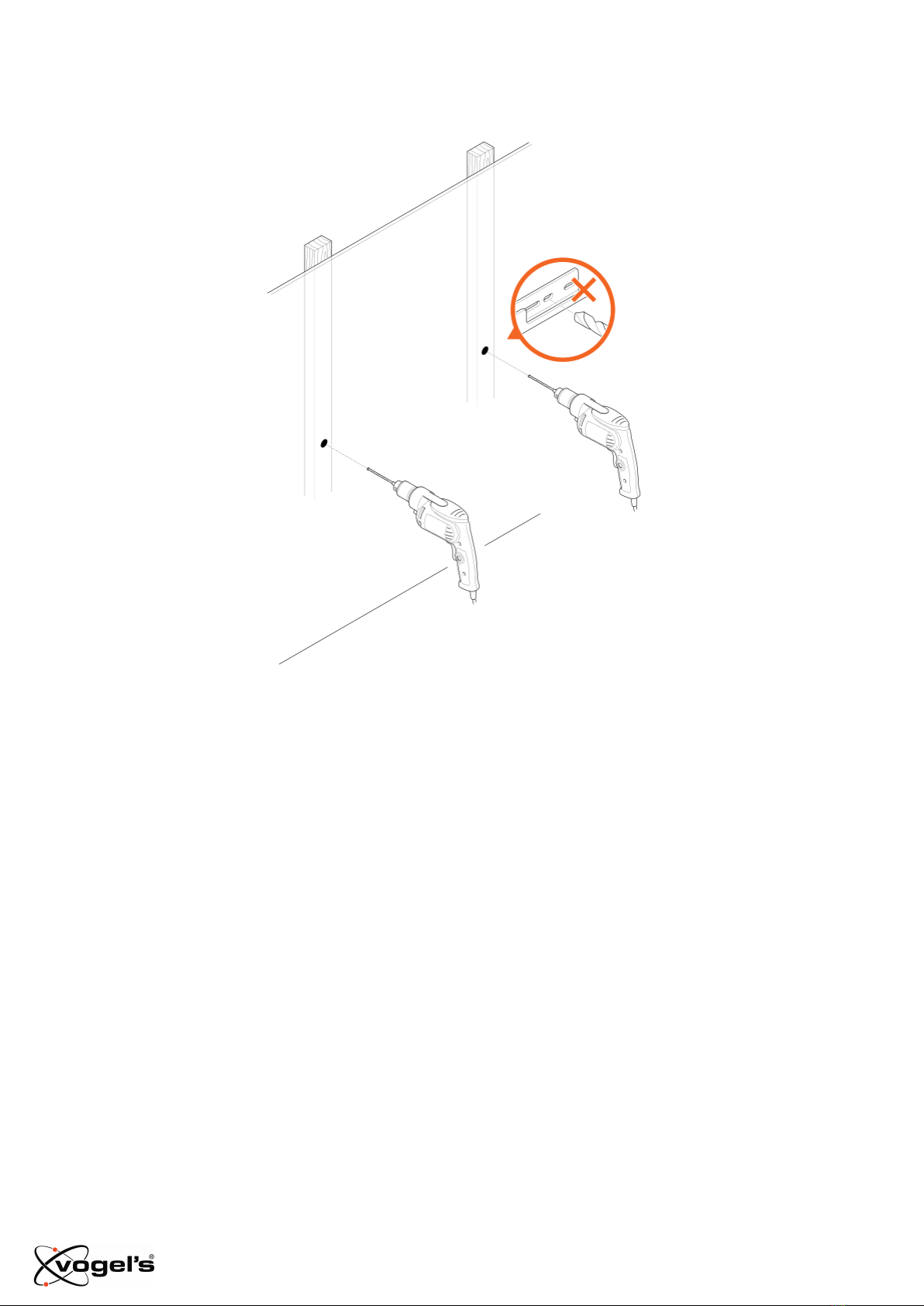

6. Now for the fun part… drilling the holes.

TVA 6950 Stud Adapter - English 9

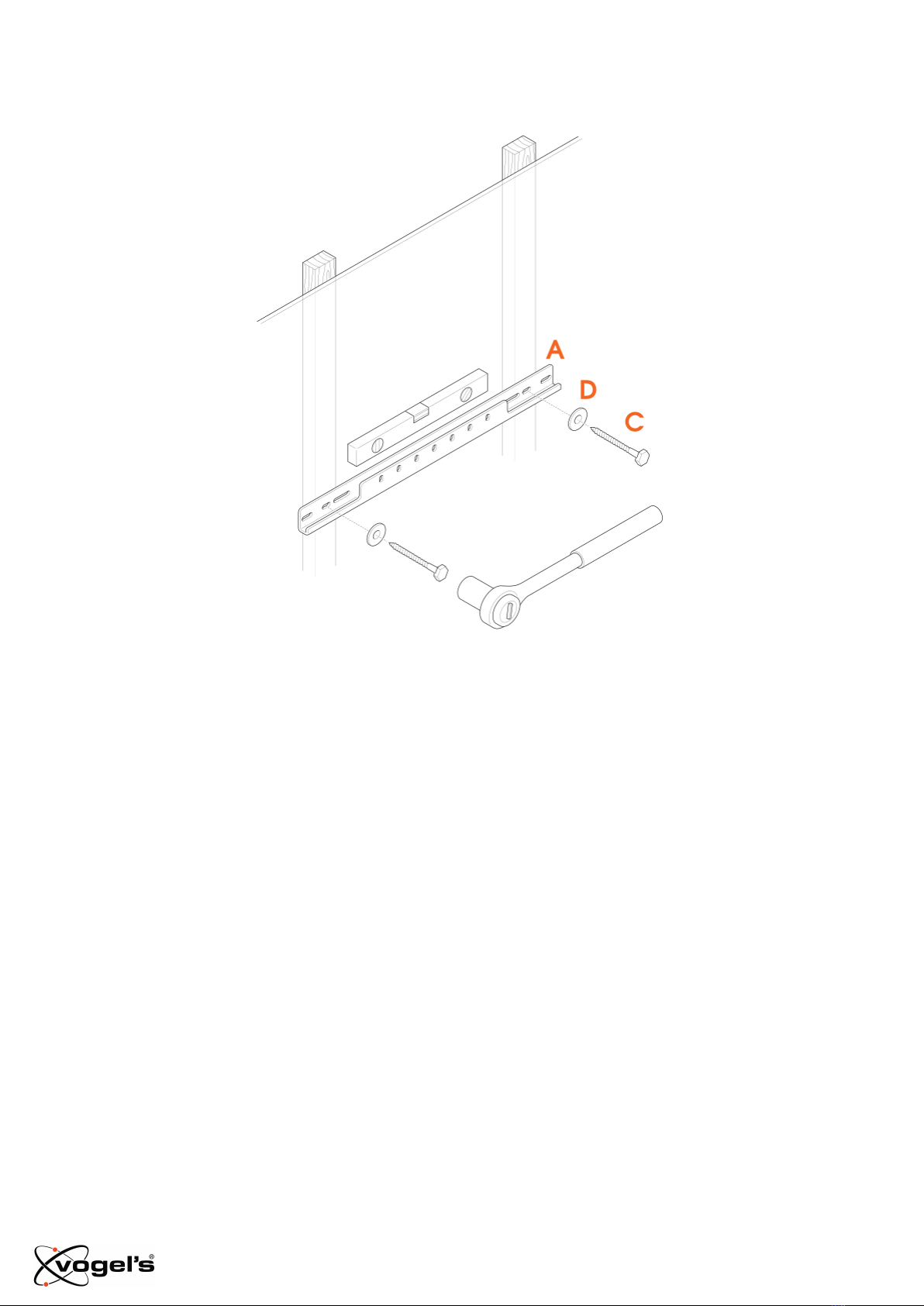

7. Attach the bottom horizontal bar Ⓐ to the wooden wall with the screws Ⓒ and washers Ⓓ

from the mounting kit.

TVA 6950 Stud Adapter - English 10
