VOGELS PFW6855 Manuel utilisateur

9531-060-Z00-01 www.vogels.com

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

PFW6855

www.vogels.com

9531-060-Z00-01

5/16” x 3” 5/16” M6 x 12mm M8 x 10mm

M8 x 16mm M8 x 20mm M8 x 30mm

M5 x 6mm

x6 x2

x4 x4 x4

x1 x1

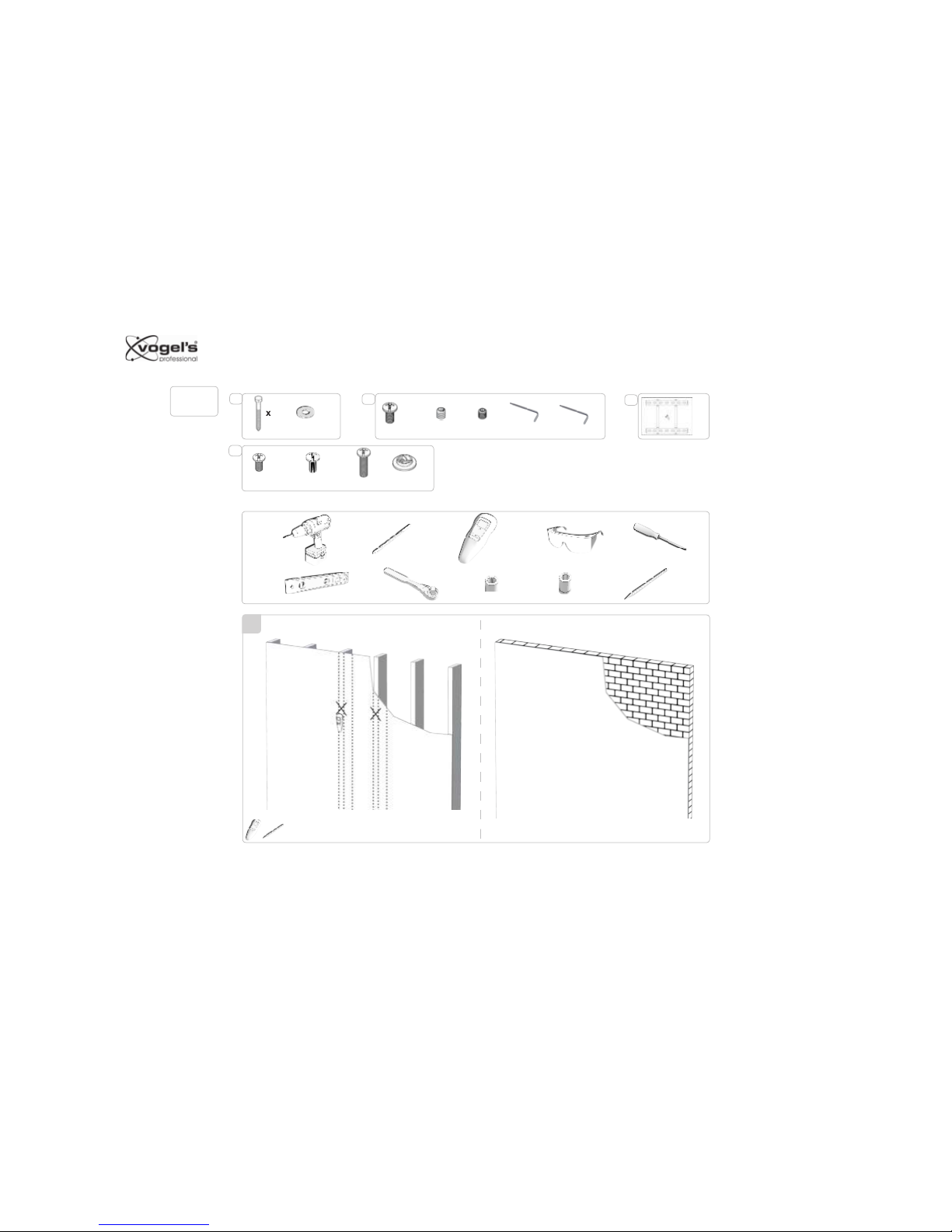

Included components

Required for installation

Drill Template

Refer to

Step: 3

10 3

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

PFW6855

2.5mm

5/32”

1/4” / 6.5mm

M10 1/2”/13mm

Stud Finder

Note: It is extremely important that this installation be

carried out by well qualified installation personal and the

mounting surface capable of supported the weight of the

display mount together through out the articulating range of

the PFW6855 series mount.

www.vogels.com

9531-060-Z00-01

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

PFW6855

2 3

1/2 ”/13 mm

1/4” / 6.5mm

4 5

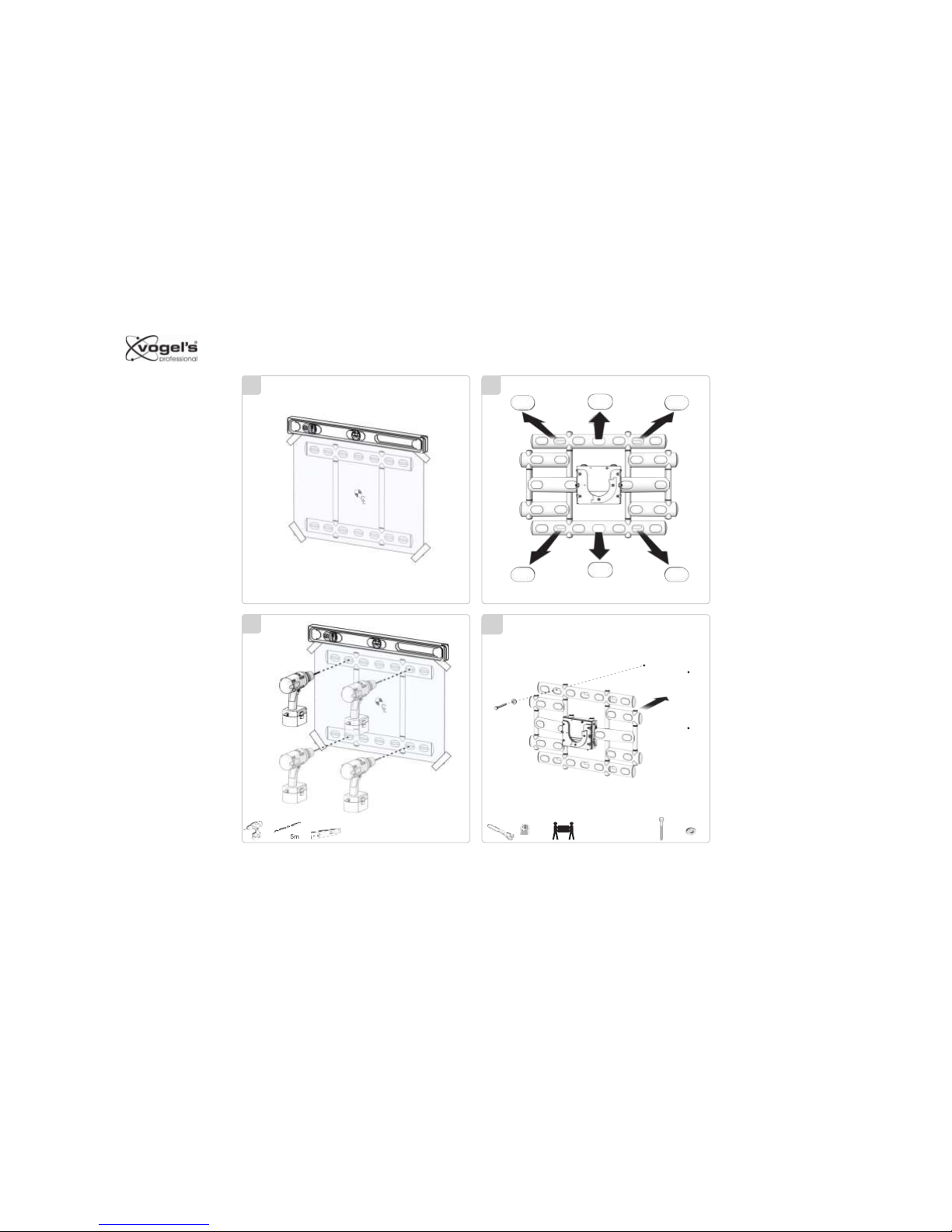

With minimum two people place the PFW6855 wall plate

assembly and secure to the wall using the top center hole of

the wall plate.

With a spirit level place on top of the wall plate level the

mounts than secure the remaining bolts through the wall

plate to the wall.

Take the mounting template supplied insure the template

is centered and level at the desired height on the mounting

surface. Mark the mounting hole (six recommended) three

on top and three on bottom.

Note: drill mounting pilot holes to a proper depth to insure

the lag or wedge anchor bolts are fully engaged into the

hole.

www.vogels.com

9531-060-Z00-01

6B 7

Make sure to keep space between

the bracket and display.

x4 x4 x4

M8 x 16 mm M8 x 20 mm M8 x 30 mm

or or

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

PFW6855

1/2 ”/13mm

8 9

5/32”

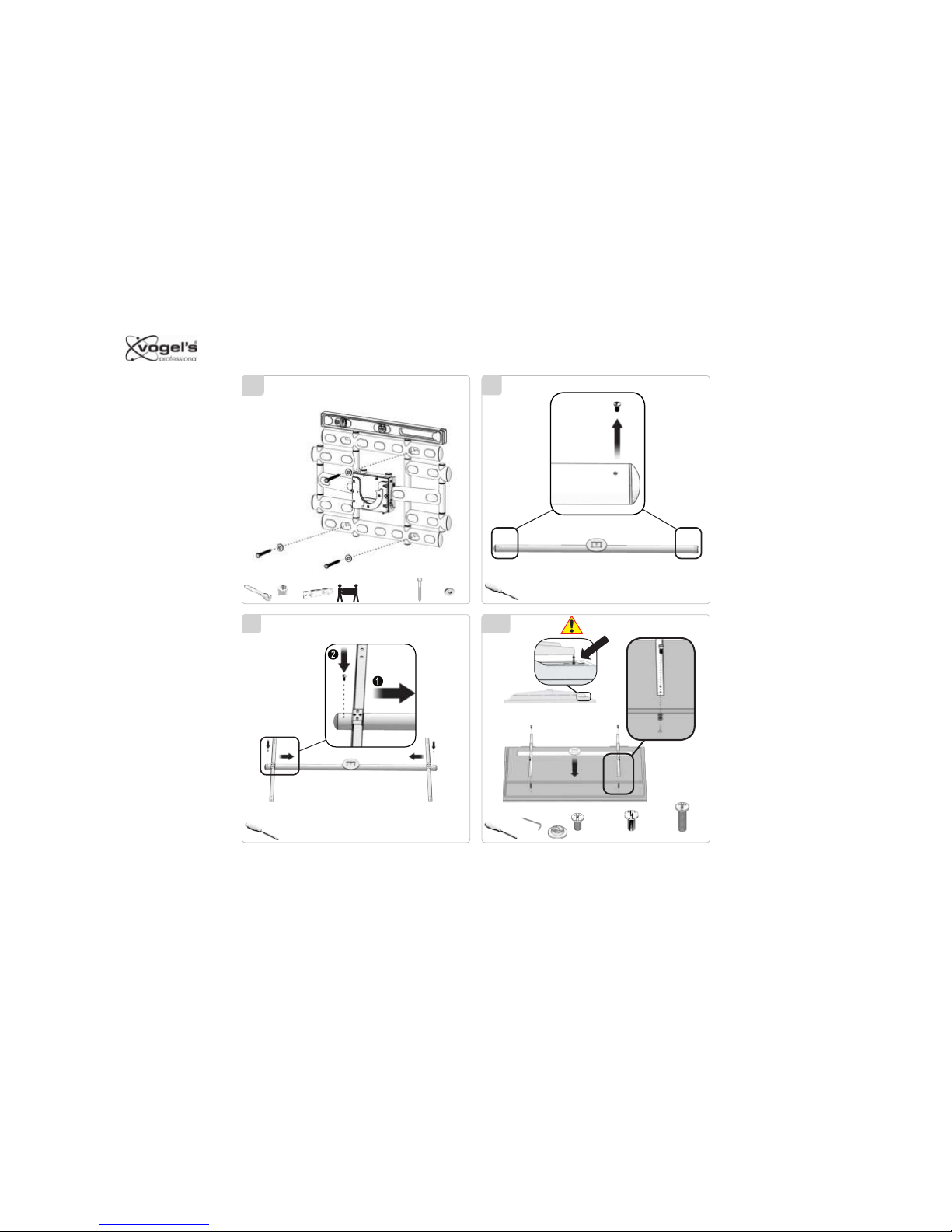

Remove the two security screws from the right and left side

of the mounting bracket crossbar and slide the two mounting

brackets inside the left and right side security screw hole

and reinstall the two security screws.

Remove the two security screws from the right and left side

of the mounting bracket crossbar and slide the two mounting

brackets inside the left and right side security screw hole

and reinstall the two security screws.

www.vogels.com

9531-060-Z00-01

411B

11A

9B Make sure to keep space between

the bracket and display.

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

PFW6855

5/32”

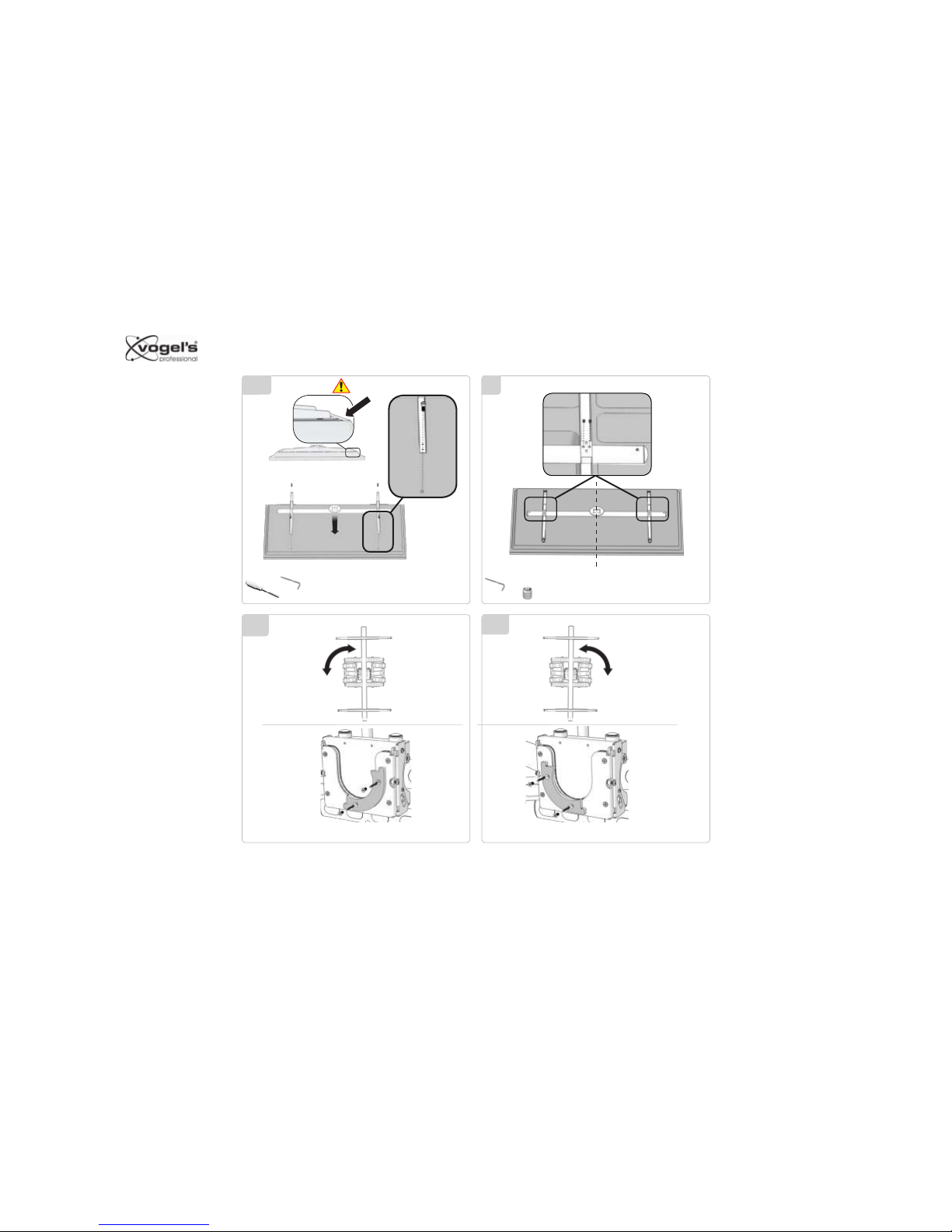

Invert the flat panel display and place it on a smooth flat

surface so the back of the display panel is facing up.

Align the two mounting bracket to the four mounting points

on the rear of the display and secure them bracket to the

display with the proper “pitch” supplied hardware. Check the

owners manual to determine correct pitch hardware recom-

mended.

Once the mounting brackets are secured to the rear of the

display, align the round portion of the cross bar so it is on

dead center of the display from left to right side.

Secure the cross bar to the bracket using the four Allen

head screws supplied.

www.vogels.com

9531-060-Z00-01

41514

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

PFW6855

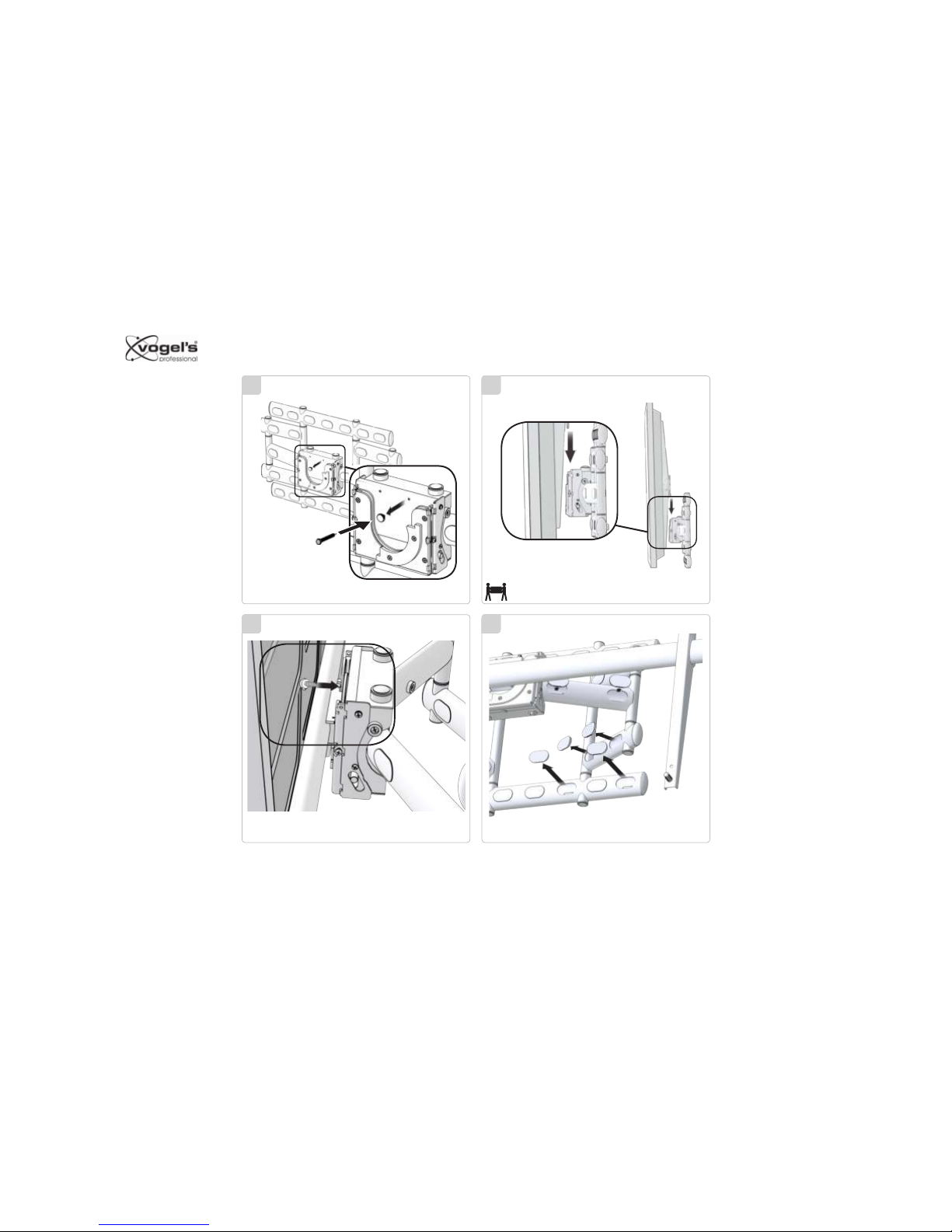

Once all mounting points and level of the display have been

confirmed, remove the plastic covers to route cable from the

wall to the display.

Note: appropriate number of personal and possible installa-

tion lift aids lift and insert the round portion of the crossbar

with display attached and safely insert the round portion of

the cross bar into the open round receiver portion on the

wall mount.

Remove the 6mm knurl knob safety screw and set it aside.

With the cross bar fully seating

into the receiver reinstall the

6mm safety knurl knob.

www.vogels.com

9531-060-Z00-01

41918

With the 2.5mm Allen head wrench supplied, install the two

each M5 x 6mm mini adjustment Allen head screws supplied

to both sides of the “rotation” stop bar. Slowly turn the display

to the level position in each direction and adjust the two adjust

screw to set max rotation in each direction to level.

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

PFW6855

M2.5

M10 M5 x 6 mm

=14mm wrench socket

The PFW6855 has a unique “load offset adjustment” feature

that allow for the heavier weight displays to be tilt corrected

past base center back to level from top to bottom. With

personal lifting gently “out “ on the bottom of the display a

9/16” (14mm) socket may be used to increase or decrease

the tilt feature of the mount.

The two side mounted screws in the receiver head of the

mount can be adjusted to add or subtract tension in the rota-

tion of the display in the mount.

Power and signal cables may be conveniently run through

the arms of the mount between the display and the power

and signal source to assist in the clean look of the cable

installed.

Note: Once cables have been installed carefully check the

movement of the mount and cables together to insure their is

no “pinching of the cables” when the mount is articulated.

www.vogels.com

9531-060-Z00-01

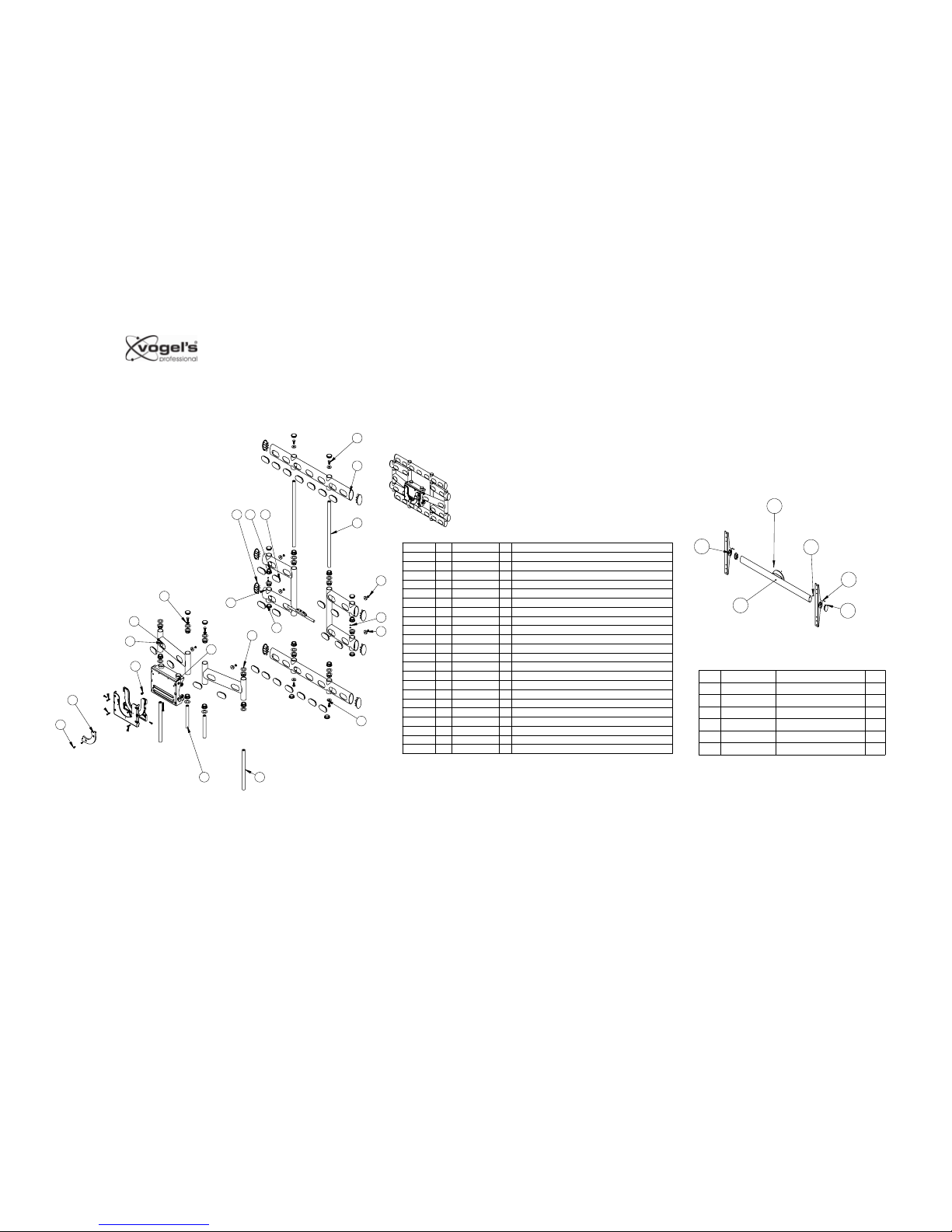

ITEM NO.

PART NUMBER

DESCRIPTION

QTY.

3106-000-036-XX

MOUNTING BRACKET WELD ASSEMBLY

(ELLIPTICAL)

6095-PSD-E-E

PLASTIC CAP (ELLIPTICAL TUBE 3.149 X

1.574 )

3106-000-034-XX

SWIVEL TUBE ASSEMBLY

0474-061-104-6X

SCREW PAN PHILLIPS COMB (M6X1.0 X 12)

1658-079-091-6X

SET SCREW CUP POINT ( M8 X 1.25 X 10 )

1658-052-061-6X

SET SCREW CUP POINT ( M5 X 0.8 X 6 )

ITEM NO.

PART NUMBER

DESCRIPTION

QTY.

3106-000-037-XX

MOUNTING BRACKET ASSEMBLY LARGE

(ELLIPTICAL)

3106-000-035-XX

SWIVEL TUBE ASSEMBLY (LARGE)

6095-PSD-E-E

PLASTIC CAP (ELLIPTICAL TUBE 3.149 X

1.574 )

0474-061-104-6X

SCREW PAN PHILLIPS COMB (M6X1.0 X 12)

1658-079-091-6X

SET SCREW CUP POINT ( M8 X 1.25 X 10 )

1658-052-061-6X

SET SCREW CUP POINT ( M5 X 0.8 X 6 )

ITEM NO.

PART NUMBER

DESCRIPTION

QTY.

3106-000-035-XX

SWIVEL TUBE ASSEMBLY (LARGE)

6095-PSD-E-E

PLASTIC CAP (ELLIPTICAL TUBE 3.149 X 1.574 )

0474-061-104-6X

SCREW PAN PHILLIPS COMB (M6X1.0 X 12)

3106-000-038-XX

MOUNTING BRACKET ASSEMBLY XLARGE (ELLIPTICAL)

1658-079-091-6X

SET SCREW CUP POINT ( M8 X 1.25 X 10 )

1658-052-061-6X

SET SCREW CUP POINT ( M5 X 0.8 X 6 )

108 6

415

ITEM NO.

QTY.

PART NO.

REV

DESCRIPTION

1 2

3106-000-032-XX

WALL BRACKET TUBE WELDED ASSEMBLY (ELLIPTICAL)

2 2

3106-000-031-XX

DOUBLE ARM TUBE WELDED ASSEMBLY

3 2

3106-000-033-XX

00 SHORT ARM WELDED ASSEMBLY (ELLIPTICAL)

4 2 2482-21-AM3 01

SHAFT .75 X 12" LONG

5 2 2482-22-AM3 01

SHAFT .75 X 20" LONG

6 26 2482-23-AM3 00

COVER,OBLONG HOLE COVER (PLASTIC)

7 10

0700-205-226-XX

TUBE/PIPE END CAP COVER 1.181 X 1.375 X .616

8 8

6095-PSD-E-E

PLASTIC CAP (ELLIPTICAL TUBE 3.149 X 1.574 )

9 12

0477-087-147-6X

HEX FULLY THREADED 3/8"-16 x 3/4"

10 20 2482-36-AM3 01

BUSHING FLANGE DIE CAST .750 ID X 1.180 OD X 1.395 FLANGE .

11 10

204X-57A-L00-69

3/8" WASHER NON-STD (.405 ID) X (1.062 OD) X (.098 THK)

12 2

204X-578-502-10

3/8" WASHER NON-STD (.406 ID) X (.748 OD) X (.066 THK)

13 12

204X-86B-N00-28

WASHER DELRIN (.765 ID) X (1.400 OD) X (.020 THK)

14 1

3106-000-022-XX

ROTATIONAL MOUNT ASSEMBLY

15 2

3106-000-013-XX

SHAFT .75 X 6.67" LONG

16 10

2270-45A-E01-45

1" X .3 VINYL FEET

17 10

0548-061-077-6X

SCREW TRUSS HEAD COMBO PHILLIPS (M6X1.0X8)

18 2

3106-000-003-XX

INTERNAL ROTATION TUBE

19 8

1658-061-077-6X

SET SCREW CUP POINT ( M6 X 1.0 x 8 )

20 1

3106-000-024-XX

ROTATIONAL STOP

21 2

0422-061-104-6X

SCREW FLAT 90 DEGREES PHILLIPS (M6 x 1.0 x 12)

22 1

0562-061-077-6X

SCREW KNURL KNOB PHILLIPS (M6X1.0 X 8)

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

PFW6855
