IP Surveillance

Installation Guide

IP9165-LPC

License Plate Capturing Solution

Highway & Street

Rev. 1.0

Ordering part no.:

IP9165-LPC (Highway): 199004200G

IP9165-LPC (Street): 199004100G

Document part no.: 625046000G

Specications

Model Number LPC enclosure

Power Input 24V AC

Max. Output power budget 48W (Street); 80W (Highway)

Power Consumption Window heater: 10W; Blower: 2W; Camera: 6 ~ 8W

Environmental Operation Temp. -20°C ~ +50°C (-4°F ~ +149°F)

Protection Level IP68, IK10

Mounting Bracket Fully-cable Management

Construction Die-cast Aluminum Alloy

Coating White epoxy powder coating

Dimensions 502.8 (L) x 170 (W) x 400 (H) mm

Net Weight 6,482g (9.24 lb)

CAUTION:

TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE COVER.

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

UNPACKING:

Unpack carefully. Electronic components can be damaged if improperly handled or

dropped. If an item appears damaged in shipment, place it properly in its carton and

notify the shipper.

IMPORTANT!:

1. Read and follow Instructions: All operating and user instructions should be read and

followed before the unit is to be operated.

2. Electrical Connections: Only a qualied electrician is allowed to make electrical

connections.

English

Please note the following for different applications:

If you use IP9165-LPC for parking area or highway, you must select the LPR

scene mode.

Depending on the car speed at your surveillance scene, please select an

appropriate scene mode:

Maximum car speed Scene mode

50km/hr (32mph) LPC-Parking Lot

90km/hr (55mph) LPC-Street (default)

180km/hr (110mph) LPC-Highway

The Scene mode option can be found in Application > Media > Image

settings.

Mounting Conguration & Dimensions

Swivel Positions and Directions

105 mm

502.8 mm

135.5 mm

158.5 mm

170 mm

400 mm

77.4 mm

USABLE

AREA

255 mm

USABLE AREA

400

170 502.8

English

Installation Suggestions

If you plan to install this camera enclosure into a tropical, sea coastal, or an environment

where salt water or corrosive industrial waste water/moist are present, please seal each

stainless steel screws and ttings with a silicon grease compounds. This will help prevent

electrolysis to occur and extend the life span of the camera and housing.

IMPORTANT:

1. Disconnect devices: A readily accessible disconnect device in the building installation wiring

should be incorporated.

2. Electrical Connection: Only a qualied electrician is allowed to make electrical connections.

Component Description

III

Camera Mounting Platform

M16 1/2" Waterproof cable gland

Power distribution

board

Ventilation fan Window frame heater

coil

• Please avoid eye exposure or apply appropriate protection, such as wearing a pair of Infrared

protection glasses, when working with the product. Always use camera live view to oberve IR

lighting effects.

WARNING:

Installation

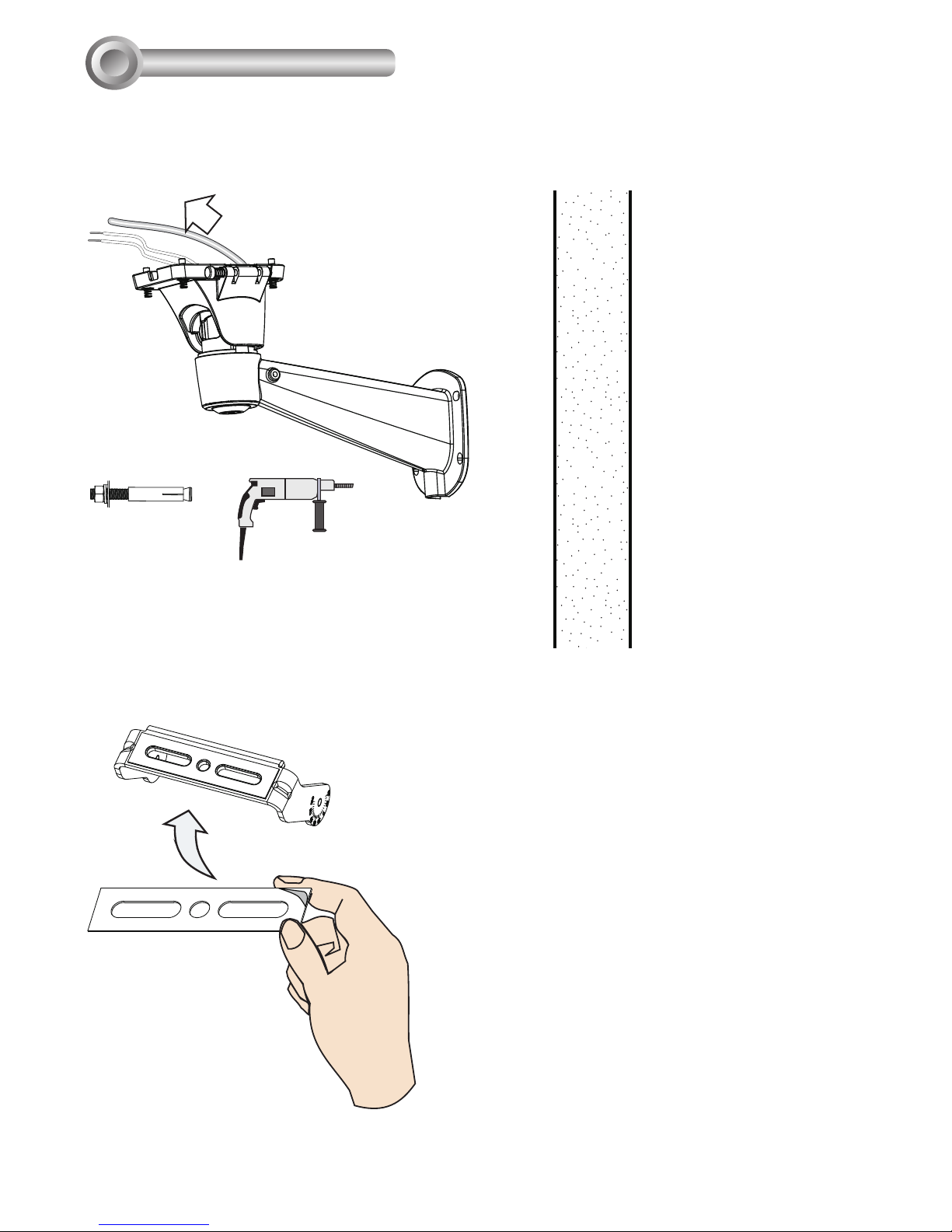

1. Install the wall-mount bracket to a preferred location at your installation site. Drill

mounting holes and a cable routing hole (if preferred) on a wall. Install the bracket.

Prepare and route the wiring, Ethernet and 24V power source.

2. Install the IR illuminator to the bottom of the housing. Attach the included grip stricker

to the U bracket.

English

3. Secure the U bracket to the IR illuminator using the included wrench and hex screws.

4. Flip the housing over and place it on a clean, stable surface. Secure the IR illuminator

to the bottom of the housing using the included wrench and a hex socket screw.

6. Prepare power wires, a ground wire, and a CAT5e Ethernet cable. Pass them through

the M16 waterproof connectors under the housing.

Ethernet cable Ø4 ~ 6.5mm

Power wires & DI/DO wires,

a combo cable from IR illuminator

(if applied)

5. You can turn the IR illuminator so that its at side is parallel with the housing, and that

you can turn the assembly over and work on the inside of the housing. Put a foam pad

below before you work on the wiring to avoid scratching the surface.

English

7. When done, tighten up and install the waterproof connectors.

8. Assemble the camera components, e.g., the CS ring and lens module. Secure the

mounting plate to the bottom of the camera (the label side) using the included screw.

There is a plastic mount pad in the package. You do not need the mounting pad

using the VIVOTEK camera.

o: white/orange stripe

O: orange solid

g: white/green stripe

B: blue solid

b: white/blue stripe

G: green solid

br: white/brown stripe

BR: brown solid

You may need to remove the RJ45 connector, and use a crimping tool to connect the

Ethernet wires to an RJ45 connector inside the enclosure. Use an Ethernet cable of the

width of 4 ~ 6.5mm.

Lens flush

w/ edge of

enclosure

9. Adjust the camera's position so that the lens module can ush align with the tempered

glass. Secure the camera using the screws and washers to the bottom of the housing.

10. Connect 24V power source to the power input terminal. Connect power wires from

the DC 12V output to the camera. Connect the 24V power output to drive the external IRs.

Heater

Blower

IR angle selector

(Not used for this model)

I/O terminal block

(Not used for this model)

Camera heater

24V AC/DC IN 12V DC OUT

24V AC/DC OUT

Connectors to the front IR

(Not used for this model)

Power LED
