IP Surveillance

Installation Guide

VIVOTEK Fixed Dome & Fisheye Series

Mounting Cap

Using AM-514 mounting cap

and compatible accessories

Rev. 1.0

Part no.: 625031700G

Ordering part no.:

100138800G ASS'Y KIT,AM-514_V01

625031700G_AM-514_ig_VVTK_rev1.0_20150910.indd 1 2015/9/10 上午 11:20:05

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

AM-514 Mounting Cap Mechanical Drawings

Revision History:

* Rev. 1.0: Initial Release

Compatible VIVOTEK Cameras

Fixed Dome series FD8167 / FD8138-H / FD9171 / FD816B / FD8182

Fisheye FE8174

You may also refer to VIVOTEK's website for the list of supported models. Support for other models can

be available through time.

Package Contents: AM-514, Installation Guide, 4x panhead M4x7, 2x copper spacer,

625031700G_AM-514_ig_VVTK_rev1.0_20150910.indd 2 2015/9/10 上午 11:20:05

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

English

Installation

Above are the locations of different groups of mounting holes for matching different junction

boxes:

Hole

Type

Applicable Box Drawings Screw No. of

screws

4" square box

#8-32, L15

(User-supplied) 2

4" octagon box

#8-32, L15

(User-supplied) 2

1" single gang box

#6-32, L15

(User-supplied) 2

Mounting Hole Denitions

User a hammer and screwdriver to open the

knock out holes you prefer to use.

625031700G_AM-514_ig_VVTK_rev1.0_20150910.indd 3 2015/9/10 上午 11:20:06

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Installing the Mounting Cap

NOTE:

1. Route cables before you secure the accessories to a wall.

2. For details on the cable connections with network cameras, please refer to their Quick

Installation Guide.

Hole

Type

Applicable Cameras Screw No. of screws

AFD9171, FD816B,

FD8182 #8-32, L15 (User-supplied) 2

BFD8167, FD8138-H #8-32, L15 (User-supplied) 2

1FE8174 #6-32, L15 (User-supplied) + copper spacers 2

1. Route cables through the junction box.

625031700G_AM-514_ig_VVTK_rev1.0_20150910.indd 4 2015/9/10 上午 11:20:06

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

English

Hole 1

2. If installing FE8174 sheye camera, install two copper spacers to holes 1's.

3. Install the mount cap to the junction box. Use screw holes specied on page 3

depending on the type of junction box.

625031700G_AM-514_ig_VVTK_rev1.0_20150910.indd 5 2015/9/10 上午 11:20:06

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

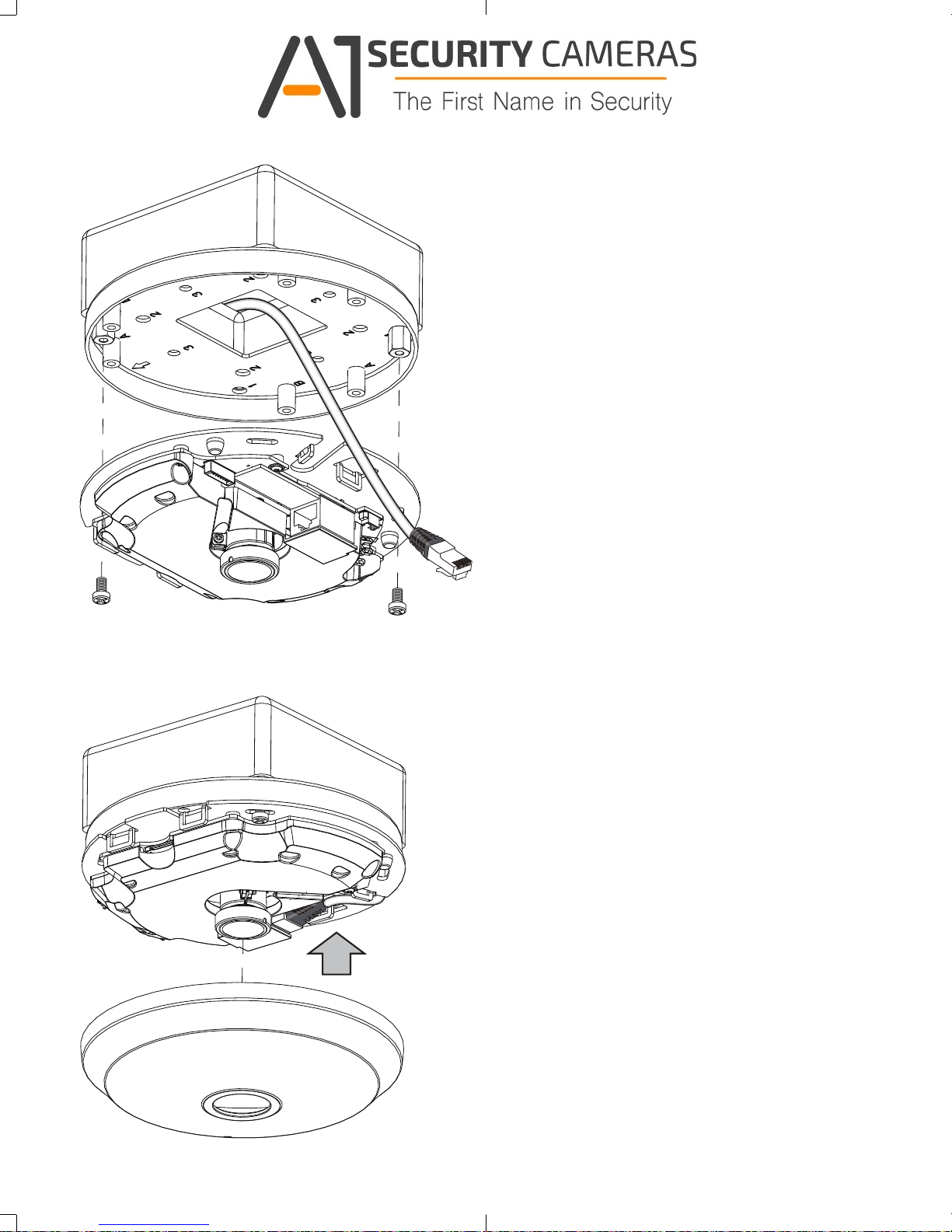

4-1. FE8174.

4-1-1. Install the camera to the mount cap by fastening two screws to the threaded holes

on the copper spacers.

4-1-2. Connect the cables and install the top cover.

625031700G_AM-514_ig_VVTK_rev1.0_20150910.indd 6 2015/9/10 上午 11:20:08

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

English

4-2. FD9171/FD816B/FD8182.

4-2-1. Install the camera to the mount cap by fastening three screws. You will need to

remove the plastic tab on the routing hole in order to pass the cables.

4-2-2. Connect the cables and install the top cover.

625031700G_AM-514_ig_VVTK_rev1.0_20150910.indd 7 2015/9/10 上午 11:20:09

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

4-3. FD8167/FD8138H.

4-3-1. Fasten screws to the mounting cap. Do not completely tighten the screws. Leave

part of the screws out.

4-3-2. Install the camera to the mounting cap by turning it counter-clockwise so that the

screw heads t in the keyhole slots. Fasten the screws, and then connect the cables.

4-3-3. Install the dome cover. Tune the focus, and refer to the

documentation that came with your cameras for the rest of

conguration details.

625031700G_AM-514_ig_VVTK_rev1.0_20150910.indd 8 2015/9/10 上午 11:20:11
