Vivo MOUNT-VW06 Manuel utilisateur

TV Wall Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-vw06

SKU: MOUNT-VW06

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

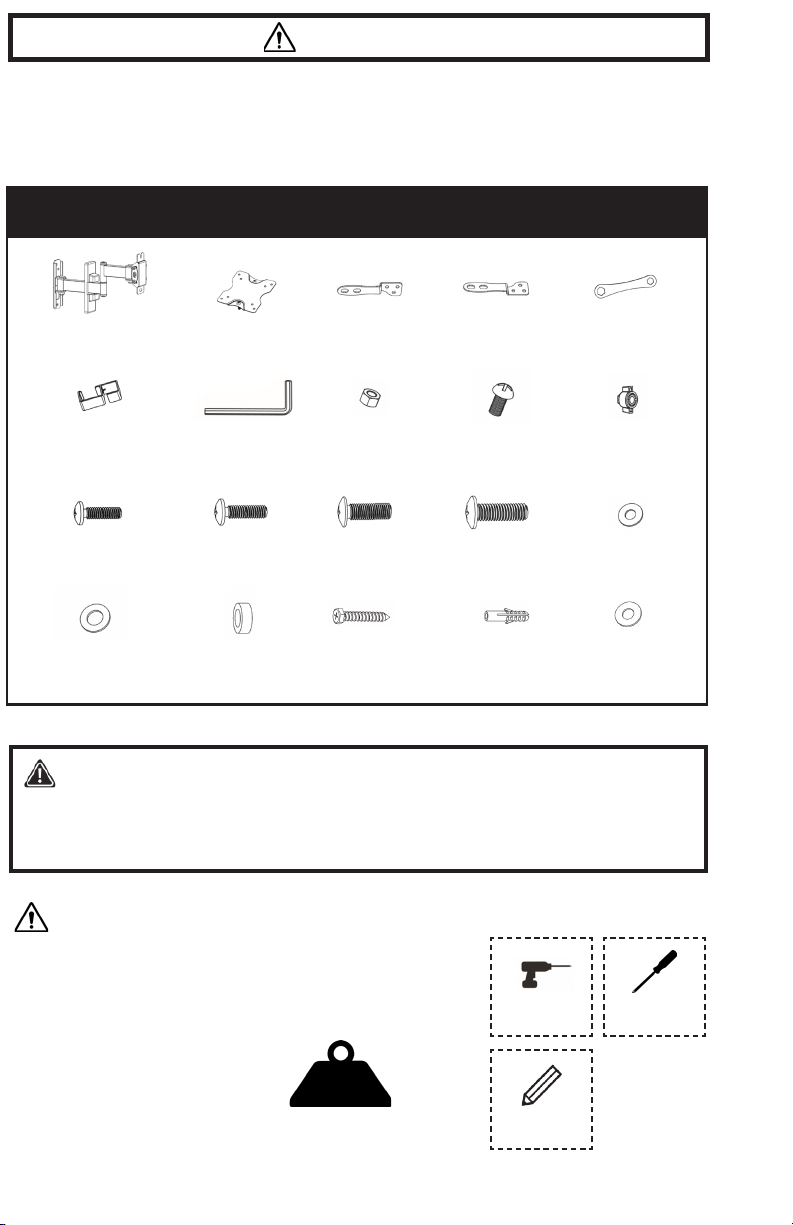

PACKAGE CONTENTS

44lbs

(19.96kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

B(x1)

VESA Plate

M-F (x4)

D8 Washer

M-G x8)

Spacer

W-A (x3)

Bolt

M-E (x4)

D5 Washer

M-A (x4)

M4x14

M-B (x4)

M5x14

M-C (x4)

M6x14

M-D (x4)

M8x20

If you do not understand these directions, or if you have any doubts about the safety of the installation,

please call a qualified technician. Check carefully to make sure there are no missing or defective parts.

Improper installation may cause damage or serious injury. Do not use this product for any purpose that is

not explicitly specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or

injury caused by improper mounting, incorrect assembly or inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

W-C (x3)

Washer

W-B (x3)

Anchor

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.

com, email at [email protected], or call us at 309-278-5303.

F (x1)

Cable Clip

G(x1)

Allen Wrench

I(x8)

Bolt

C(x2)

VESA Adapter

D(x2)

VESA Adapter

H(x8)

Nut

A (x1)

Mount

J (x2)

Nut

E(x1)

Wrench

TOOLS NEEDED

Phillips

Screwdriver

Drill

Pencil

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS.

ADULT SUPERVISION IS REQUIRED.

ASSEMBLY STEPS

STEP 1

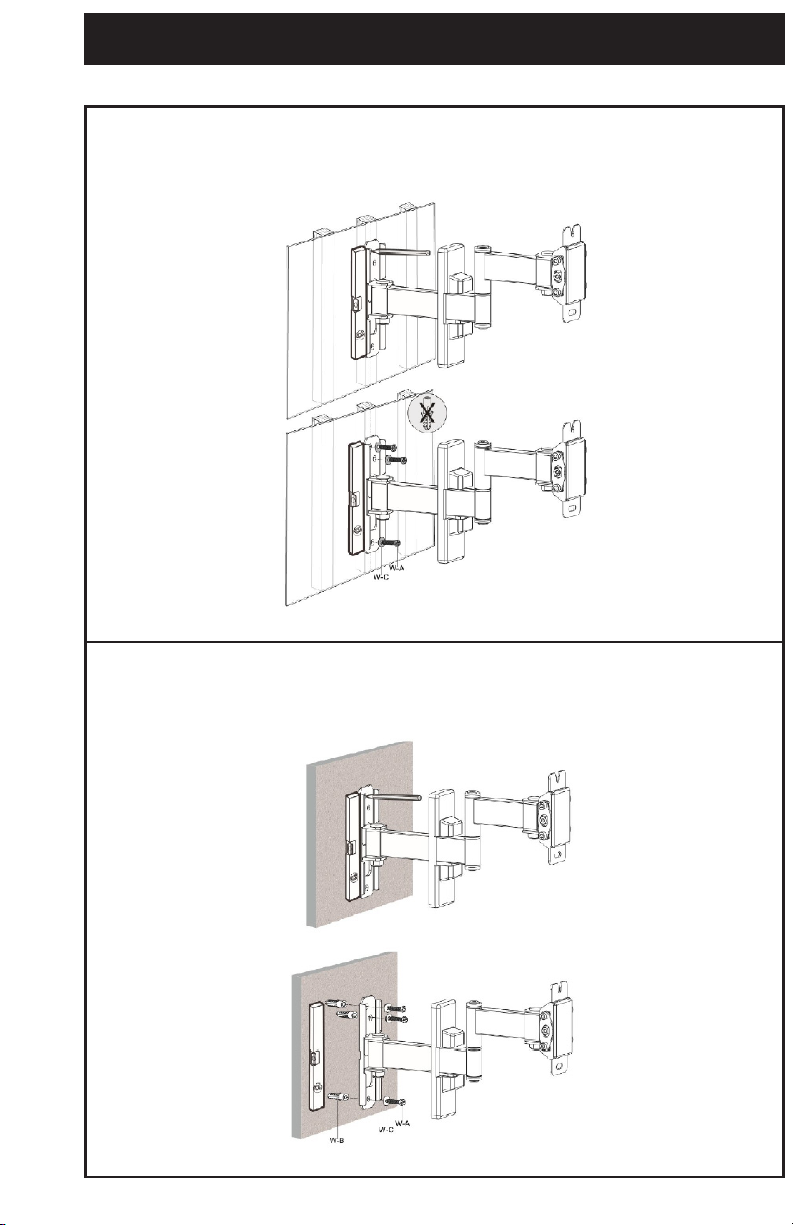

OPTION A: Wood Wall

Use mount (A) to mark mounting holes on wall where stud is located. Using a 3/16” bit, drill

approximately 2.2” into marked locations. Secure mount (A) to wall using bolts (W-A) and washers

(W-C).

OPTION B: Concrete/Brick Wall

Use mount (A) to mark mounting holes on wall. Using a 3/8” bit, drill approximately 2.4” into marked

locations. Secure mount (A) to wall using anchors (W-B) bolts (W-A) and washers (W-C).

STEP 2

STEP 3

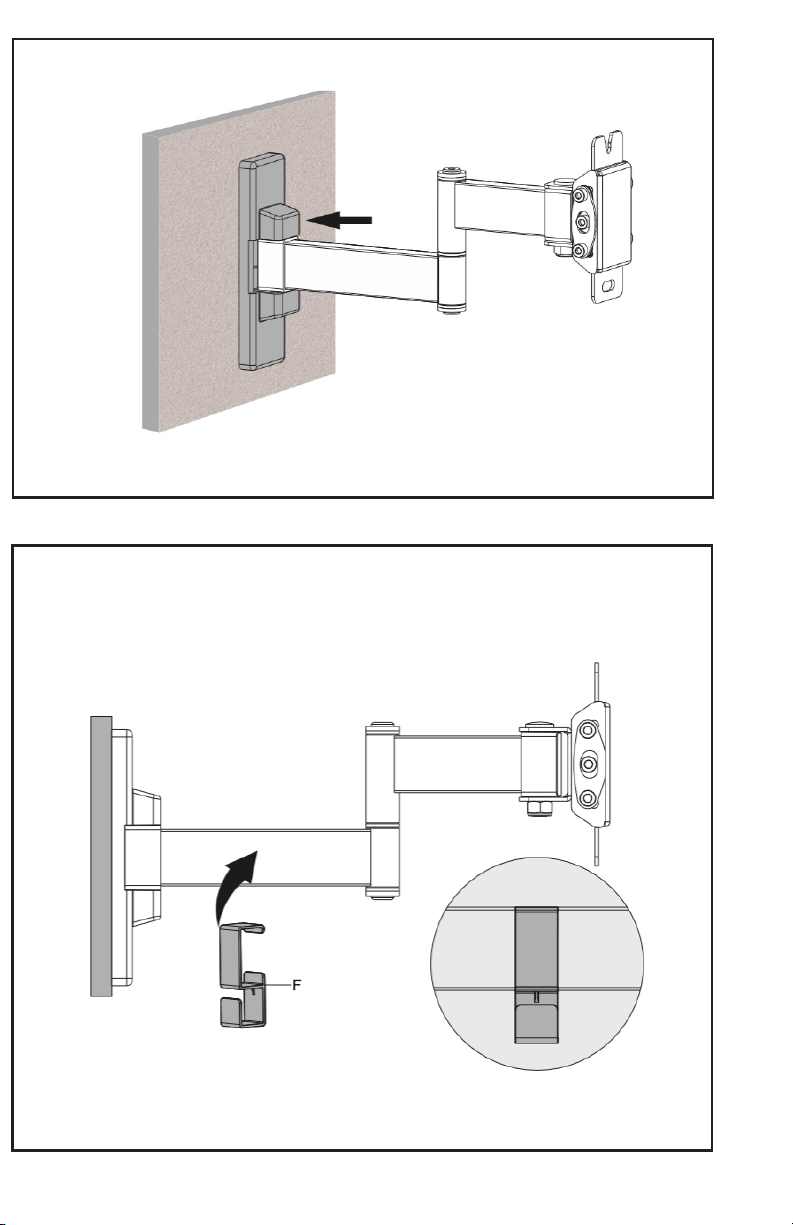

Attach plastic cover to mount (A).

Attach cable management clip (F) as shown in diagram.

STEP 4

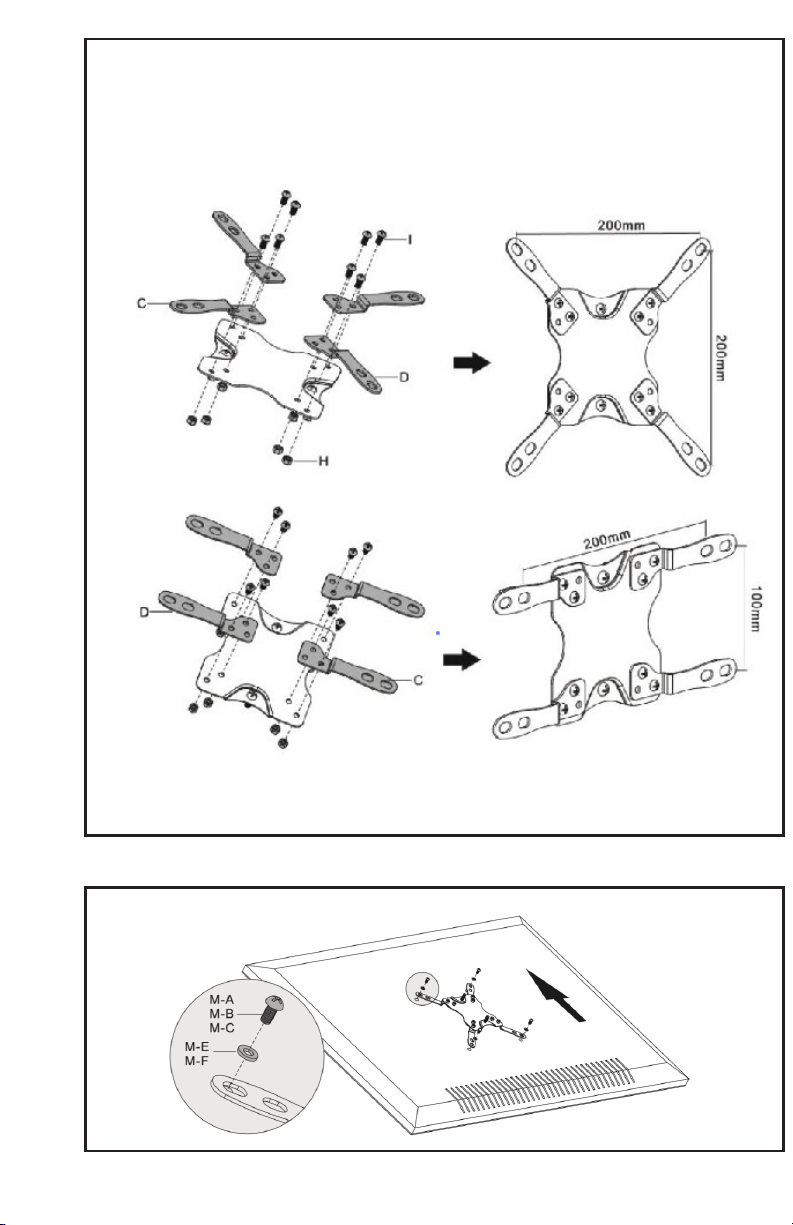

Mount VESA adapters (C) and (D) to VESA plate (B) using bolts (I) and nuts (H) in the appropriate

configuration to match your television’s mounting holes.

STEP 5

Mount VESA plate (B) to back of TV using bolts (M-A, M-B, M-C) and washers (M-E, M-F).

STEP 5 (Continued)

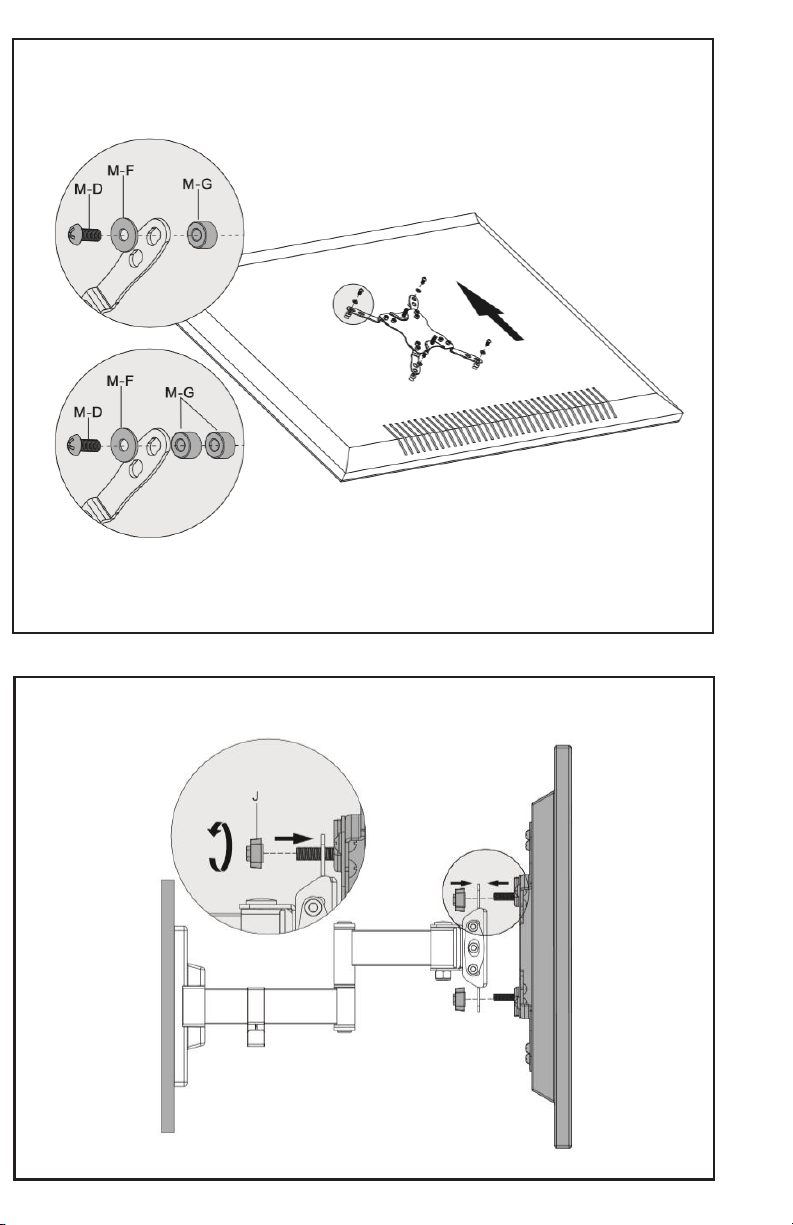

If bolts are too long, spacers (M-G) may be required as shown in diagram.

STEP 6

Attach TV to mount (A) using nuts (J).

STEP 7

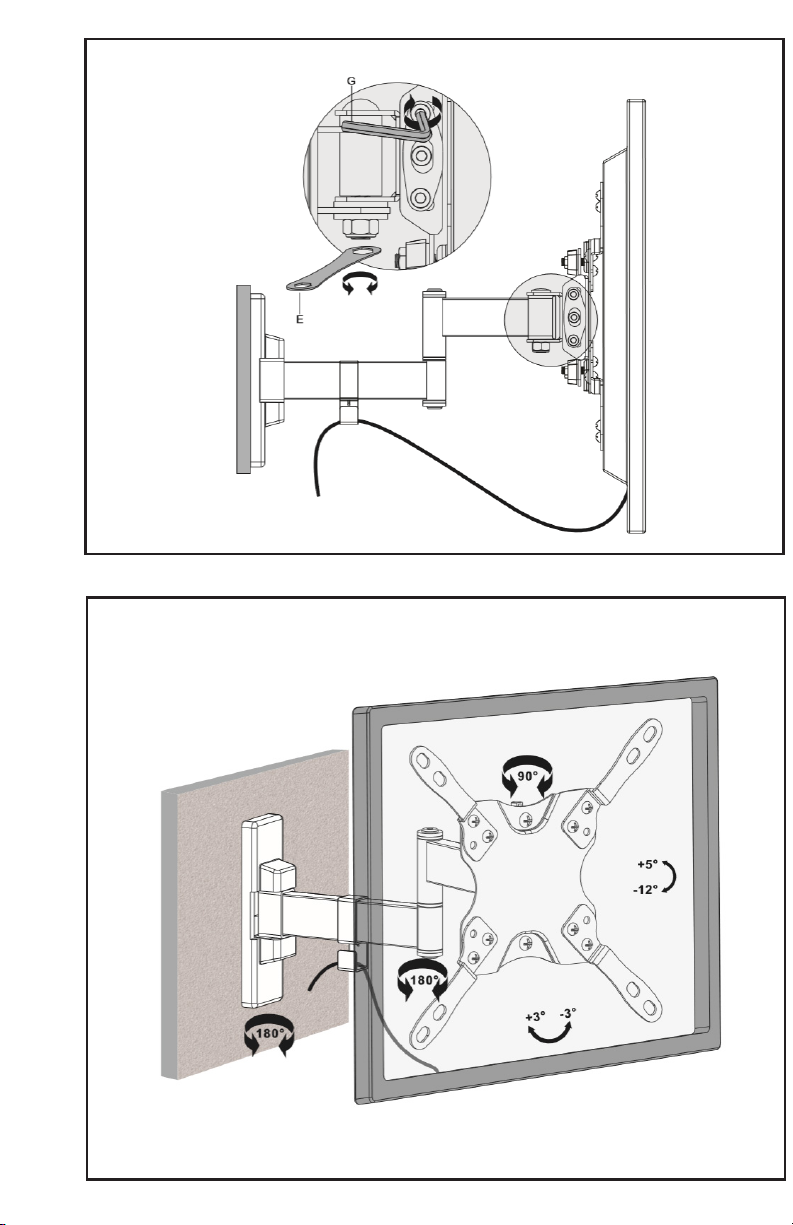

Adjust mount (A) using allen wrench (G) and wrench (E).

Adjust as Desired

LAST UPDATED: 03/05/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
