Vivo MOUNT-POLE01W Manuel utilisateur

White Bracket Pole Mount for VESA

75x75mm and 100x100mm

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-pole01

SKU: MOUNT-POLE01W

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

2 3

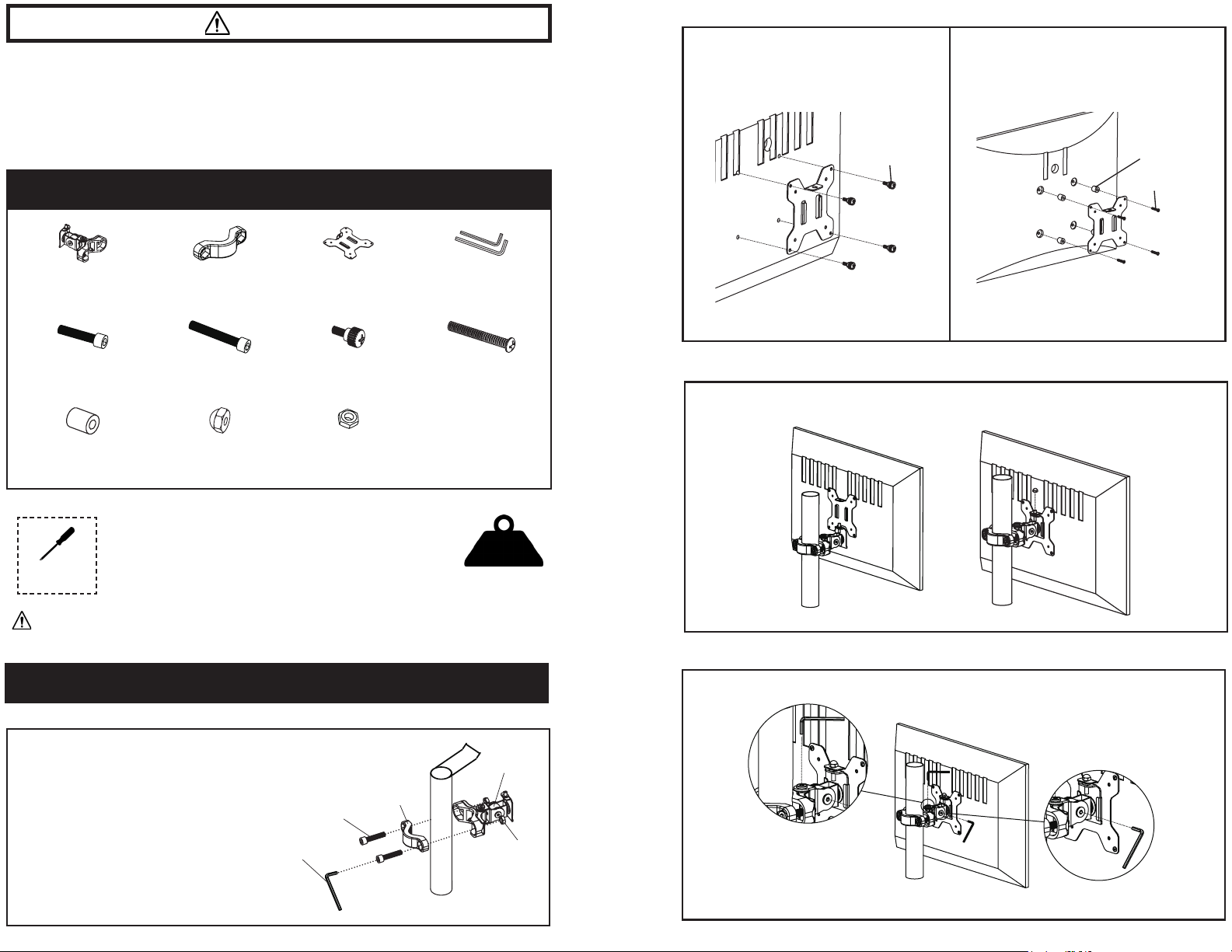

ASSEMBLY STEPS

STEP 3

Slide VESA plate with monitor onto the head of the mounting bracket, and secure with M6 cap nut (j).

PACKAGE CONTENTS

TOOLS NEEDED

WARNING!

Phillips

Screwdriver

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

d(x1)

Allen Wrench

Set

c(x1)

VESA Plate

a(x1)

Mounting

Bracket

e(x2)

M10x45

k(x2)

M10 Nut

j(x1)

M6 Cap Nut

i(x4)

M4 Spacer

f(x2)

M10x60

b(x1)

Pole Clamp

g(x4)

M4x12

h(x4)

M4x30

Adjust tilt and swivel joints using the medium Allen wrench (d).

STEP 1

É==Ñ

STEP 2

OPTION A: Flat Back Monitor

Attach VESA plate (c) to monitor using M4x12

thumb screws. Please note, the screws only need

to be finger-tight.

OPTION B: Curved Back Monitor

Attach VESA plate (c) to monitor using M4x30

screws (h) with M4 spacers (i). Do not over-

tighten.

STEP 4

Install mounting bracket (a) and pole clamp (b) to

pole using M10 bolts (e, f) and M10 nuts (k). Use

M10x45 bolts (e) for smaller poles or M10x60 bolts

(f) for larger poles. Tighten with the large Allen

wrench (d).

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

22lbs

(9.97kg)

e. f

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

LAST UPDATED: 02/22/2022

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
