Vivo MOUNT-SPSB2 Manuel utilisateur

Universal Soundbar TV Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-spsb2

SKU: MOUNT-SPSB2

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

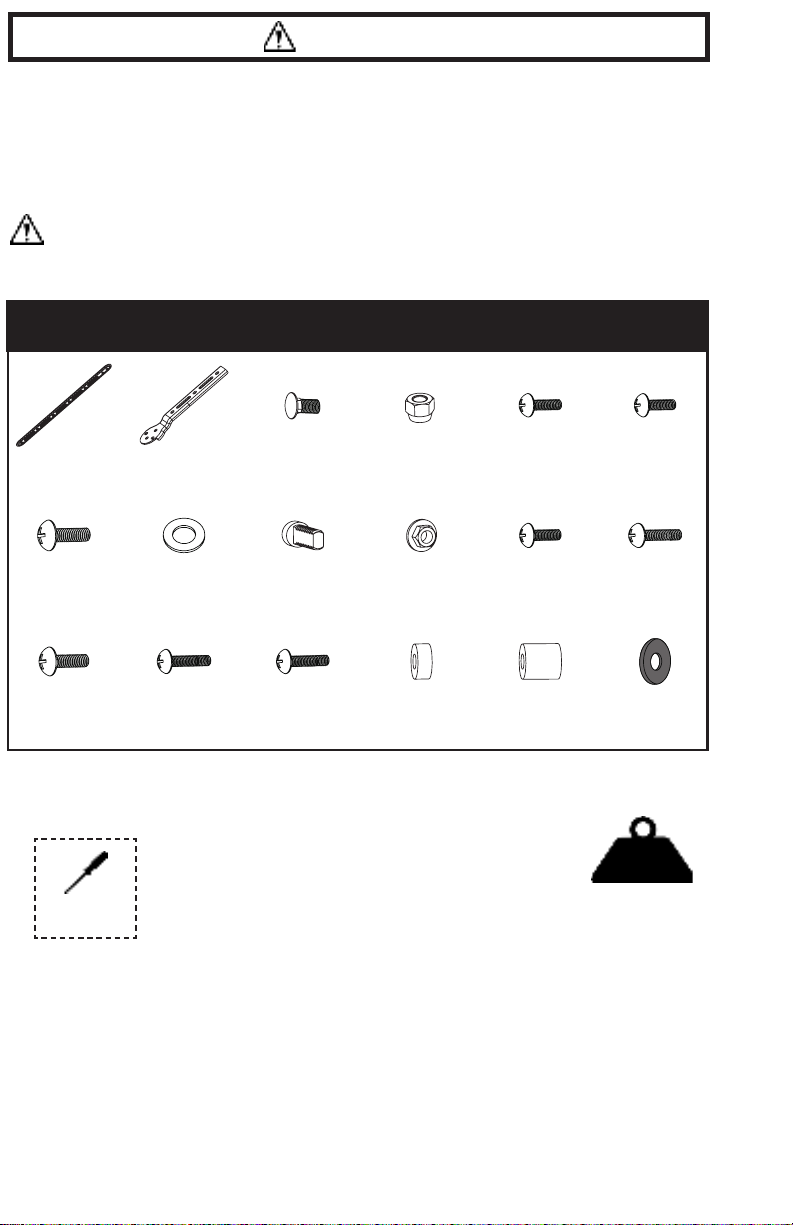

PACKAGE CONTENTS

TOOLS NEEDED

33lbs

(14.97kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

A (x2)

Long Arm

B(x2)

Short Arm

C(x4)

M6x10

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

D(x4)

Nyloc Nut

E (x2)

M4x14

F (x2)

M5x14

G (x2)

M6x14

H(x2)

D5 Washer

I(x2)

M6x14

J(x2)

M6 Nut

K (x4)

M6x14

L (x4)

M6x20

M (x4)

M8x20

N(x4)

M6x30

O(x4)

M8x30

P(x8)

Spacer

Q (x4)

Spacer

R (x2)

Washer

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

ASSEMBLY STEPS

STEP 1

1A-1

Install long arms (A) to soundbar. For small

M4 or M5 threaded holes, use screws (E or

F) and washers (H). For larger M6 threaded

holes, use screws (G) without washers. For

wall hanging slot holes, insert flat side bolts

(I) fully into slots, position square holes in

arms over bolts, and tighten with nuts (J).

1A-2

Assemble soundbar with MOUNT-SPSB2 adapter and VESA brackets from your TV mount to TV. Use one

of the five following methods, depending on your TV’s requirements. The adapter should be mounted

between the TV and the VESA brackets.

With TV face-down on a table, position soundbar against edge of TV and align arms with lower VESA

mounting holes in TV.

E/ F

STEP 1 (Continued)

OPTION 1: For top two holes, use

spacers (P) between TV and brackets,

and secure with screws (K). For lower

two holes, secure VESA brackets and

adapter using screws (K).

OPTION 2: For top two holes, use

spacers (P, R) between TV and VESA

brackets, and secure with screws

(L,M). For lower two holes, use spacer

(P) and secure VESA brackets and

adapter using screws (L or M).

OPTION 3: For top two holes, use

spacers (P, R) between TV and VESA

brackets, and secure with screws (L or

M). For lower two holes, use spacers

(P) and secure VESA brackets and

adapter using screws (L or M).

OPTION 4: For top two holes, use

spacers (Q and R) between TV and

VESA brackets, and secure with screws

(N or O). For lower two holes, use

spacers (Q) and secure VESA brackets

and adapter using screws (N or O).

OPTION 5: For top two holes, use

spacers (P, Q, and R) between TV and

VESA brackets, and secure with screws

(N or O). For lower two holes, use

spacers (P and Q) and secure VESA

brackets and adapter using screws

(N or O).

K K

L/ M L/ M

N/ O

N/ O N/ O

STEP 1 (Continued)

1B-1

Install short arms (B) to long arms (A) using carriage

bolts (C) and nyloc nuts (D). Assemble straight or

at an angle, depending on your soundbar and TV’s

requirements.

1B-2

Install assembled arms to soundbar. For small M4 or M5 threaded holes, use screws (E or F) and

washers (H). For larger M6 threaded holes, use screws (G) without washers. For wall hanging slot

holes, insert flat side bolts (I) fully into slots, position square holes in arms over bolts, and tighten with

nuts (J).

The soundbar and TV are now

assembled together, and are ready to

be assembled to the wall.

With TV face-down on a table, position soundbar against edge of TV and align arms with lower VESA

mounting holes in TV.

E/ F

STEP 1 (Continued)

1B-3

Assemble soundbar with adapter and

VESA brackets from your TV mount

to TV. Use one of the five following

methods, depending on your TV’s

requirements. The adapter should

be mounted between the TV and the

VESA brackets.

OPTION 1: For top two holes, use

spacers (P) between TV and brackets,

and secure with screws (K). For lower

two holes, secure VESA brackets and

adapter using screws (K).

OPTION 2: For top two holes, use

spacers (P, R) between TV and VESA

brackets, and secure with screws

(L,M). For lower two holes, use spacer

(P) and secure VESA brackets and

adapter using screws (L or M).

OPTION 3: For top two holes, use

spacers (P and R) between TV and

VESA brackets, and secure with screws

(L or M). For lower two holes, use

spacers (P) and secure VESA brackets

and adapter using screws (L or M).

OPTION 4: For top two holes, use

spacers (Q and R) between TV and

VESA brackets, and secure with screws

(N or O). For lower two holes, use

spacers (Q) and secure VESA brackets

and adapter using screws (N or O).

L/ M

N/ O

STEP 1 (Continued)

OPTION 5: For top two holes, use spacers (P, Q, and R) between TV and VESA brackets, and secure

with screws (N or O). For lower two holes, use spacers (P and Q) and secure VESA brackets and adapter

using screws (N or O).

STEP 2

Install TV and soundbar to TV mount.

The soundbar and TV are now assembled together,

and are ready to be mounted.

STEP 3

Your TV and soundbar are now ready to use.

N/ O N/ O

LAST UPDATED: 03/09/2020

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
