Vivo STAND-TV02PB Manuel utilisateur

Mobile Portrait to Landscape TV Cart

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-tv02pb

SKU: STAND-TV02PB/PW

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

PACKAGE CONTENTS

WARNING!

A (x1)

Base

B(x4)

Caster

C(x2)

Base Pole

I (x1)

Rear Cover

J x2)

VESA

Extension

K(x2)

VESA

Extension

L (x4)

Cable Cover

H(x1)

Mounting

Plate

D (x2)

Upper Pole

E (x1)

Equipment

Shelf

F (x2)

Shelf Mounting

Bracket

G (x1)

Front Cover

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may

cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. Do

not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly

or inappropriate use.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

S-B (x8)

M6x8mm

Screw

S-A (x8)

M8x20mm

Screw

S-C x16)

M6x12mm

Screw

T-C (x1)

4mm Allen

Wrench

T-D (x1)

5mm Allen

Wrench

T-A (x1)

6mm Wrench

M-A (x4)

M6x14mm

Screw

N (x5)

Cable Tie

M-B (x4)

M8x16mm

Screw

M-C (x4)

M6x30mm

Screw

M-D (x4)

M8x35mm

Screw

M-E (x4)

M8 Washer

M-F (x4)

Small Spacer

M-G (x4)

Large Spacer

S-D x1)

M6x18mm

Screw

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

154lbs

(70kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury. 11 lbs

(5 kg)

TV DVD SHELF

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF TV OR TV CART.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

S-E (x8)

M8x8mm

Screw

M (x5)

Cable Tie

Holder

T-B (x1)

10mm Wrench

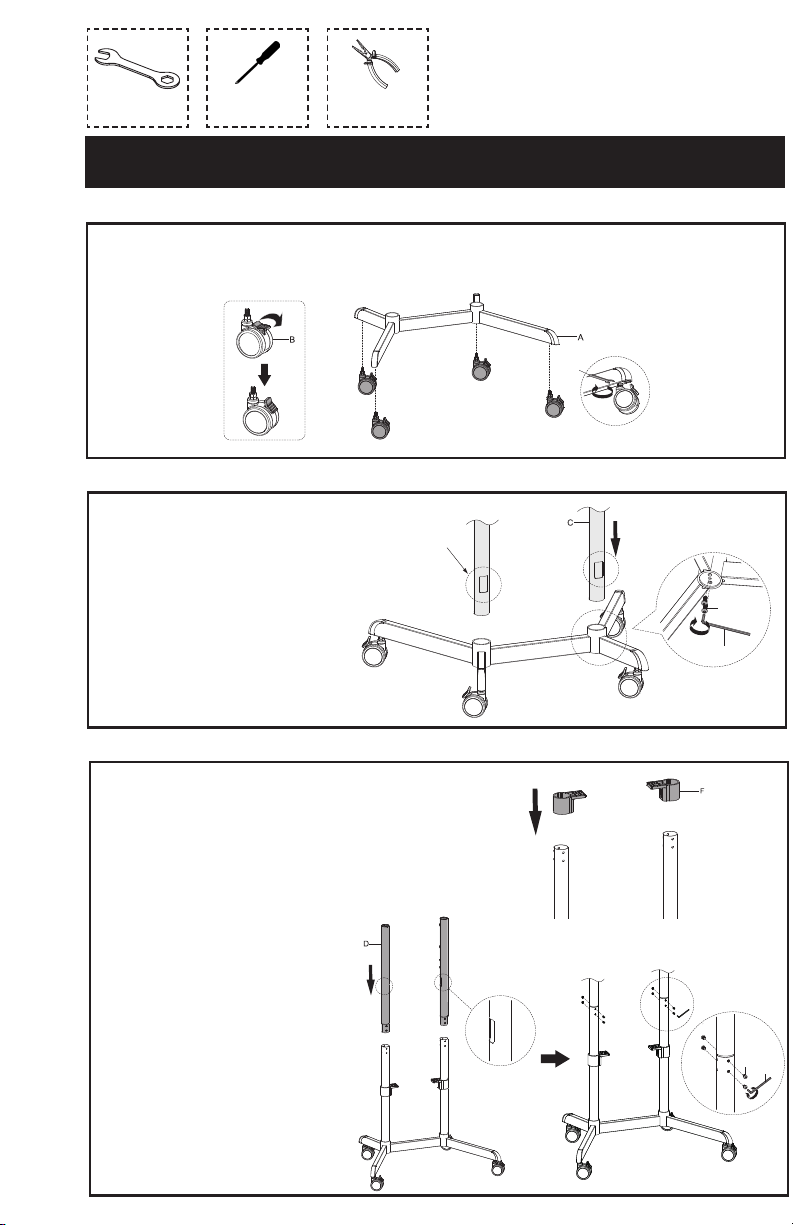

ASSEMBLY STEPS

STEP 1

Press the lock on each Caster (B) to the down (locked) position, then install the Casters to the Base (A).

Adjust to sit flat if needed, then tighten each caster using the 10mm Wrench (T-B).

TOOLS NEEDED

Phillips

Screwdriver

Wrench

STEP 2

Slide the Base Poles (C) into the Base (A),

making sure the cable holes are facing

towards the back, then secure the Poles

using M8x20mm Screws (S-A). Turn the

bolts using the 5mm Allen Wrench (T-D),

but do not yet tighten.

Needle Nose

Pliers

STEP 3

Slide the Shelf Mounting Brackets

(F) onto the base poles. Insert

the Upper Poles (D) into the Base

Poles, making sure the cable

holes are facing in towards the

center, then secure the poles using

M6x8mm Screws (S-B). Tighten

with the 4mm Allen wrench (T-C).

T-B

T-D

S-A

S-B T-C

STEP 4

Slide the Shelf Mounting

Brackets (F) up to cover the

installed scrws, then insert

M6x12mm Screws (S-C) to

secure the brackets. Tighten

with a Phillips screwdriver.

STEP 5

1. Install Front Cover (G) between poles,

making sure the face of the cover is

facing towards the front, and secure

using M6x12mm Screws (S-C). Tighten

with a Phillips screwdriver.

2. Place Equipment Shelf (E) on the

Shelf Mounting Brackets, making sure

the large end faces towards the back.

3. Secure the shelf using M6x12mm

Screws (S-C) and tighten with a Phillips

screwdriver.

4. Tighten the previously installed

M8x20mm Screws (S-A) under the base

using the 5mm Allen Wrench (T-D).

STEP 6

OPTION A: VESA 200x200mm - 400x400mm

S-C

T-D

S-A

Install the Mounting Plate (H) to the

TV. For flat back TVs, use shorter

screws (M-A, M-B) with M8 Washers

(M-E). For curved or recessed back

TVs, use longer screws (M-C, M-D)

with M8 Washers (M-E) and Spacers

(M-F, M-G) as needed.

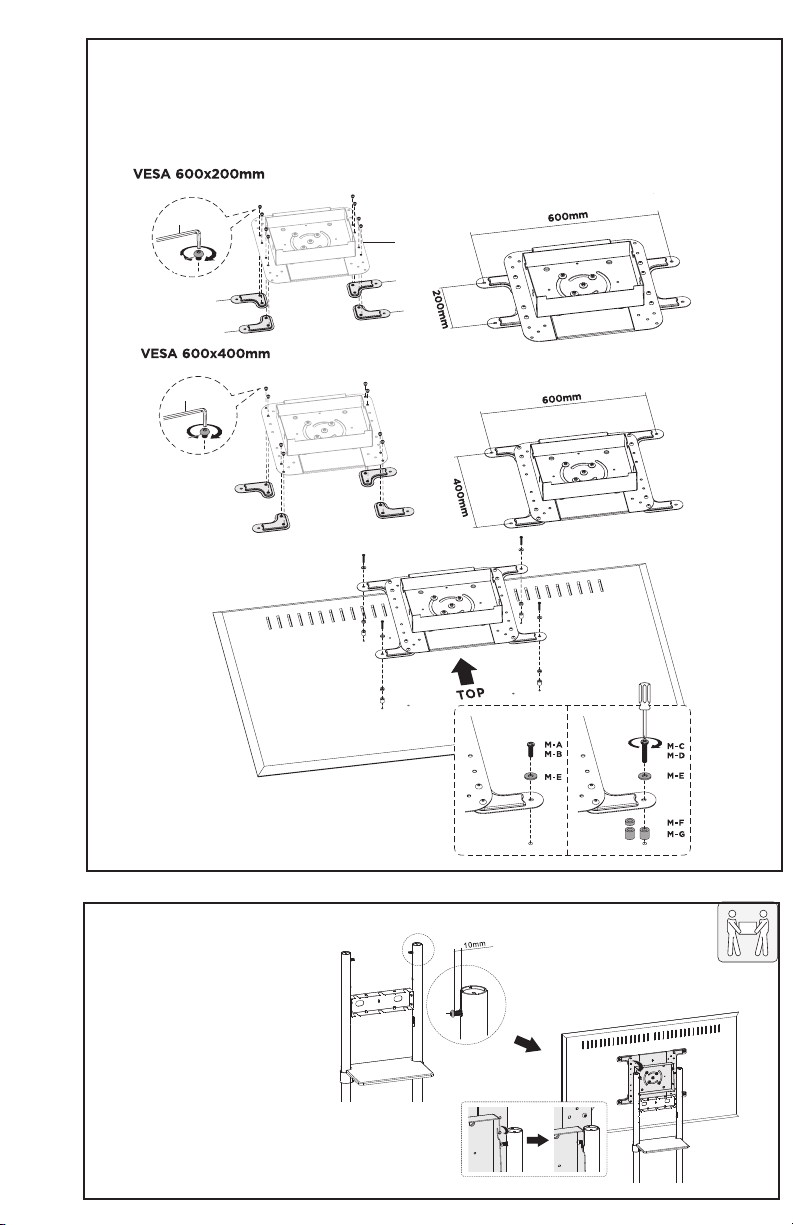

STEP 6 (Continued)

OPTION B: VESA 600x200mm - 600x400mm

Attach VESA Extensions (J, K) to the Mounting Plate (H) using M8x8mm Screws (S-E), and tighten

with the 5mm Allen Wrench (T-D). Install the assembled mounting plate to the TV. For flat back TVs,

use shorter Screws (M-A, M-B) with M8 Washers (M-E). For curved or recessed back TVs, use longer

Screws (M-C, M-D) with M8 Washers (M-E) and Spacers (M-F, M-G) as needed.

STEP 7

Partially insert M8x20mm Screws

(S-A) into the top hole on each

upper pole, leaving 10mm (about

3/8”) of thread exposed. Hang

the slots of the mounting plate

with TV over the bolts.

T-D

S-E

S-A

Insert M8x20mm Screws (S-A) into either the front or rear lower holes of the mounting plate. Tighten

all screws with the 5mm Allen Wrench (T-D).

STEP 8

To adjust the ease of

rotation, loosen or tighten

the nuts on the back of the

mounting plate using 6mm

Wrench (T-A).

STEP 9

To lock the position, insert the M6x18mm Screw (S-D) into the back of the mounting

plate using a Phillips screwdriver. Use the side hole for portrait, or the top hole for

landscape.

STEP 10

Route cables through the cable holes in the poles and the openings in the front cover and mounting

plate. Stick adhesive Cable Tie Holder (M) onto the back of the mounting plate in the positions

shown. Pull excess cable up into the mounting plate area, making sure there’s enough slack for free

rotation of the TV if needed, and secure to the tie holders on the side using Cable Ties (N).

STEP 11

T-D

S-A

T-A

S-DS-D

STEP 11 (Continued)

Place a power strip in the back of the

mounting plate, and secure using

Cable Ties (N).

STEP 12

Install Cable Covers (L) to the cables holes

in the poles, using pliers to break out

sections for x2 or x3 cables if needed.

STEP 13

Place the Rear Cover (I) onto the back of the mounting plate and secure using M6x12mm

Screws (S-C). Tighten with a Phillips screwdriver. Unlock the casters to freely roll the

assembled cart.

S-CS-C

LAST UPDATED: 11/20/2023

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
