Vivo MOUNT-SONOS3T Manuel utilisateur
TV Mount Designed for Sonos Arc Soundbar
Scan the QR code with your mobile device or follow the link
for helpful videos and specications related to this product.
https://vivo-us.com/products/mount-sonos3t
SKU: MOUNT-SONOS3T
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
VESA mount type: Plate
Instruction Manual
2

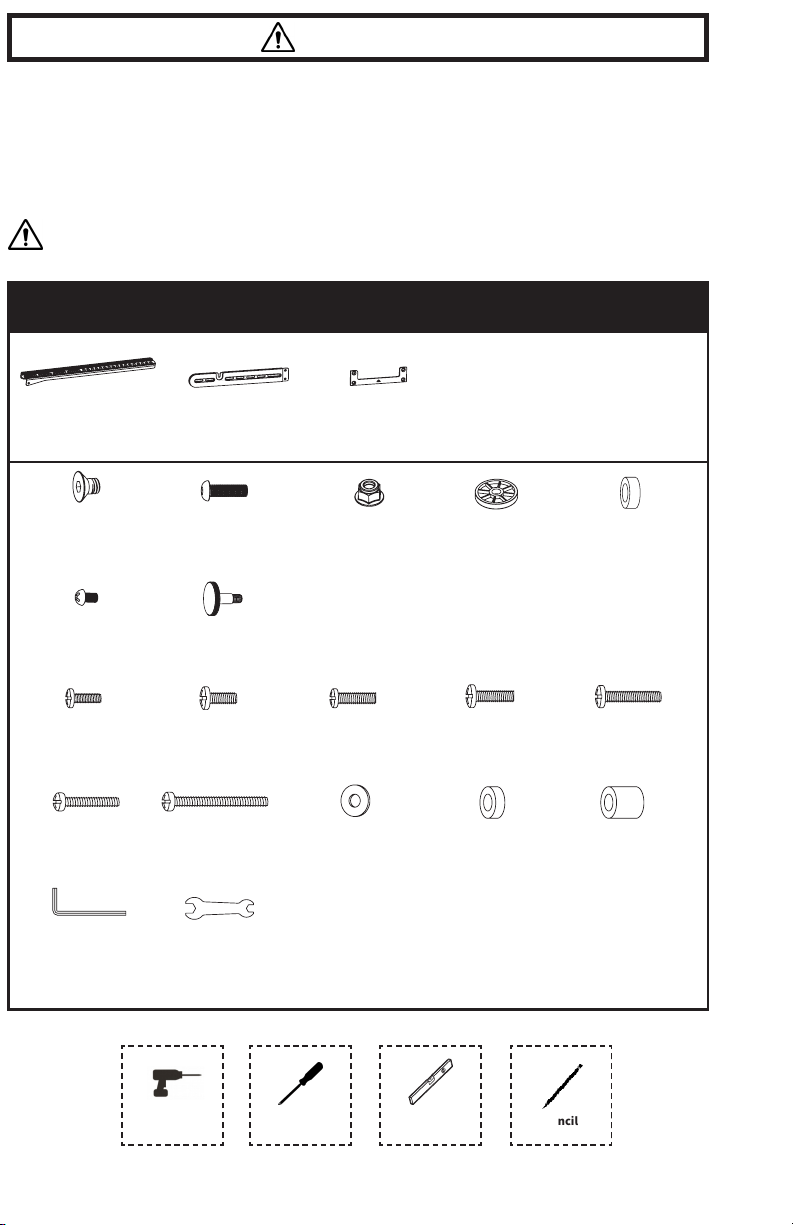

PACKAGE CONTENTS
WARNING!
A (x2)
VESA Bracket
B(x2)
Mounting Bracket
C(x1)
Center Bracket
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualied technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
S-D (x2)
Large Spacer
S-A (x4)
M6x8 Screw
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
TOOLS NEEDED
Phillips
Screwdriver
Drill Level Pencil
M-A (x4)
M5x16
M-B (x4)
M6x16
M-C (x4)
M5x25
M-D (x4)
M6x25
M-E (x4)
M6x40
M-F (x4)
M8x40
M-G (x4)
M8x60
M-H (x4)
D5 Washer
M-I (x8)
Small Spacer
M-J (x8)
Large Spacer
S-B (x2)
M6x20 Screw
S-F (x4)
M6x10 Screw
S-C (x2)
M6 Nut
S-E (x4)
5mm Spacer
S-G (x2)
Knob
T-B (x1)
Wrench
T-A (x1)
4mm Allen
Wrench
3
ASSEMBLY STEPS

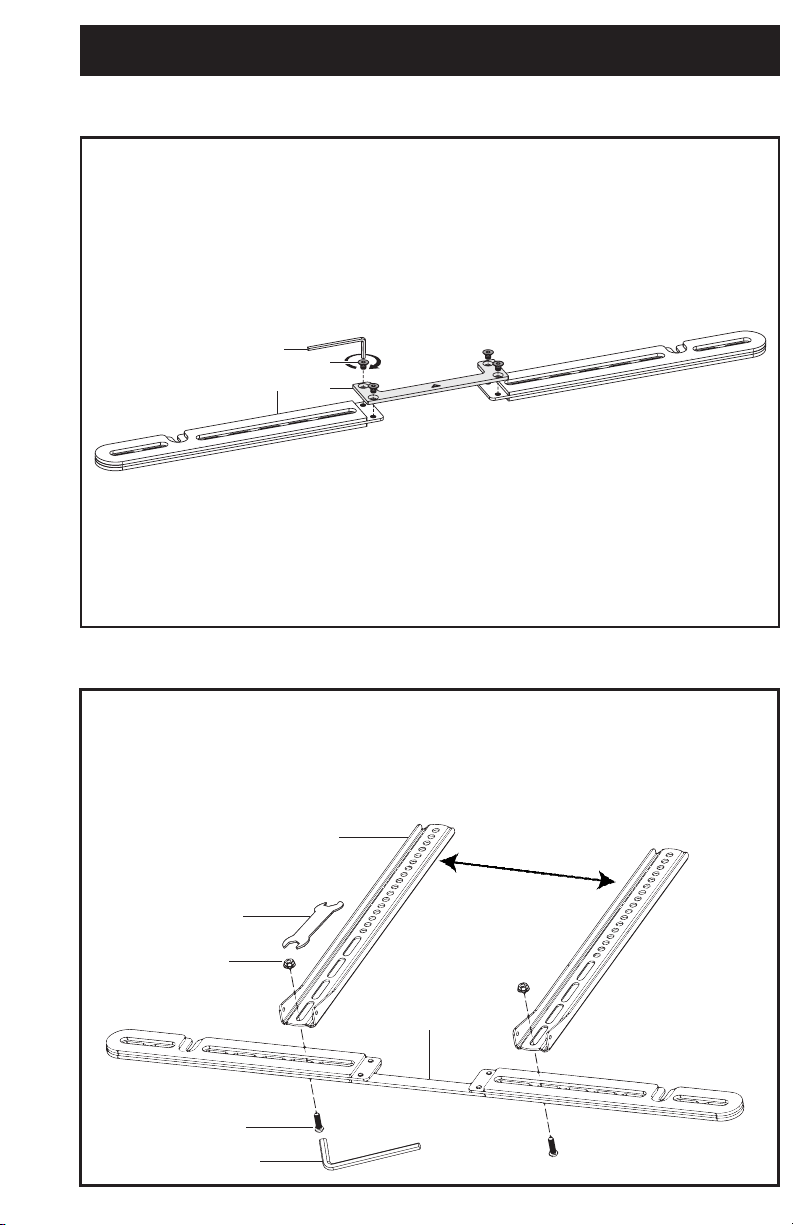

STEP 1
Assemble Mounting Brackets (B) to Center Bracket (C) using M6x8 Screws (S-A), and tighten with 4mm
Allen Wrench (T-A). The open slots and square cutout must all be facing up.
STEP 2 (Option A)
A
S-B
S-C
T-B
T-A
Below TV Installation
Measure the horizontal mounting hole spacing on the back of the TV to determine correct spacing for
VESA Brackets (A). Install VESA Brackets (A) to the back of the assembled mount using M6x20 Screws
(S-B) and M6 Nuts (S-C), tightening with 4mm Allen Wrench (T-A) and Wrench (T-B).
NOTE: Make sure the arrow on the back of Center Bracket (C) is facing down.
C
T-A S-A
C
B
4
Below TV Installation
Determine the correct mounting height for the soundbar mount.
For below TV mounting, the open slots in the soundbar mount should be at least 2.5” below the bottom
edge of the TV.
STEP 3 (Option A)
STEP 2 (Option B)
Above TV Installation
Measure the horizontal mounting hole spacing on the back of the TV to determine correct spacing for
VESA Brackets (A). Install VESA Brackets (A) to the back of the assembled mount using M6x20 Screws
(S-B) and M6 Nuts (S-C), tightening with 4mm Allen Wrench (T-A) and Wrench (T-B).
NOTE: Make sure the arrow on the back of Center Bracket (C) is facing down.
T-B
T-A
S-C
S-B
A
C
>2.5
<2.5
2.5
5
STEP 3 (Option B)
Above TV Installation
For above TV mounting, measure the distance from the base of the soundbar to the center of the rear
mounting holes. The distance from the top edge of the TV to the open slots in the soundbar mount
should be equal to or greater than the measured distance.
STEP 4 (Option A)
Below TV Mounting
Install the assembled mount, Large Spacers (S-D) and VESA brackets from TV VESA mount to the back
of the TV using screws (M-A through M-G), washers (M-H) and spacers (M-I, M-J) as needed. The TV
VESA mount brackets should be placed behind the soundbar mount and Large Spacers (S-D).
S-D S-D S-D
S-D
M-A
M-H
S-D
M-B
S-D S-D
S-D
M-E
M-F M-G
M-I
M-J
M-I
M-J
M-A
M-H
M-B M-E
M-F M-G
M-I
M-J M-J
M-I
>2.5”
<2.5”
>2.5”
6
STEP 4 (Option B)
Above TV Mounting
Install the assembled mount on the back of the TV with VESA plate from the TV mount, and secure
using Screws (M-A through M-G) of the correct size for your TV. Use D5 Washers (M-H) and Spacers
(M-I, M-J) if needed.
NOTE: To ensure the mount is installed securely, top mounting requires the use of all four TV
mounting holes as shown below.
S-E S-E S-E
S-E
A
S-E S-E
S-ES-E
S-F
S-E S-E S-E
S-E
J-J
M-
M-I
M-
7
STEP 5
Screw Knobs (S-G) into the back of the Sonos Arc soundbar.
STEP 6
Hang the Sonos Arc soundbar over the top of the mount, making sure Knobs (S-G) are inserted
into the slots.
S-G
S-G
LAST UPDATED: 08/31/2021
