Vivo MOUNT-E-UP65A Manuel utilisateur

Motorized TV Stand with Remote Control

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-e-up65a

SKU: MOUNT-E-UP65A

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

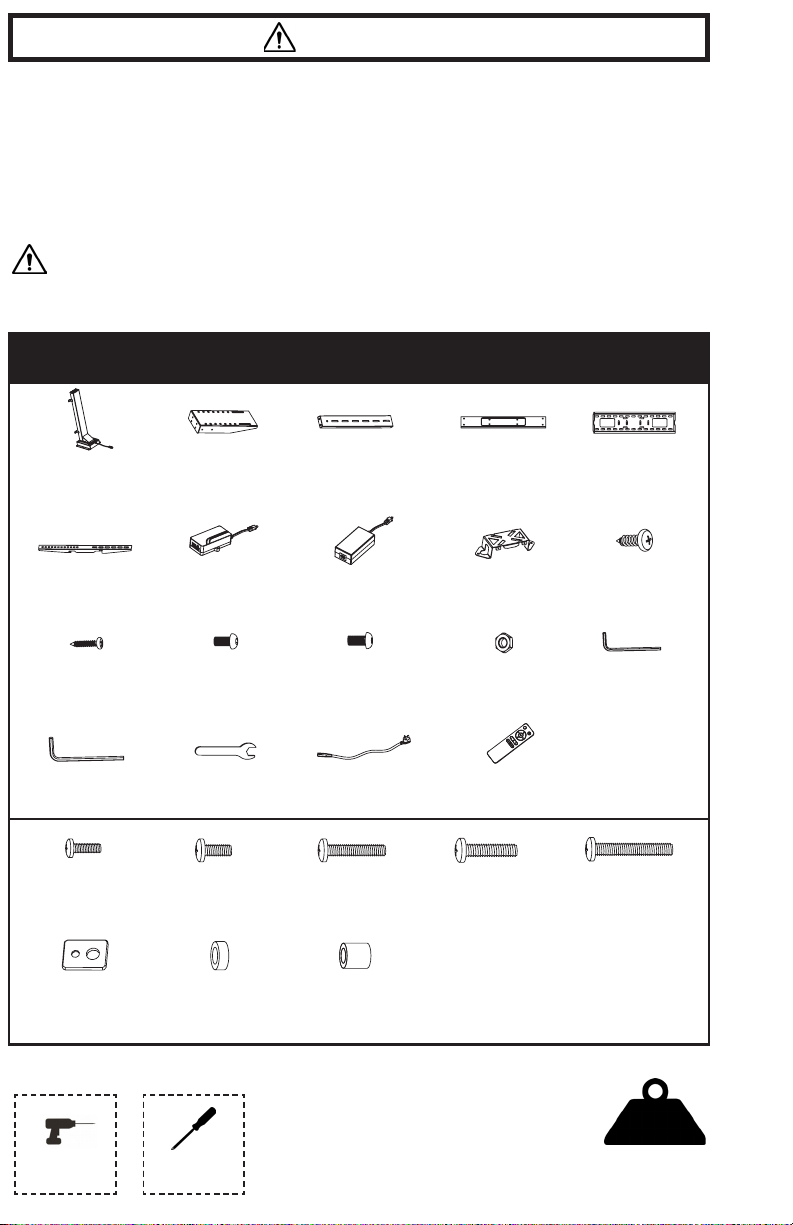

PACKAGE CONTENTS

TOOLS NEEDED

110lbs

(50kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

A (x1)

Motorized

Column

B(x1)

Plate Support

Bracket

C(x2)

Shelf Bracket

Support

M-F (x4)

M5/8 Washer

M-G (x8)

5mm

Spacer

M-E (x4)

M8x50

M-A (x4)

M5x14

M-B (x4)

M6x14

M-C (x4)

M6x30

M-D (x4)

M8x30

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

Drill

D(x1)

Shelf Bracket

E(x1)

TV Plate

F (x2)

VESA Bracket

G(x1)

Control Unit

H(x1)

AC Adapter

I(x1)

Adapter Mount

J(x16)

ST5.5x16

Screw

M-H (x8)

15mm

Spacer

K(x2)

ST4.2x20

Screw

L(x12)

M6x12 Screw

M(x4)

M10x20 Bolt

N(x4)

M10 Nut

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

O (x1)

4mm Allen Wrench

P (x1)

6mm Allen Wrench

Q (x1)

Wrench

R (x1)

Power Cable

S (x1)

Remote

ASSEMBLY STEPS

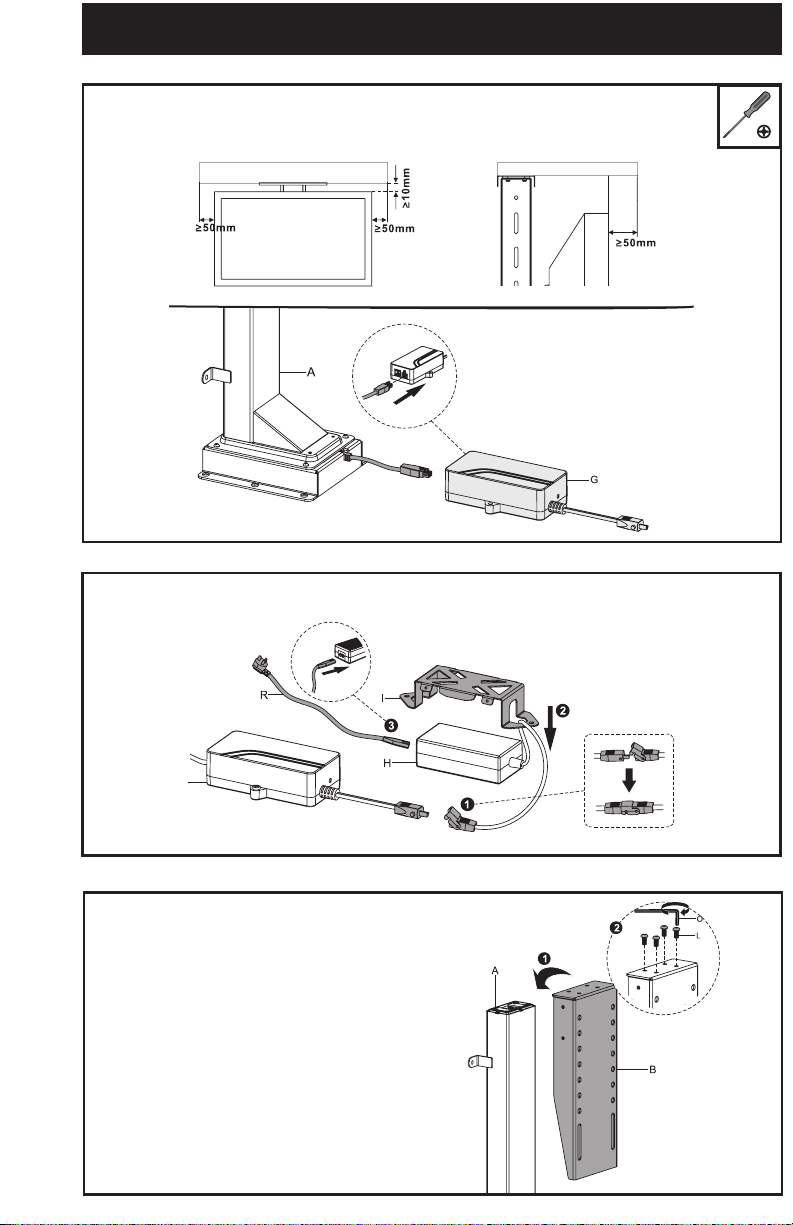

STEP 1

Before starting, ensure that the TV will have at least 2” (50mm) or room on each side and in

front. The space between the TV and top shelf should be no less than 3/8” (10mm). Connect

the cable from the Motorized Column (A) to the Control Unit (G).

STEP 3

Assemble the Plate Support Bracket (B) to the Motorized

Column (A) using M6x12 Screws (L) and tighten with the

4mm Allen Wrench (O).

STEP 2

Place the AC Adapter (H) into the Adapter Mount (I), first fitting the cable through the open slot, then

connect to the Control Unit (G). Plug the Power Cable (R) into the AC Adapter (H).

STEP 4

Mount the Shelf Bracket Supports (C) to the sides of the Plate Support

Bracket (B) using M6x12 Screws (L) and tighten with the 4mm Allen

Wrench (O). The Shelf Bracket Supports (C) should be mounted to the

maximum height to ease the assembly process, and can be adjusted

later to match the cabinet and TV height.

STEP 5

Assemble the Shelf Bracket (D) to the top of the Shelf Bracket Supports (C) using M6x12 Screws (L)

and tighten with the 4mm Allen Wrench (O).

STEP 6

Plug the Power Cable (R) into a wall outlet. To ensure the Remote (S) is paired, use a pencil or other

thin tool to press the small button on the end of the Control Unit (G), then aer hearing a beep, press

the SET button on the Remote (S). The Control Unit (G) will beep for about 10 seconds. Once the

beeping stops, press the UP button on the Remote (S) to fully raise the Motorized Column (A).

Assemble the TV Plate (E) to the Plate Support Bracket (B) using M10x20 Bolts (M) and M10 Nuts (N),

making sure the M10 Nuts (N) are on the front of the TV plate (E). Tighten using the 6mm Allen Wrench

(P) and Wrench (Q).

STEP 8

Mount the Control Unit (G) using ST4.2x20 Screws (K), and the AC Adapter (H) with Adapter

Mount (I) using ST5.5x16 Screws (J). Tighten with a Phillips screwdriver.

STEP 7

Place the Motorized Column (A), Control Unit (G), and AC Adapter (H) with Adapter Mount (I) in

the cabinet at the desired locations. Mark all mounting hole locations with a pencil. Remove the

Motorized Column (A) and other components, drill 5/8” (15mm) deep holes using a 1/8” (3mm) drill

bit, then mount the Motorized Column (A) in the cabinet using ST5.5x16 Screws (J). Tighten with a

Phillips screwdriver.

STEP 9

Place the cabinet shelf on top of the Shelf Bracket (D). Making sure the shelf is aligned with

the rest of the cabinet, mark mounting hole locations with a pencil and remove the shelf.

Drill 5/8” (15mm) deep holes using a 1/8” (3mm) drill bit, then mount the shelf to the Shelf

Bracket (D) using ST5.5x16 Screws (J). Tighten with a Phillips screwdriver.

STEP 10

Mount the VESA Brackets (F) to the back of the TV, making sure the round holes are up and

the slots are down. Use the 14mm Bolts (M-A, M-B) with M5/M8 Washers (M-F) for smaller

TVs. Use the 30mm Bolts (M-C, M-D) or 50mm Bolts (M-E) with M5/M8 Washers (M-F) and

Spacers (M-G, M-H) for large or curved TVs. Tighten with a Phillips screwdriver.

STEP 11

Hang the VESA Brackets (F) with TV over the top of the TV Plate (E), and tighten the security

screws underneath using a Phillips screwdriver.

STEP 12

Adjust the height of the Shelf Bracket Supports (C) if necessary for the cabinet to close with the TV

lowered. The Mount is now ready for operation.

Please refer to the Controller User Guide for operating instructions.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

LAST UPDATED: 03/26/2021

REV1.0

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
