Vivo MOUNT-E-DN55 Manuel utilisateur

Motorized Drop Down TV Mount

with Remote Control

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-e-dn55

SKU: MOUNT-E-DN55

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

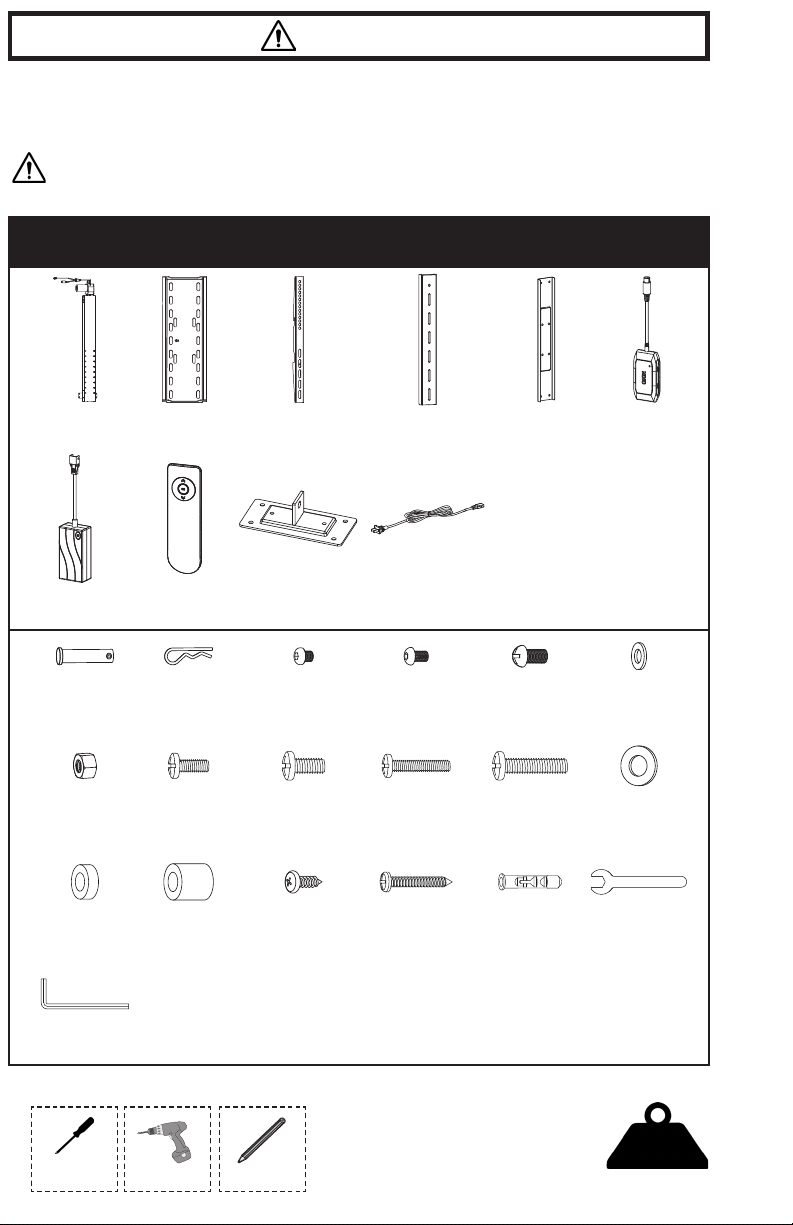

PACKAGE CONTENTS

A (x1)

Li Column

H (x1)

RF Remote

I (x1)

Ceiling Plate

J (x1)

Power Cable

S-A (x1)

Clevis Pin

S-F (x4)

M8 Washer

S-G (x4)

M8 Nut

W-A (x12)

ST5.5x16mm

Screw

M-A (x4)

M6x14mm

Screw

M-B (x4)

M8x16mm

Screw

M-C (x4)

M6x30mm

Screw

M-D (x4)

M8x35mm

Screw

M-E (x4)

M8 Washer

M-F (x4)

Small Spacer

M-G (x4)

16mm

Wrench

W-B (x8)

ST5.5x38mm

Screw

W-C (x8)

Concrete

Anchor

T-A (x1)

13mm

Wrench

T-B (x1)

4mm Allen Wrench

S-B (x1)

Cotter Pin

S-C (x4)

M6x6mm

Screw

S-D (x4)

M6x10mm

Screw

S-E (x4)

M8x15mm

Screw

B (x1)

VESA Plate

C (x2)

VESA Bracket

D (x2)

Extension Bracket

E (x1)

Cover Mount

F (x1)

Control Unit

G (x1)

AC Adapter

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may

cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. Do

not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly

or inappropriate use.

TOOLS NEEDED

Phillips

Screwdriver Drill Pencil

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

99 lbs

(45 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

ASSEMBLY STEPS

Plug Control Unit (F) and AC Adapter (G) into Li Column (A). Plug Power Cable (J) into AC Adapter

(G) and then connect to an outlet.

Perform the PAIRING THE REMOTE steps on page 10 to pair RF Remote (H). Once RF Remote (H)

is paired, press the down arrow and extend Li Column (A) until the last hole set has passed Wall

Mounting Plate (A1) as shown. Ensure there are no obstructions while extending Li Column (A).

STEP 1

STEP 2

STEP 3

STEP 4

Install Extension Brackets (D) to Li Column (A) using M6x6mm Screws (S-C) and 4mm Allen Wrench

(T-B). The location will be dependent on the TV size and VESA hole location.

S-CS-C

T-B

Install Cover Mount (E) onto Extension Brackets (D) using M6x10mm Screws (S-D) and 4mm Allen

Wrench (T-B).

T-B

S-D

STEP 5

STEP 6

Attach VESA Plate (B) to Li Column (A) using M8x15mm Screws (S-E), M8 Washer (S-F), M8 Nut

(S-G), 13mm Wrench (T-A), and a Phillips screwdriver. Make sure the arrow on VESA Plate (B) is

facing towards the motor.

NOTE:

The nuts and washers MUST be installed

on the front of the VESA plate to prevent

the column from binding.

T-A

S-G

S-F

S-E

Retract the mount by pressing the up arrow or the “OK” button on RF Remote (H).

STEP 7

Wood Installation:

Hold Ceiling Plate (I) up to desired mounting location making sure one of the long edges is making

contact with the back support wall. Secure Ceiling Plate (I) using ST5.5x16mm Screws (W-A) and a drill.

Concrete/Brick Installation:

Hold Ceiling Plate (I) up to desired mounting location making sure one of the long edges is making

contact with the back support wall. Mark hole locations using a pencil or marker. Drill 1.8” (45mm)

deep holes using a 5/16” (8mm) drill bit. Insert Concrete Anchors (W-C) and install Ceiling Plate (I)

using ST5.5x38mm Screws (W-B) and a Phillips screwdriver.

W-A

W-CW-C

W-BW-B

STEP 8

STEP 9

Align the holes from Li Column (A) and Ceiling Plate (I). Insert Clevis Pin (S-A) through the motor and

Ceiling Plate (I). Insert Cotter Pin (S-B) into Clevis Pin (S-A) to secure.

Ensure that Wall Mounting Plate (A1) is not blocked by

VESA Plate (B). If hidden, press the down arrow on RF

Remote (H) to lower the mount to provide better access.

S-A

S-B

Wood Installation:

Secure Li Column (A) by installing

ST5.5x16mm Screws (W-A) into Wall

Mounting Plate (A1) using a drill.

W-A

STEP 10

STEP 11

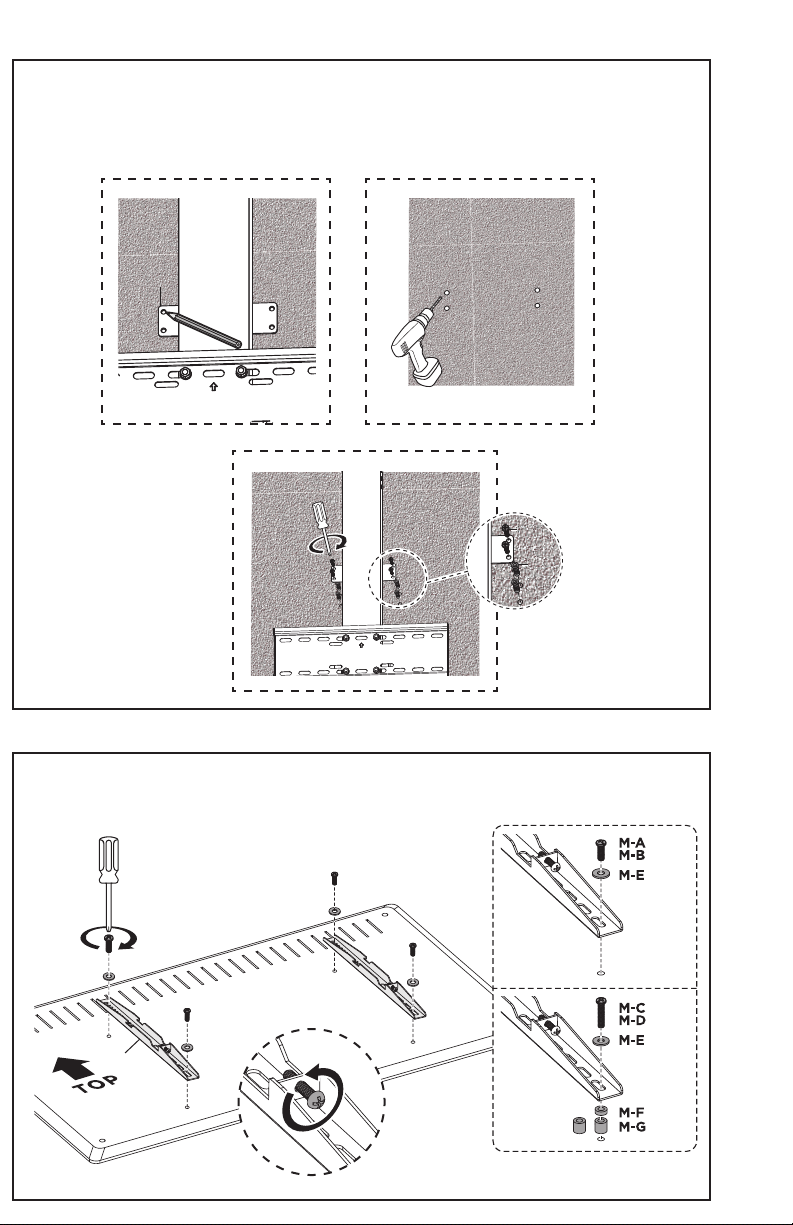

Concrete/Brick Installation:

Mark Wall Mounting Plate (A1) hole locations using a pencil or marker. Remove Li Column (A) from

Ceiling Plate (I) or hold away from the wall. Drill 1.8”/45mm deep holes using a 5/16”/8mm drill bit.

Insert Concrete Anchors (W-C) and install Li Column (A) using ST5.5x38mm Screws (W-B) and a

Phillips screwdriver.

W-BW-B

W-CW-C

A1A1

Attach VESA Brackets (C) to the back of the TV using Screws (M-A thru M-D), M8 Washers (M-E), and

Spacers (M-F, M-G). Partially loosen the safety screw using a Phillips screwdriver.

STEP 12

STEP 13

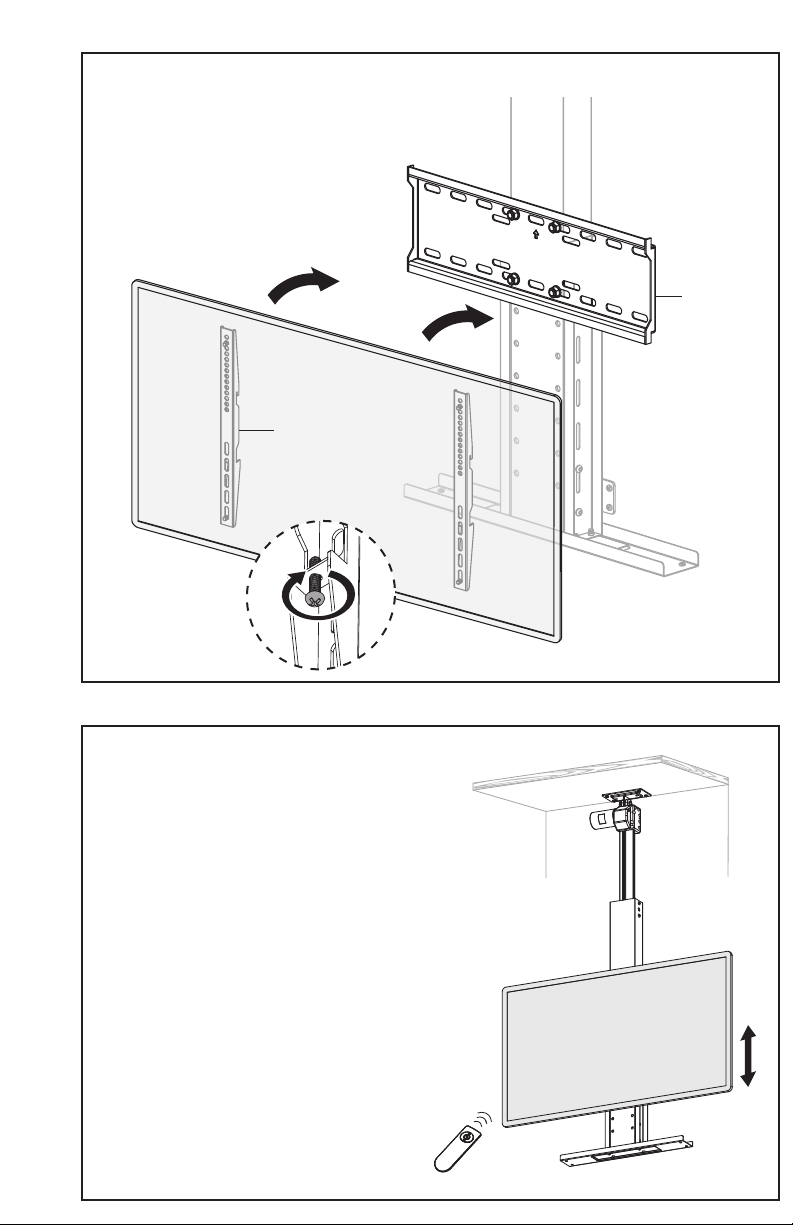

Hang VESA Brackets (C) over VESA Plate (B) and tighten safety screws using a Phillips screwdriver.

Mount is now ready for use. Refer to remote instructions

on the next page for further information on use,

troubleshooting, and more.

RF Remote - Manual

PROGRAM BUTTON:

Double press to turn on status light

and enter programming mode.

MANUAL RETRACT:

Press and hold to retract the mount

towards the motor.

OK BUTTON:

Fully retracts the mount/moves

to highest position.

PAIRING THE REMOTE:

Step 1: Double press the button on Control Unit (F). The status light on the control unit will turn

on indicating you have entered programming mode.

Step 2: Press and hold the + buttons simultaneously on the remote until the status light stops

ashing. When the status light is turned o, that indicates a successful pairing.

RF REMOTE - Button Functions:

CONTROL UNIT- Button Functions

UP ARROW:

Moves the mount upwards/retracts

mount towards the motor.

Press and hold to raise your TV.

DOWN ARROW:

Moves the mount downwards/

extends mount away from the motor.

Press and hold to lower your TV.
