Vivo MOUNT-PS5B Manuel utilisateur

Black Wall Mount Designed for PS5

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-ps5b

SKU: MOUNT-PS5B

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

ASSEMBLY STEPS

STEP 1

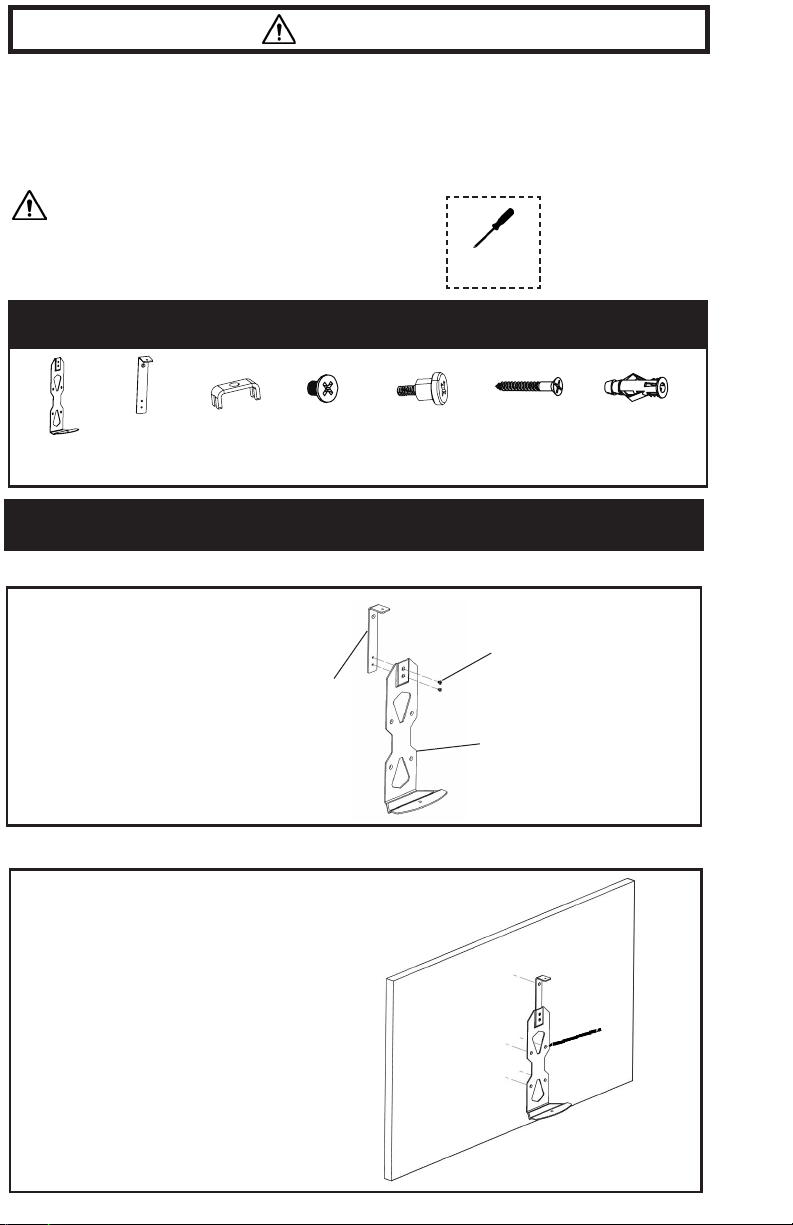

PACKAGE CONTENTS

TOOLS NEEDED

WARNING!

Phillips

Screwdriver

F (x5)

ST5x40mm

Wall Screw

G(x5)

Anchor

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS.

ADULT SUPERVISION IS REQUIRED.

Install Upper Bracket (B) to

Mount (A) using M4x5 Screws

(D) and a Phillips screwdriver.

D (x3)

M4x5

Screw

E (x1)

Security Bolt

A (x1)

Mount

B (x1)

Upper

Bracket

C (x1)

Retaining

Clip

STEP 2

Place assembled mount against the wall at

desired location and mark drilling locations

with a pencil. Use of a level and a stud finder

is recommended.

STEP 3

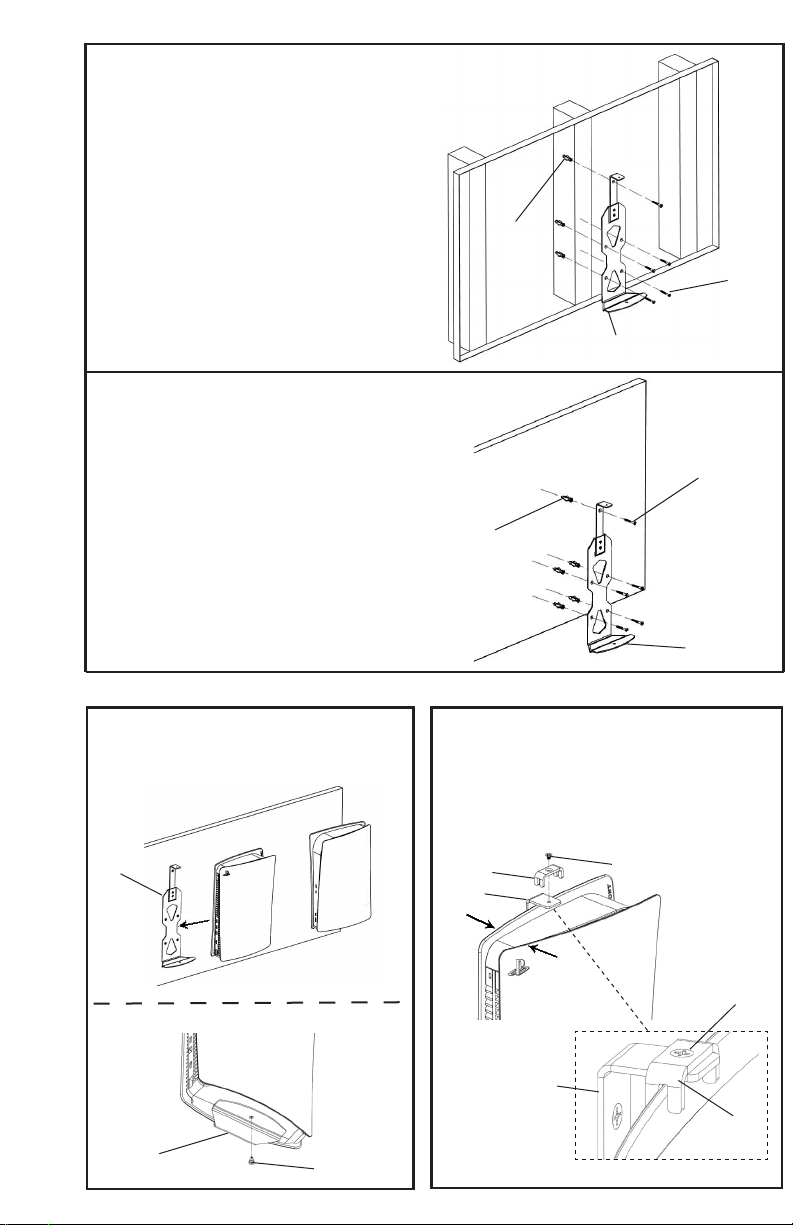

OPTION A: Wood Stud Installation

Drill 1.5” (38mm) deep holes using a

3/32” (2.5mm) drill bit. Follow drywall

instructions below for all remaining

mounting holes.

Install the mount to the wall using

ST5x40mm screws (F) with a Phillips

screwdriver.

STEP 4

Install PS5 onto the Mount (A). Secure

the PS5 with the Security Bolt (E).

OPTION B: Drywall Installation

Using a 5/16” (8mm) bit, drill fully

through the drywall. Insert the Anchors

(G) in the holes.

Install the mount to the wall using

ST5x40mm screws (F) with a Phillips

screwdriver.

STEP 5

Install Retaining Clip (C) to Upper Bracket

(B) using M4x5 Screw (D). Depending on

the model and mounting oriantation,

a light push or pull of the PS5 will be

needed for the alignment of the panel and

Retaining Clip (C).

Pull

Push

LAST UPDATED: 01/22/2021

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
