Vivo MOUNT-CAR02 Manuel utilisateur

Car Tablet Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-car02

SKU: MOUNT-CAR02

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

TOOLS NEEDED

5.5lbs

(2.5kg)

11lbs

(5kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may

cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. Do

not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly

or inappropriate use.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

NOTE: SOME HARDWARE MAY NOT BE USED

A(x1)

Base

B(x2)

0° Foot

C(x2)

90° Foot

D(x2)

45° Foot

E (x1)

Pole

F(x1)

Arm

J(x1)

Connecting

Bracket

S-A (x4)

M6x10mm

Screw

S-B (x8)

M6 Washer

S-C (x2)

M6 Nut

S-D (x1)

M6 Flanged Nut

S-E (x1)

M6x45mm

Screw

T-A (x1)

5mm Allen

Wrench

T-B (x1)

Wrench

J(x2)

Screw Cap

G(x4)

Knob

H(x2)

Cable Clips

I(x2)

Support Screw

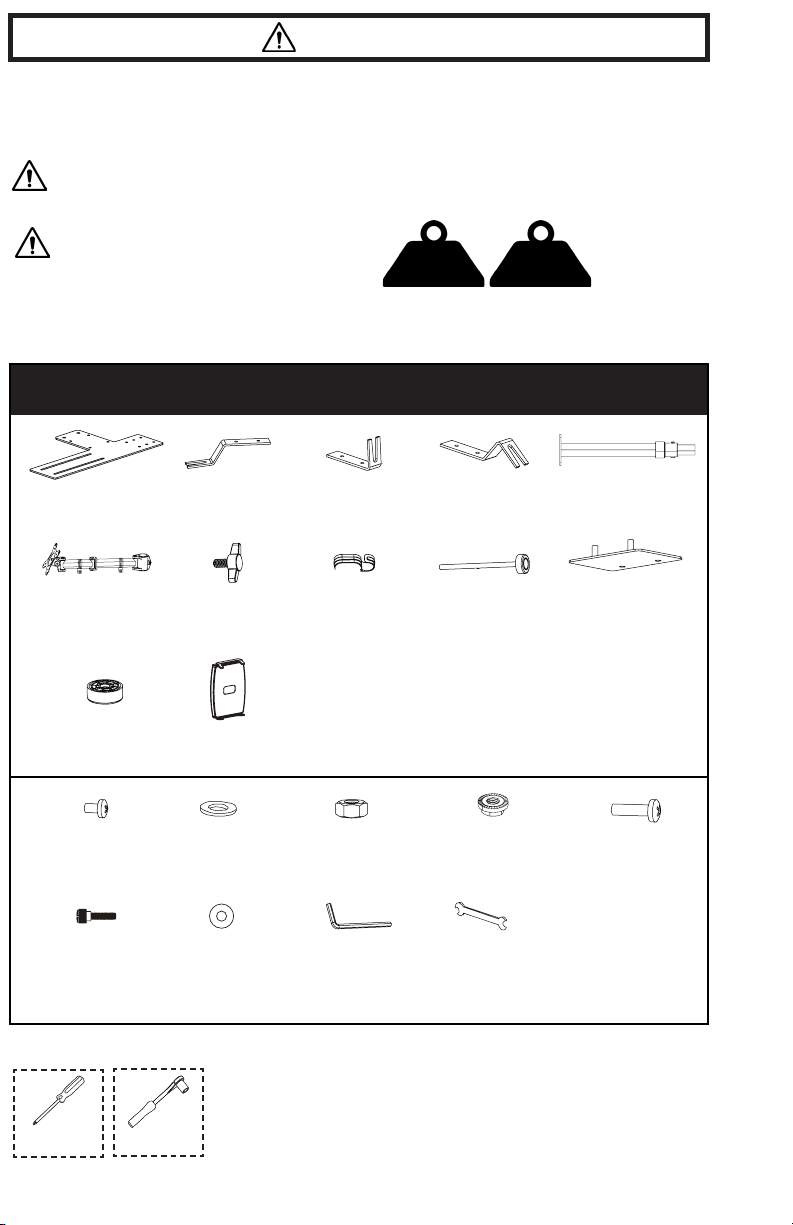

PACKAGE CONTENTS

Tablet

Mount

Arm

Socket

Wrench

K (x1)

Adapter

S-F (x6)

M4x16 Thumbscrews

S-G (x4)

M4 Washers

ASSEMBLY STEPS

STEP 1

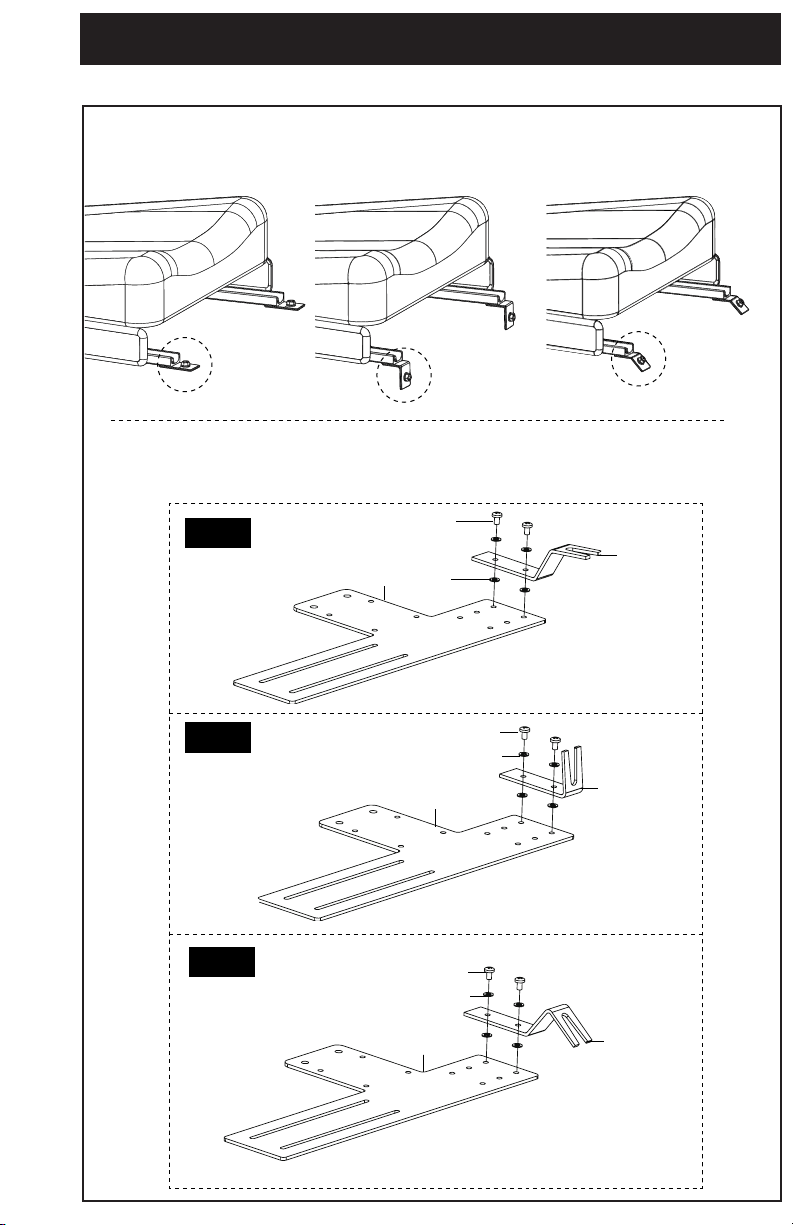

Begin by identifying what foot style is needed for your passenger seat configuration, using

the images below. Please note that the two front seat bolts of some vehicles will dier from

each other in angle.

Attach the appropriate foot for the passenger seat’s le bolt [ 0° Foot (B), 90° Foot (C), or

45° Foot (D) ] to the left underside of of Base (A) using M6x10mm Screws (S-A),

M6 Washers (S-B), and a Phillips screwdriver.

0° 90° 45°

S-A

S-B

AS-B

S-A

0°

90°

45°

STEP 2

STEP 1 - Continued

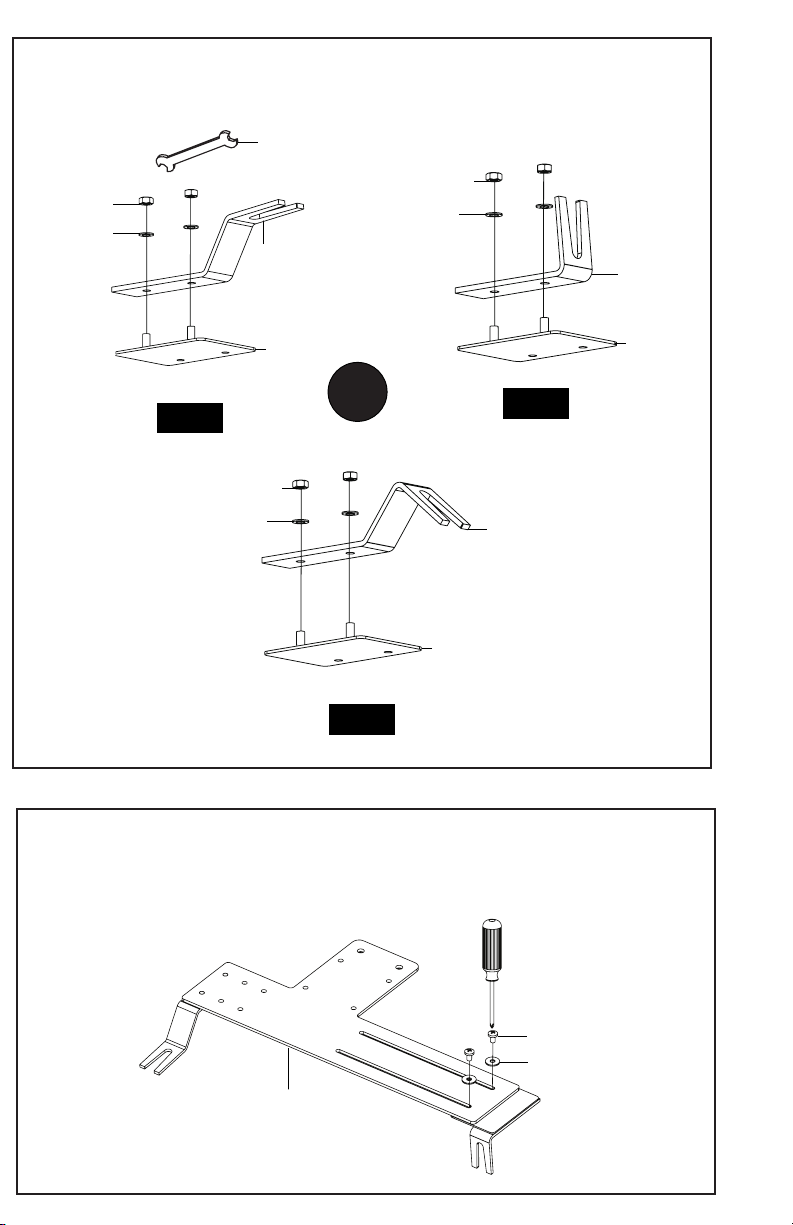

Loosely assemble the right foot assembly to Base (A) using M6x10mm Screws (S-A),

M6 Washers (S-B), and a Phillips screwdriver. Align the le foot with the le seat bolt on

the passenger seat. Adjust the right foot to match up with the right bolt on the seat and

tighten M6x10mm Screws (S-A).

S-B

S-A

Install compatible Foot (B, C, D) for your passenger seat’s le bolt to the threads on

Connecting Bracket (L) using M6 Nuts (S-C), M6 Washers (S-B), and Wrench (T-B). Please

note, based on your passenger seat’s floor bolts, you may need a dierent foot than what was

used above. T-B

S-C

S-B

0° 90°

45°

S-C

S-B

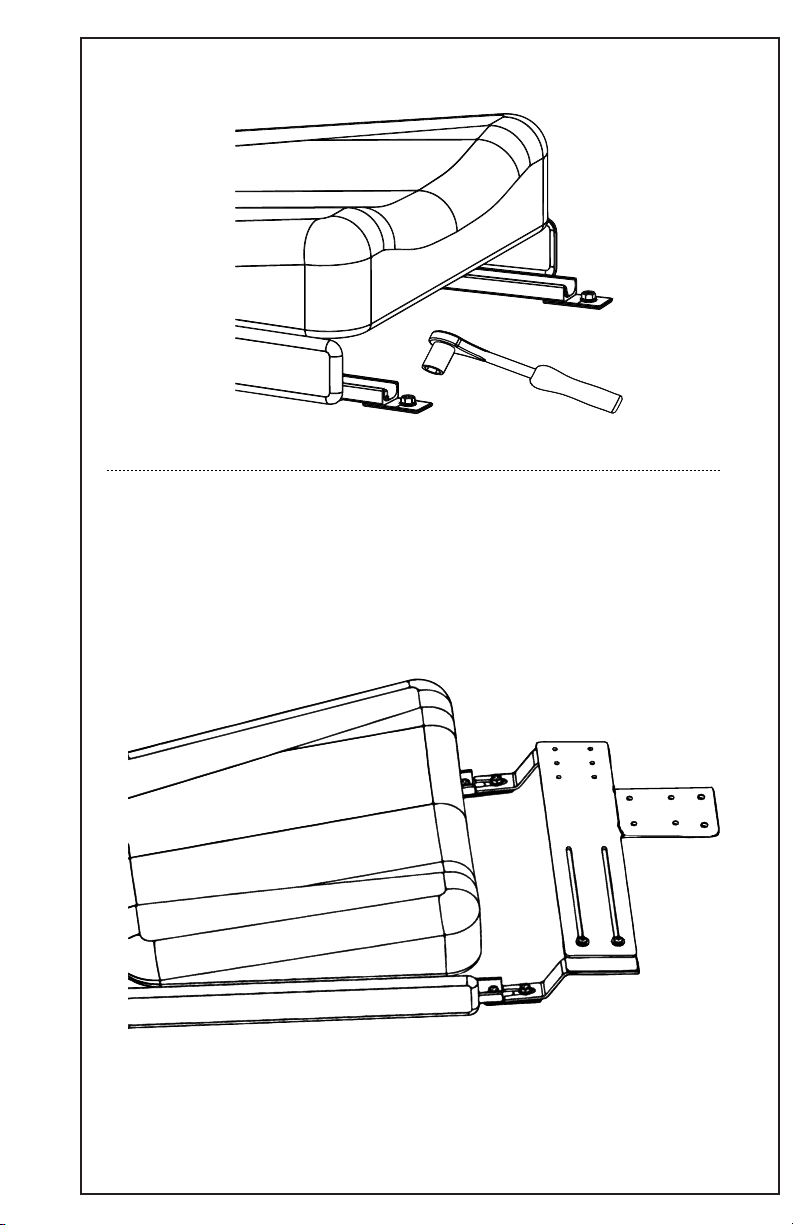

Loosen the front seat bolts on passenger seat using a socket wrench (size needed depends

on manufacturer).

Slide the le foot under the le seat bolt and the right foot under the right seat bolt.

Adjust the placement as needed and re-tighten bolts.

STEP 3

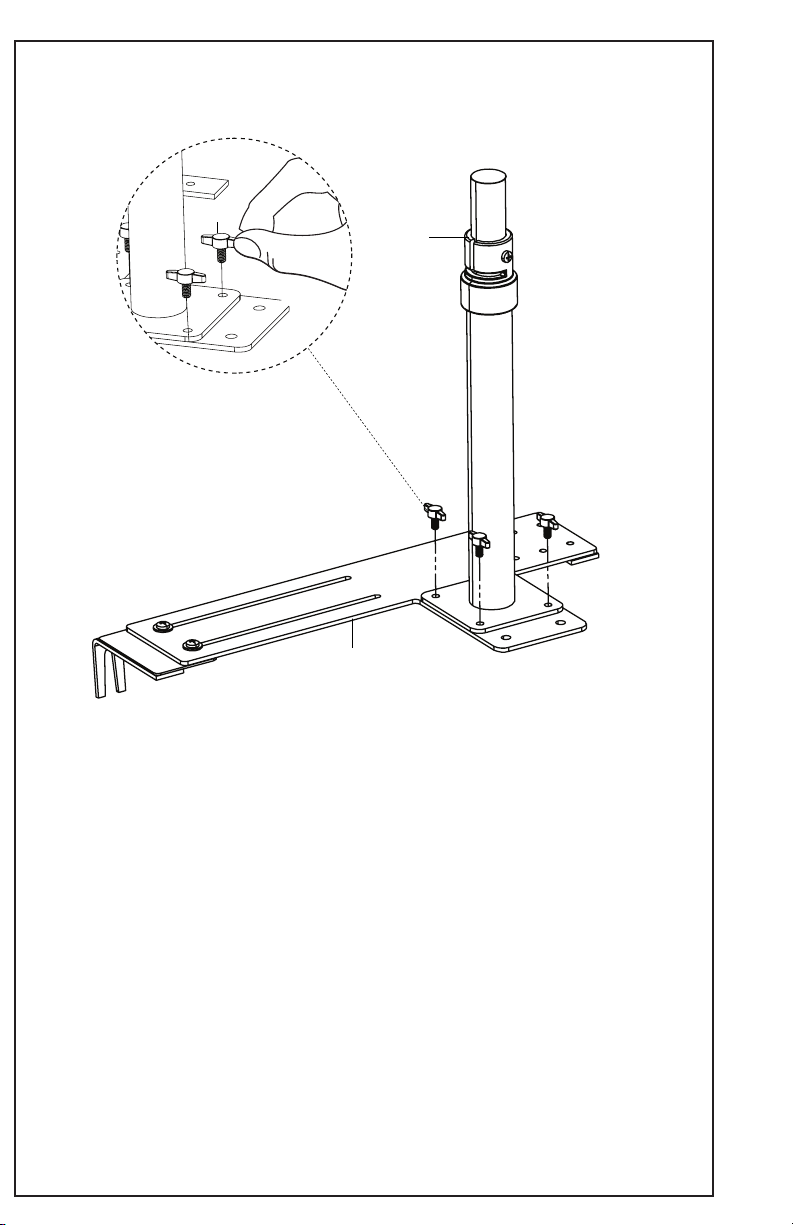

Attach Pole (F) to back of Base (A) using Knobs (I).

STEP 4

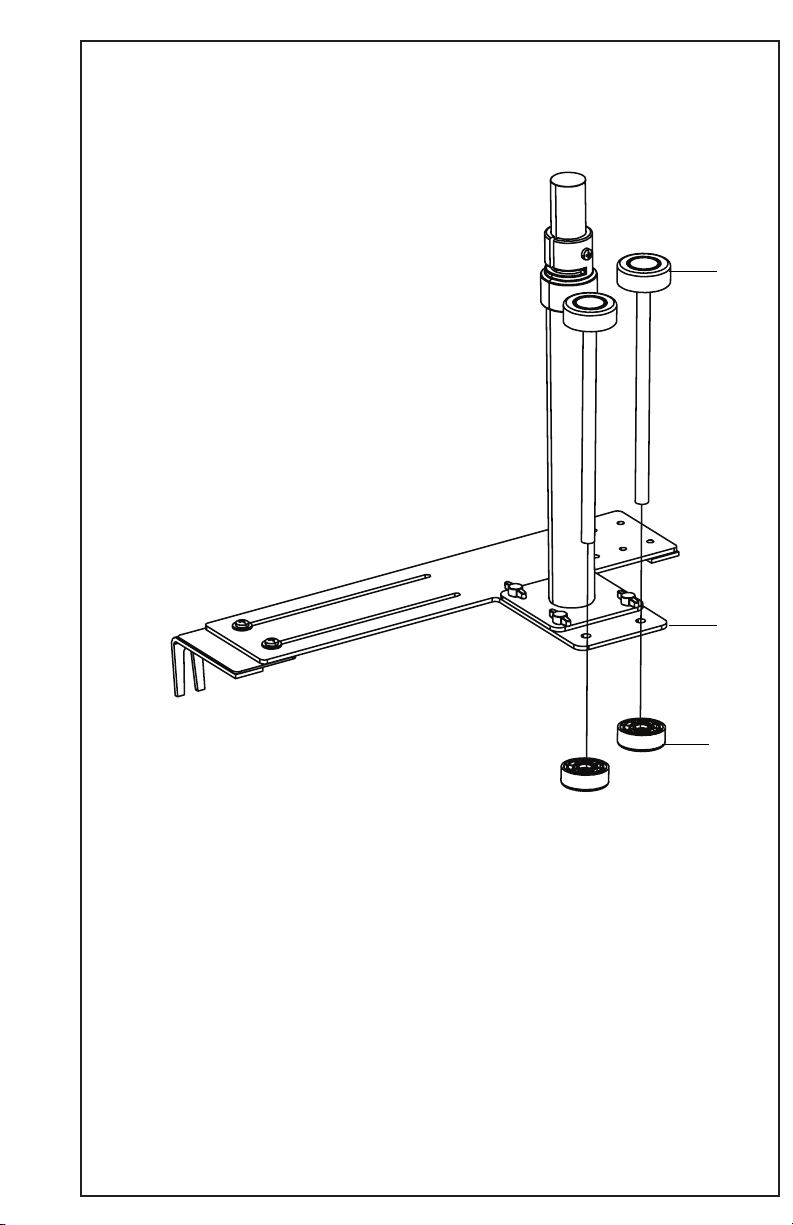

Thread Support Screws (K) onto Base (A) and place Screw Caps (P) onto the ends once

threaded.

STEP 5

STEP 6

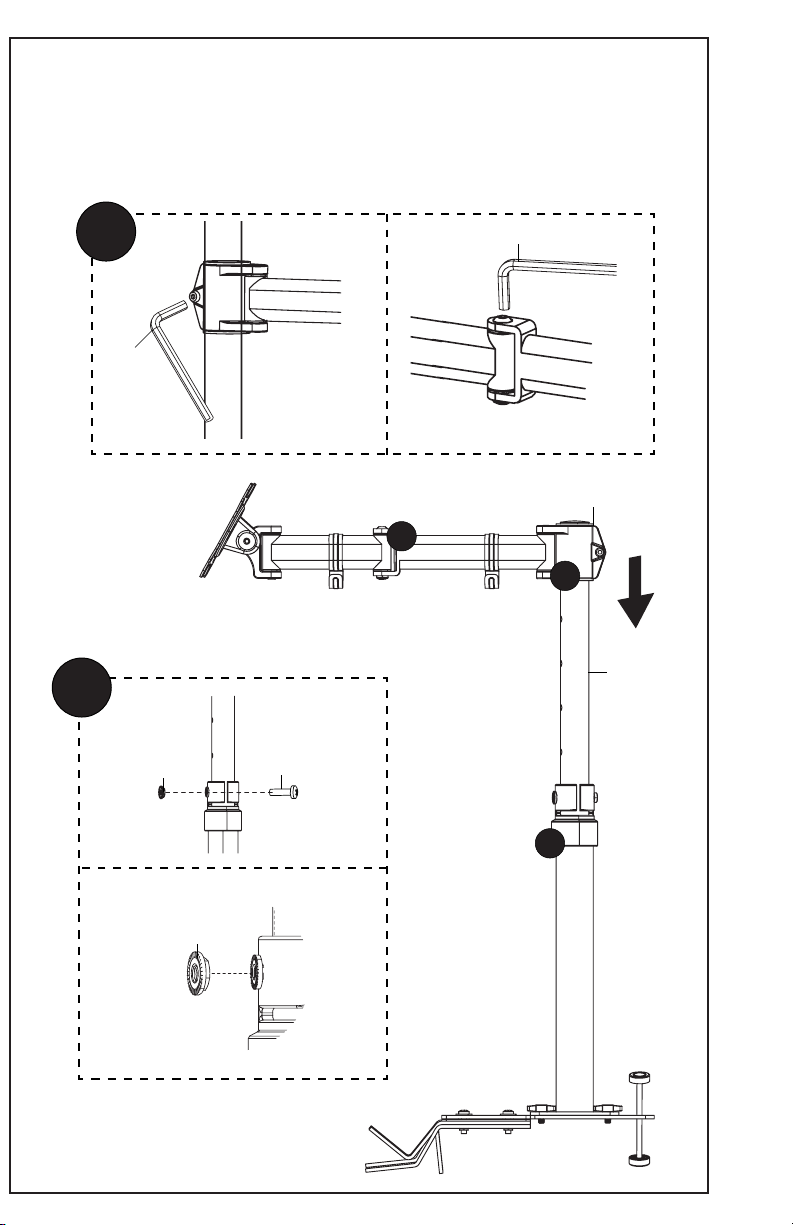

1. Slide Arm (G) onto Pole (F) with the adjustment bolt pointing up. Tighten and secure

with 5mm Allen Wrench (T-A). Adjust the arm tension using 5mm Allen Wrench.

2. Determine desired Pole (F) height and Insert M6x45mm Screw (S-J) into slot. Secure

using M6 Flanged Nut (S-I), making sure the flanged, wider part of the nut is faing

outward, with the hex side fitting into the hex indention on Pole (F).

T-A

S-J

S-I

STEP 7

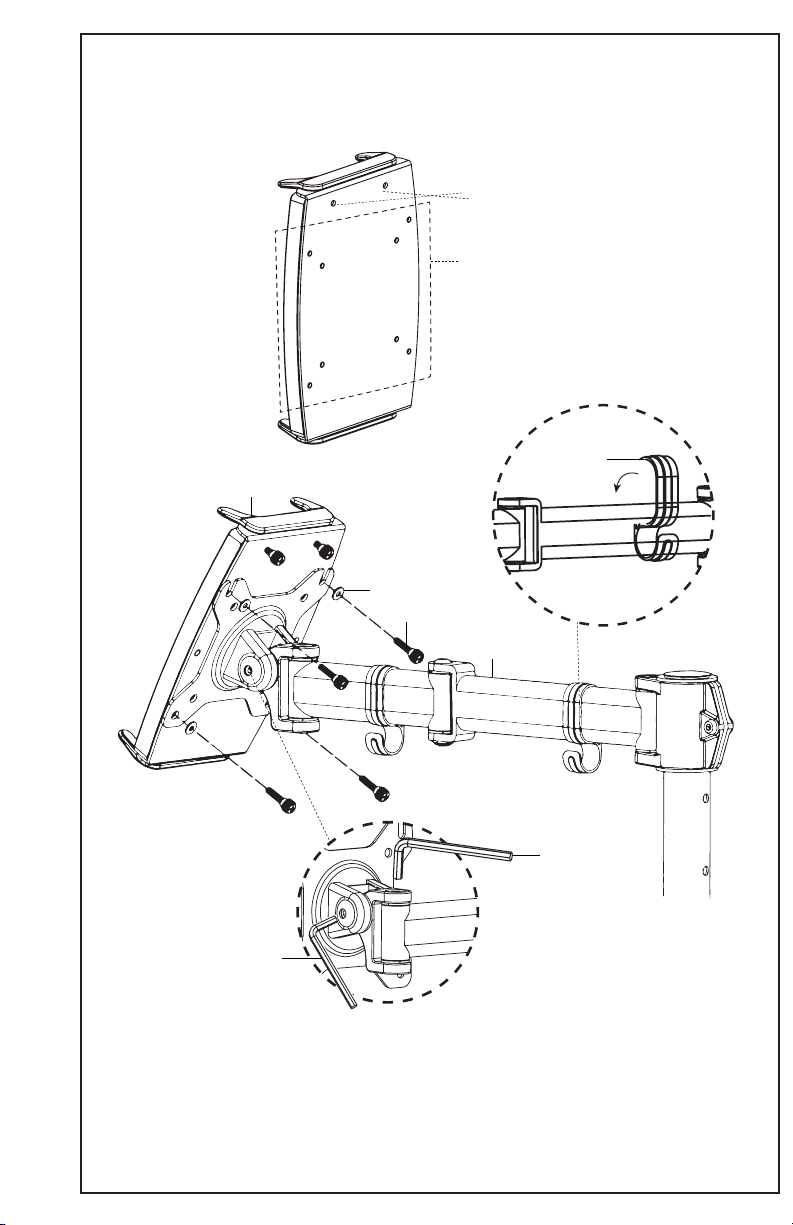

Mount the Adapter (K) to the Arm (F) using the M4x16mm Thumbscrews (S-F) with M4

Washers (S-G) in mounting holes. Loosely install remaining M4x16mm Thumbscrews

(S-F) into the top adjustment holes in Adapter. Place Cable Clips (H) on Arm (F) to

manage cables.

Mounting

Holes

S-F

S-G

Adjustment

Holes

T-A

STEP 8

Note: Before continuing, we recommend checking that your tilt joint on your VESA

mount is tight.

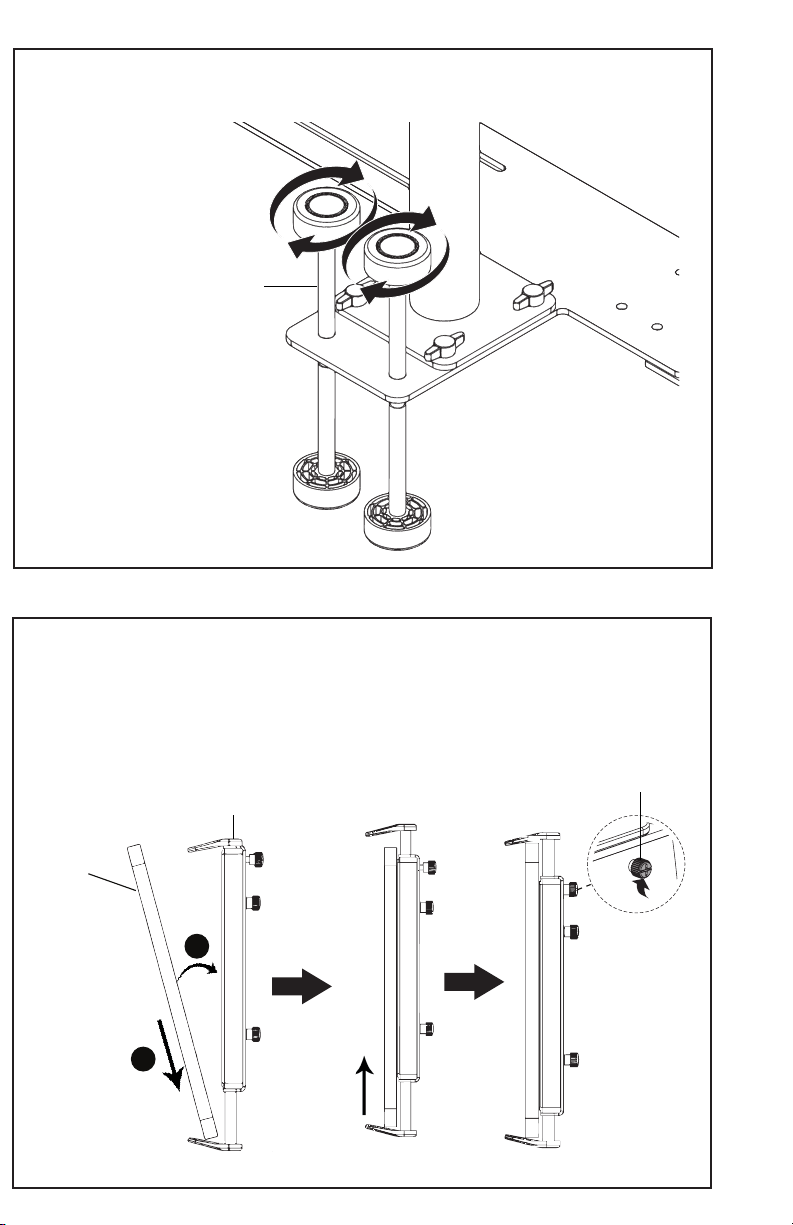

To adjust the Adapter (K) to fit the device, push device down onto springloaded tabs

and position device against the face of the adapter. With the M4x16mm Thumbscrews

(S-F) adjustment screws still loose, center the device on the adapter. Then tighten the

M4x16mm Thumbscrews (S-F) adustment screws.

If assembled mount feels unlevel, tighten Support Screws (I) to level out.

Device

S-F
