Vivo STAND-V002C Manuel utilisateur
Single Monitor and Laptop Desk Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-v002c
SKU: STAND-V002C
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2

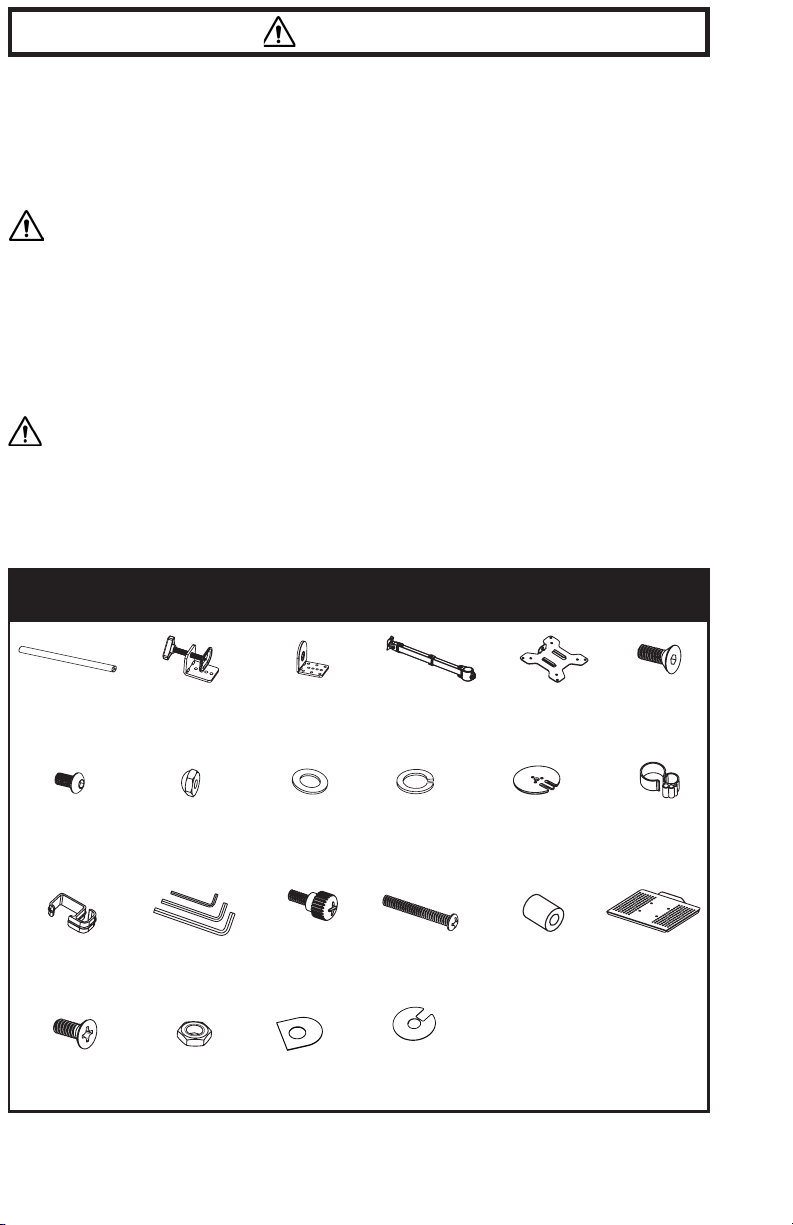

PACKAGE CONTENTS
A (x1)
Pole
B(x1)
Clamp
C(x1)
Clamp Brace
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
D(x2)
Swivel Arm
E(x2)
VESA Plate
F (x3)
M5x14
G (x2)
M8x12
H (x2)
Security Nut
I (x1)
M10 Washer
M (x1)
Allen Key Set
J (x1)
Spring Washer
K (x1)
Grommet Base
Plate
L1 (x1)
Cable Clip
Q (x1)
Laptop Tray
N (x8)
M4x12
O (x8)
M4x30
P (x8)
M4 Spacer
R (x4)
M4x10 Bolt
S (x4)
M4 Nut
T1 (x1)
So Pad
T2 (x1)
So Pad
L2 (x4)
Cable Clip
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR
STAND.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
3
ASSEMBLY STEPS
TOOLS NEEDED
22lbs
(9.98kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
Phillips
Screwdriver Drill
STEP 1

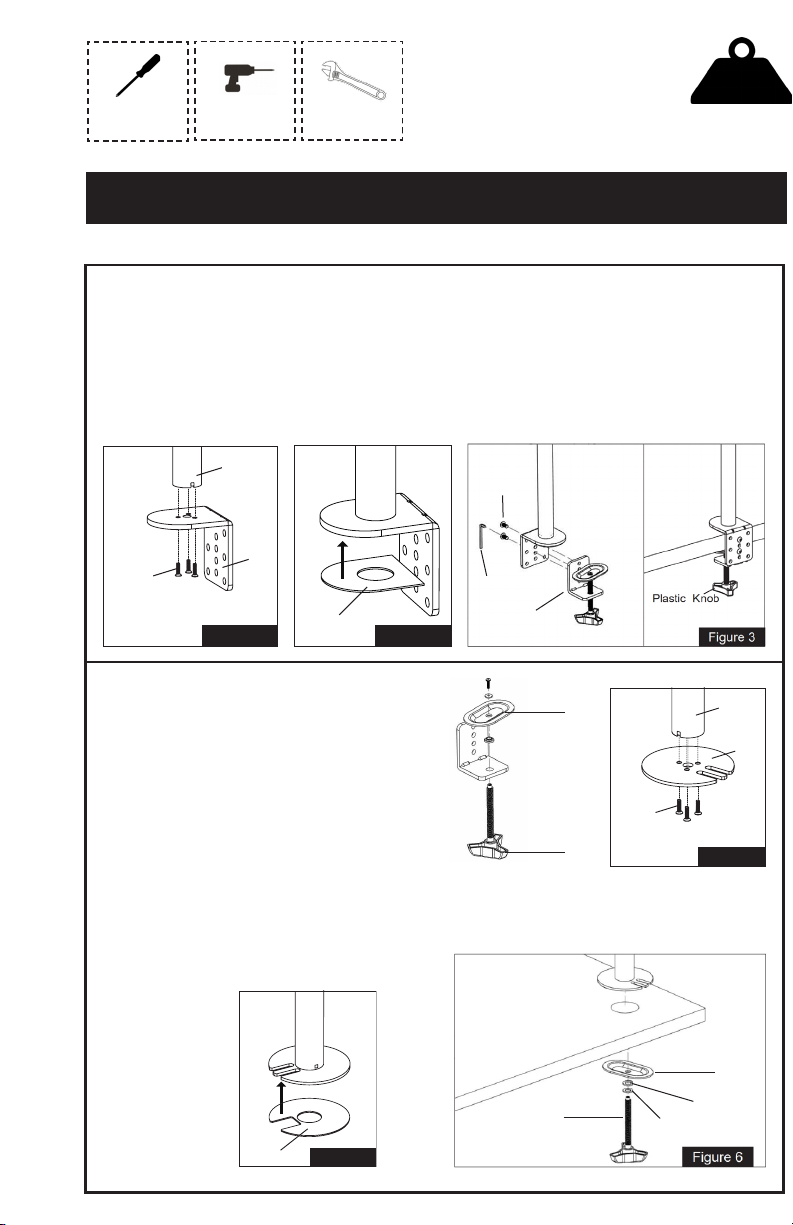

Option A: Desk Clamp Install
1. Install the clamp brace (C) to the pole (A) using x3 M5x14 bolts (F). See Figure 1.
2. Attach so pad (T1) to the clamp brace (C) , see Figure 2.
3. Install the clamp (B) to the pole assembly according to the thickness of the desktop. The
thickness can be changed to 3 positions. Connect using x2 M8x12 bolts (G) and tighten using the
Allen key (M). Tighten the clamp to the desktop using the plastic knob. See Figure 3.
B1
B2
B2
B1
a
m
f
Figure 4
t2 Figure 5
a
m
f
Figure 4
t2 Figure 5
A
K
a
Figure 1 Figure 2
T1
F
C
A
M
G
B
J
I
T2
Option B: Grommet Install
1. If desk does not have an existing grommet
hole, drill a 3/8” (10mm) diameter hole at the
desired position through the mounting surface.
2. Completely disassemble clamp (B) into
individual parts. Set knob (B1) and clamp
plate (B2) aside for later use. The L bracket,
bolt, washer and bushing will not be used.
3. Install grommet base plate (K) to the pole (A)
using x3 M5x14 bolts (F). See Figure 4.
4. Attach so pad (T2) to the grommet base plate
(K), see Figure 5.
5. Position pole (A) on the mounting surface
and secure using the clamp plate (B2), spring
washer (J), M10 washer (I) and knob (B1). See
Figure 6.
Wrench
A
F
4
STEP 2

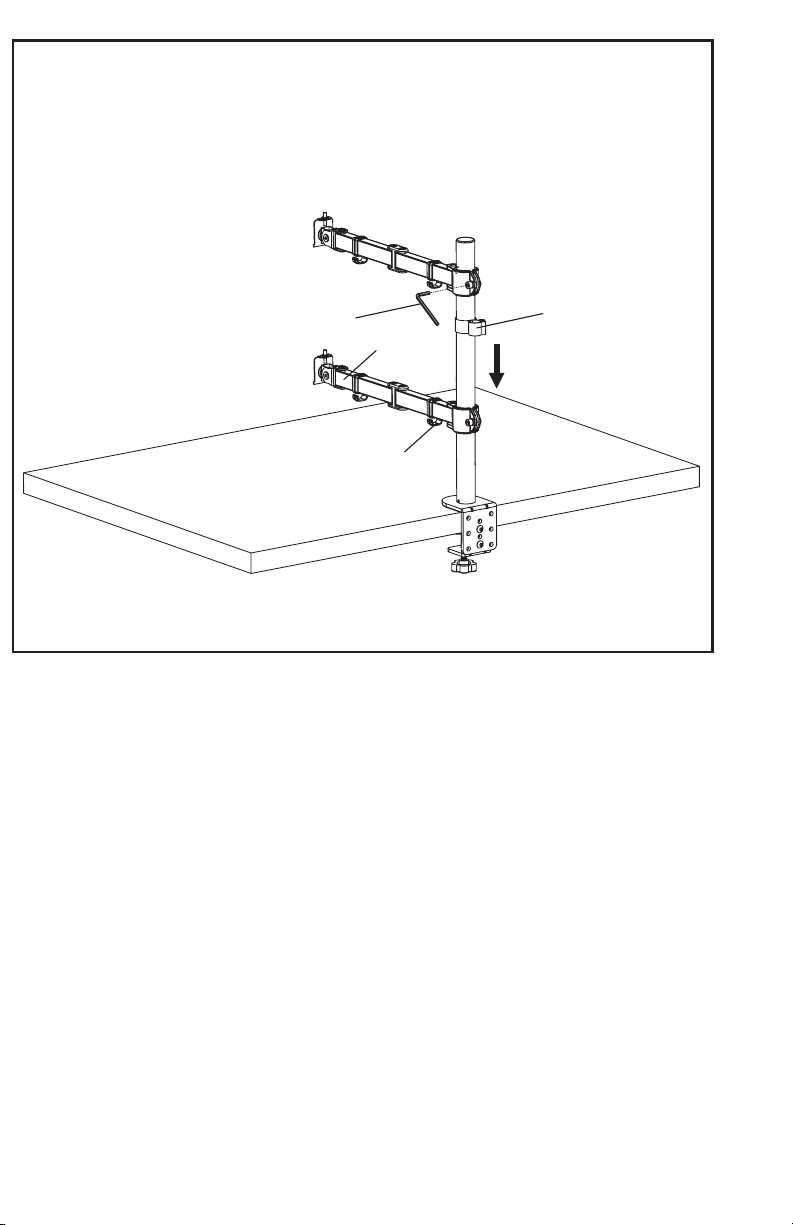

Install Swivel Arms (D) to the Pole (A). Fasten the bolt with supplied Allen Key (M). Attach the Wire Clip
(L1) to the Pole (A) and (L2) to the Swivel Arms (D).
L1
D
L2
M
5
STEP 3

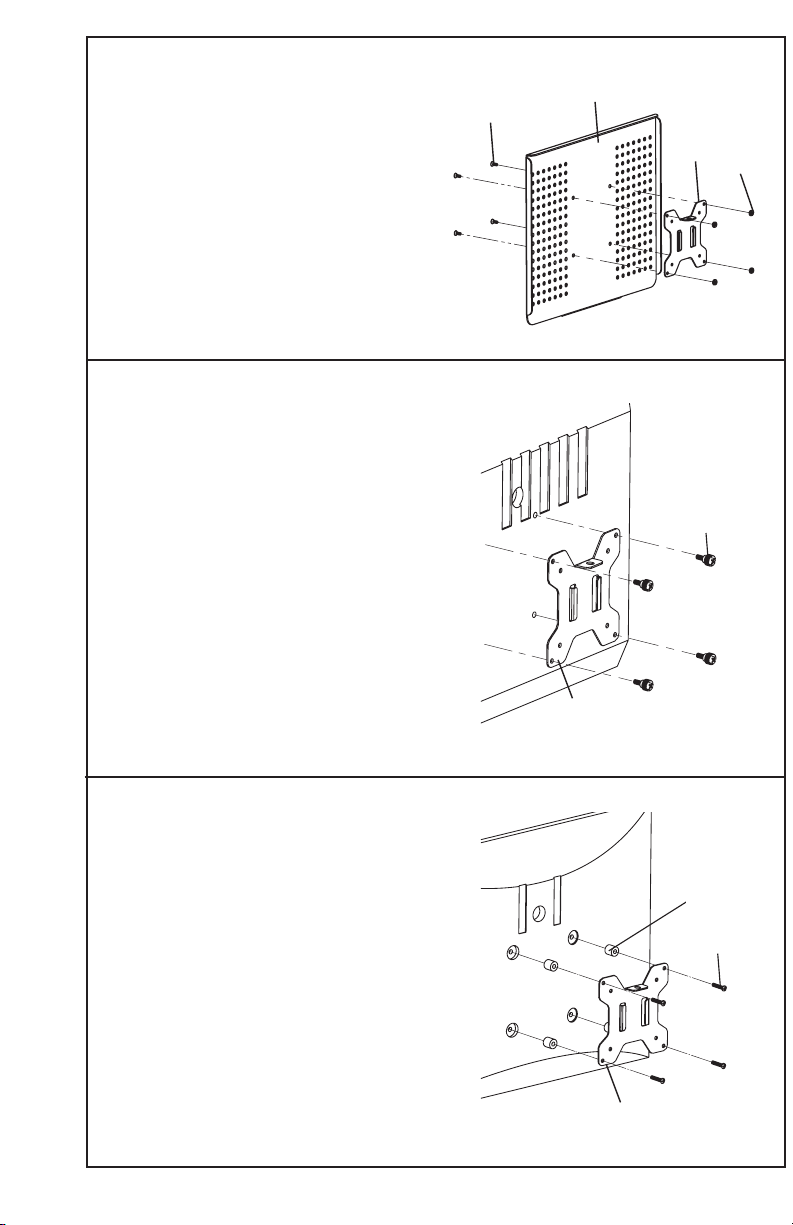

FOR LAPTOP
Attach VESA plate (E) to laptop tray (Q) using
bolts (R) and M4 nuts (S).
FOR FLAT BACK MONITOR
Attach VESA plate (E) to the monitor using
thumb bolts (N).
NOTE: Hand tighten screws to avoid over
tightening.
FOR CURVED BACK MONITOR
Attach VESA plate (E) to the monitor using bolts
(O) and spacers (P).
NOTE: Gently tighten with a screwdriver.
q
s
r
R
Q
S
N
P
O
E
E
E
6
STEP 4

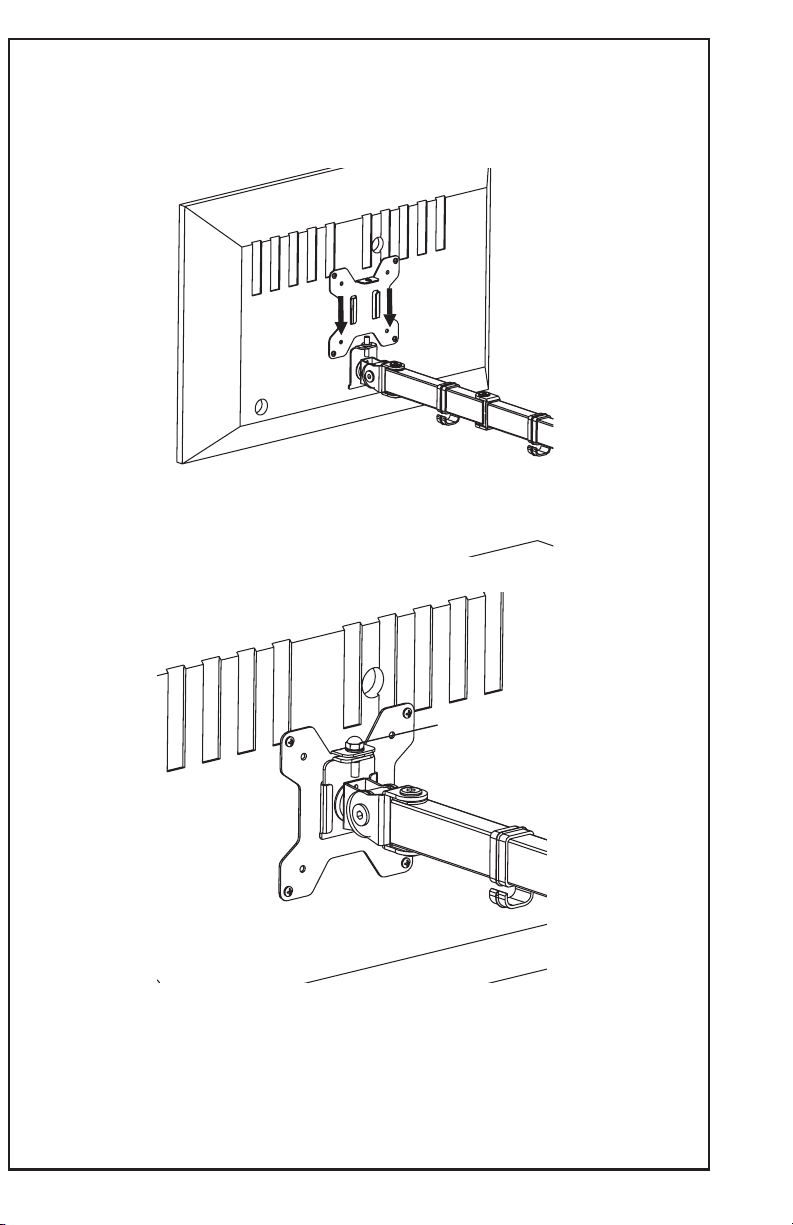

Slide the monitor onto the head of Swivel Arm (D) as shown in the diagram. Install the security Nut
(H). Make sure the security nut is installed before you rotate the monitor.
H
7
STEP 5
Adjust as Desired

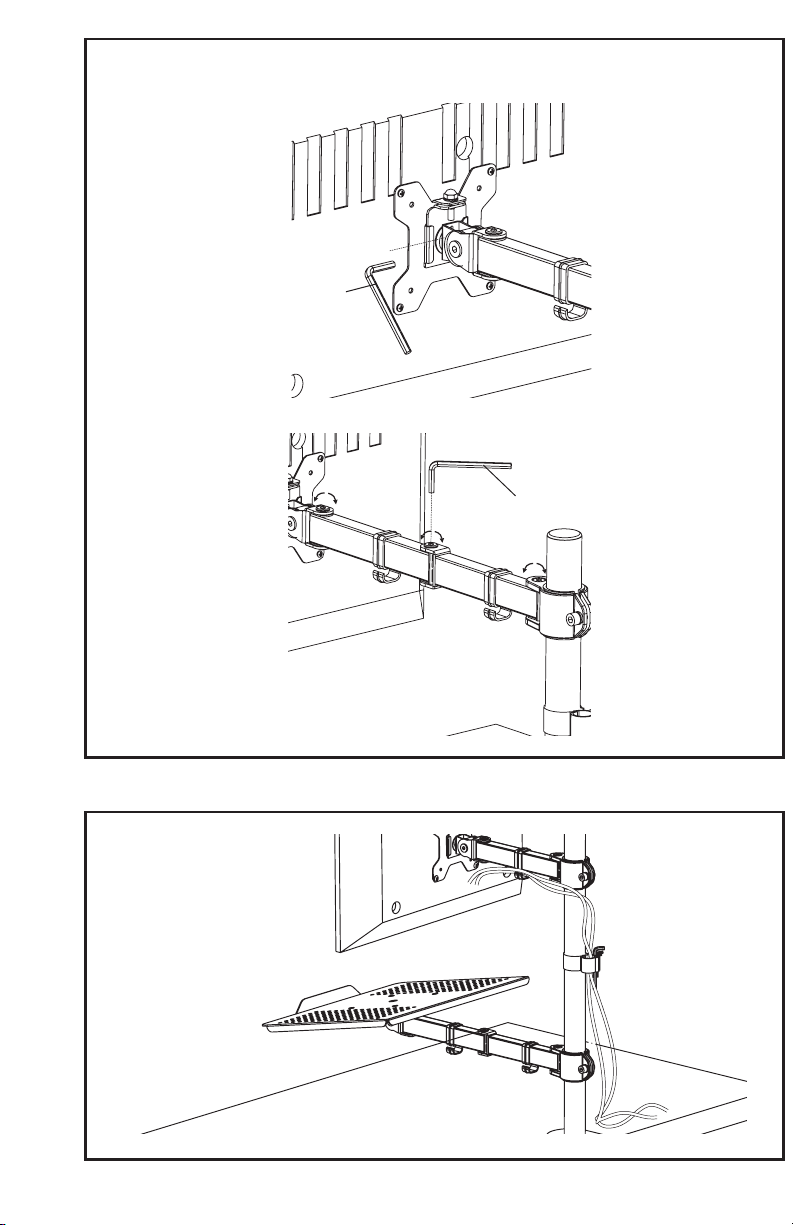

Tighten the bolt with the supplied Allen Key (M) to fix the tilt angle. Use the supplied Allen Key (M) to
make the necessary adjustments
M
M
LAST UPDATED: 09/17/2020
REV1
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
