Vivo MOUNT-PC01 Manuel utilisateur

Adjustable CPU Holder

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-pc01

[email protected]om www.vivo-us.com 1-800-371-5654

SKU: MOUNT-PC01

2 3

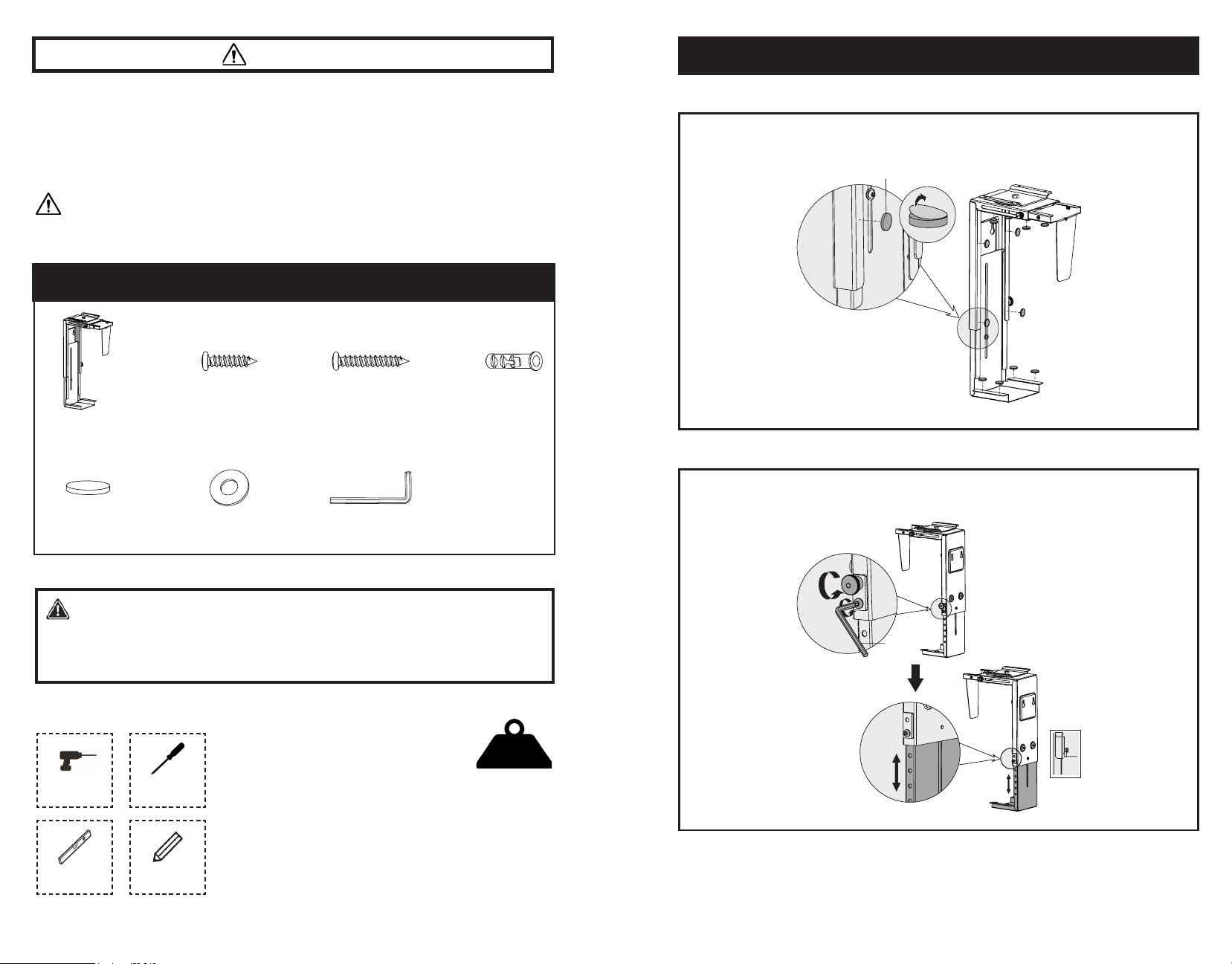

PACKAGE CONTENTS

TOOLS NEEDED

WARNING!

Flat Blade

Screwdriver

A1 (x1)

Mount

B(x4)

4.6x16

C (x4)

4.8x38

D (x4)

Anchor

E (x12)

Pad

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualied technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

Drill

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete If unsure, please contact us at vivo-us.com,

email at [email protected], or call us at 1-800-371-5654.

F(x4)

Washer

G (x1)

Allen Wrench

ASSEMBLY STEPS

STEP 1

Apply pads (E) to top, bottom, and side of the PC mount (A) as shown.

STEP 2

Remove thumb screw from the PC mount, and loosen the hex bolt until 4mm of thread is exposed,

allowing the height to be adjusted.

4mm

Level

22 lbs

(10 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

Pencil

4 5

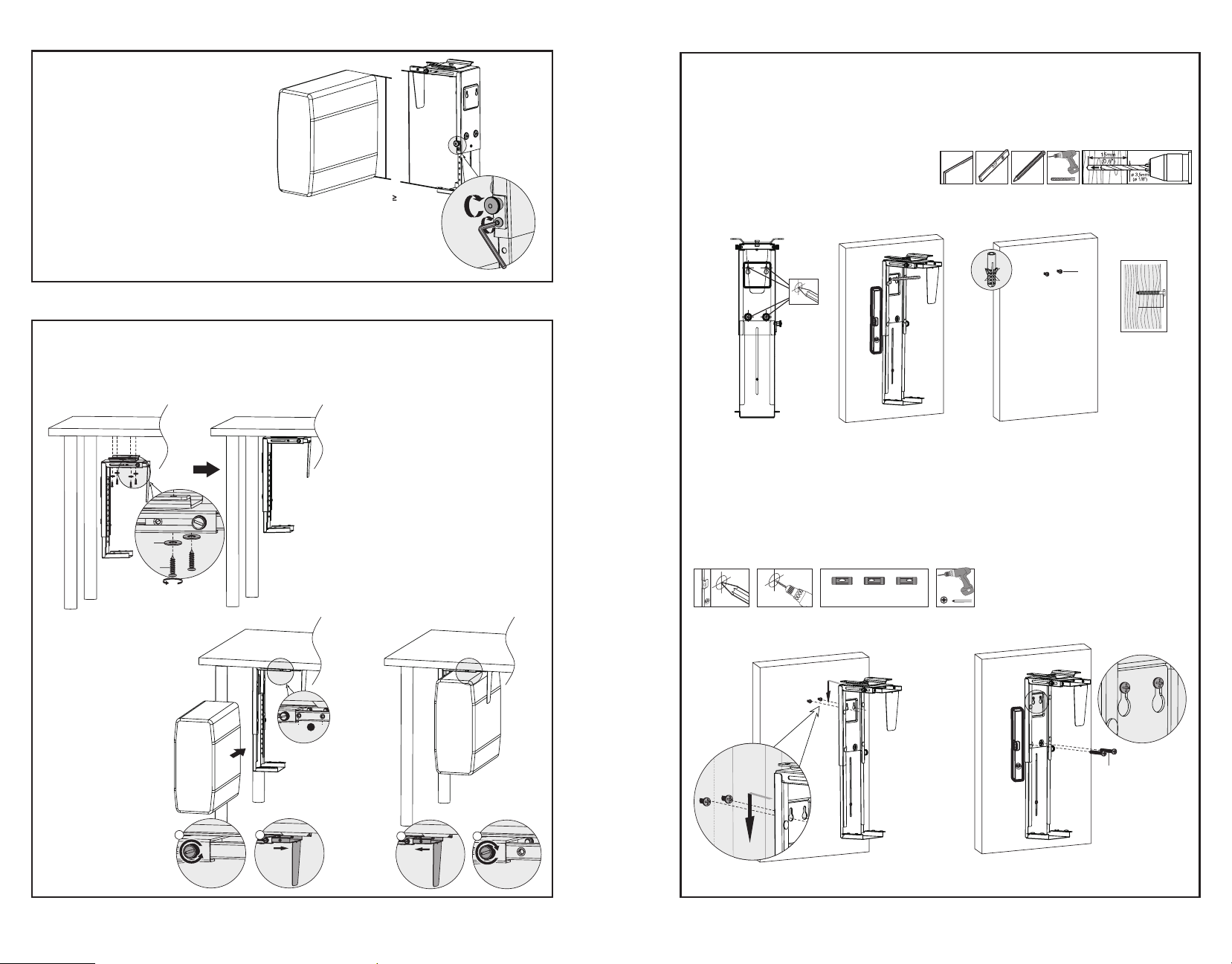

STEP 3

Adjust height to t your PC tower, and secure

height with thumb screw and hex bolt.

STEP 4 (Continued)

OPTION A: Under Desk Installation

Secure PC mount (A) to bottom of desk using screws (B) and washers (F). If needed, loosen thumb

screws on top of mount and select holes A or B, depending on the PC tower width. Place PC tower

on mount, slide side bracket into place to hold PC, and tighten thumb screws (a large at blade

screwdriver can be used).

OPTION B: Wood Stud Installation

For wood stud installation, place PC mount (A) against the wall and mark locations with a pencil. Using

a stud nder and level is recommended. Drill 15mm (0.6”) deep holes at marked locations using a

3.5mm (1/8”) drill bit, and insert two screws (B) into top holes leaving 3mm of thread exposed. DO NOT

USE ANCHORS (D) with wood studs.

STEP 4

B C

1 2

3mm

√

6 7

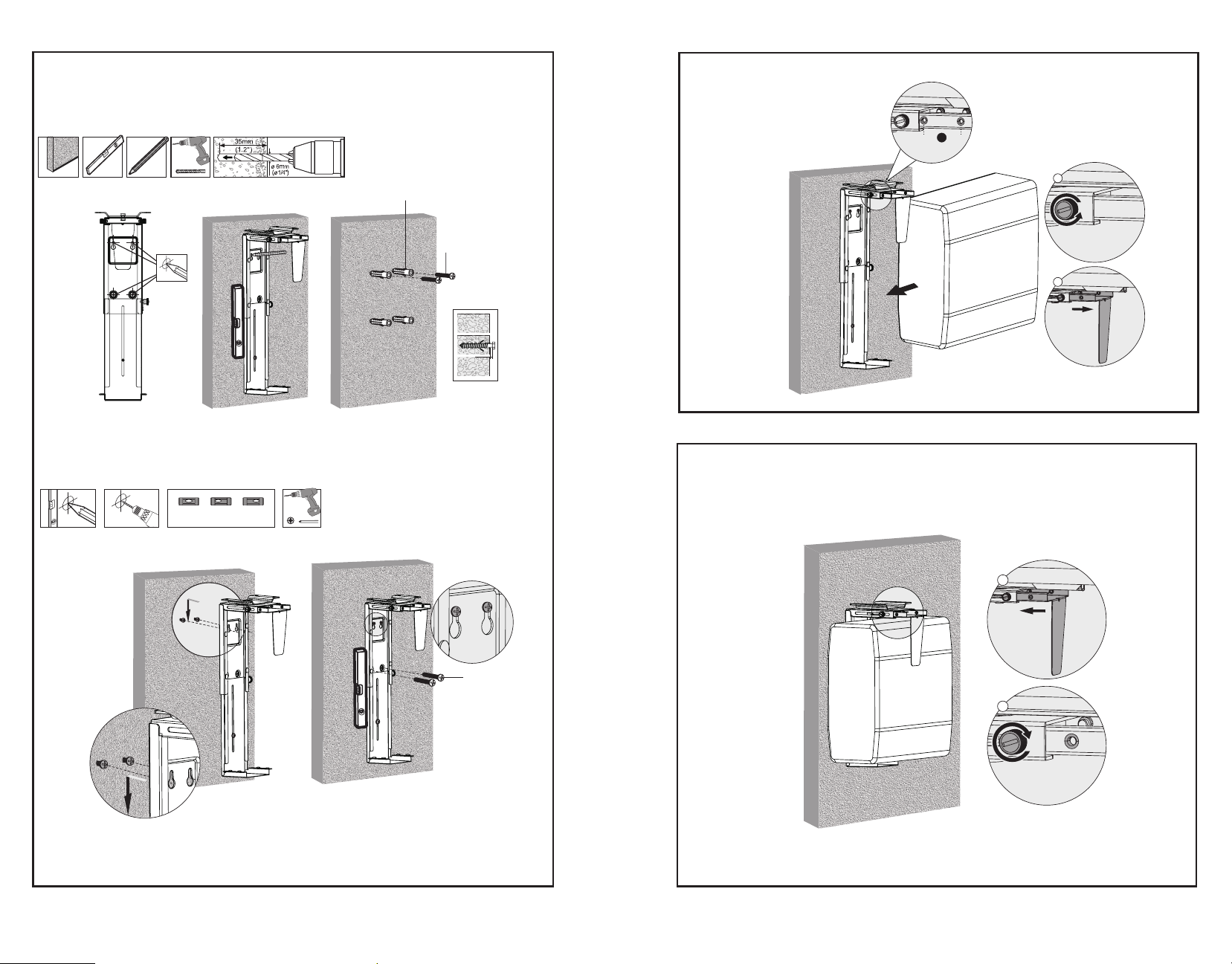

STEP 4 (Continued)

OPTION C: Concrete Wall Installation

For concrete wall installation, place PC mount (A) against the wall and mark locations with a pencil.

Drill 35mm (1.2”) deep holes at marked locations using a 6mm (1/4”) drill bit. Insert anchors (D) into

holes, and insert two screws (C) into top holes, leaving 3mm if thread exposed. Hang mount over two

screws in the wall. Secure with two additional screws (C), and tighten all screws.

STEP 5

If needed, loosen thumb screws on top of mount and select holes A or B, depending on the width of

your PC tower.

STEP 6

Place PC tower on mount, slide side bracket into place to hold PC, and tighten thumb screws.

3mm

√

Last Updated: 11/07/2018

If any parts are received damaged or defective, please contact us. We are happy to

replace parts to ensure you have a fully functioning product.

For more VIVO products, check out our website at:

www.vivo-us.com.

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected]om www.vivo-us.com 1-800-371-5654
