Viotek GNV34DB Manuel utilisateur

In order to continue serving our customers and providing the best products, our product information

including our user manuals may receive updates from time to time. Please check our website for the latest

user manuals and product materials. ver.1.0 8/1/19

GNV34DB

Table of Contents

Section 1: Safety Precautions............................................ 4

Section 2: Box Contents..................................................... 5

Section 3: Product Overview.............................................. 6

3.1 – Monitor Buttons....................................................... 6

3.2 – Monitor Ports .......................................................... 6

Section 4: Stand Installation .............................................. 7

Section 5: Mount Installation.............................................. 8

Section 6: Basic Operation................................................. 9

Section 7: Indicator Light.................................................... 9

Section 8: OSD..................................................................... 10

8.1 – OSD Menu Functions.............................................. 11

Section 9: ECO Modes and Gameplus Switching............. 12

Section 10: Troubleshooting............................................... 13

Section 11: Speciﬁcations .................................................. 14

Section 12: One-Year Limited Hardware Warranty........... 14

Section 1: Safety Precautions

Read and observe the following warnings and information below.

1. Before cleaning, always unplug your monitor. It is recommended that you use

dry cloth or lightly damp cloth to clean your monitor. Dry cloth is, however,

the safest. If using damp cloth, wait for your monitor to completely dry before

plugging it in again.

2. Do not use alcohol or ammonia-based cleaner and/or liquids to clean your

monitor.

3. This monitor features ventilation openings on the back of the unit. Avoid blocking

these openings to prevent the monitor from overheating.

4. Avoid placing this monitor near any heat sources, e.g., portable heaters or

heating vents, as this may cause damage to your monitor.

5. Do not spray cleaner and or any kind of liquid directly onto the monitor’s screen

or any part of the monitor.

6. Do not insert anything into any part of the monitor especially the ventilation

openings.

7. Always make sure your monitor is placed on a secure, level surface to prevent it

from falling and sustaining damage.

8. Unplug your monitor during any extended periods of non-use.

9. Do not place heavy items on the monitor or monitor cables.

10. Do not attempt to disassemble or remove parts from the monitor. Any

disassembly or modication not performed by an authorized technician can

result in damage to the monitor and/or possible exposure to high voltage

electricity which may lead to serious injury or death.

VIOTEK®shall not be held responsible for injury or damage of products or persons

due to failure to adhere to the aforementioned precautions or any others noted

hereafter.

Section 2: Box Contents

Monitor x 1 Stand Stem x 1 Stand Base x 1

Power Cable x 1

(AC 100-240V, 50/60Hz)

Headphone ClipNO. 1 Screws x 4

(for Stand Installation)

DP Cable x 1

Screwdriver x 1 User Manual x 1

Extra screws may be included as backup.

NO. 2 Screws x 4

(for Wall Mounting)

26mm

35mm

26mm

35mm

Section 3: Product Overview

3.1 – Monitor Buttons

3.2 – Monitor Ports

7 Power Connector: Insert the power cable to supply power to the monitor.

8 Audio Output: Insert the audio cable for output of audio signals.

9 DP Connector: Insert one end of the DP cable into the computer’s DP output

and connect the other end to the monitor’s DP port.

10 HDMI Connectors: Insert one end of the HDMI cable into the computer’s

HDMI output and connect the other end to the monitor’s HDMI port.

7 9 10

2 3 4 5 61

1 M Menu Button: Press to display the OSD menu or enter sub-menus.

2 Down Button: Press to move down in the menus.

3 Up Button: Press to move up in the menus.

4 E Exit Button:Press to exit.

5 Power Button: Press to turn the monitor on/off.

6 LED Indicator: Changes colors to indicate status. Refer to Section 7.

The E button can also be used to switch between “Limit” and “Full” color gamuts when

a compatible graphics card and either HDMI or DP connections are in use.

HDMI 2.0 HDMI 1.4

Section 4: Stand Installation

Keep the foam underneath the monitor before attaching the stand.

1. Open the package and take out the monitor with foam still attached. Gently place

it top-down on a desktop or table.

2. Take out the stem, headphone clip and base. Use the included screwdriver and

one screw to fasten base to the stem.

Screw x 1

Stand Stem

Headphone Clip

Base

3. Remove the foam covering the bottom of the monitor, then remove the adapter

from the back of monitor. Use two NO. 1 screws to fasten adapter onto the stem.

Adapter

Screws x 2

4. With the stand fully assembled, reattach it onto the back of monitor. Then remove

the remaining foam on monitor and stand it up on a at, level desktop or table.

Press the button to remove the monitor from the bracket if mounting.

Button

Make sure the monitor is laid on a at surface before removing the stand.

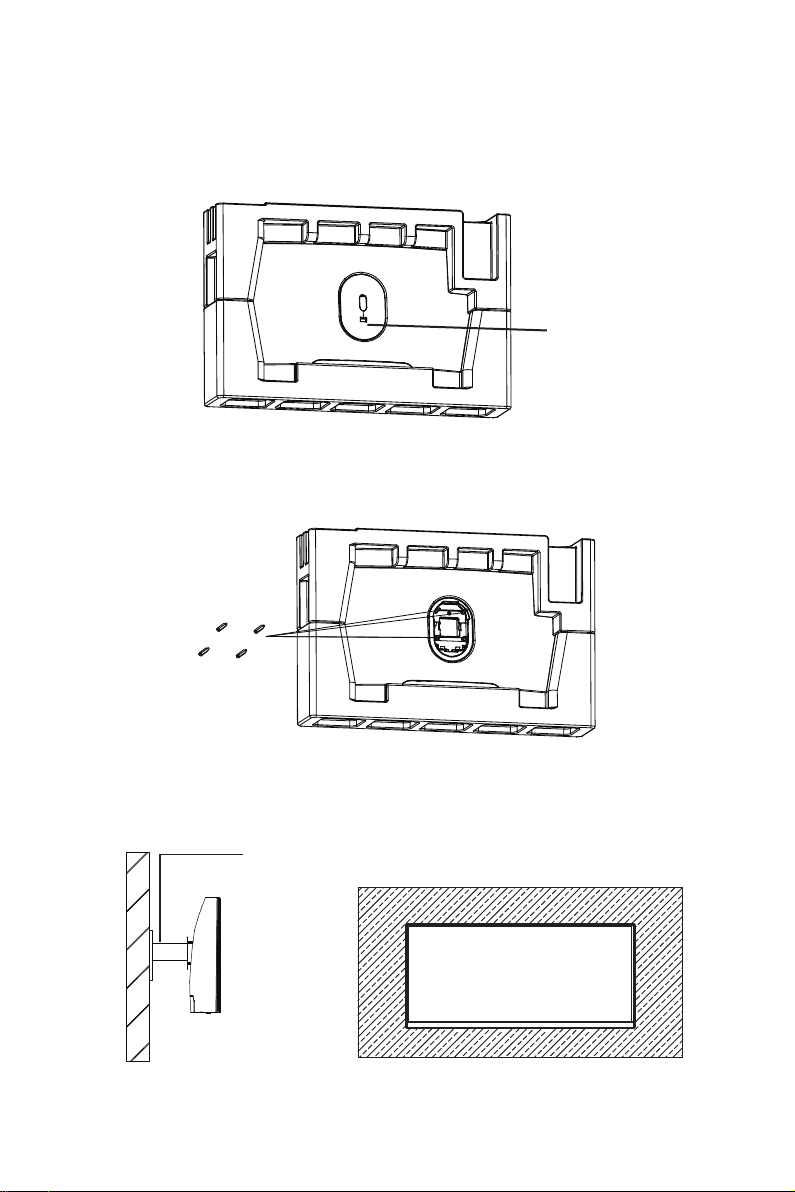

Section 5: Mount Installation

1. Open the package and take out the product with foam still attached. Gently

place it on a desktop or table. Remove the extra parts and the foam covering the

monitor. If the monitor is already attached to the stand, remove the stand.

Button

2. Press the button to remove the adapter on back of monitor, then tighten the

included four NO. 2 screws onto the mounting holes on back of monitor.

NO. 2

Screws x 4

3. Install the monitor on the wall, mount, or xture as desired.

Mount

(not included)

Section 6: Basic Operation

1. Insert one end of the DisplayPort (DP) cable into your PC’s graphics card. An

HDMI cable may also be used. HDMI cable is not included.

2. Connect the other end of the cable to the corresponding connector on your

monitor.

Audio Connector HDMI Connectors

Power Connector DP Connector

3. Connect the power cable to your monitor then connect the other end to your

power source. It is recommended that you use a surge protector with adequate

voltage if a wall outlet cannot be reached directly.

4. Locate the power button on the monitor and press it to turn the monitor on.

AMD FreeSync

This feature is off by default. To activate, you must have hardware with FreeSync

capability, a DP or HDMI cable, and the latest graphic drivers. After connecting your

computer and monitor with a DP or HDMI cable, you may receive a prompt to enable

the feature on your computer. If you do not, you may need to enable the function in

your graphics card menu. See your graphics card manufacturer’s documentation for

instructions.

Section 7: Indicator Light

Indicator Light

Solid blue light indicates power is on and the monitor is operating normally. Flashing

blue light indicates no video source, no horizontal or vertical signal has been

detected or voltage is low. Please ensure your computer is on and all video cables

are fully inserted and/or connected.

Section 8: OSD

The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings

and appears on screen after turning on the monitor and pressing the Mbutton.

When using the monitor for the rst time, settings will automatically adjust to

optimal settings according to your computer’s conguration.

1. Press any one of the buttons (M, , , E, ) to activate the navigation window.

eco

2. Press M( ) to enter the OSD menu.

Resolution：1920x1080@60Hz

InputSource

Brightness/Contrast

Color Setting

PictureQualitySetting

Display

Audio

Multi-Window

OSD

Other

HDMI1(2.0)

HDMI2(1.4)

HDMI3(1.4)

Window1：

InputSource：DP

Resolution：1920x1080@60Hz

Window2:

InputSource：

Resolution：

Resolution：3440x1440@60Hz

InputSource

Brightness/Contrast

Color Setting

PictureQualitySetting

Display

Audio

Multi-Window

OSD

Other

HDMI1(2.0)

HDMI2(1.4)

HDMI3(1.4)

Window1：

InputSource：DP

Resolution：3440x1440@60Hz

Window2:

InputSource：

Resolution：

3. Press or to browse functions.

• Highlight the desired function, then press Mto enter the sub-menu.

• Press or to browse sub-menus, then press Mto highlight the desired

function.

• Press or to highlight an option, then press M to conrm the settings and exit

the current screen.

4. Press E( ) to exit the current screen.
