Viotek GFV27DAB Manuel utilisateur

ORED GAMING MONIT

USER MANUAL

GFV27DAB/GFT27CXB

In order to continue serving our customers and providing the best products, our product

information including our user manuals may receive updates from time to time. Please

check our website for the latest user manuals and product materials.

Table of Contents

Section 1: Safety Precautions ............................................ 4

Section 2: Box Contents ..................................................... 4

Section 3: Product Overview .............................................. 5

3.1 – Monitor Button/Rocker............................................. 5

3.2 – Monitor Ports .......................................................... 6

Section 4: Operations ......................................................... 6

4.1 – Adjust Stand Height................................................ 6

4.2 – Using the Monitor.................................................... 7

Section 5: Indicator Light.................................................... 7

Section 6: Change to Wall Mount....................................... 8

Section 7: OSD..................................................................... 9

7.1 – OSD Menu Functions .............................................. 10

Section 8: Enter Shortcut Menus ....................................... 11

Section 9: Troubleshooting ................................................ 12

Section 10: Information....................................................... 13

10.1 – Specications ........................................................ 13

10.2 – Resolution Compatibility for DisplayPort ............... 15

Section 11: One-Year Limited Hardware Warranty ........... 15

Section 1: Safety Precautions

Read and observe the following warnings and information below.

1. Before cleaning, always unplug your monitor. It is recommended that you use dry cloth or

lightly damp cloth to clean your monitor. Dry cloth is, however, the safest. If using damp

cloth, wait for your monitor to completely dry before plugging it in again.

2. Do not use alcohol or ammonia-based cleaner and/or liquids to clean your monitor.

3. This monitor features ventilation openings on the back of the unit. Avoid blocking these

openings to prevent the monitor from overheating.

4. Avoid placing this monitor near any heat sources, e.g., portable heaters or heating vents,

as this may cause damage to your monitor.

5. Do not spray cleaner and or any kind of liquid directly onto the monitor’s screen or any

part of the monitor.

6. Do not insert anything into any part of the monitor especially the ventilation openings.

7. Always make sure your monitor is placed on a secure, level surface to prevent it from

falling and sustaining damage.

8. Unplug your monitor during any extended periods of non-use.

9. Do not place heavy items on the monitor or monitor cables.

10. Do not attempt to disassemble or remove parts from the monitor. Any disassembly or

modication not performed by an authorized technician can result in damage to the

monitor and/or possible exposure to high voltage electricity which may lead to serious

injury or death.

VIOTEK shall not be held responsible for injury or damage of products or persons due to

failure to adhere to the aforementioned precautions or any others noted hereafter.

The terms HDMI and HDMI High-Denition Multimedia Interface, and

the HDMI Logo are trademarks or registered trademarks of HDMI

Licensing Administrator, Inc. in the United States and other countries.

Section 2: Box Contents

Monitor x 1

Power Cable x 1

(AC 100-240V, 50/60Hz) DP Cable x 1 User Manual x 1

Rocker Button

Section 3: Product Overview

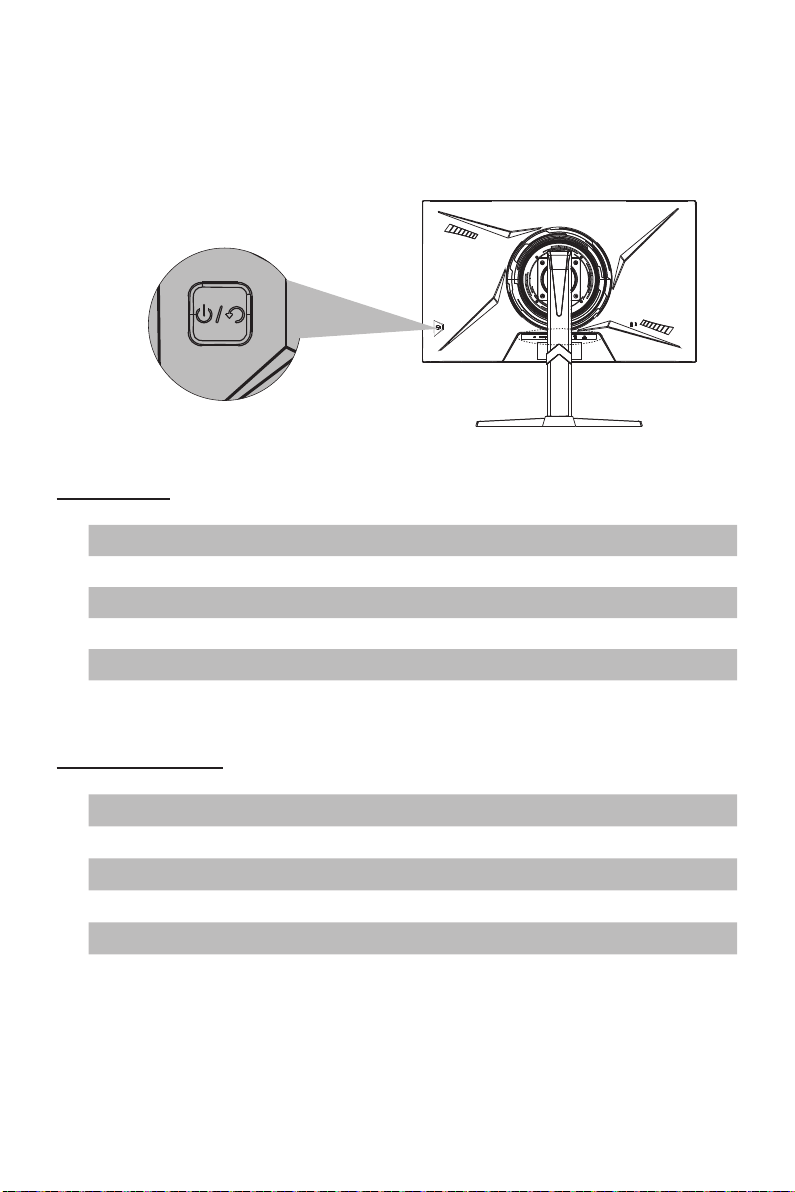

3.1 – Monitor Button/Rocker

Initial State:

Actions Description

Rocker Up Signal source input shortcut key

Rocker Down Volume adjustment shortcut key

Rocker Left Game plus shortcut key

Rocker Right Preset shortcut key

Press Rocker Quick-press to turn on the display or enter the OSD menu.

Long-press about 3 seconds to completely power-down the monitor.

Menu Navigation:

Actions Description

Rocker Up Move up / Adjust value

Rocker Down Move down / Adjust value

Rocker Left Return to previous menu

Rocker Right Enter next menu / Conrm settings

3.2 – Monitor Ports

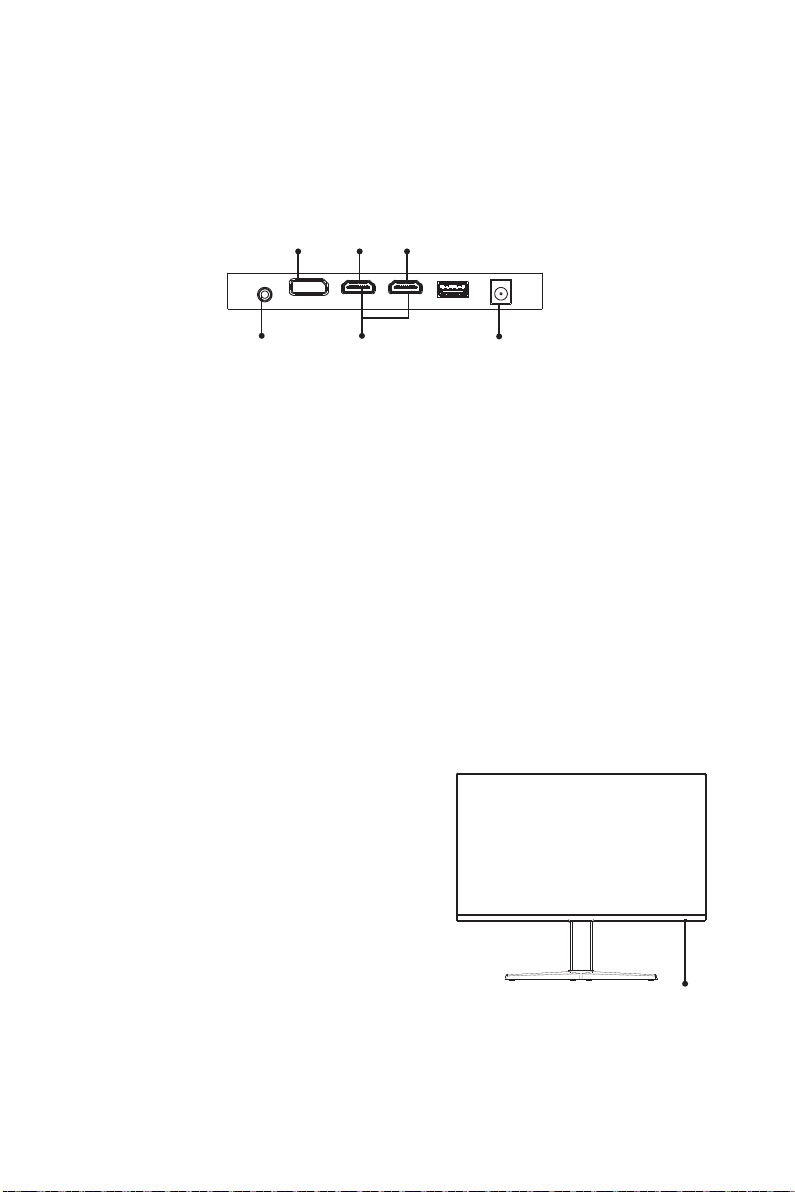

1 2 3 4 5

1 Audio Output:Insert the audio cable for output of audio signals.

2 DP Connector: Insert one end of the DP cable into the computer’s DP output and con-

nect the other end to the monitor’s DP port.

3 HDMI Connectors: Insert one end of the HDMI cable into the computer’s HDMI output

and connect the other end to the monitor’s HDMI port.

4 USB Port: The USB port is only for rmware update using USB portable device. Do not

insert any other equipment.

If you need to upgrade the software, please contact customer service.

5 Power Connector: Insert the Power Cable to supply power to the monitor.

Section 4: Operations

4.1 – Adjust Stand Height

By default, the display comes pre-assembled with a stand. Open the package and

remove the foam covering the surface. Carefully place monitor on the desire desktop.

Now it is ready for use.

Place the monitor on your desktop and carefully pull or push it up or down to adjust height.

HDMI 2.0 HDMI 1.4

4.2 – Using the Monitor

1. Insert one end of the DisplayPort (DP) cable into your PC’s graphics card. For your

convenience, a DP cable is included; however, an HDMI cable (not included) may also be

used.

2. Connect the other end of the cable to the corresponding connector on your monitor.

Audio Output

DP Port

HDMI Ports Power Connector

HDMI 2.0 HDMI 1.4

3. Connect the power cable to your monitor. Then connect the other end to your power

source. It is recommended that you use a surge protector with adequate voltage if a wall

outlet cannot be reached directly.

4. Locate the power button and press it to turn on the monitor.

AMD FreeSync

This feature is off by default. To activate, you must have hardware with FreeSync capability, a

DP or HDMI cable, and the latest graphic drivers. After connecting your computer and monitor

with a DP or HDMI cable, you may receive a prompt to enable the feature on your computer.

If you do not, you may need to enable the function in your graphics card menu. See your

graphics card manufacturer’s documentation for instructions.

Section 5: Indicator Light

Solid blue light indicates power is on and the

monitor is operating normally. Flashing red light

indicates no video source has been detected, no

horizontal or vertical signal has been detected

or power is low. Please ensure your computer is

on and all video cables are fully inserted and/or

connected.

Indicator light

Section 6: Change to Wall Mount

By default, the display comes pre-assembled with a stand. Open the package and

remove the foam covering. Carefully place it on the table or desktop. If you want to

switch to a wall mounted installation, you’ll need to remove the stand rst, then install

it on the wall with the appropriate VESA* accessories (not included) using the steps

below.

1. Open the package, take out the product with foam still attached, and gently place it on a

desktop or table.

2. Take out the four main screws of the stand and remove the entire stand from the monitor.

Carefully store the stand in case you ever want to change back to stand installation in

future.

Screws x 4

3. After remove the stand from the monitor, select a VESA* accessories and four M4 screws

(9mm ≤L≤15mm) to x it onto the back of monitor.

Screw Holes x 8

* Support 75x75 mm or 100x100mm VESA accessories.

4. Follow the directions received with your mount, stand, or accessory and install the monitor

on the wall or xture as desired.

Mount

(Not included)

Section 7: OSD

The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and

appears on screen after turning on the monitor and pressing the Rocker button on back

of the monitor.

When using the monitor for the rst time, settings will automatically adjust to optimal

settings according to your computer’s standard conguration settings.

1. Press the Rocker button to enter the OSD screen.

2. Push the Rocker button UP or DOWN to browse functions.

a. Highlight the functions you want to set and push the Rocker button to the right to enter the

sub-menu.

b. Push the Rocker button UP or DOWN to browse the sub-menu. Then push the Rocker

button to the right to highlight the functions you want to set.

c. Push the Rocker button UP or DOWN to highlight the options. The push the Rocker button

to the right to conrm the settings and exit the current screen.

3. Push Rocker button to the left to return to exit the current screen and return to the

previous menu.

7.1 – OSD Menu Functions

Main Menu Sub-Menu Options Description

Display Brightness 0-100 Adjust display brightness

Contrast 0-100 Adjust display contrast

Black Equalizer 0-100 Adjust display black equalizer

Preset Standard, User,

Movie, Photo, RTS,

FPS1, FPS2

Set visual mode according to activity

Aspect Ratio Full, 16:9, 4:3 Select on-screen aspect ratio

Sharpness 0, 25, 50, 75, 100 Set display sharpness

Ultra Vivid On, Off Turn on or off Ultra Vivid feature

Color Color Temp. Normal, Cool, Warm,

sRGB, User

Select color temperature

Gamma Off, 1.8, 2.0, 2.2, 2.4 Set Gamma add-in

Hue 0-100 Adjust hue levels

Saturation 0-100 Adjust saturation levels

Blue Light Filter 0, 25, 50, 75, 100 Set blue light lter

Gaming Setup Freesync On, Off Turn the FreeSync function on/off

Overdrive Off, Level 1, Level 2,

Level 3

Set overdriver function

Game Plus Timer, Crosshair,

FPS (FPS Counter)

Set game plus mode

HDR On, Off Turn on or off HDR function

DCR On, Off Turn on or off DCR function

MPRT On, Off Turn on or off MPRT function

RGB On, Off Turn on or off RGB LED display effect

Input DP, HDMI1,

HDMI2

NA Switch to DP, HDMI1, or HDMI2

signal input

System Language ENGLISH, 简体中文,

繁体中文, 한국어

Set OSD language

OSD Setup H Position Adjust the OSD’s horizontal position

V Position Adjust the OSD’s vertical position

OSD Timeout Set how long the OSD remains open

after non-use

Transparency Set the OSD’s overall transparency

Audio Mute, Volume Turn on or off Mute function, or adjust

audio volume

Reset Conrm, Cancel Conrm or cancel to reset monitor

congurations

USB UpData Conrm, Cancel Conrm or cancel to use USB updata

User Data User1, User2,

User3

Load, Save Conrm or cancel to load or save

user data
