Viotek GFV24C Manuel utilisateur

GFV24C

GAMING MONITOR

USER MANUAL

In order to continue serving our customers and providing the best products, our product information

including our user manuals may receive updates from time to time. Please check our website for the

latest user manuals and product materials.

Table of Contents

Section 1: Safety Precautions..................................................... 4

Section 2: Box Contents .............................................................. 5

Section 3: Product Overview....................................................... 6

3.1 – Monitor Buttons ............................................................... 6

3.2 – Monitor Ports................................................................... 6

Section 4: Stand Installation ....................................................... 7

Section 5: Wall Mounting............................................................. 8

Section 6: Connectivity Options................................................. 9

6.1 – Connecting the Power Cable........................................... 9

6.2 – DP Connectivity .............................................................. 9

6.3 – HDMI Connectivity .......................................................... 10

6.4 – Connecting Your Headhones .......................................... 10

Section 7: Basic Operation.......................................................... 11

Section 8: Indicator Light ............................................................ 11

Section 9: OSD Setup................................................................... 12

9.1 – OSD Menu Functions ...................................................... 13

Section 10: ECO Modes and Gameplus ..................................... 14

Section 11: Troubleshooting........................................................ 14

Section 12: Speciﬁcations........................................................... 16

Section 13: One-Year Limited Hardware Warranty.................... 17

Section 1: Safety Precautions

Read and observe the following warnings and information below.

1. Before cleaning, always unplug your monitor. It is recommended that you use

dry cloth or lightly damp cloth to clean your monitor. Dry cloth is, however,

the safest. If using damp cloth, wait for your monitor to completely dry before

plugging it in again.

2. Do not use alcohol or ammonia-based cleaner and/or liquids to clean your

monitor.

3. This monitor features ventilation openings on the back of the unit. Avoid blocking

these openings to prevent the monitor from overheating.

4. Avoid placing this monitor near any heat sources, e.g., portable heaters or

heating vents, as this may cause damage to your monitor.

5. Do not spray cleaner and or any kind of liquid directly onto the monitor’s screen

or any part of the monitor.

6. Do not insert anything into any part of the monitor especially the ventilation

openings.

7. Always make sure your monitor is placed on a secure, level surface to prevent it

from falling and sustaining damage.

8. Unplug your monitor during any extended periods of non-use.

9. Do not place heavy items on the monitor or monitor cables.

10. Do not attempt to disassemble or remove parts from the monitor. Any

disassembly or modication not performed by an authorized technician can

result in damage to the monitor and/or possible exposure to high voltage

electricity which may lead to serious injury or death.

VIOTEK®shall not be held responsible for injury or damage of products or persons

due to failure to adhere to the aforementioned precautions or any others noted

hereafter.

Section 2: Box Contents

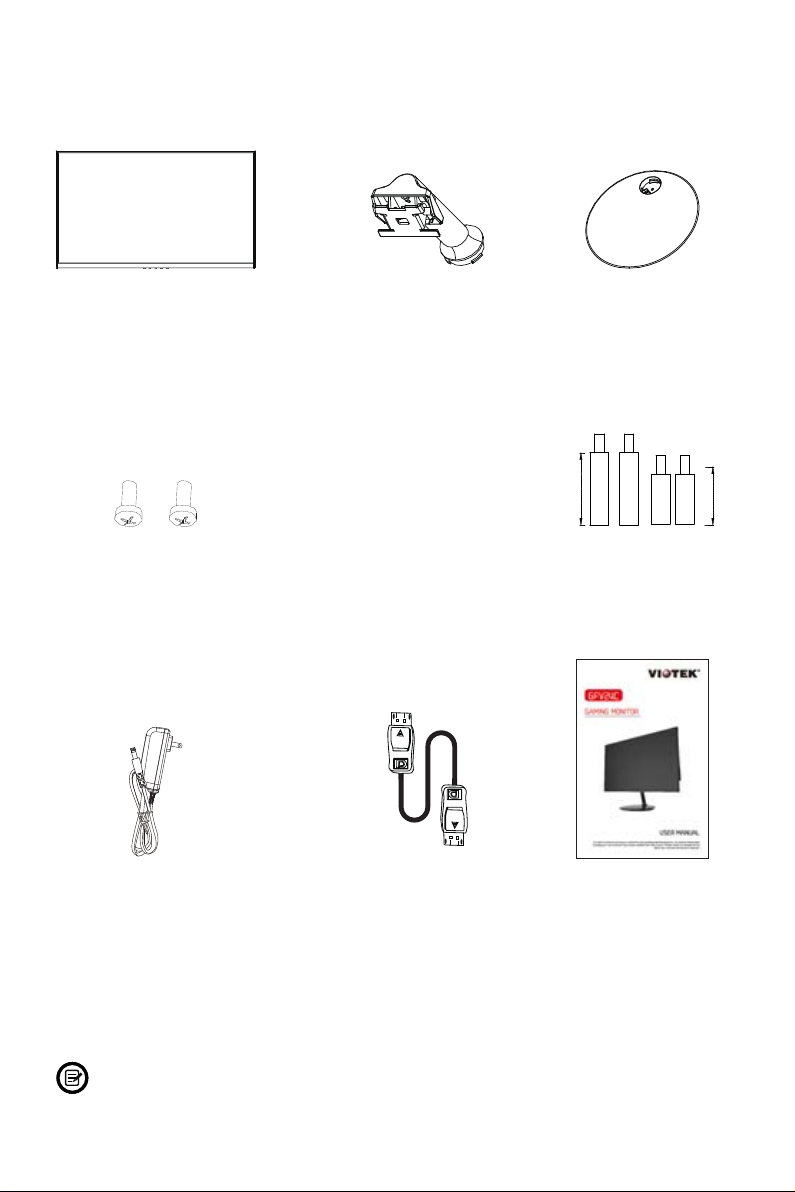

Monitor x 1 Stand Stem x 1 Stand Base x 1

DP Cable x 1 User Manual x 1

Power Cable x 1

NO. 1 Screws x 2

(for Stand Installation)

NO. 2 Screws x 4

(for Wall Mounting)

10mm

26mm

Extra screws may be included as backup.

Section 3: Product Overview

3.1 – Monitor Buttons

7 Audio Output: Insert one end of the audio cable into an external audio

source, e.g., speakers or headphones, to pass audio signals through the

monitor.

8 HDMI Connectors: Insert one end of the HDMI cable into the computer’s

HDMI output and connect the other end to the monitor’s HDMI port.

9 DP Connector: Insert one end of the DP cable into the computer’s DP output

and connect the other end to the monitor’s DP port.

10 DC IN Power Connector: Insert the power cable to supply power to the monitor.

87 109

2 3 4 5 61

1 M Menu Button: Press to display the OSD menu or enter sub-menus.

2 Down Button: Press to move down in the menus.

3 Up Button: Press to move up in the menus.

4 E Exit Button:Press to exit.

5 Power Button: Press to turn the monitor on/off.

6 LED Indicator: Changes colors to indicate status. Refer to Section 8.

3.2 – Monitor Ports

Section 4: Stand Installation

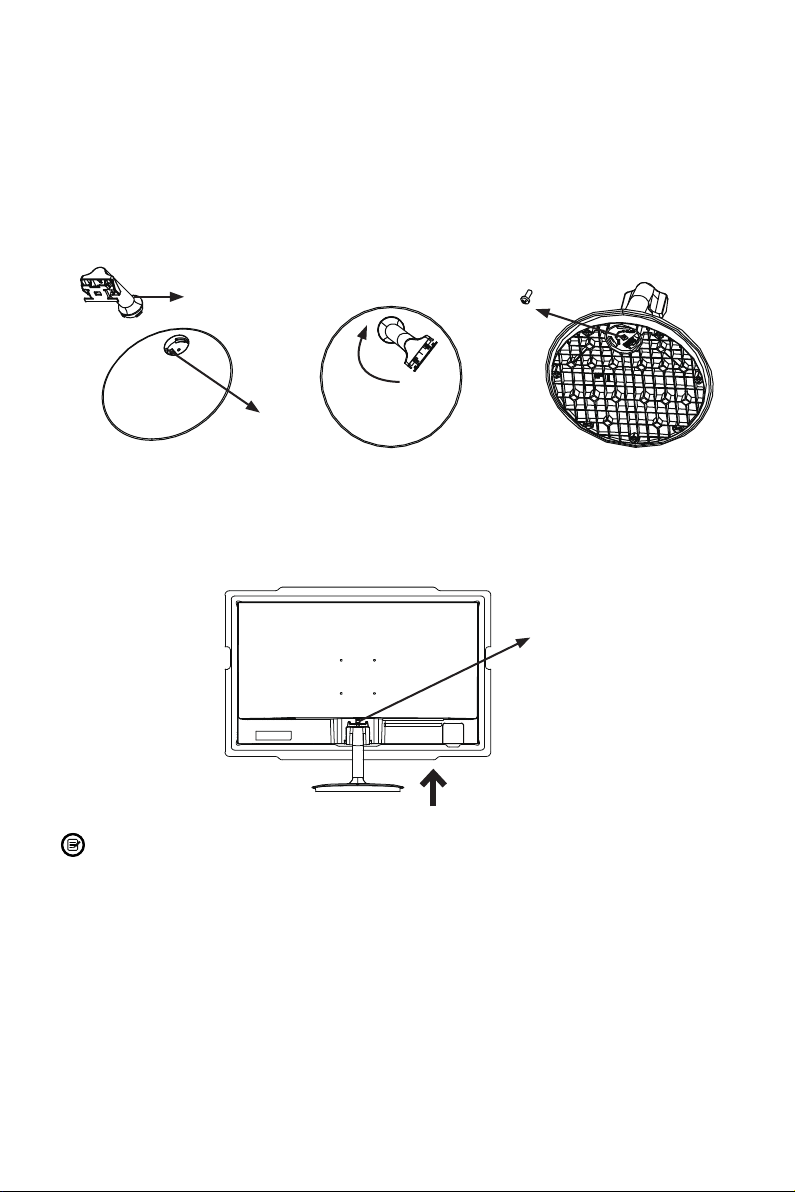

1. Open the package and take out the product with foam still attached. Gently place

it on a desktop or table.

2. Take out the stem and base. Insert the stem into the base opening and turn it

clockwise to lock in place. Then use the included screwdriver and one screw to

fasten base to the stem.

Opening

Stand

NO. 1 Screw

3. Attach the stand to monitor via the opening on the back. It should click into place.

Make sure the stand is securely attached to the back of the monitor then remove

the monitor from the remaining foam section and stand it up on the desired

surface.

Button

If needed, the stand can easily be detached from the monitor by pressing the

button on the back of the monitor just above the stand. Make sure the monitor is

laid on a at surface then press the button and pull the stand away to remove it.

Section 5: Wall Mounting

VESA and/or mounting accessories not included.

1. Open the package, take out the monitor with the foam still attached, and gently

place it on a desktop or table. If the monitor is attached to the stand, remove the

stand by pressing the button on the back of the monitor just above the stand.

2. At the back of the monitor, attach the four NO. 2 screws onto the mounting holes

on back of monitor.

26mm NO. 2 Screws x 2

10mm NO. 2 Screws x 2

3. Follow the directions that came with your mounting kit (not included) to mount

the monitor on the wall or monitor stand.

Wall

Mounting Base

(Not included)

Section 6: Connectivity Options

6.1 – Connecting the Power Cable

Connect the included power cable into the DC IN port in the back of the monitor,

then plug the other end into a wall outlet.

Power Cable

6.2 – DP Connectivity

In order for the monitor to receive DisplayPort (DP) signals from the computer, use

the DP cable (included) to connect the monitor to the computer.

DP OUTPUT

DP Cable (included)

6.3 – HDMI Connectivity

In order for the monitor to receive HDMI signals from the computer, use the HDMI

cable to connect the monitor to the computer.

HDMI OUTPUT

HDMI Cable (not included)

6.4 – Connecting Your Headhones

Plug in your headphones, or any 3.5mm-compatible external audio device, to

receive audio signals from your monitor. If your headphones are connected to the

monitor while audio devices are connected to your computer, the audio devices will

not produce sound. Headphones and other audio devices not included.

Headphones (not included)

Listening to loud audio for prolonged periods of time may permanently

damage your hearing.
