LIEBERT® GXT5™ UPS

5-6KVA I, 230V IN, 230V OUT

GXT5-5000/6000IRT5UXL

Quick Installation Guide

SL-70528_REV0_11-19 1

I M P O R TA N T: Before installing,

connecting to supply or operating

your Liebert GXT5 UPS, please

review the Safety and Regulatory

Statements sheet. For detailed

installation, operating, maintenance

and troubleshooting information

refer to the GXT5 User Guide for

your model available at

www.Vertiv.com.

INSTALLATION

1. Inspecting the UPS

Inspect the UPS for any signs of

obvious damage. If damage is

visible, do not proceed and call

our warranty support line for

assistance at 1-800-222-5877

menu option 3, or email at

microups.warranty@vertiv.com.

2. Choosing a location

Install the UPS in a

temperature-controlled

environment that is free of

corrosive and conductive

contaminants. Avoid locations

near heat or water sources and

exposed to direct sunlight.

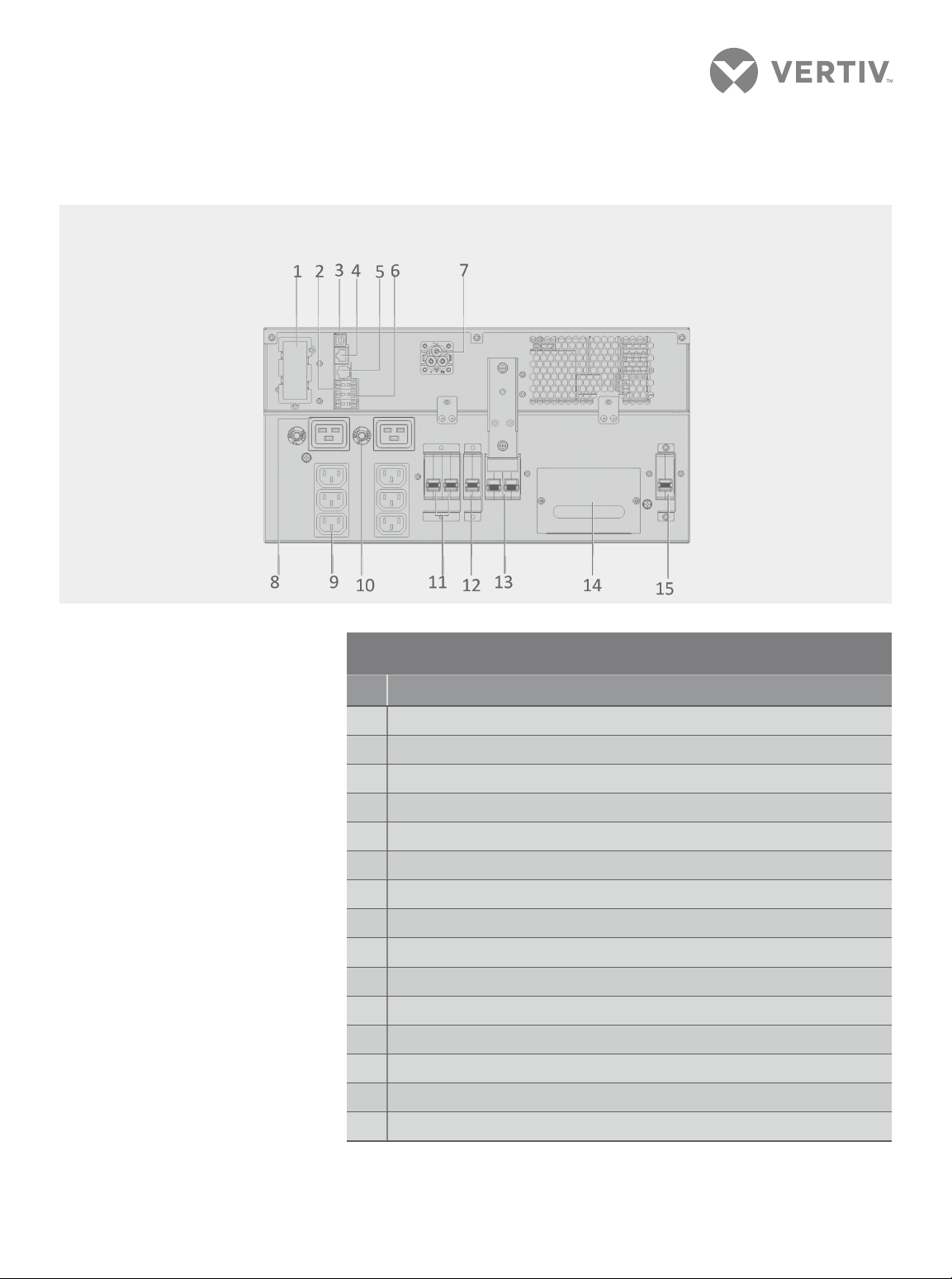

REAR PANEL OF GXT5‑5000/6000IRT5UXL

GXT5 UPS

#Description

1Liebert® IntelliSlot™ port

2Terminal-block/Dry-contact communication connectors

3USB port

4RS-485 port

5RS-232 port

6REPO connector

7External-battery-cabinet connector

8C19 output receptacles (x2)

9Programmable C13 output receptacles (x2)

10 Output circuit breakers (x2)

11 Programmable Output circuit breakers (x2)

12 Output circuit breaker

13 Maintenance-bypass breaker

14 Cable-entry for hard-wire I/O

15 Input circuit breaker

LIEBERT® GXT5™ UPS I GXT5‑5000/6000IRT5UXL

Quick Installation Guide

2 SL-70528_REV0_11-19

For proper ventilation, leave

four inches clearance on all

sides of the UPS.

The input outlet should be

nearby and easily accessible.

3. Installing the UPS

The UPS and optional External

Battery Cabinets may be

installed in either a tower or

rack conguration. For tower

installation, assemble and

attach the tower support

stands. For rack installation,

attach the brackets to the UPS,

install the rail kit in the rack if

needed, and install the UPS in

the rack.

NOTE:

This UPS is not for use in a

computer room as dened in the

standard for the protection of

electronic computer/data

processing equipment of ANSI/

NFPA 75.

CONNECTIONS

4. Connecting External

Battery Cabinet

(Optional)

External Battery Cabinets (EBC)

provide longer battery run-time

for connected devices. Refer to

GXT5 User Guide, to select the

appropriate model and quantity

for your GXT5 model and

applications.

• Verify that the EBC breaker

is in the “O” position.

• Connect one end of the

supplied EBC cable to the

UPS battery connector and

autodetect port (terminal

block 3) and one end to the

EBC’s battery connector and

autodetect port. If connecting

more than one EBC, connect

one end of the external

battery cable to the second

set of connectors on the

battery cabinet, then connect

the other end to the next

battery

cabinet.

EBC terminal

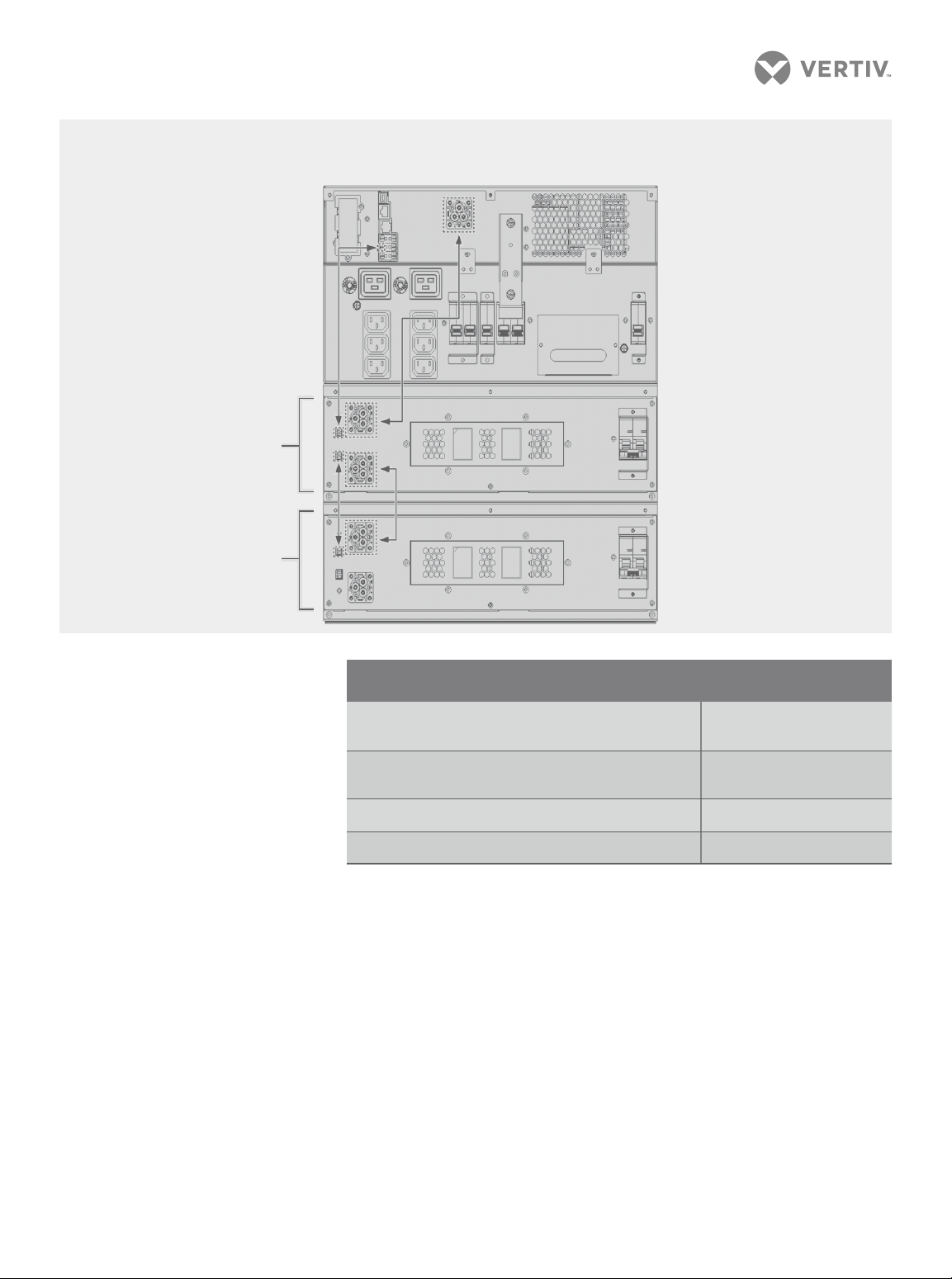

GXT5TM UPS to External Battery Cabinet Connections

GXT5-5000/6000IRT5UXL

Shown

Single/First EBC

WIRING

Recommended external over-current

protection

40 A (5 kVA)

50 A (6 kVA)

Recommended wire size for all wires (75 °C

copper wire)

8 AWG (10 mm2)

Maximum wire accepted by terminal block 6 AWG (16 mm2)

Terminal-block torque 20 in-lb (2.26 Nm)

Second EBC

LIEBERT® GXT5™ UPS I GXT5‑5000/6000IRT5UXL

Quick Installation Guide

SL-70528_REV0_11-19 3

5. Connecting AC Input

Refer to the wiring table above

for the recommended

overcurrent protection.

Refer to the gure at the

upper-right for the terminal-

block connections. Connect to

an input-power supply that is

properly protected by a circuit

breaker in accordance with

national and local electrical

codes.

NOTE: Allow the batteries to

charge at-least 8 hours before rst

start-up to ensure adequate

back-up time. The batteries charge

when the UPS is connected to AC

input regardles of the o/on status

of the UPS.

POWERING THE UPS

NOTE: Do not start the UPS until

the installation is nished, the

system is commissioned by an

authorized engineer, and the

external input circuit breakers are

closed.

1. Make sure the maintenance

bypass switch is in the open

“OFF” position and that the

guard is secured in place.

2. Ensure that the REPO

connector on the rear of the

unit has a jumper between

pins 1-2 or that it is properly

wired to an Emergency Power-

O circuit (normally closed).

3. Make sure the breaker

supplying power to the UPS is

closed, and close the input

breaker on the rear of the UPS.

4. If necessary, use the LCD

display or a connected

computer to adjust any

required settings. (Refer to the

User Guide for conguration

set up.)

5. Close all output breakers on

the rear of the UPS (or in an

external panel board, if used).

6. If external battery cabinets are

included, close the breakers on

the rear of each cabinet.

7. Power-on the UPS using the

Operation and Display Panel

(see the illustration above) by

pressing and holding the power

button until the conrmation

dialog appears. Use the Up/

Down arrows to select “YES”,

then press Enter.

NOTE: During operation, the UPS

may sound an alarm as the output

receptacles are powered. You may

press the Esc button for 2 seconds

to silence the audible alarm.

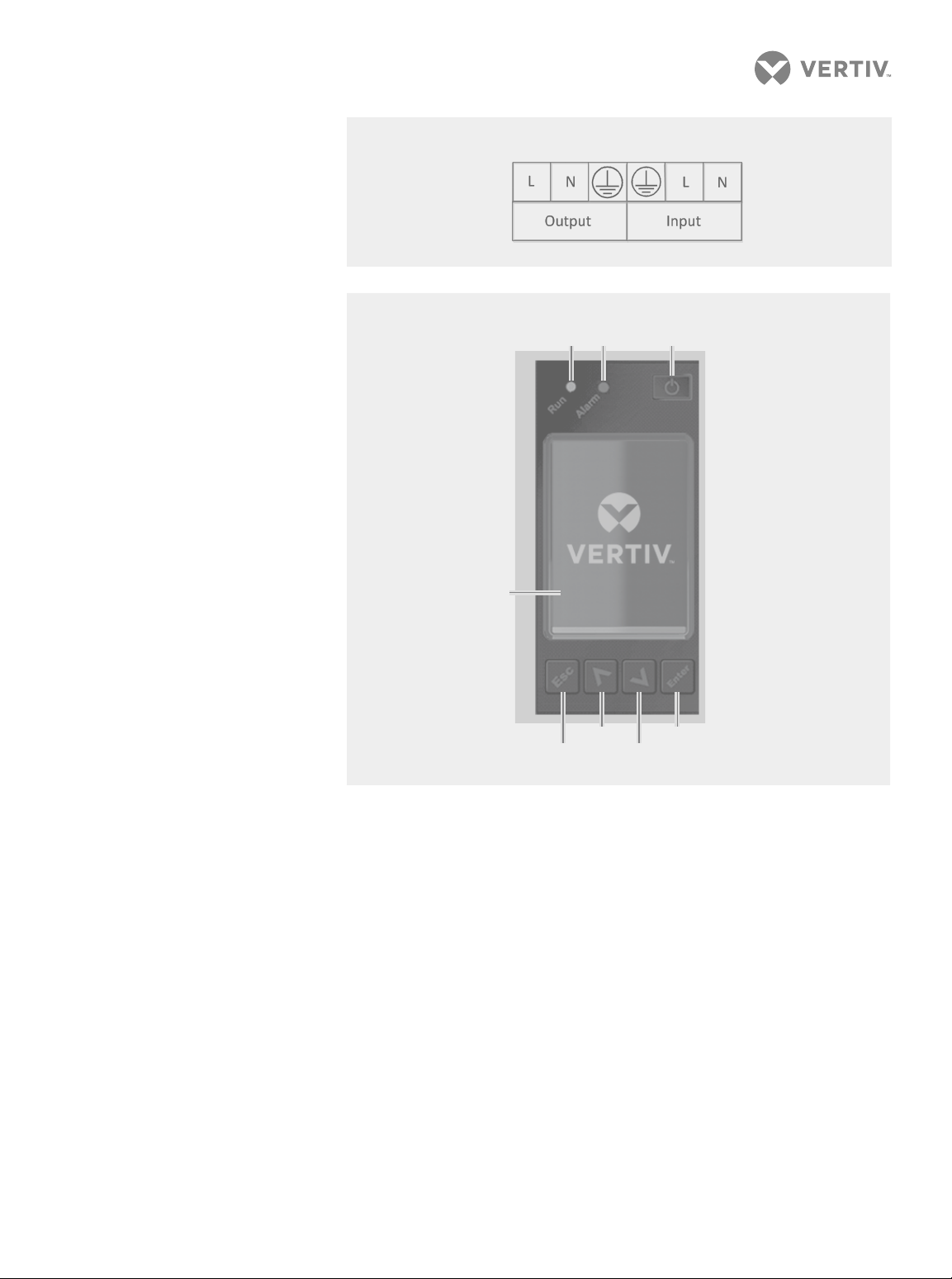

Terminal Block Connections

Display

screen

Power

Operation and Display Panel

Run Alarm

Enter

Down

Escape
