Liebert® MicroPOD™ 120V

Installer/User Guide

Technical Support Site

If you encounter any installation or operational issues with your product, check the pertinent section of

this manual to see if the issue can be resolved by following outlined procedures. Visit

https://www.VertivCo.com/en-us/support/ for additional assistance.

TABLE OF CONTENTS

1 Important Safety Instructions 4

2 Glossary of Symbols 6

3 Introduction and System Description 7

3.1 System Description 7

4 Installation 9

4.1 Installation on a Liebert GXT UPS 9

4.2 Rack Mount Installation 10

5 Startup Procedure 12

5.1 Electrical Connections 12

5.2 Pluggable Connections 12

5.3 Hardwire Connections 13

6 Indicator Lamps 16

6.1 Utility Indicator Lamp 16

6.2 UPS Indicator Lamp 16

7 Operation 17

7.1 Transfer to Maintenance Bypass 17

7.2 Transfer to UPS 17

8 Specifications 18

9 Troubleshooting 21

Appendices 23

Appendix A: Technical Support 23

Vertiv | Liebert® MicroPOD ™ Installer/User Guide | 3

1 IMPORTANT SAFETY INSTRUCTIONS

WARNING! Do not attempt to service this product yourself. Opening or removing the cover may

expose you to dangerous voltages, even when the AC cord is disconnected from the electrical

outlet. Refer all servicing to qualified service personnel.

SAVE THESE INSTRUCTIONS

This manual contains important instructions that should be followed during installation and operation of

the Liebert MicroPOD.

This product is not intended for use with life support or other U.S. FDA designated “critical” devices.

Read all safety and operating instructions before operating the Liebert MicroPOD and the connected

UPS system. Adhere to all warnings on the unit and in this manual. Follow all operating and user

instructions.

Turn the UPS off and unplug the Liebert MicroPOD before cleaning. Use only a soft cloth, never liquid or

aerosol cleaners.

The UPS and Liebert MicroPOD are designed for data processing equipment. Do not plug laser printers or

appliances, such as hair dryers, heaters, vacuum cleaners or electric drills, into the UPS output receptacles.

WARNING! Do not modify the cables in any way. Consult your local Emerson representative if

the AC cords do not match the utility receptacle. The Liebert MicroPOD must be grounded at all

times while in use. Turn Off the UPS before unplugging Liebert MicroPOD.

The UPS and the Liebert MicroPOD are equipped with grounded plugs (plug types vary depending on

model). Do not defeat the safety purpose of this plug. If unable to fully insert the plug into the designated

receptacle, contact a qualified electrician or your local dealer or Emerson representative for assistance.

Route power supply cords so they are not walked on or pinched in anyway.

CAUTION: Risk of electric shock, do not remove cover, no user serviceable parts inside. Refer

servicing to qualified service personnel.

CAUTION: This device receives power from multiple sources. Before servicing this device,

remove all connections. Before servicing the UPS, follow “Maintenance of UPS” instructions in

the user manual for your UPS.

CAUTION: For use in a controlled environment. Refer to manual specifications for

environmental conditions.

Vertiv | Liebert® MicroPOD ™ Installer/User Guide | 4

WARNING! When the Liebert MicroPOD is in Utility position (maintenance bypass mode), the

power to the connected load is not filtered or conditioned by the UPS.

Vertiv | Liebert® MicroPOD ™ Installer/User Guide | 5

2 GLOSSARY OF SYMBOLS

Indicates AC Input.

Indicates AC Output.

Consult the manual for additional information.

Utility lamp indicates local power is available and the load may be

transferred to bypass the UPS.

UPS lamp indicates UPS power is available and the load may be

transferred to the UPS to provide computer-grade power to the load.

Vertiv | Liebert® MicroPOD ™ Installer/User Guide | 6

3 INTRODUCTION AND SYSTEM DESCRIPTION

The Liebert MicroPOD provides maintenance bypass capability as well as power output distribution. The

Liebert MicroPOD can be used on UPSs in either rack mount or tower configuration.

The Liebert MicroPOD provides an isolated path of power for your UPS system for preventive

maintenance or service.

3.1 System Description

The Liebert MicroPOD has two modes of operation: UPS (UPS available) and UTILITY (maintenance

bypass).

•In UPS mode, the power is routed through the UPS system delivering conditioned power to the

load, as shown in Figure 2.1 below.

Figure 2.1 UPS mode of operation

•In Utility mode, power is routed around (bypassing) the UPS system (see Figure 2.2 below).

Utility power is supplied directly to the load through the Liebert MicroPOD.

NOTE: Battery backup and conditioned power are NOT available during the Utility mode of operation.

Figure 2.2 Utility/maintenance bypass mode

•The UPS may be turned off and removed without affecting the load. See Figure 2.3 on the next

page.

Vertiv | Liebert® MicroPOD ™ Installer/User Guide | 7

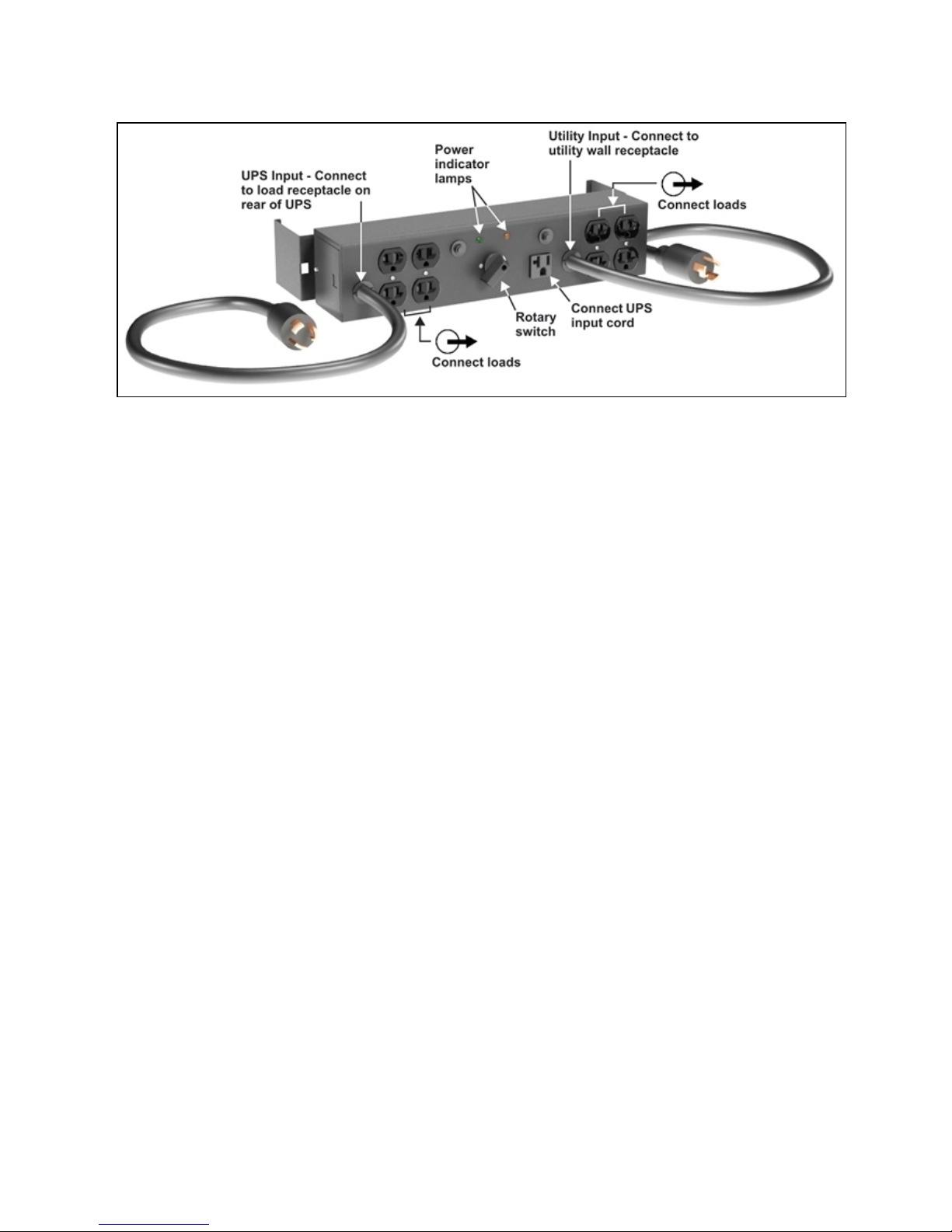

Figure 2.3 Liebert MicroPOD connections

Vertiv | Liebert® MicroPOD ™ Installer/User Guide | 8

4 INSTALLATION

4.1 Installation on a Liebert GXT UPS

NOTE: This manual provides instructions for the Liebert MicroPOD only. Refer to your UPS manual for

UPS operation and installation instructions.

1. Unpack the Liebert MicroPOD carefully, noting the packing method. Retain the box and

packing material for possible future shipments.

2. Inspect the Liebert MicroPOD for freight damage. Report any damage to the carrier and your

local dealer or Liebert representative.

3. Verify that the Liebert MicroPOD input cord, UPS input cord and receptacle for the UPS have

the same type of configuration.

4. If you already have a UPS installed, turn off all connected loads and unplug them from the UPS.

Turn off the UPS and disconnect the input cord.

5. Attach the two Liebert MicroPOD securing brackets (optional for Liebert GXT series UPS) to

the rear of the UPS (see top of Figure 2.4 on the next page). You will need a long M3 Phillips

head screwdriver for this procedure (the torque is 7 in-lb, or 0.79 Nm). The Liebert MicroPOD

brackets have a hole to allow the screwdriver to reach the screw.

6. Next attach the Liebert MicroPOD to the securing brackets (see Figure 2.4 on the next page).

The Liebert MicroPOD can be installed to face one of three different directions utilizing the

same mounting procedures.

Vertiv | Liebert® MicroPOD ™ Installer/User Guide | 9

Figure 2.4 Attaching Liebert MicroPOD to the UPS with securing brackets

4.2 Rack Mount Installation

1. Rack mount installation of the Liebert MicroPOD is possible with the use of the rack mounting

brackets (shipped with the Liebert MicroPOD). See Figure 2.5 on the facing page.

2. The rack mount brackets allow you to rack mount the Liebert MicroPOD in a 19" enclosure.

3. The Liebert MicroPOD can be mounted to face one of four directions depending on your

application, utilizing the rack mount brackets provided.

4. Determine the desired position and direction for the Liebert MicroPOD, face it in that direction,

then attach the brackets to the Liebert MicroPOD with the screws provided.

5. Consult your rack/enclosure manufacturer’s recommendations for specific rack mounting

hardware that will be required.

6. The holes on the rack mount bracket are notched for easy installation. Tighten the Liebert

MicroPOD securely to the rails and then follow the startup directions for the Liebert MicroPOD

in Installation on a Liebert GXT UPS on page 9.

Vertiv | Liebert® MicroPOD ™ Installer/User Guide | 10
