Vertiv Liebert GXT MT+ CX 1K SB Manuel utilisateur

Table of Contents

1. Important Safety Warning ....................................................................................................1

1-1. Transportation ..............................................................................................................1

1-2. Preparation ..................................................................................................................1

1-3. Installation ...................................................................................................................1

1-4. Operation.....................................................................................................................1

1-5. Maintenance, service and faults .....................................................................................2

2. Installation and setup ..........................................................................................................3

2-1. Rear panel view............................................................................................................3

2-2. Setup the UPS ..............................................................................................................4

3. Operations ..........................................................................................................................5

3-1. Button operation...........................................................................................................5

3-2. LCD Panel ....................................................................................................................5

3-3. Audible Alarm...............................................................................................................7

3-4. LCD display wordings index ...........................................................................................7

3-5. UPS Setting ..................................................................................................................7

3-6. Operating Mode Description ........................................................................................ 10

3-7. Faults Reference Code................................................................................................. 11

3-8. Warning indicator ....................................................................................................... 11

4. Troubleshooting.................................................................................................................12

5. Storage and Maintenance................................................................................................... 13

6. Specifications ....................................................................................................................14

Appendix: UPS Installation Guide............................................................................................ 16

1. Important Safety Warning

Please comply with all warnings and operating instructions in this manual strictly. Save this manual

properly and read carefully the following instructions before installing the unit. Do not operate this

unit before reading through all safety information and operating instructions carefully

1-1. Transportation

Please transport the UPS system only in the original package to protect against shock

and impact.

1-2. Preparation

Condensation may occur if the UPS system is moved directly from cold to warm

environment. The UPS system must be absolutely dry before being installed. Please

allow at least two hours for the UPS system to acclimate the environment.

Do not install the UPS system near water or in moist environments.

Do not install the UPS system where it would be exposed to direct sunlight or near heater.

Do not block ventilation holes in the UPS housing.

1-3. Installation

Do not connect appliances or devices which would overload the UPS system (e.g. laser

printers) to the UPS output sockets.

Place cables in such a way that no one can step on or trip over them.

Do not connect domestic appliances such as hair dryers to UPS output sockets.

The UPS can be operated by any individuals with no previous experience.

Connect the UPS system only to an earthed shockproof outlet which must be easily

accessible and close to the UPS system.

Please use only VDE-tested, CE-marked mains cable (e.g. the mains cable of your

computer) to connect the UPS system to the building wiring outlet (shockproof outlet).

Please use only VDE-tested, CE-marked power cables to connect the loads to the UPS

system.

When installing the equipment, it should ensure that the sum of the leakage current of the

UPS and the connected devices does not exceed 3.5mA.

1-4. Operation

Do not disconnect the mains cable on the UPS system or the building wiring outlet

(shockproof socket outlet) during operations since this would cancel the protective

earthing of the UPS system and of all connected loads.

The UPS system features its own, internal current source (batteries). The UPS output

sockets or output terminals block may be electrically live even if the UPS system is not

connected to the building wiring outlet.

In order to fully disconnect the UPS system, first press the OFF/Enter button to disconnect

the mains.

Prevent no fluids or other foreign objects from inside of the UPS system.

1-5. Maintenance, service and faults

The UPS system operates with hazardous voltages. Repairs may be carried out only by

qualified maintenance personnel.

Caution - risk of electric shock. Even after the unit is disconnected from the mains

(building wiring outlet), components inside the UPS system are still connected to the

battery and electrically live and dangerous.

Before carrying out any kind of service and/or maintenance, disconnect the batteries and

verify that no current is present and no hazardous voltage exists in the terminals of high

capability capacitor such as BUS-capacitors.

Only persons are adequately familiar with batteries and with the required precautionary

measures may replace batteries and supervise operations. Unauthorized persons must

be kept well away from the batteries.

Caution - risk of electric shock. The battery circuit is not isolated from the input voltage.

Hazardous voltages may occur between the battery terminals and the ground. Before

touching, please verify that no voltage is present!

Batteries may cause electric shock and have a high short-circuit current. Please take the

precautionary measures specified below and any other measures necessary when

working with batteries:

－remove wristwatches, rings and other metal objects

－use only tools with insulated grips and handles.

When changing batteries, install the same number and same type of batteries.

Do not attempt to dispose of batteries by burning them. This could cause battery

explosion.

Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin and

eyes. It may be toxic.

Please replace the fuse only with the same type and amperage in order to avoid fire

hazards.

Do not dismantle the UPS system.

2. Installation and setup

Before installation, please inspect the unit. Be sure that nothing inside the package is damaged.

Please keep the original package in a safe place for future use.

2-1. Rear panel view

GXT MT+ CX 1K SB GXT MT+ CX 2K SB GXT MT+ CX 3K SB

GXT MT+ CX 1K GXT MT+ CX 2K GXT MT+ CX 3K

1. AC input

2. Input circuit breaker

3. USB communication port

4. RS-232 communication port

5. SNMP intelligent slot (option)

6. Output receptacles

7. Output terminal

8. External battery connection

2-2. Setup the UPS

Step 1: UPS input connection

Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension cords.

The power cord is supplied in the UPS package.

Step 2: UPS output connection

For socket-type outputs, simply connect devices to the outlets.

For terminal-type input or outputs, please follow below steps for the wiring configuration:

a) Remove the small cover of the terminal block

b) Suggest using AWG14 or 2.1mm2power cords for 3KVA (200/208/220/230/240VAC models).

Suggest using AWG12-10 or 3.3mm2-5.3mm2power cords for 3KVA

(100/110/115/120/127VAC models). Please also install a 2-port breaker 40A for 3KVA

100/110/115/120127VAC models and 20A, 250V for 3KVA 200/208/220/230/240VAC models

between the mains and AC input of UPS for safety operation.

c) Upon completion of the wiring configuration, please check whether the wires are securely

affixed.

d) Put the small cover back to the rear panel.

Step 3: Communication connection

Communication port:

USB port RS-232 port Intelligent slot

To allow for unattended UPS shutdown/start-up and status monitoring, connect the communication

cable one end to the USB/RS-232 port and the other to the communication port of your PC. With

the monitoring software installed, you can schedule UPS shutdown/start-up and monitor UPS

status through PC.

The UPS is equipped with intelligent slot perfect for either SNMP orAS400 card. When installing

either SNMP or AS400 card in the UPS, it will provide advanced communication and monitoring

options.

PS. USB port and RS-232 port can’t work at the same time.

Step 4: Turn on the UPS

Press the ON/Mute button on the front panel for two seconds to power on the UPS.

Note: The battery charges fully during the first five hours of normal operation. Do not expect full

battery run capability during this initial charge period.

Step 5: Install software

For optimal computer system protection, install UPS monitoring software to fully configure UPS

shutdown. You may insert provided CD into CD-ROM to install the monitoring software. If not,

please follow steps below to download and install monitoring software from the internet:

1. Go to the website http://www.power-software-download.com

2. Click ViewPower software icon and then choose your required OS to download the software.

3. Follow the on-screen instructions to install the software.

4. When your computer restarts, the monitoring software will appear

as an orange plug icon located in the system tray, near the clock.

Step 6: External battery connection

Follow the right chart to make external battery connection.

3. Operations

3-1. Button operation

Button

Function

ON/Mute Button

Turn on the UPS: Press and hold ON/Mute button for at least 2 seconds

to turn on the UPS.

Mute the alarm: When the UPS is on battery mode, press and hold this

button for at least 5 seconds to disable or enable the alarm system. But it

will be automatically enable when next warnings or errors occur.

Up key: Press this button to display previous selection in UPS setting

mode.

Switch to UPS self-test mode: Press and hold ON/Mute button for 5

seconds to enter UPS self-testing while in AC mode, ECO mode, or

converter mode.

OFF/Enter Button

Turn off the UPS: Press and hold this button at least 2 seconds to turn

off the UPS. UPS will be in standby mode under power normal or

transfer to Bypass mode if the Bypass enable setting by pressing this

button.

Confirm selection key: Press this button to confirm selection in UPS

setting mode.

Select Button

Switch LCD message: Press this button to change the LCD message for

input voltage, input frequency, battery voltage, output voltage and output

frequency.

Setting mode: Press and hold this button for 5 seconds to enter UPS

setting mode when UPS is in standby mode or bypass mode.

Down key: Press this button to display next selection in UPS setting

mode.

ON/Mute + Select

Button

Switch to bypass mode: When the main power is normal, press ON/Mute

and Select buttons simultaneously for 5 seconds. Then UPS will enter to

bypass mode. This action will be ineffective when the input voltage is out

of acceptable range.

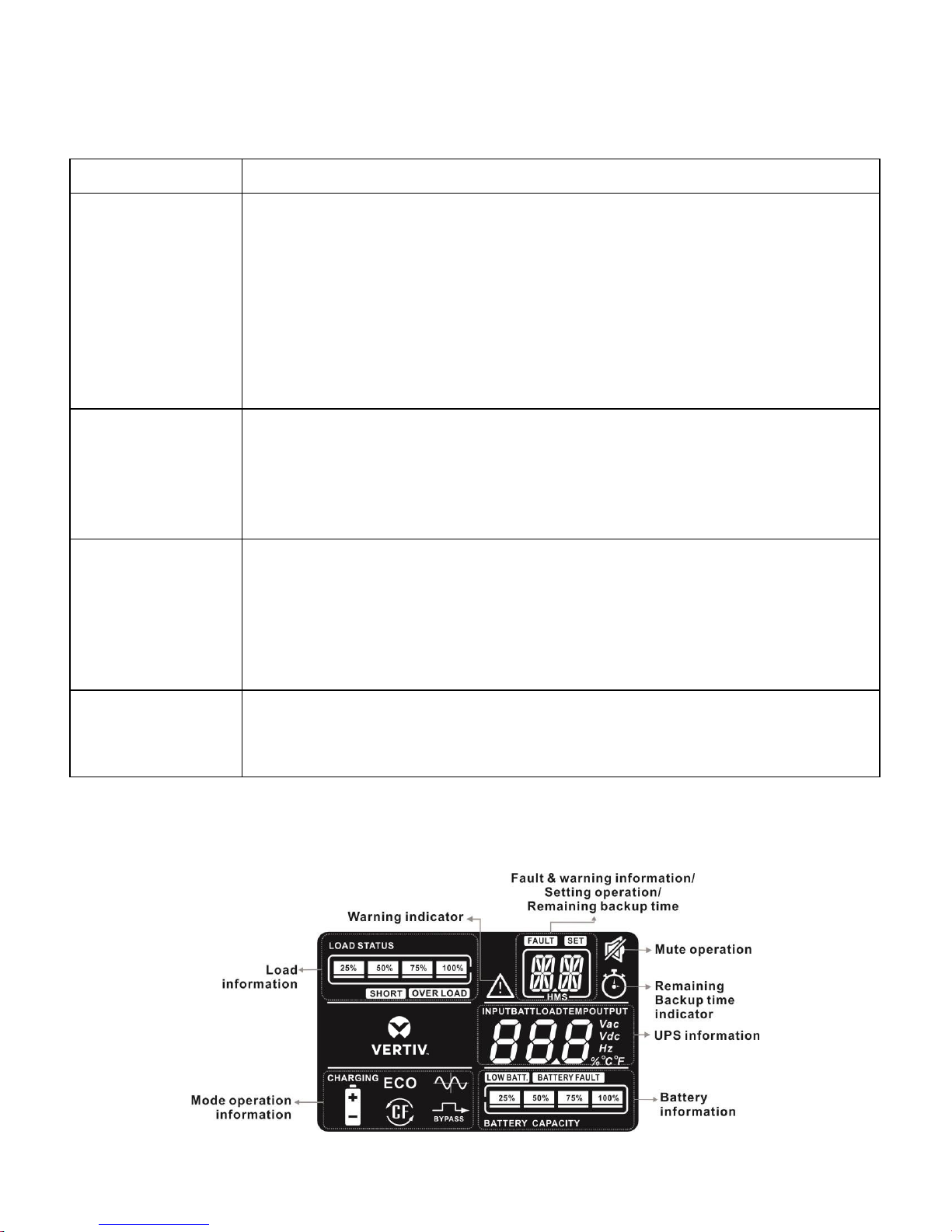

3-2. LCD Panel

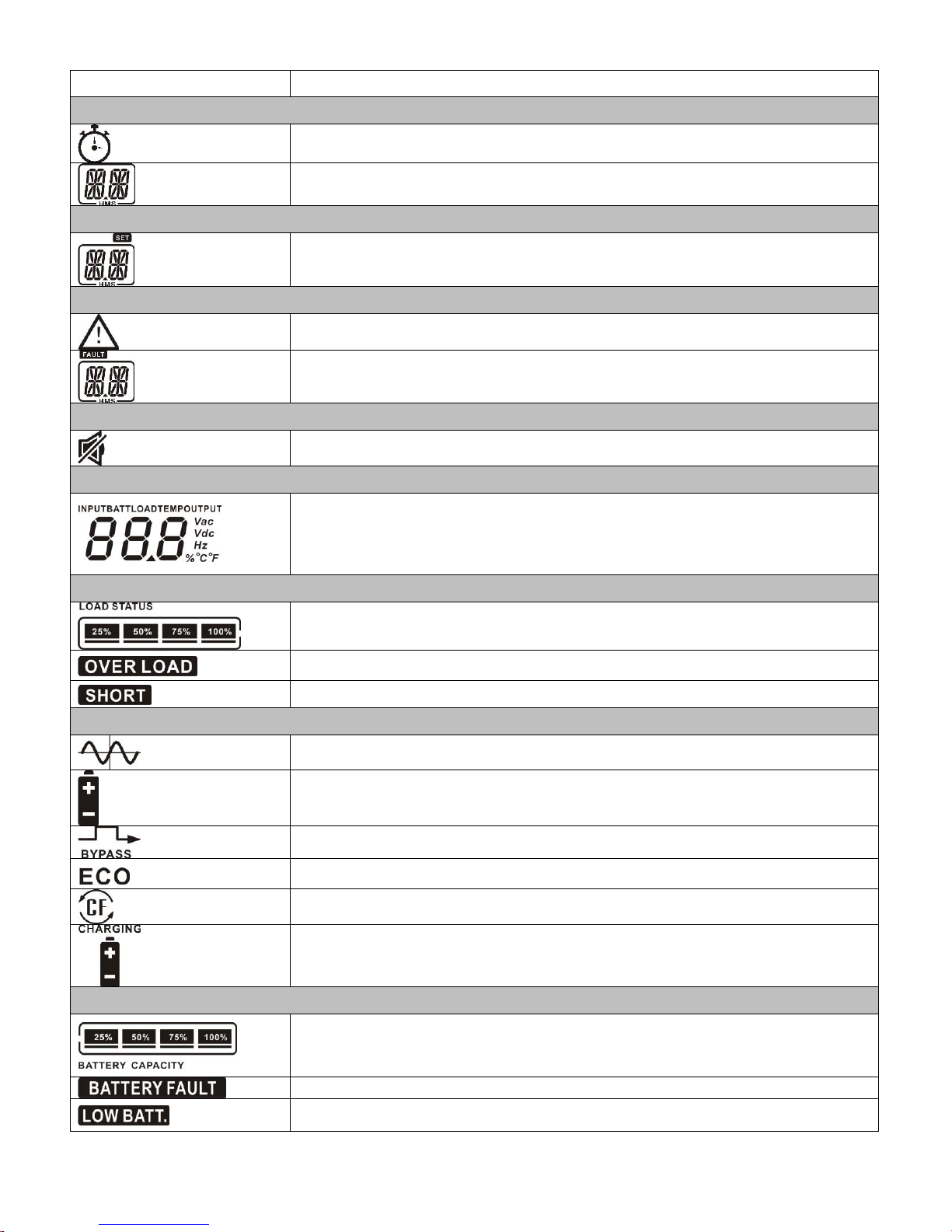

Display

Function

Remaining backup time setting and information

Indicates the remaining backup time in pie chart.

Indicates the remaining backup time in numbers.

H: hours, M: minute, S: second

Setting operation

Indicates the setting operation.

Fault & warning information

Indicates that the warning situation occurs.

Indicates the warning and fault codes, and the codes are listed in

details in 3-5 section.

Mute operation

Indicates that the UPS alarm is disabled.

UPS information

Indicates the input and output voltage, frequency, battery voltage,

load information, and internal temperature.

Vac: input/output voltage, Vdc: battery voltage, Hz: frequency, %: load level,

°C/°F: temperature,

Load information

Indicates the load level by 0-25%, 26-50%, 51-75%, and 76-100%.

Indicates overload.

Indicates the load or the UPS output is short circuit.

Mode operation information

Indicates the UPS is in online mode.

Indicates the UPS is in battery mode.

Indicates the UPS is bypass mode.

Indicates the UPS is in ECO mode.

Indicates the UPS is in converter mode.

Indicates the UPS is charging battery.

Battery information

Indicates the Battery capacity by 0-25%, 26-50%, 51-75%, and

76-100%.

Indicates the battery is fault.

Indicates low battery level and low battery voltage.

3-3. Audible Alarm

Battery Mode

Sounding every 4 seconds

Low Battery

Sounding every second

Overload

Sounding twice every second

Fault

Continuously sounding

Bypass Mode

Sounding every 10 seconds

3-4. LCD display wordings index

LCD Area

Abbreviation

Display content

Meaning

ENA

Enable

DIS

Disable

ESC

Escape

b.L

Low battery

O.L

Overload

N.C

Battery is not connected

O.C

Overcharge

C.H

Charger

b.F

Battery fault

b.V

Bypass voltage range

W.T

Waiting

F.U

Bypass frequency unstable

E.E

EEPROM error

3-5. UPS Setting

There are two parameters to set up the

UPS.

Parameter 1: It’s for program alternatives.

Refer to below table.

Parameter 2 is the setting option or value

for each program.

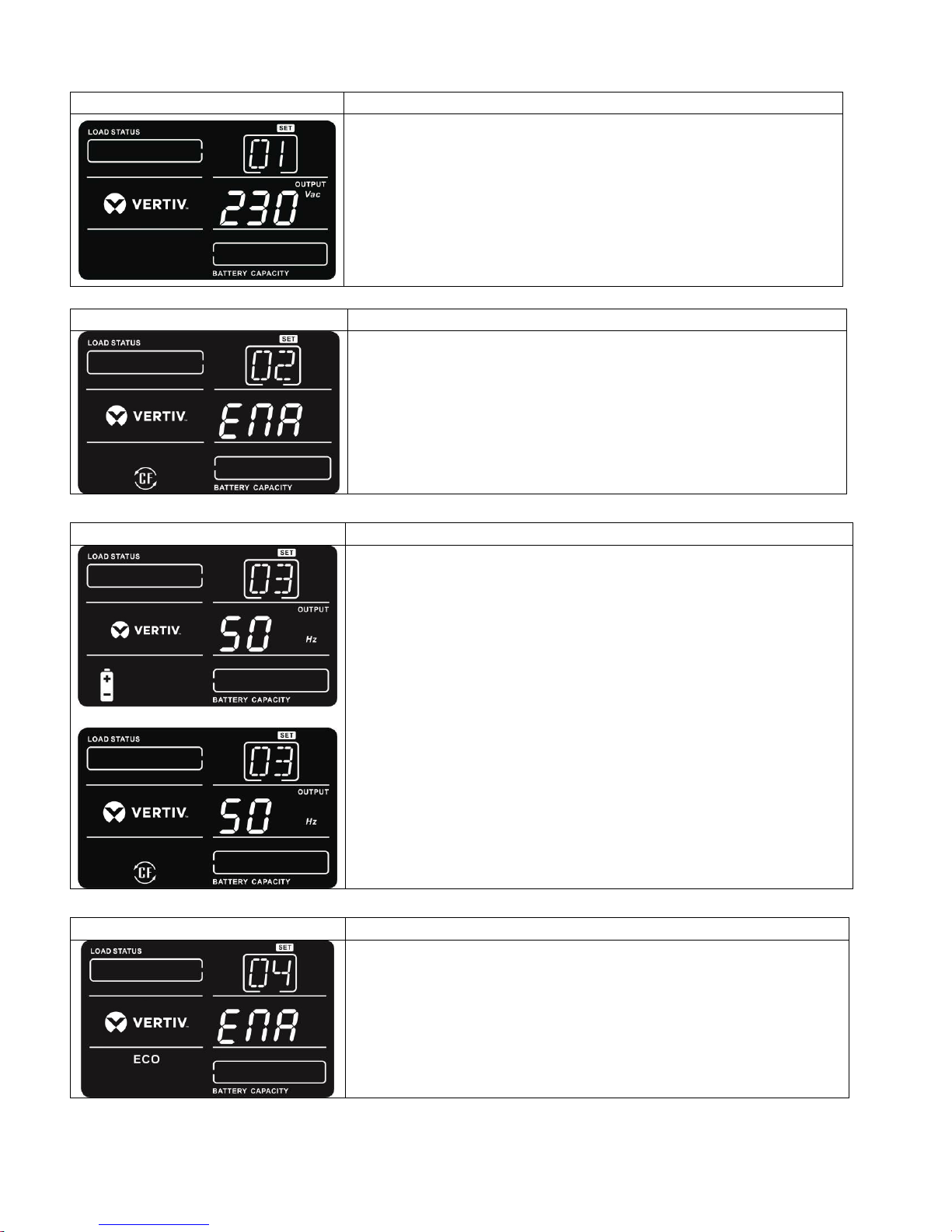

Parameter 1

Parameter 2

01: Output voltage setting

Interface

Setting

Parameter 2: Output voltage setting

You may choose the following output voltage in parameter

200: presents output voltage is 200Vac

208: presents output voltage is 208Vac

220: presents output voltage is 220Vac

230: presents output voltage is 230Vac (Default)

240: presents output voltage is 240Vac

02: Frequency Converter enable/disable

Interface

Setting

Parameter 2: Enable or disable converter mode. You may

choose the following two options:

CF ENA: converter mode enable

CF DIS: converter mode disable (Default)

03: Output frequency setting

Interface

Setting

Parameter 2: Output frequency setting.

You may set the initial frequency on battery mode:

BAT 50: presents output frequency is 50Hz (Default)

BAT 60: presents output frequency is 60Hz

If converter mode is enabled, you may choose the following

output frequency:

CF 50: presents output frequency is 50Hz (Default)

CF 60: presents output frequency is 60Hz

04: ECO enable/disable

Interface

Setting

Parameter 2: Enable or disable ECO function. You may

choose the following two options:

ENA: ECO mode enable

DIS: ECO mode disable (Default)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Vertiv UPS

Vertiv

Vertiv Desktop UPS Manuel utilisateur

Vertiv

Vertiv Liebert GXT-MT+10KVA Manuel utilisateur

Vertiv

Vertiv Liebert APM Manuel utilisateur

Vertiv

Vertiv Liebert ITA2 Manuel utilisateur

Vertiv

Vertiv Liebert EXM Manuel utilisateur

Vertiv

Vertiv Liebert GXT MT+ EX 1-3 kVA Manuel utilisateur

Vertiv

Vertiv Liebert PST5 Series Instructions d'installation et d'entretien

Vertiv

Vertiv Liebert MicroPOD Instructions d'installation et d'entretien

Vertiv

Vertiv Liebert Trinergy Cube Mode d’emploi

Vertiv

Vertiv Liebert NXL Series Manuel utilisateur

Vertiv

Vertiv Liebert ITA2 1-3kVA Manuel utilisateur

Vertiv

Vertiv Liebert Trinergy Cube Manuel utilisateur

Vertiv

Vertiv Liebert GXT4-6000RTL630 Instructions d'installation et d'entretien

Vertiv

Vertiv Liebert EXM TXC Manuel utilisateur

Vertiv

Vertiv Liebert GXT5-750IRT2UXL Instructions d'installation et d'entretien

Vertiv

Vertiv Liebert APM 300 Manuel utilisateur

Vertiv

Vertiv Liebert GXT RT+ Series Instructions d'installation et d'entretien

Vertiv

Vertiv Liebert EXM2 Manuel utilisateur

Vertiv

Vertiv LIEBERT NXC 60KVA Instructions d'installation et d'entretien

Vertiv

Vertiv LIEBERT PSI5 Series Manuel utilisateur

Vertiv

Vertiv Liebert APS Manuel utilisateur

Vertiv

Vertiv Liebert Instructions d'installation et d'entretien

Vertiv

Vertiv LIEBERT PSI5 Series Manuel utilisateur

Vertiv

Vertiv Liebert ITA2 Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
