K250 Owner’s Manual

This document, including all its content is solely intended for its designated recipient and is not to be forwarded to any other company, business entity or person, without written permission from VERIFONE, Inc |

Page 1

K250 OWNER’S MANUAL

Extended & Slim

Self-Order Kiosk

TABLE OF CONTENTS

K250 Owner’s Manual

Cautions

Hard Requirements ................................................................................................................................... 3

Notes, Cautions & Warnings ...................................................................................................................... 4

Tools Required

Tools Needed ........................................................................................................................................... 5

Model Overview

Model Specifications.................................................................................................................................. 6

Label ..................................................................................................................................................... 10

Kiosk Operation

Opening Kiosk ........................................................................................................................................ 11

Turning on PC ........................................................................................................................................ 13

Turning on Display.................................................................................................................................. 14

Kiosk Installation

Tabletop Mounting ................................................................................................................................. 15

Floor Mounting (optional) ........................................................................................................................ 16

Swivel Feature ....................................................................................................................................... 17

Electrical + Data Wiring Installation

Power & Data Lines from Wall ................................................................................................................ 18

Maintenance

Replacing Printer Paper .......................................................................................................................... 19

K250 OWNER’S MANUAL

Extended & Slim

K250 Owner’s Manual

THE FOLLOWING HARD REQUIREMENTS MUST BE

ADHERED TO FOR ALL TYPES OF INSTALLATIONS

STABILITY:

The unit must be securely bolted to the table / floor as in accordance with the kiosk mounting

instructions contained within this manual. PEDESTAL MUST BE PURCHASED SEPARATELY.

OPERATING ENVIRONMENT (INDOOR USE ONLY):

Ambient Temperature 5°C to 35°C (40°F to 95°F)

Humidity 20% to 80% Relative

Altitude Up to 2000m (6,500ft)

DISCONNECT DEVICE:

For PERMANENTLY CONNECTED EQUIPMENT, a readily accessible disconnect device shall be

incorporated external to the equipment.

For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be

easily accessible.

CIRCUIT PROTECTION:

Kiosk Configurations

Current Rating (Amp)

K250

LINE ROUTING:

•All lines are routed inside the building within the grounded conduit.

•Electrical connections are to be run through 1/2' flex conduit.

•1/2' flex conduit to be terminated with a 3/4 Romex connector.

FIELD WIRING:

•Use only a three-wire, grounded NEMA outlet in accordance with the National Electrical Code (NEC).

•All field wiring shall be in accordance with the (NEC) —National Electrical Code.

K250 OWNER’S MANUAL

Extended & Slim

K250 Owner’s Manual

NOTES, CAUTIONS & WARNINGS

NOTES:

The NOTE indicates important information to help you install, use and maintain your kiosk.

NOTES are identified by bold, all caps lettering.

CAUTIONS:

A CAUTION indicates apotentialfor a problem or damage to your kiosk if the caution is not observed.

CAUTIONS are identified by bold, all caps red lettering.

WARNINGS:

A WARNING indicates a potential for personal injury or damage to your kiosk if not heeded.

WARNINGS are identified by bold, all caps and underlined red lettering.

Warnings labels are located on the kiosk itself where there is a potential for personal injury, death, or

damage to the kiosk. Only authorized personnel should remove covers or access areas of the kiosk

identified by a warning label. See example below:

CAUTION:

•Ensure product is connected to a grounded electrical outlet.

•To prevent fire or shock hazards, DO NOT expose this product to rain or moisture.

•To fully disengage the power to the unit, please disconnect the power cord from the AC outlet.

•DO NOT operate the product with a damaged cord or plug, or after the product malfunctions, or

is dropped or damaged in any manner.

K250 OWNER’S MANUAL

Extended & Slim

K250 Owner’s Manual

TOOLS REQUIRED

Adjustable Wrench

Small Open-End Wrenches

Set of Allen Wrenches, Ball End

Set Hex Wrenches

Small Socket Set

#1 Phillips Screwdriver

Cable Ties

Optional Tools (Required for Table / Floor Mounting)

Needle Nose Pliers

Drill + associated attachments

3/8“ Anchor Bolts (Minimum QTY 4)

Anchor Bolt Installation Tools

Lag Bolts

CAUTION:

Please use team lift principles to lift kiosk, as weight of combined pedestal and cabinet section could

be dangerous to maneuver for one person.

K250 OWNER’S MANUAL

Extended & Slim

K250 Owner’s Manual

MODEL OVERVIEW

Consideration:Determine exact placement of kiosk

to ensure both access (if applicable) doors have

space for free range of motion without obstructions.

The main door will open 90° from the open to close

position.

Model Specifications (K250 Extended):

Specifications:

K250 Extended

Power Requirements

120VAC, 60Hz

Dimensions

(Width x Depth x Height)

15.3” x 10.4” x 27.9”

K250 OWNER’S MANUAL

Extended & Slim

K250 Owner’s Manual

MODEL OVERVIEW (CONTINUED)

Consideration:Determine exact placement of kiosk

to ensure both access (if applicable) doors have

space for free range of motion without obstructions.

The main door will open 90° from the open to close

position.

Model Specifications (K250 Slim):

Specifications:

K250 Slim

Power Requirements

120VAC, 60Hz

Dimensions

(Width x Depth x Height)

15.3” x 10.4” x 27.9”

K250 OWNER’S MANUAL

Extended & Slim

K250 Owner’s Manual

MODEL OVERVIEW (CONTINUED)

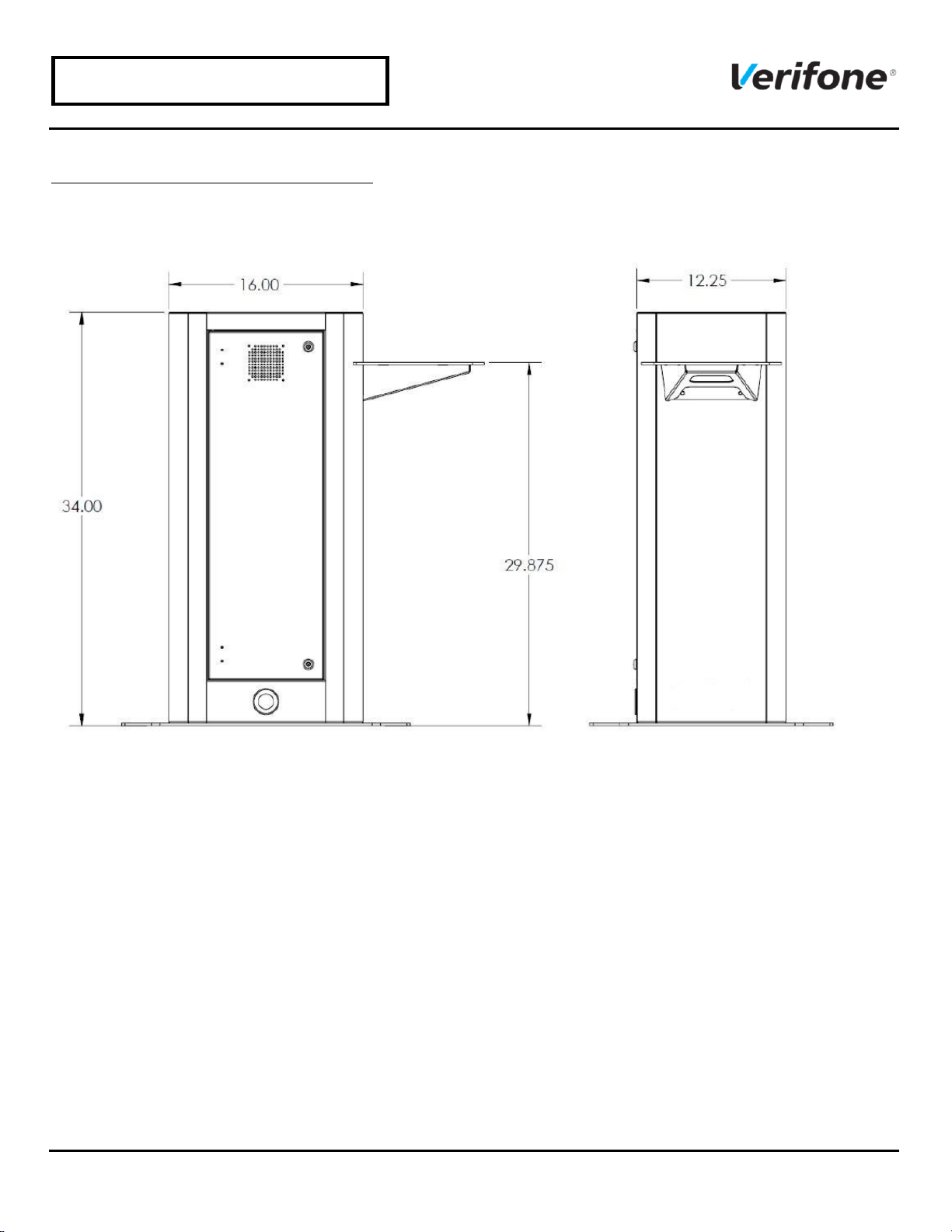

Pedestal Specifications (Optional):

K250 OWNER’S MANUAL

Extended & Slim

K250 Owner’s Manual

MODEL OVERVIEW (CONTINUED)

Kiosk Base Specifications:

Pedestal Base Specifications:

K250 OWNER’S MANUAL

Extended & Slim

K250 Owner’s Manual

MODEL OVERVIEW (CONTINUED)

Consideration:Determine exact placement of kiosk

to ensure both access (if applicable) doors have

space for free range of motion without obstructions.

The main door will open 90° from the open to close

position.

Label
