Vello LAG-MFT-CEF Manuel utilisateur
ACCELERATOR
LENS ADAPTER
LAG-MFT-CEF
Canon EF Lens to Micro Four Thirds Mount
2
The Vello Accelerator Lens Adapter is for attaching Canon EF-mount lenses to Micro
Four Thirds cameras. It allows a wider field of view on Micro Four Thirds sensors by
magnifying the angle of view by 0.7×. This also provides an extra stop of light without
decreasing image quality. For example, mounting a 50mm f/.4 lens to a Micro Four
Thirds sensor will usually give you a 00mm angle of view. By adding the Accelerator,
you eectively produce a focal length of 7mm with a stepped-down f-stop of f/.0.
This is a great advantage for the widely accepted Micro Four Thirds format.
The Vello Accelerator aords additional benefits, such as a near-silent aperture toggle
which is ideal for quietly selecting the f-stop during video recording. It has four elements in
four groups to maintain image quality, a USB port for firmware updates, and a detachable
tripod foot that works with most /4-20 mounts as well as Arca-type head assemblies.
THANK YOU FOR CHOOSING VELLO
3
• Avoid sandy or dusty
environments when using
this adapter.
• Handle the adapter with
care. Avoid impacts and
vibrations.
• Clean the adapter by
wiping it with a soft,
dry cloth.
• Be sure to read the
operating instructions for
your digital camera.
• Do not use solvents such
as benzene, alcohol, or
detergents to clean the
adapter.
• Keep this unit away from
children.
• Keep this unit away from
water and flammable
gases or liquids.
• Use only parts provided
by the manufacturer.
• Please read and follow
these instructions. Keep
this manual in a safe
place.
• All images are for
illustrative purposes only.
PRECAUTIONS
Front Back
Canon lens
mount
Canon lens
alignment dot
USB port
Optical
Elements
Lens
Release
Camera
mount
alignment
dot
Aperture
toggle
(Panasonic
only)
Micro Four
Thirds mount
Tripod foot
/4-20 tripod socket
Hex screws
4
OVERVIEW
5
• Vello LAG-MFT-CEF lens
adapter for Canon EF
Lenses to Micro Four
Thirds Mount
• Front and rear caps
• Removable tripod foot
• 2 mm hex key
• Protective case
• User manual
CONTENTS
6
Note: Place the lens and
camera on a stable, flat
surface when mounting or
removing the Accelerator Lens
Adapter.
. Turn the camera’s power
o, and remove all
protective caps.
MOUNTING THE LENS ADAPTER
2. Line up the alignment
dots on the lens adapter
and the camera, and
carefully insert the lens
adapter into the camera’s
lens mount. Rotate the
Accelerator clockwise
until it locks into place.
7
3. Line up the alignment
dot on the lens with the
alignment dot on the
lens adapter, and carefully
insert the lens. Rotate
the lens clockwise until it
locks into place.
8
The aperture control toggle
allows you to quietly open
and close the aperture
without clicking a camera
dial or rotating a lens ring.
Since it minimizes camera
vibrations and noise, you can
use it to change aperture
during video recording.
APERTURE CONTROL (PANASONIC ONLY)
Press the toggle towards
to close the aperture.
Press the toggle towards
to open the aperture.
9
. Turn the camera’s
power o.
2. Press and hold the
release pin on the
lens adapter, and
carefully rotate the
lens counterclockwise
to detach it from the
adapter.

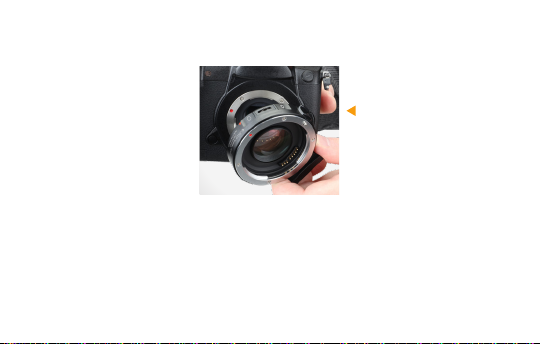

REMOVING THE LENS ADAPTER
3. Reattach the front lens
cap to the lens adapter.
4. Press and hold the lens
release button on the
camera, and carefully
rotate the lens adapter
counterclockwise to
detach it from the
camera.
5. Reattach the rear lens
cap to the lens adapter.
0
Use the included hex key to
loosen the hex screws until
the foot can be removed
from the lens adapter.
Note: If your lens has a built-in
tripod collar, use the collar on
the lens to mount the assembly
to the tripod.
REMOVING THE TRIPOD FOOT
