Vaisala Indigo500 Series Manuel utilisateur

M212290EN-D

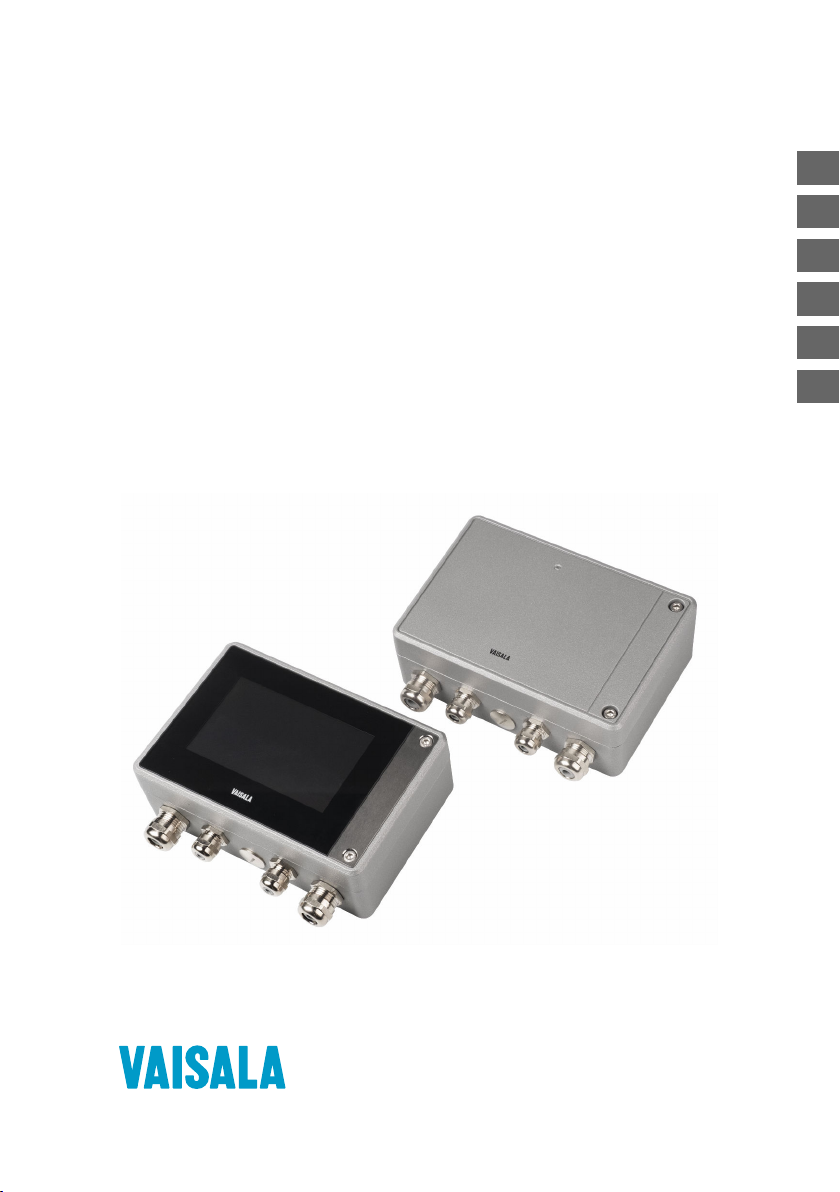

Quick Guide

Indigo500 Series Transmitters

Indigo510, Indigo520

PUBLISHED BY

Vaisala Oyj

Vanha Nurmijärventie 21, FI-01670 Vantaa, Finland

P.O. Box 26, FI-00421 Helsinki, Finland

+358 9 8949 1

Visit our Internet pages at www.vaisala.com.

No part of this document may be

reproduced, published or publicly

displayed in any form or by any means,

electronic or mechanical (including

photocopying), nor may its contents be

modiﬁed, translated, adapted, sold or

disclosed to a third party without prior

written permission of the copyright holder.

Translated documents and translated

portions of multilingual documents are

based on the original English versions. In

ambiguous cases, the English versions are

applicable, not the translations.

The contents of this document are subject

to change without prior notice.

Local rules and regulations may vary and

they shall take precedence over the

information contained in this document.

Vaisala makes no representations on this

document’s compliance with the local

rules and regulations applicable at any

given time, and hereby disclaims any and

all responsibilities related thereto.

This document does not create any legally

binding obligations for Vaisala towards

customers or end users. All legally binding

obligations and agreements are included

exclusively in the applicable supply

contract or the General Conditions of Sale

and General Conditions of Service of

Vaisala.

This product contains software developed

by Vaisala or third parties. Use of the

software is governed by license terms and

conditions included in the applicable

supply contract or, in the absence of

separate license terms and conditions, by

the General License Conditions of Vaisala

Group.

This product may contain open source

software (OSS) components. In the event

this product contains OSS components,

then such OSS is governed by the terms

and conditions of the applicable OSS

licenses, and you are bound by the terms

and conditions of such licenses in

connection with your use and distribution

of the OSS in this product. Applicable OSS

licenses are included in the product itself

or provided to you on any other applicable

media, depending on each individual

product and the product items delivered

to you.

[in]

[0.25]

Table of contents

English.............................................................................................................................................5

Deutsch........................................................................................................................................ 33

Français.........................................................................................................................................61

Español.........................................................................................................................................89

日本語.............................................................................................................117

中文................................................................................................................ 145

4 M212290EN-D

Introduction to Indigo500 Series

Transmitters

Vaisala Indigo500 Series Transmitters are industrial-grade, robust transmitters that

accommodate 1 or 2 Vaisala Indigo compatible probes for humidity, temperature, dew point,

carbon dioxide, hydrogen peroxide, and moisture in oil measurements. The transmitters can

display measurements on the spot as well as transmit them to automation systems through

analog signals, relays, or Modbus TCP/IP protocol.

The Indigo520 transmitter has 2 and the Indigo510 transmitter has 1 probe connection. Both

transmitters are available in 2 models: one with a touchscreen display, and a non-display

model with an LED status indicator.

Figure 1 Indigo520 transmitter parts

Figure 2 Indigo510 transmitter parts, non-

display version

1Touchscreen display (non-display model also available)

2Transmitter base

3Transmitter cover

4Cable gland for Ethernet cable and optional analog output cable (M20×1.5 lead-through)

5Cable gland for probe connection cable (M16×1.5 lead-throughs)

6Cable gland for optional relay cable and power cable in the PELV and AC (mains) power

supply options (M20×1.5 lead-through)

7Hex screws for opening the cover

The power supply option and cable glands for the lead-throughs are selected when ordering

the transmitter. Unused lead-throughs are plugged.

Before you start mounting, wiring or conﬁguring the transmitter, make sure you have all the

necessary tools at hand.

ENGLISH

BARO-1 barometer module

The Indigo520 transmitter is available with a BARO-1 module. The BARO-1 barometer module

uses a BAROCAPâsilicone capacitative absolute pressure sensor developed by Vaisala for

barometric pressure measurement applications. The sensor has excellent hysteresis and

repeatability characteristics, low temperature dependence, and very good long-term stability.

For more information on the BARO-1 module, see Indigo500 Series User Guide (M212287EN),

available at www.vaisala.com .

ANALOG OUTPUTS

RELAY 1RELAY 2

CH1

CH2

CH3

CH4

RS-485

PROBE

24 VOUT

ANALOG

INPUT

NO COM NC NO COM NC

BARO-1QML-AHA

Figure 3 Indigo520 with optional BARO-1

barometer module, example conﬁguration

1BARO-1 barometer module

2Pressure port

3Filter

Indigo500 speciﬁcations

Table 1 Operating environment

Property Description/Value

Operating temperature Indigo520 with display −20 … +55 °C

(−4 … +131 °F)

Indigo510 with display −20 … +60 °C

(−4 … +140 °F)

Without display −40 … +60 °C (−40 … +140 °F)1)

Storage temperature With display −30 … +60 °C (−22 … +158 °F)

Without display −40 … +60 °C (−40 … +140 °F)

For use in wet locations Yes

Operating humidity 0 … 100 %RH

Maximum operating altitude 3000 m (9843 ft)

6 M212290EN-D

Property Description/Value

IP rating IP66: Dust-tight. Protected from powerful water

jets from any direction. 2)

1) Operating temperature without display with barometer module −40 … +55 °C

(−40 … +131 °F).

2) Evaluated by Euroﬁns, not by UL.

Table 2 Inputs and outputs

Property Description/Value

Indigo520 operating power

Protective extra-low voltage (PELV) version 1) 15 … 35 V DC, 24 V AC ±20 % 50/60 Hz,

max. current 2 A

Fuse size for power supply: 3 A

PELV power cable temp. rating ≥+80 °C (+176 °F)

AC (mains) power version 1) 100 … 240 V AC 50/60 Hz, max. current 1 A

Fuse size for power supply: 10 A

Power over Ethernet version 1) 50 V DC, 600 mA PoE+, IEEE 802.3 at PD

Fuse size for power supply: 2 A

Indigo510 operating power

Protective extra-low voltage (PELV) 11 … 35 V DC, 24 V AC ±15 % 50/60 Hz,

max. current 2 A

PELV power cable temp. rating ≥+80 °C (+176 °F)

Indigo520 analog outputs

Number of analog outputs 4, galvanically isolated from power supply

Selectable voltage output types 0 … 1 V, 0 … 5 V, 0 … 10 V, scalable

Selectable current output types 4 … 20 mA, 0 … 20 mA, scalable

Max. wire size 2.5 mm2(14 AWG)

Accuracy of analog outputs at +20 °C (+68 °F) ±0.05 % full scale

Temperature dependence ±0.005 % / °C full scale

External loads:

Current outputs RL< 500 Ω

0 … 1 V output RL> 2 kΩ

0 … 5 V and 0 … 10 V outputs RL> 10 kΩ

Indigo510 analog outputs

Number of analog outputs 2, galvanically isolated from power supply

Selectable voltage output types 0 … 1 V, 0 … 5 V, 0 … 10 V, scalable

ENGLISH

Property Description/Value

Selectable current output types 4 … 20 mA, 0 … 20 mA, scalable

Max. wire size 2.5 mm2(14 AWG)

Accuracy of analog outputs at +20 °C (+68 °F) ±0.05 % full scale

Temperature dependence ±0.005 % / °C full scale

External loads:

Current outputs RL< 500 Ω

0 … 1 V output RL> 2 kΩ

0 … 5 V and 0 … 10 V outputs RL> 10 kΩ

Indigo520 relay outputs

Number and type of relays 2 pcs, SPDT

Max. switching power, current, voltage 30 W, 1 A, 40 V DC / 28 V AC

Max. wire size in PELV version 2.5 mm2(14 AWG)

Max. wire size in AC (mains) version 1.5 mm2(16 AWG)

Ethernet interface

Supported standards 10BASE-T, 100BASE-TX

Connector 8P8C (RJ45)

Supported protocols Modbus TCP/IP (port 502), HTTPS (port 8443)

1) The power supply option is selected when ordering the transmitter.

Table 3 Compliance

Property Description/Value

Indigo520 EU directives EMC Directive (2014/30/EU)

Low Voltage Directive (2014/35/EU)

RoHS Directive (2011/65/EU) amended by

2015/863

Indigo510 EU directives EMC Directive (2014/30/EU)

RoHS Directive (2011/65/EU) amended by

2015/863

EMC compatibility IEC/EN 61326-1, industrial environment

CISPR 32 / EN 55032, Class B

Electrical safety IEC/EN 61010-1

Indigo520 compliance marks CE, China RoHS, FCC, RCM

Indigo510 compliance marks CE, China RoHS, FCC, RCM, UKCA

Listing marks Canada (SGS), US (SGS)
