USX-MOUNT XTM006 Manuel utilisateur

For 26-55" TV

If you have any questions along the way, just give us a call

1-800-460-0956 or mail to [email protected].

We’re ready to help!

XTM006

INSTRUCTION MANUAL

CAUTION: PLEASE READ ENTIRE MANUAL PRIOR TO USE AND SAVE THESE INSTRUCTIONS.

Before getting started, let’s check below lists to make sure it is just right for you!

Check your TV

VESA is within

Min and Max size

Does your TV

(including accessories)

weigh MORE than

99 lbs. (45 kg)?

What is your

wall made of?

Do you have

all the tools

needed?

(Not included)

Caution

MAX:400mm/15.75"

(MIN:75mm/2.95")

MAX:400mm/15.75"

(MIN:75mm/2.95")

No? This mount is NOT compatible.

Yes? Perfect !

No? Perfect – you may continue.

Yes? This mount is NOT compatible.

CAUTION: DO NOT exceed the maximum weight

indicated. This mounting system is intended for use only

with the maximum weights indicated. Use with products

heavier than the maximum weights indicated may result

in collapse of the mount and its accessories, causing

possible injury.

CAUTION:

Drywall with

wood studs?

Solid concrete Unsure?

Call Customer Service:

1-800-460-0956

Socket

Wrench

1/2"(13mm)

Electric

Drill

Screw

driver

LevelPencil

Tape

Measure Stud

Finder

5/32"(4mm)

Wood Drill Bit

3/8"(10mm)

Masonry Drill Bit Hammer

● This product is designed for use in wood stud, solid concrete walls - DO NOT install into drywall alone

● The wall must be capable of supporting five times the weight of the TV and mount itself

● Do not use this product for any purpose not explicitly specified by manufacturer

● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

Awl

TV INTERFACE WALL PLATE

SIDE VIEW SIDE VIEW

MAX:400mm/15.75"

MIN:75mm/2.95"

MAX:400mm/15.75"

MIN:75mm/2.95" 424mm/16.7"

102mm/4"

204mm/8"

306mm/12"

408mm/16"

435mm/17"

158mm/6.2" 222mm/8.7"

27mm/1" 6mm/0.2"

38mm/1.5" 0°~ -10°

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts

are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact

Customer Service.

Never use damaged parts!

NOTE: Not all hardware included will be used.

Parts and Hardware

TV Brackets

x1 x1

M4x12mm

M6x12mm

M8x25mm

M4x30mm

M6x35mm

M8x50mm

M6x17mm M8x22mm

M4 M6

10mm 2.5mm

Washers

Spacers

TV Screws

x4 x4

x4 x8

TV back

Bracket Washer

Bracket

Long Screw

Spacer

Yes, go to PAGE 6 for detailed combination.

No, go to PAGE 6 for detailed combination.

TV back

1-2 Need Spacer?

Short Screw

Washer

1-1 Select TV Screws

Highly recommended to add spacers for more

spacing between wall mount and wall.

1-3 Attach the TV Brackets

Screw and washer

Spacer(s), screw and washer

No!

Tips: If you need to combine M8(c/f) screw with 2.5mm spacer(j), you have to remove the inner circle.

For wood stud installation, follow STEP 2A on PAGE 8

For concrete installation, follow STEP 2B on PAGE 11

Parts and Hardware

Concrete Wall Anchor 4pcs

Do not use in drywall or wood

Wall Plate

Lag Bolt M7x55mm

Allen Key

<16mm

(5/8") Max.

16"(406mm)

Min. Wood Stud Size:

nominal 2"(51mm)

actual 1 1/2"(38mm)

Min. Wood Stud Size:

nominal 4"(102mm)

actual 3 1/2"(89mm)

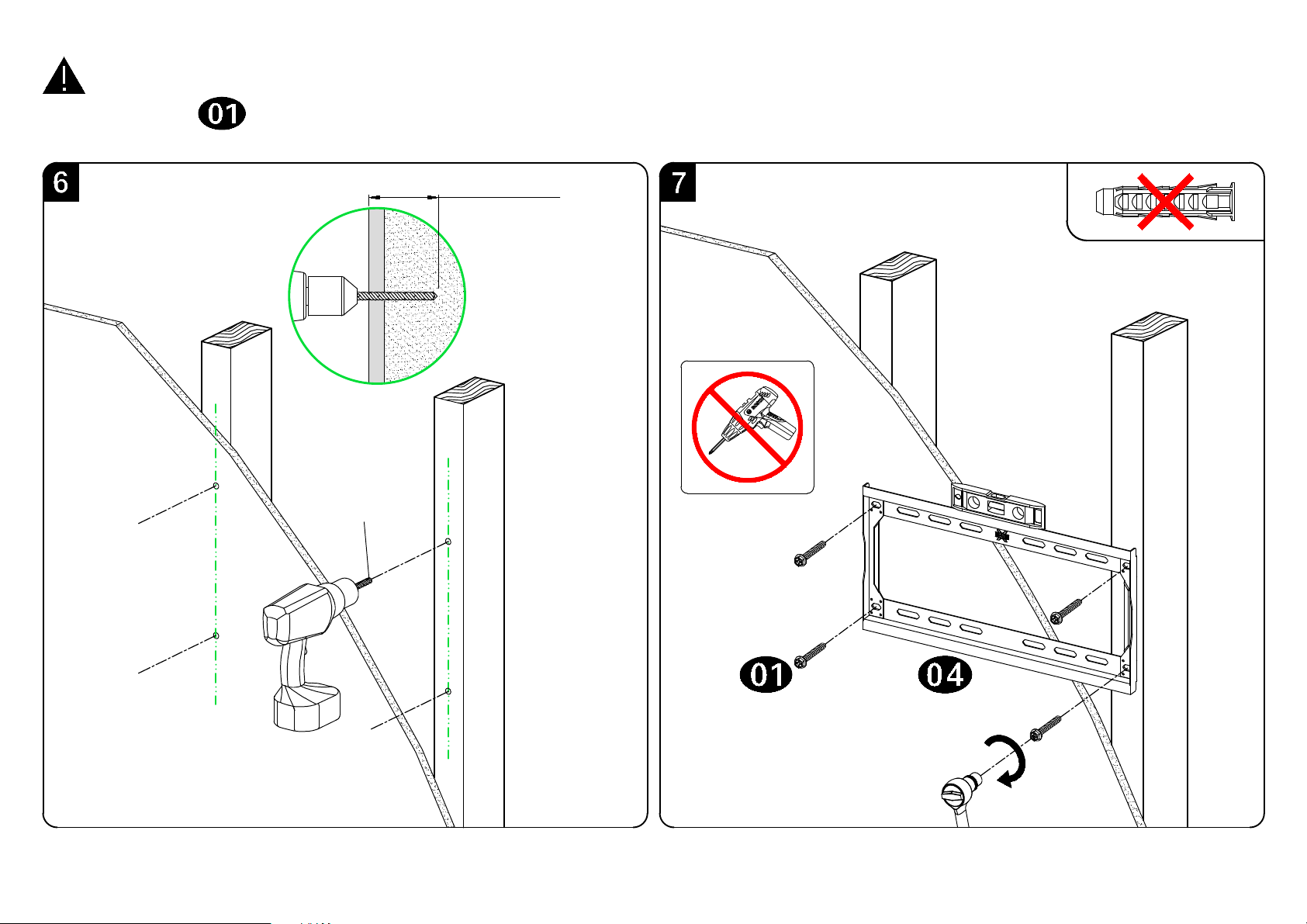

Wood Stud Installation

Centre line

16"(406mm)

Centre line

Again, find another wood stud

5/32"

(4mm)

2.36"(60mm)

CAUTION:To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate assembly.

Ensure the wall plate assembly is securely fastened to the wall before continuing on to the next step.

Go to Step 3 on PAGE 13.

No!
