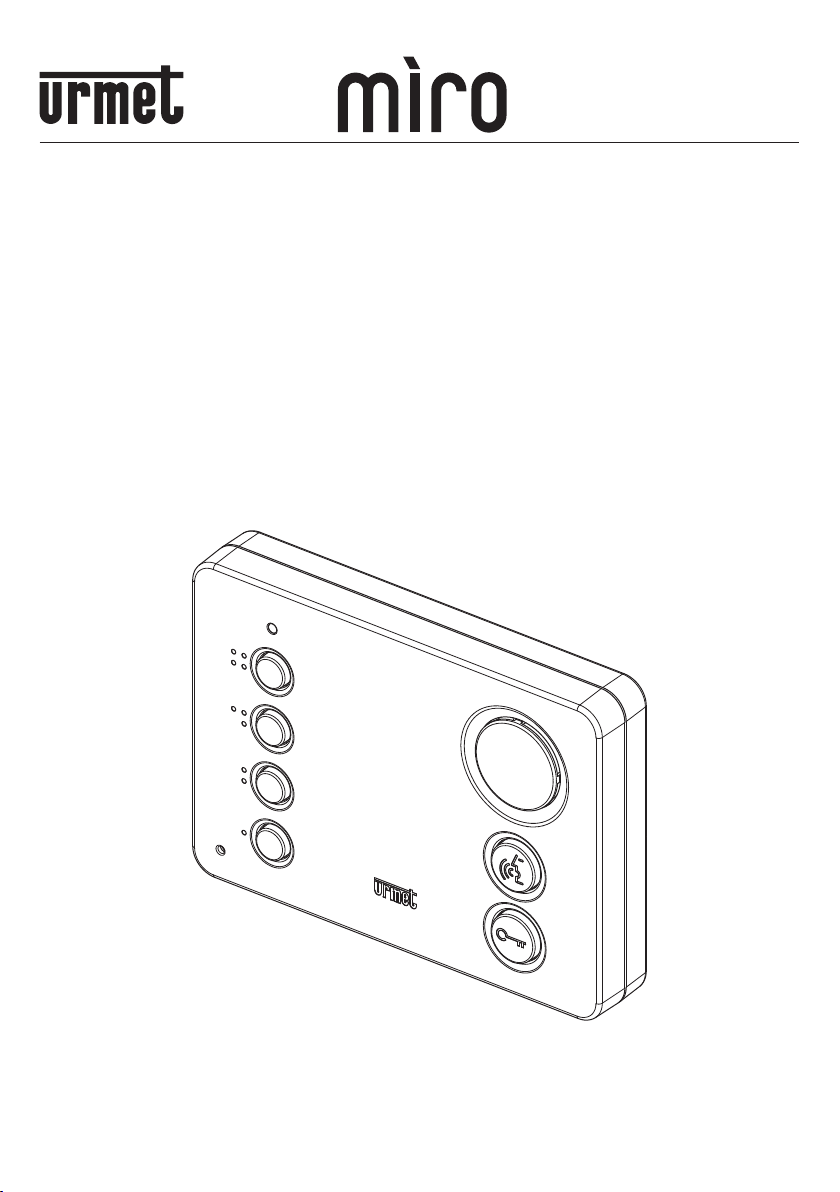

Urmet domus Miro 1183 Manuel utilisateur

DS 1183-013 LBT 20108

Mod.

1183

CITOFONO VIVAVOCE 2VOICE

2VOICE HAND-FREE DOOR PHONE

INTERPHONE MAINS-LIBRES 2 VOICE

INTERFONO MANOS LIBRES 2VOICE

SPRECHANLAGE 2VOICE

Sch./Ref.1183/7

DS1183-013

ENGLISH

The door phone Ref. 1183/7 is designed for use in 2Voice system audio door phone and video door

phone installations.

DESCRIPTION OF COMPONENTS

SW1 SW2

1. Microphone

2. Button see button function table

3. Button see button function table

4. ButtontoconnecttoYokisdevices;contactsX1,GT:max50mA@12Vcc

5. ButtontoconnecttoYokisdevices;contactsY1,GT:max50mA@12Vcc

6. Multicolour indicator LED

7. Call and conversation speaker

8. Button used to activate/deactivate audio

9. Green LED under the button

10. Door opener button

11. Green LED under the button

12. Terminals for connecting to the system

13. Line termination jumper

ONOFF

14. Congurationdipswitch(SW1-SW2):

n.1ofSW1,denesthedoorphoneoperatingmode:OFF“HandsFree”(default)/ON“Pushto

talk”

n.2÷8ofSW1,denetheapartmentnumberinthecolumn;

n.1÷2ofSW2,denethestationnumberintheapartment.

SW1 SW2

Refer to the system booklet for how to set the dip switches.

= =

–

8DS1183-013

INSTALLATION

WITH FLUSH-MOUNTED CASING MOD. 503

Installush-mountingboxattheheightindicatedinthedrawingbelow.

Fixthebrackettothemountingbox.

Box Mod. 503

Metal bracket

1,55 m

n° 2 M3,5 x 19 mm

included

Connect.

Fixthevideodoorphonetothebracket.

WITH FLUSH-MOUNTED CASING Ø 60 MM

Installush-mountingboxattheheightindicated.

Removetheplasticbasefromthedoorphoneunitandxthebasetothewallasshowninthedrawinghere

below.

1,55 m

n° 1 2,9 x 13 mm

countersunk screw

Box Ø 60 mm

n° 1 screw and screw

anchor included

Connect.

Fixthedoorphonetoitsplasticbase.

DS1183-013

WALL SURFACE MOUNTING

Removetheplasticbasefromthedoorphoneunitandxthebasetothewallasshowninthedrawinghere

below (you may want to use the drilling template supplied at the end of this manual).

n° 2 screws and screw

anchors included

1,55 m

Connect.

Fixthedoorphonetoitsplasticbase.

TERMINAL PINS DESCRIPTION

GT Buttoncommonterminals and

Y1 Button

X1   Button

S-

}

Supplementary ringer

S+

]

CP Floorcall

]

LINE System bus connection

10 DS1183-013

BUTTON FUNCTIONS

State

Button

STAND-BY

WAITING

FOR PICk-UP

(RECEIVING

CALL)

DURING AUDIO OPERATION

STAND-BY

AND BUTTON

PRESSED

STATE OF

PROGRAMMING*

(ONLY WITH

DOOR PHONE IN

STAND-BY)

Open

pedestrian

door

Open

pedestrian

door Openpedestriandoor

Open

pedestrian

door

Connect / disconnect the

automatic door opening

system

--- Audio

activation

If pressed in the operating mode:

A)“HandsFree”endsthe

conversation;

B)in“Pushtotalk”:

if pressed a long time, it

enables the audio of the door

unit;

if short pressed it activates or

terminates the conversation.

—

---

Call volume adjustment

fordoorandoorlevel

calls (the possible volume

adjustments are, in this

order,HIGH,LOW,MUTE)

Special

function

(default: 7)

Special

function

(default: 7) Special function (default: 7)

Programmable

intercom call

2 (Default: not

programmed)

Floorcallringtone

selection (5 different ring

tones)

Garage door

opener Garage door

opener Garage door opener

Programmable

intercom call 1

(Default: call to

switchboard)

Door phone call ring tone

(5 different ring tones)

(*) To enter and exit programming state, hold button pressed for longer than 5 seconds. The yellow LED

will blink slowly to indicate that programming mode is selected. Programming mode will shut down in all

cases after the 10 minute timeout.

INDICATOR LEDS

6. Multicolour indicator LED

PRIORITY FUNCTIONS

1Fastashingred:mutedringtones

2 Green blinking: automatic door opener on

3 Red on steady: main calling station door open

4 Slowly blinking red: secondary calling station door open

5 Slowly blinking yellow: programming state on

To save the programming, remember to exit from the same by pressing the button for more

then 5 seconds; in any case, after 10 minutes the device exists the programming state and saves

the parameters changed. Refer to the system booklet for how to program intercom calls.

9. Green LED under the button

 Onsteady: callinprogress

 Onblinking: conversationongoing

11. Green LED under the button

 Onsteady: possibilityofadooropening

RESET

To restore default parameters of the device after entering programming mode, hold button pressed for

longer than 5 seconds, press the and buttons together for longer than 3 seconds. The system will

emit2longbeepstoconrmandexittheprogrammingstate.

DS1183-013

ACTIVATING AUDIO BY PRESSING THE (PUSH TO TALk MODE)

BUTTON

If the communication between the calling station and the door phone is disturbed, it is possible to activate

the two audio channels (inwards and outwards) individually.

After having received a call, short press to activate the audio from the door unit, then if the button is held

pressed down, the audio channel is activated externally and the user can speak to the caller. To listen, it is

necessary to press the button.

To end the conversation, shortly press button.

Connection of a E2BP module to the door phone for the centralisation of lights and rollers

SD541-4002

MVR500ER

OFNLBP

Roller

MVR500ER

OFNLBP

ANTENNA

R1 R1

Roller

After suitably programming the Yokis devices, it will be possible:

to activate the centralised closing of the rollers with a button (for example: );

a second button (for example: ) will activate the turning off of the lights.

For more information on YOKIS products, please visit www.yokis.com

–

DS 1183-013 LBT 20108

Area tecnica

servizio clienti +39 011.23.39.810

http://www.urmet.com

e-mail:[email protected]

ProdottoinTUNISIAsuspecicaUrmet

ManufacturedinTUNISIAtoUrmetspecication

URMETS.p.A.

10154TORINO(ITALY)

VIABOLOGNA188/C

Telef.  +39011.24.00.000(RIC.AUT.)

Fax  +39011.24.00.300-323

83,5 mm

Zona passaggio cavi

Cable routing area

Zone passage câbles

Zona de paso de cables

Kabelführungsbereich

DIMA DI FORATURA

DRILLING TEMPLATE

GABARIT DE PERÇAGE

PLANTILLA DE PERFORACIÓN

BOHRSCHABLONE
