Urmet domus 6025/401 Manuel utilisateur

INSTRUKCJA

DOORPHONE ANALOG SET

WITH PANEL ELITE (flush mounting)

AND UNIPHONE SIGNO

6025/401

6025/402

6025/441

6025/442

Version I, 10.09.2018

DOORPHONE ANALOG SET

6025/401 6025/402 6025/441 6025/442

SPEAKER’S MODULE REF. NO. 6025/PR1

6025/PR2

GENERAL INFORMATIONS

Speaker's plate is made of stainless steel, vandal-proof degree of

protection IK07. Its compact size makes it ideal for mounting on

narrow pillars fence. Additional protection is a patent bolt securing

the front panel. Speaker’s module have 1, 2 call buttons and the

control module.

Speaker’s module can be mounted in two versions:

• surface-mounted –have to applied housing

Ref. no. 6025 / OND-M.

• flush have to applied frame Ref. no. 6025 / RP-OP-M. This is a

version without the visor. Very well masks any unevenness hole

prepared for the panel.

Speaker’s modules ref. no. 6025 / PR1, 6025 / PR2co-

operate with the following types of power supplies:

- Version classical: 18A2, 18L1;

- Version witch intercom: 19A2, 19L1.



CONNECTORS DESCRIPTION

441 "plus" microphone amplifier,

MK "minus" microphone amplifier,

GL, GL loudspeaker panel

AC, AC power panel

G GND key generator call signal,

G1 terminal of the first call button uniphone

G2 terminal of the second call button uniphone

TECHNICAL DATA

Power supply:

12V AC

Working temperature:

-20C +45C

Dimensions with

nr. ref 6025/OND-M

157 x 67 x 23 [mm] (without visor)

157 x 67 x 35 [mm] (with visor)

Dimensions with

nr. ref 6025/ RP-OP-M

176 x 87 x 23 [mm]

Level of security

IK 07

Weight:

0,18 kg

Dimensions of info window: 30 mm x 70 mm

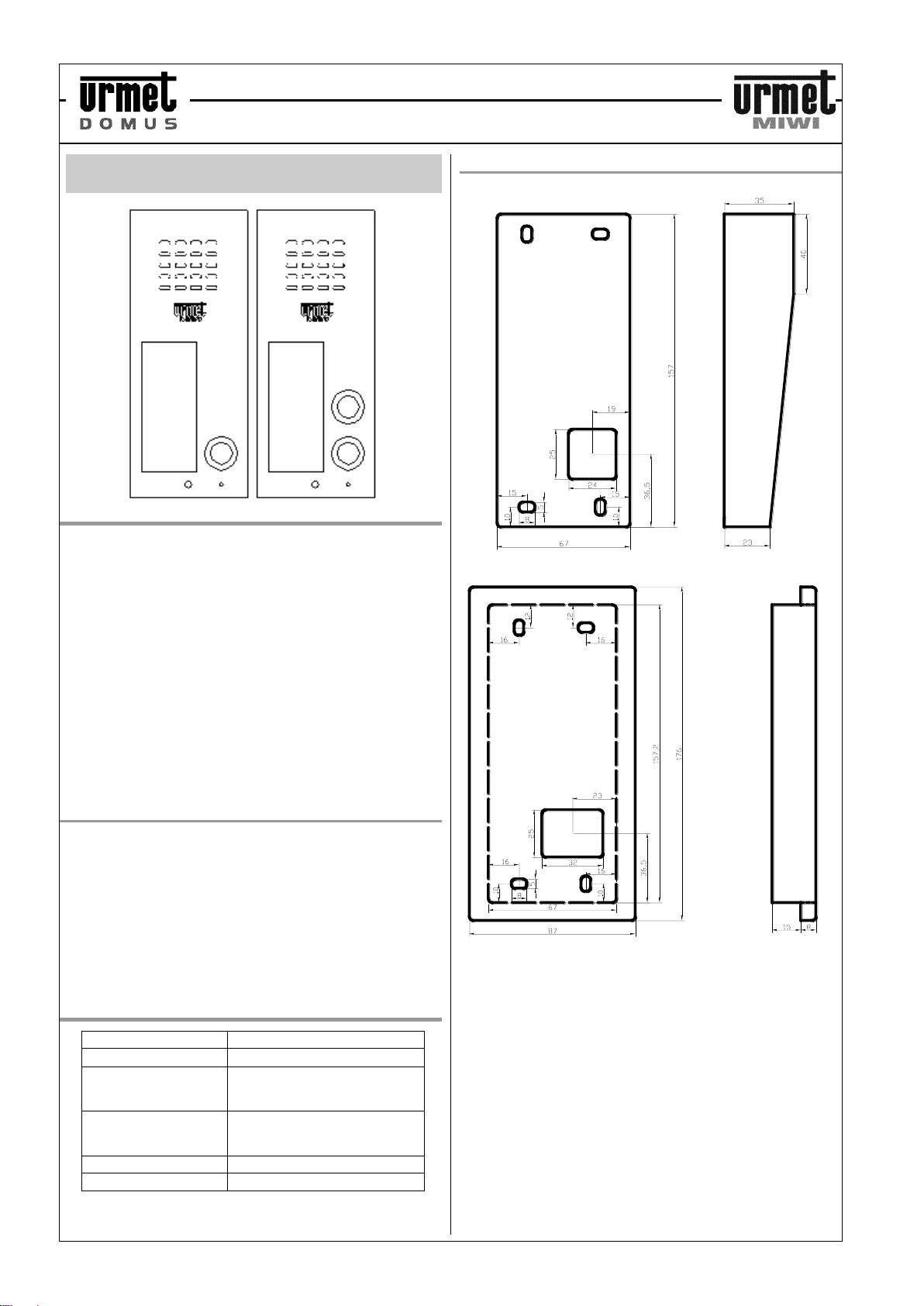

DIMENSIONS OF CASING

Surface-mounted housing ref. no. 6025/OND-M

Flush-mounted housing ref. no. 6025/RP-OP-M

SPEAKER’S MODULE REF. NO. 6025/PR1..2

MONTAGE

PANEL MONTAGE

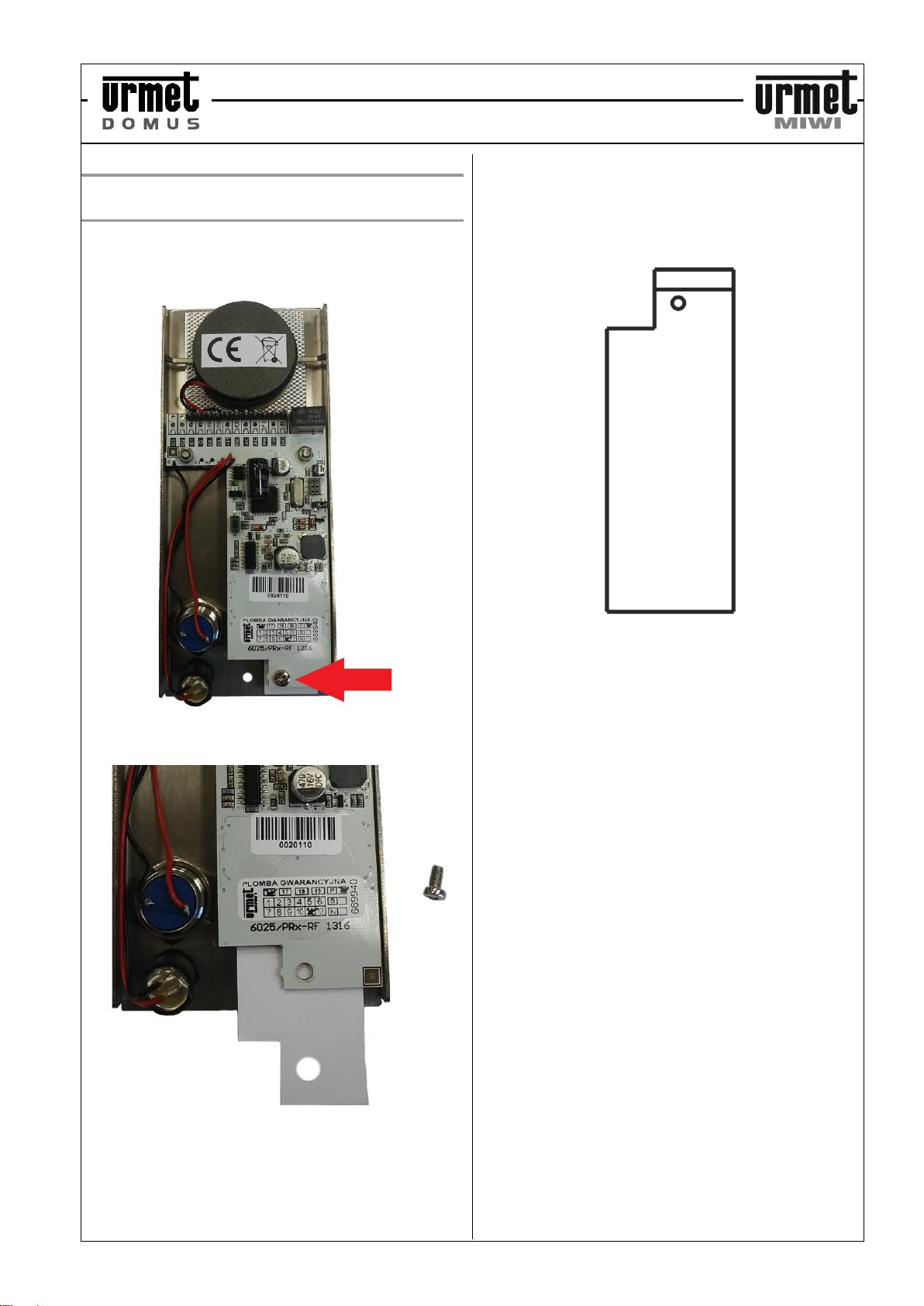

INSERTING THE LABEL TO INFO WINDOW

To attach the label information have to:

1. Unscrew with the included wrench the screw that secures

the front panel.

2. Remove the lower screw fastening motherboard.

PHOTO NO. 1

3. Remove the label

PHOTO NO. 2

4. In the slot in the faceplate Plexiglas insert the correct

label.

5. Tighten the screw that secures the motherboard.

In the original packaging is one additional label.

You can download from the website

http://urmet.com.pl/INSTRUKCJE/6025_PRx_FOR

MATKA.pdf template labels printable version.

FLUSH MOUNTING

SPEAKER’S MODULE REF. NO. 6025/PR1..2

MONTAGE

To mount the panel-mounted version follow the steps below.

1. Loosen the screw with a key patent secures the front panel.

Remove the face plate.

2. Insert the wires connecting using one B of the holes in the back

of housing (Photo below).

3. Place housing in the wall (hole).

4. Screw housing to the ground using the holes A.

5. Connect the wires to the appropriate terminals speaker’s module

according to the wiring diagram.

6. Close and screw on the front panel of the module.

UNIPHONE NR REF. 1140/1 , 1140/41

GENERAL INFOMATIONS

UNPHONE “SIGNO” NR REF. 1140/1 (white),

1140/41 (black)

Rys. 1 Dimensions

The uniphone is designed to work in 4 + n analogue doorphone

systems. Uniphone with reference number: 1140/1 is available in

white. It is equipped with a door open button, one additional button

and the option to buy two more function buttons.

1140/41 is in black. It is equipped with a door open button and three

additional function buttons.

The function buttons are independent of each other and can be

used for various additional functions, e.g.

• calling another uniphone (intercom - no such function in the

set),

• lighting in the staircase,

• opening the second electrolock or gate.

Signo Unifon has the option of adding a volume call control ref.

1140/53 (not included)

Rys. 2 Volume call control

CONNECTORS DESCRIPTION

Inside the uniphone, after removing its housing on the PCB, there is

a terminal strip used to connect the camera to the system. The

function buttons have independent contacts.

Description of terminals:

T1, T2. T3 terminals for function keys

G / T terminals for function keys

CA call,

1 speaker line,

2 microphone line,

6, 10 mass,

9 electric lock line

UNIPHONE NR REF. 1140/1 , 1140/41

MONTAGE

INSTALATION

SIGNO can be mounted on a wall

WALL MOUNT

It is advisable to install the uniphone at such a height that the

highest part of the device is at a height of 1.55 m from the ground

To mount a uniphone in a hanging version, follow the steps below.

1.Remove the uniphone housing by releasing plastic latches using

a screwdriver blade (Fig. 4).

Rys. 3 way of opening the uniphone housing

2. Attach the uniphone to the wall using two dowels supplied with

the uniphone (Fig. 5).

3. Route the wires through the hole in the back of the uniphone.

4. Cut the wires to the required length and isolate their ends.

Rys. 4 montage of the SIGNO uniphone

122/5000

5.Connect the cable ends to the appropriate terminals of the

uniphone connector.

6. Reconnect both housing parts (Fig. 6).

Rys. 5 Fig. 6 way of closing the housing

POWER SUPPLY NR REF. 18A2

GENERAL INFORMATIONS

POWER SUPPLY UNIT REF. 18A2

BASIC FEATURES

Power supply unit ref. 18A2 it is a part of house

phone system. Apart from power supply unit, each

house phone system must consist of:

entrance panel with suitable loudspeaking unit and

push buttons.

Power supply unit ref. 18A2it is a product from the latest

generation of power supply units produced by MIWI-

URMET. It is equipped with overload protection and special

circuit which is responsible for quiet call signal heard in

entrance panel during the call (call feedback). The additional

triac is used to release electric lock.

TERMINALS DESCRIPTION

~12 voltage 12Vac used to backlight or to release

electric lock,

~0 ground for voltage12Vac;

0ground;

MU microphone output for house phones;

SU loudspeaker output for house phones;

GP loudspeaker output for entrance panel;

MP microphone output for entrance panel;

G tone generator;

LZ door lock release line for house phones;

Z electric lock;

SETTINGS

The power supply ref. 18A2 is equipped with 2

potentiometers for adjusting external (on the right) and

internal volume (on the left).

Exchanging of the fuse is possible after taking the

cover of power supply off. Remember to switch off the

mains before performing this operation.

BLOCK DIAGRAM

n = number of house phones

TECHNICAL SPECIFICATIONS

Power supply

230 V a. c. 50/60 Hz

Power

10 VA

Working temperature

-5°C ÷+45°C

Min. Resistance for

tone generator

> 20 Ohm

Protection

fuse T100mA

Dimensions (L x W x

106 x 90 x 66 mm (6 DIN)

–without external cover

110 x 130 x 66 mm

–with external cover

SCHEMA

WITH POWER SUPPLY 18A2 AND SPEAKER’S MODULE 6025/PR1

SCHEMA

WITH POWER SUPPLY 18A2 AND SPEAKER’S MODULE 6025/PR2

MIWI-URMET Co. Ltd.

Pojezierska 90A

90-341 Lodz, Poland

tel: 004842 616 21 00

fax: 004842 616 21 13

e-mail: miwi@miwiurmet.pl

http:/www.miwiurmet.pl

The symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal

waste. Please check local regulations for disposal of electronic products.
