Urmet domus 1722 Manuel utilisateur

DS1722-129 LBT20731

Mod.

1722

ONE- AND TWO-HOUSEHOLD VIDEO DOOR PHONE KIT MININOTE+ MIKRA2

Ref.1722/95 - 1722/96 (*)

COMPLETE VIDEO DOOR PHONE USER'S GUIDE

DS1722-129 2LBT20731

Contents

1DESCRIPTION OF COMPONENTS......................................................................................................... 3

2FUNCTIONS............................................................................................................................................. 4

2.1 HOW TO TURN ON THE SCREEN AND ACCESS THE VARIOUS FUNCtION.............................. 4

2.2 HOW TO CHANGE VIDEO DOOR PHONE SETTINGS.................................................................. 5

2.2.1 How to change the video door phone language................................................................. 5

2.2.2 How to change the video door phone date and time.......................................................... 5

2.2.3 How to change the audio settings...................................................................................... 6

2.2.4 How to enter the video door phone names for the Intercom function................................. 6

2.2.5 How to activate the automatic image storage mode.......................................................... 7

2.2.6 How to configure Yokis Home Automation buttons............................................................ 8

2.2.7 How to reset the video door phone.................................................................................... 8

2.3 HOW TO TURN OFF THE SCREEN...............................................................................................8

2.4 HOW TO ANSWER AN EXTERNAL CALL......................................................................................9

2.5 HOW TO MAKE VIDEO SWITCHING BETWEEN VIDEO DOOR PHONES .................................10

2.6 HOW TO CONTROL AUTO-ON AT THE CALLING STATION......................................................10

2.7 HOW TO MAKE AN INTERCOM CALL.........................................................................................11

2.8 HOW TO VIEW THE STORED SNAPSHOTS PRESENT IN THE VIDEO DOOR PHONE............13

2.9 HOW TO ACTIVATE A YOKIS CONTROL....................................................................................14

DS1722-129 3LBT20731

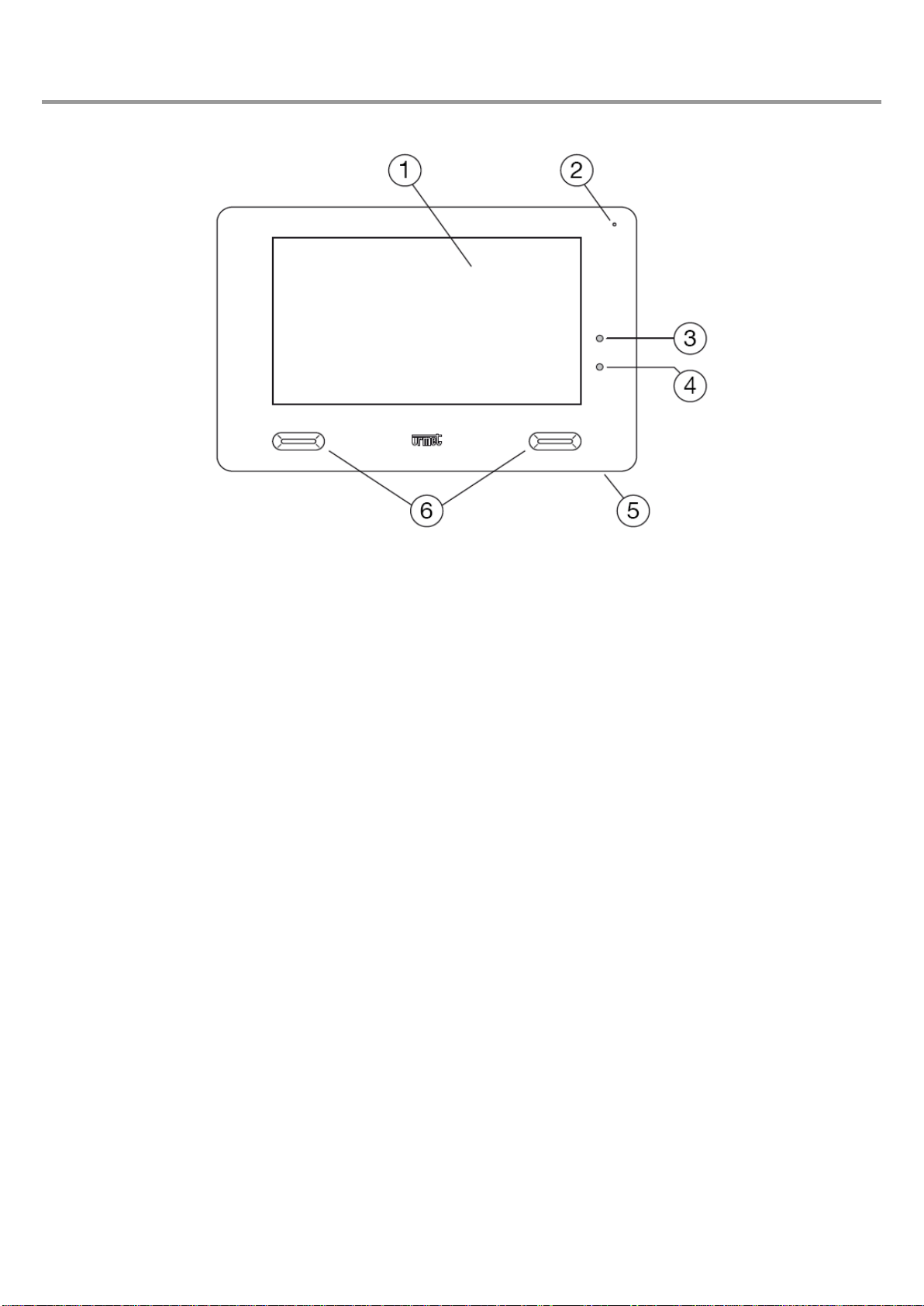

1 DESCRIPTION OF COMPONENTS

1. 7” touchscreen display

2. Microphone

3. Active Mute red indicator LED

4. Sent Yokis control confirmation blue LED

5. ON/OFF button

6. Speakers

DS1722-129 4LBT20731

2 FUNCTIONS

2.1 HOW TO TURN ON THE SCREEN AND ACCESS THE VARIOUS FUNCTION

Tap the screen at any point, or

Press the button (5) at the bottom right of the screen to bring up the Home Page.

The Home Page is the following:

and gives access to the following functions:

View footage from the video camera.

Mute the call (Mute) to the video door phone (the activation of this function is highlighted

by the red indicator LED 3 lighting up and by the flashing of the Mute icon).

Access the Yokis Home Automation screen page.

View a snapshot from among those already saved to the photo gallery.

Make an intercom call to other users in the same apartment or between users in different

apartments.

Turn off the screen.

Change video door phone settings

Current time.

DS1722-129 5LBT20731

Access to a QR Code referring the user to an area of the Urmet website where instruction

manuals, demo videos, etc. can be downloaded.

2.2 HOW TO CHANGE VIDEO DOOR PHONE SETTINGS

2.2.1 How to change the video door phone language

Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right

corner of the screen.

Tap the icon to go to the general configurations page:

Tap the icon . A new window opens in which the video door phone language can be chosen by

selecting it from among the suggested ones with the arrow keys ''. Confirm with ‘OK’.

2.2.2 How to change the video door phone date and time

Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right

corner of the screen.

Tap the icon to go to the general configurations page.

Tap the icon . A new window opens in which the device date and time settings can be changed

by using the arrow keys ''. Confirm with 'OK' or quit the settings page by pressing the button

'BACK'.

In this screen page you can also activate automatic shifting between summer and winter time (DST) by

pressing the icon .

DS1722-129 6LBT20731

2.2.3 How to change the audio settings

Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right

corner of the screen.

Tap the icon to go to the general configurations page.

Tap the icon . A new window opens in which you can change:

othe video door phone ring tone volume with the buttons ‘and ’.

oThe calling tune of the video door phone by selecting it from the 5 available options (by

pressing one of the buttons numbered 1 to 5).

oActivate or not the 'Notification when pressing a button' via the icons 'ON' and 'OFF'

2.2.4 How to enter the video door phone names for the Intercom function

Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right

corner of the screen.

Tap the icon to go to the general configurations page.

Tap the icon . The following window will be displayed:

The icon displays only in systems equipped with Kit Ref.1722/96.

DS1722-129 7LBT20731

By tapping the icon the following screen page can be accessed:

In this page, a name can be associated to the selected video door phone via the keypad.

If necessary, repeat the previous steps for the remaining video door phones (icons and

With Kit Ref.1722/96 you can name the button too, that allows to call the video door phone

assembly associated with the second button of the calling station.

Confirm with 'OK' or quit the settings page by pressing the button 'BACK'.

2.2.5 How to activate the automatic image storage mode

This feature allows images (snapshots) from the calling station displayed on the video door phone to be

stored. This can be done automatically (on Master only) after a call, or manually (on both Master and

Slave). The maximum number of images that can be stored is 100 (after this number the new image will

overwrite the oldest one).

To activate this feature:

Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right

corner of the screen.

Tap the icon to go to the general configurations page.

Tap the icon . A new window opens in which to choose between the automatic and the

manual mode.

Confirm with 'OK' or quit the settings page by pressing the button 'BACK'.

The image store function must be set on manual mode in case of Slave video door phone.

DS1722-129 8LBT20731

2.2.6 How to configure Yokis Home Automation buttons.

For the configuration of Yokis Home Automation buttons please refer to the dedicated instruction manual,

available on the Urmet website in \Products\Online Catalogue area, after searching by product code.

Alternatively, the manual can be downloaded by scanning the QR Code below with your smartphone or

tablet.

2.2.7 How to reset the video door phone

The video door phone has multiple resetting levels to only delete certain stored data. To do this:

Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right

corner of the screen.

Tap the icon to go to the general configurations page.

Tap the icon . A new window opens in which to choose one of the following resetting modes:

o'Reset Video Intercom Parameters' (ring tone volume and calling tune, button pressing

notification; video door phone speaker sound volume, brightness, contrast and colour of the

screen in the conversation phase);

o‘Reset Snapshot Memory’;

o‘Reset Home Automation Parameters’, i.e. Yokis button configurations;

o‘Reset to Factory Default’.

Confirm your required option with 'OK' and then press the 'Yes' button, or quit the settings page by

pressing the button ‘No’ or 'BACK'.

Any reset operation is irreversible.

2.3 HOW TO TURN OFF THE SCREEN

To turn off the screen press or press the Video door phone button (5) or wait for the timeout delay.

DS1722-129 9LBT20731

2.4 HOW TO ANSWER AN EXTERNAL CALL

When the CXModo Video door phone receives an outdoor door phone video call, it rings and the screen lights

up from its default switched-off state.

By tapping the various icons you can:

Answer the call and begin a hands-free conversation; then, to end the call press the same icon once

again, the screen will turn itself off.

Open the door.

Open a driveway or garage gate.

Activate an auxiliary function, e.g. turning on the stair lights. (The icon is only active if the feature

has been configured in the 'Settings' menu for Yokis Home Automation options. For the button

configuration, please refer to the dedicated instruction manual available on the Urmet website.)

Open a submenu where you can:

Change the audio volume in the calling point-to-video door phone direction, or the

brightness , contrast , and colour of the display (the changes will be

stored only if the button is pressed afterwards).

Enlarge or shrink the image, also changing its format from 4:3 to 16:9.

(Do not use: pre-setting for future functions.)

Store a snapshot of the outdoor picture displayed on the screen.

Turn the video door phone microphone off and then back on, to prevent the caller hearing

what you are saying. The icon will only be active after the call has been answered.

The icon will flash to signal an activated function.

Close the previous submenu.

DS1722-129 10 LBT20731

2.5 HOW TO MAKE VIDEO SWITCHING BETWEEN VIDEO DOOR PHONES

The call tone will be generated in alternating manner by the different video door phones after a call if "Slave"

video door phones (OP3) are present in the system. The 'Master' video door phone will enable also the video

door phone switching on. In this case, during the call pick-up time (3 minutes from the call), the other device

video door phones can be switched on by pressing and buttons in sequence (video door phone

switching function), until one of the video door phones picks up.

The picture of the camera will appear only on the device that picked up afterwards.

The camera picture will therefore be normally shown on only one apartment station at a time.

2.6 HOW TO CONTROL AUTO-ON AT THE CALLING STATION

Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right

corner of the screen.

Tap the icon to view the images from the camera at the calling station.

By pressing the various icons at the same time it is possible to:

Listen to the environmental noise near the calling station and start a hands-free conversation. To

stop viewing, press the same icon again: the screen will go off.

Open the door.

Open a driveway or garage gate.

Activate an auxiliary function, e.g. turning on the stair lights.

(The icon is only active if the feature has been configured in the 'Settings' menu for Yokis Home

Automation options. For the button configuration, please refer to the dedicated instruction manual

available on the Urmet website.)

Open a submenu where you can:

Change the audio volume in the calling point-to-video door phone direction, or the

brightness , contrast , and colour of the display (the changes will be

stored only if the button is pressed afterwards).

Enlarge or shrink the image, also changing its format from 4:3 to 16:9.

Stop the vision of the camera if the audio is disabled

Store a snapshot of the outdoor picture displayed on the screen.

Turn off or reactivate the video door phone microphone, to prevent anyone opposite the

calling station from overhearing the conversation. The icon will only be active after pressing

the button .

The icon will flash to signal an activated function.

Close the previous submenu.
