Vision™PLC+HMI

User Guide

Models V230/280/290

This guide provides basic information for Unitronics’ Models V230/280/290 (Non-color Screens).

General Description

Vision PLC+HMIs are programmable logic controllers that comprise an integral operating panel

containing a graphic LCD screen and a keyboard. All models offer the same PLC features.

Operating panel features differ according to model.

V230

LCD + Keyboard

V280

Touchscreen + Keyboard

V290

Touchscreen only

Communications

▪2 serial ports: RS232 (COM1), RS232/RS485 (COM2)

▪1 CANbus port

▪The user can order and install an additional port. Available port

types are: RS232/RS485, and Ethernet

▪Communication Function Blocks include: SMS, GPRS, MODBUS

serial/IP Protocol FB enables PLC to communicate with almost

any external device, via serial or Ethernet communications

I/O Options

Vision supports digital, high-speed, analog, weight and temperature

measurement I/Os via:

▪Snap-in I/O Modules

Plug into the back of the controller to provide an on-board I/O

configuration

▪I/O Expansion Modules

Local or remote I/Os may be added via expansion port or CANbus

Information Mode

This mode enables you to:

▪View & Edit operand values, COM port settings, RTC and screen

contrast/brightness settings

▪Calibrate the touchscreen

▪Stop, initialize, and reset the PLC

To enter Information Mode, press the <i> button for several seconds.

Programming

Software,

& Utilities

▪VisiLogic

Easily configure hardware and write both HMI and Ladder control

applications; the Function Block library simplifies complex tasks

such as PID. Write your application, and then download it to the

controller via the programming cable included in the kit.

Note that in order to program the V290-19-B20B,you must select the

V280/V530 in VisiLogic's Hardware Configuration.

▪Utilities

These include UniOPC server, Remote Access for remote

programming and diagnostics, and DataXport for run-time data logging

To learn how to use and program the controller, as well as use utilities such

as Remote Access, refer to the VisiLogic Help system.

V230/280/290

Unitronics

Operand Types

Memory Bits 4096 │Memory Integers, 16-bit, 2048 │Long Integers, 32-bit,

256 │Double Word, 32-bit unsigned, 64 │Memory Floats, 32-bit, 24 │

Timers, 32-bit, 192 │Counters, 16-bit, 24

Additional product documentation is in the Technical Library, located at www.unitronicsplc.com.

Technical support is available at the site, and from support@unitronics.com.

Kit Contents

Vision controller

Grounding hardware

Mounting brackets (x4)

Rubber seal

3 pin power supply connector

Extra set of keyboard slides, according to model

5 pin CANbus connector

CANbus network termination resistor

Alert Symbols and General Restrictions

When any of the following symbols appear, read the associated information carefully.

Symbol

Meaning

Description

Danger

The identified danger causes physical and property damage.

Warning

The identified danger could cause physical and property damage.

Caution

Use caution.

▪Before using this product, the user must read and understand this document

▪All examples and diagrams are intended to aid understanding, and do not guarantee operation

Unitronics accepts no responsibility for actual use of this product based on these examples

▪Please dispose of this product according to local and national standards and regulations

▪Only qualified service personnel should open this device or carry out repairs

Failure to comply with appropriate safety guidelines can cause severe injury or property damage

▪Do not attempt to use this device with parameters that exceed permissible levels

▪To avoid damaging the system, do not connect/disconnect the device when power is on

Environmental Considerations

▪Do not install in areas with: excessive or conductive dust, corrosive or flammable gas,

moisture or rain, excessive heat, regular impact shocks or excessive vibration, in

accordance with the standards given in the product’s technical specification sheet

▪Ventilation: 10mm space required between controller’s top/bottom edges & enclosure walls

▪Do not place in water or let water leak onto the unit

▪Do not allow debris to fall inside the unit during installation

▪Install at maximum distance from high-voltage cables and power equipment

User Guide

Unitronics

UL Compliance

The following section is relevant to Unitronics’ products that are listed with the UL.

The model: V230-13-B20B, V280-18-B20B, V290-19-B20B are UL listed for Ordinary Location.

The model: V230-13-B20B, V280-18-B20B are UL listed for Hazardous Locations.

oUL Ordinary Location

In order to meet the UL ordinary location standard, panel-mount this device on the flat surface

of Type 1 or 4 X enclosures

UL Ratings, Programmable Controllers for Use in Hazardous Locations,

Class I, Division 2, Groups A, B, C and D

These Release Notes relate to all Unitronics products that bear the UL symbols used to mark products

that have been approved for use in hazardous locations, Class I, Division 2, Groups A, B, C and D.

Caution

▪This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D, or Non-

hazardous locations only.

▪Input and output wiring must be in accordance with Class I, Division 2 wiring methods and

in accordance with the authority having jurisdiction.

▪WARNING—Explosion Hazard—substitution of components may impair suitability for

Class I, Division 2.

▪WARNING –EXPLOSION HAZARD –Do not connect or disconnect equipment unless

power has been switched off or the area is known to be non-hazardous.

▪WARNING –Exposure to some chemicals may degrade the sealing properties of material

used in Relays.

▪This equipment must be installed using wiring methods as required for Class I, Division 2

as per the NEC and/or CEC.

Panel-Mounting

For programmable controllers that can be mounted also on panel, in order to meet the UL Haz Loc

standard, panel-mount this device on the flat surface of Type 1 or Type 4X enclosures.

Communication and Removable Memory Storage

When products comprise either USB communication port, SD card slot, or both, neither

the SD card slot nor the USB port are intended to be permanently connected, while the USB port is

intended for programming only.

Removing / Replacing the battery

When a product has been installed with a battery, do not remove or replace the battery unless the

power has been switched off, or the area is known to be non-hazardous.

Please note that it is recommended to back up all data retained in RAM, in order to avoid losing data

when changing the battery while the power is switched off. Date and time information will also need to

be reset after the procedure.

UL des zones ordinaires:

Pour respecter la norme UL des zones ordinaires, monter l'appareil sur une surface plane de type de

protection 1 ou 4X

V230/280/290

Unitronics

Certification UL des automates programmables, pour une utilisation en

environnement à risques, Class I, Division 2, Groups A, B, C et D.

Cette note fait référence à tous les produits Unitronics portant le symbole UL - produits qui ont été

certifiés pour une utilisation dans des endroits dangereux, Classe I, Division 2, Groupes A, B, C et D.

Attention

▪Cet équipement est adapté pour une utilisation en Classe I, Division 2, Groupes A, B, C et

D, ou dans Non-dangereux endroits seulement.

▪Le câblage des entrées/sorties doit être en accord avec les méthodes

de câblage selon la Classe I, Division 2 et en accord avec l’autorité compétente.

▪AVERTISSEMENT: Risque d’Explosion – Le remplacement de certains composants rend

caduque la certification du produit selon la Classe I, Division 2.

▪AVERTISSEMENT - DANGER D'EXPLOSION - Ne connecter pas ou ne débranche pas

l'équipement sans avoir préalablement coupé l'alimentation électrique ou la zone est

reconnue pour être non dangereuse.

▪AVERTISSEMENT - L'exposition à certains produits chimiques peut dégrader les propriétés

des matériaux utilisés pour l'étanchéité dans les relais.

▪Cet équipement doit être installé utilisant des méthodes de câblage suivant la norme Class I,

Division 2 NEC et /ou CEC.

Montage de l'écran:

Pour les automates programmables qui peuvent aussi être monté sur l'écran,

pour pouvoir être au standard UL, l'écran doit être monté dans un coffret avec une surface plane de

type 1 ou de type 4X.

Communication et de stockage amovible de mémoire (carte mémoire)

Produits comprend un port USB de communication, soit un port carte SD ou les deux, ni le port SD, ni

le port USB ne sont censés être utilisés en permanence, tandis que l'USB est destiné à la

programmation uniquement.

Retrait / Remplacement de la batterie

Lorsqu'un produit a été installé avec une batterie, retirez et remplacez la batterie seulement si

l’alimentation est éteinte ou si l’environnement n’est pas dangereux.

Veuillez noter qu'il est recommandé de sauvegarder toutes les données conservées dans la RAM, afin

d'éviter de perdre des données lors du changement de la batterie lorsque l'alimentation est coupée.

Les informations sur la date et l'heure devront également être réinitialisées après la procédure

User Guide

Unitronics

Mounting

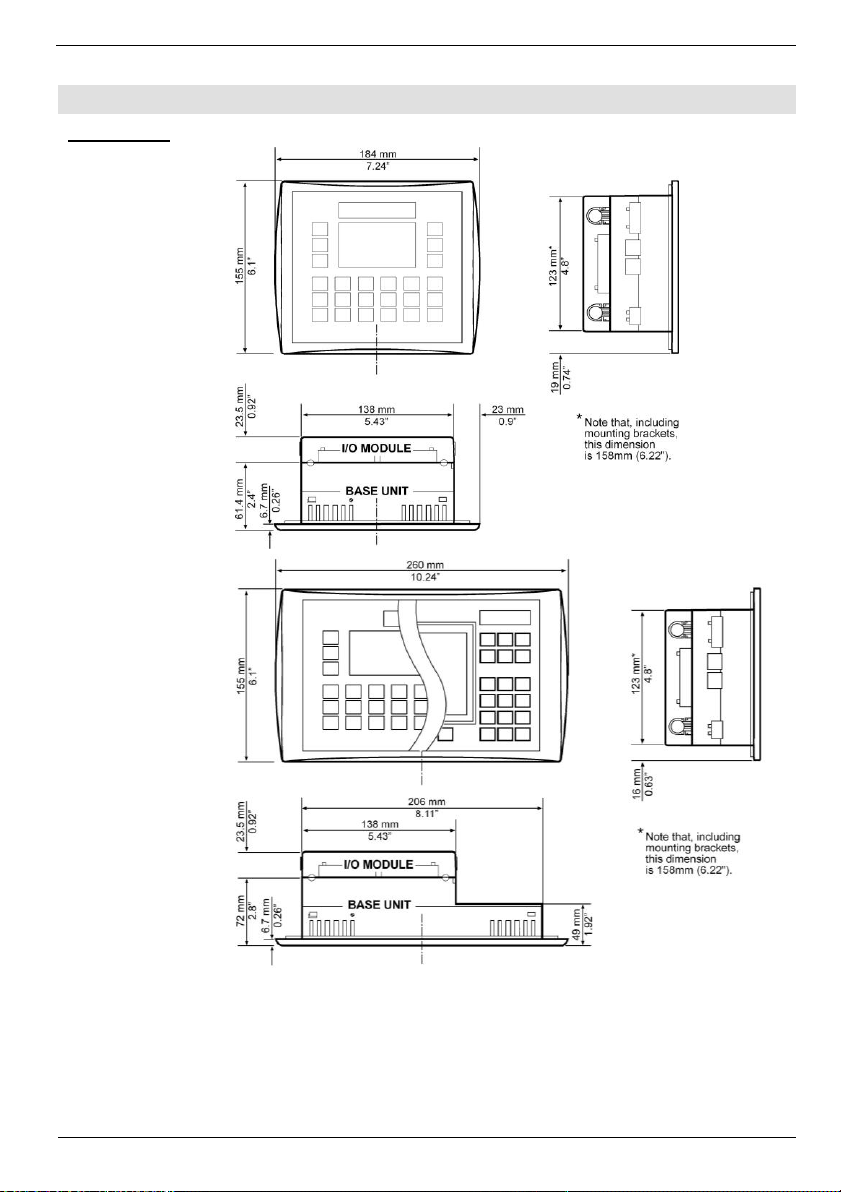

Dimensions

V230

V280

V230/280/290

Unitronics

V290

Mounting

Before you begin, note that:

▪The mounting panel cannot be more than 5 mm thick

▪To minimize electromagnetic interference, mount the controller on a metal panel and

earth the power supply according to the details on page 6.

1. Make a panel cut-out that suits your model controller.

V230 Cut-out Dimensions

User Guide

Unitronics

V280 Cut-out Dimensions

V290 Cut-out Dimensions

Caution

▪The necessary torque is 0.45 N·m (4.5 kgf·cm).

V230/280/290

Unitronics

2. If you mount the controller on a metal panel, earth the power supply only in

V230:

a. Bore a hole to suit the NC6-32 screw supplied with the kit.

b. Scrape panel paint away from the contact area to ensure a conductive connection.

c. Drive the screw into the hole.

d. Place the following hardware screw’s shank, in the order shown in the

accompanying figure: washer, ring cable shoe, second washer, spring, and nut.

▪Pay Attention:

The wire used to earth the power supply must not exceed 10 cm in length

if your conditions do not permit this, do not earth the power supply.

▪Make sure that the metal panel is properly earthed.

3. Slide the controller into the cut-out, ensuring

that the rubber seal is in place.

4. Push the 4 mounting brackets into their slots

on the sides of the controller as shown in the

figure to the right.

5. Tighten the bracket screws against the

panel. Hold the bracket securely against the

unit while tightening the screw.

6. When properly mounted, the controller is squarely situated in the panel cut-out as shown below.

Wiring: General

▪This equipment is designed to operate only in SELV/PELV/Class 2/Limited Power

environments

▪All power supplies in the system must include double insulation. Power supply outputs

must be rated as SELV/PELV/Class 2/Limited Power.

▪Do not connect either the ‘Neutral or ‘Line’ signal of the 110/220VAC to device’s 0V pin.

▪Do not touch live wires.

▪All wiring activities should be performed while power is OFF.

▪Unused pins should not be connected. Ignoring this directive may damage the device

Caution

▪To avoid damaging the wire, do not exceed a maximum torque of 0.5 N·m

(5 kgf·cm)

▪Do not use tin, solder, or any substance on stripped wire that might cause the wire

strand to break

Use crimp terminals for wiring; use 26-14 AWG wire (0.13 mm 2–2.08 mm2).

User Guide

Unitronics

1. Strip the wire to a length of 7±0.5mm (0.250–0.300”).

2. Unscrew the terminal to its widest position before inserting a wire.

3. Insert the wire completely into the terminal to ensure a proper connection.

4. Tighten enough to keep the wire from pulling free.

Wiring Guidelines

▪Use separate wiring ducts for each of the following groups:

▪Group 1: Low voltage I/O and supply lines, communication lines.

▪Group 2: High voltage Lines, Low voltage noisy lines like motor driver outputs.

Separate these groups by at least 10cm (4"). If this is not possible, cross the ducts at a 90˚angle.

▪For proper system operation, all 0V points in the system should be connected to the

system 0V supply rail.

Earthing the Controller

To maximize system performance, avoid electromagnetic interference as follows:

▪Use a metal cabinet.

▪Connect the 0V terminal to the earth ground of the system at one point, preferably as near to the

controller as possible.

Power Supply

The controller requires an external 12 or 24VDC power supply. The permissible input voltage

range is 10.2-28.8VDC, with less than 10% ripple.

▪You must use an external circuit protection device

▪Install an external circuit breaker. Guard against short-

circuiting in external wiring

▪Double-check all wiring before turning on the power

supply

In the event of voltage fluctuations or non-conformity to

voltage power supply specifications, connect the device to a

regulated power supply

V230/280/290

Unitronics

Communication Ports

▪Turn off power before making communications connections

▪Signals are related to the controller’s 0V; this is the same 0V used by the power supply

Caution

▪Always use the appropriate port adapters

▪The serial ports are not isolated. If the controller is used with a non-isolated external

device, avoid potential voltage that exceeds ± 10V

Serial Communications

This series comprises 2 RJ-11-type serial ports and a CANbus port.

COM1 is RS232 only. COM2 may be set to either RS232 or RS485 via jumper as described below.

By default, the port is set to RS232.

Use RS232 to download programs from a PC, and to communicate with serial devices and

applications, such as SCADA.

Use RS485 to create a multi-drop network containing up to 32 devices.

Caution

▪COM1 & 2 are not isolated

Pinouts

To connect a PC to a port that is set to RS485, remove the RS485 connector, and connect the PC

to the PLC via the programming cable. Note that this is possible only if flow control signals are not

used (which is the standard case).

RS232

RS485**

Controller Port

Pin #

Description

Pin #

Description

Pin #1

DTR signal

A signal (+)

0V reference

(RS232 signal)

TXD signal

(RS232 signal)

RXD signal

(RS232 signal)

0V reference

(RS232 signal)

DSR signal

B signal (-)

*Standard programming cables do not provide connection points for pins 1 and 6.

** When a port is adapted to RS485, Pin 1 (DTR) is used for signal A, and Pin 6 (DSR) signal

is used for signal B.

RS232 to RS485: Changing Jumper Settings

The port is set to RS232 by factory default.

To change the settings, first remove the Snap-in I/O Module, if one is installed, and then set the

jumpers according to the following table.

Note:

For V230/V280/V290 modules only there is a small window as described on page 6 for

jumper setting so there is no need to open the controller.

▪Before you begin, touch a grounded object to discharge any electrostatic charge

1. Before removing a Snap-in I/O Module or opening the controller, you must turn off the power

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Unitronics Contrôleurs

Unitronics

Unitronics Jazz OPLC JZ20-T40 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V1040-T20B Manuel utilisateur

Unitronics

Unitronics Vision OPLC V130-J-B1 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V130-33-T38 Manuel utilisateur

Unitronics

Unitronics MJ20-MEM1 Manuel utilisateur

Unitronics

Unitronics Samba SM70-J-TA22 Manuel utilisateur

Unitronics

Unitronics Samba OPLC Series Manuel utilisateur

Unitronics

Unitronics Vision V350-35-TU24 Manuel utilisateur

Unitronics

Unitronics Vision130 Manuel utilisateur

Unitronics

Unitronics Samba SM70-J-RA22 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V570-57-T34 Manuel utilisateur

Unitronics

Unitronics UniStream 5 inch Manuel utilisateur

Unitronics

Unitronics Vision OPLC V1040-T20B Manuel utilisateur

Unitronics

Unitronics Vision OPLC V130-33-TA24 Manuel utilisateur

Unitronics

Unitronics Vision 230 Manuel utilisateur

Unitronics

Unitronics UniStream USC-B3-R20 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V560-T25B Manuel utilisateur

Unitronics

Unitronics Samba OPLC SM43-J-R20 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V130-J-TR20 Manuel utilisateur

Unitronics

Unitronics UniStream USC-B5-B1 Manuel utilisateur

Unitronics

Unitronics Vision V130-J Series Manuel utilisateur

Unitronics

Unitronics Vision V130-33-T2 Manuel utilisateur

Unitronics

Unitronics UniStream Manuel utilisateur

Unitronics

Unitronics Vision OPLC V350-35-TR20 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
