General Description

The products listed above are micro-PLC+HMIs, rugged programmable logic controllers that comprise

built-in operating panels.

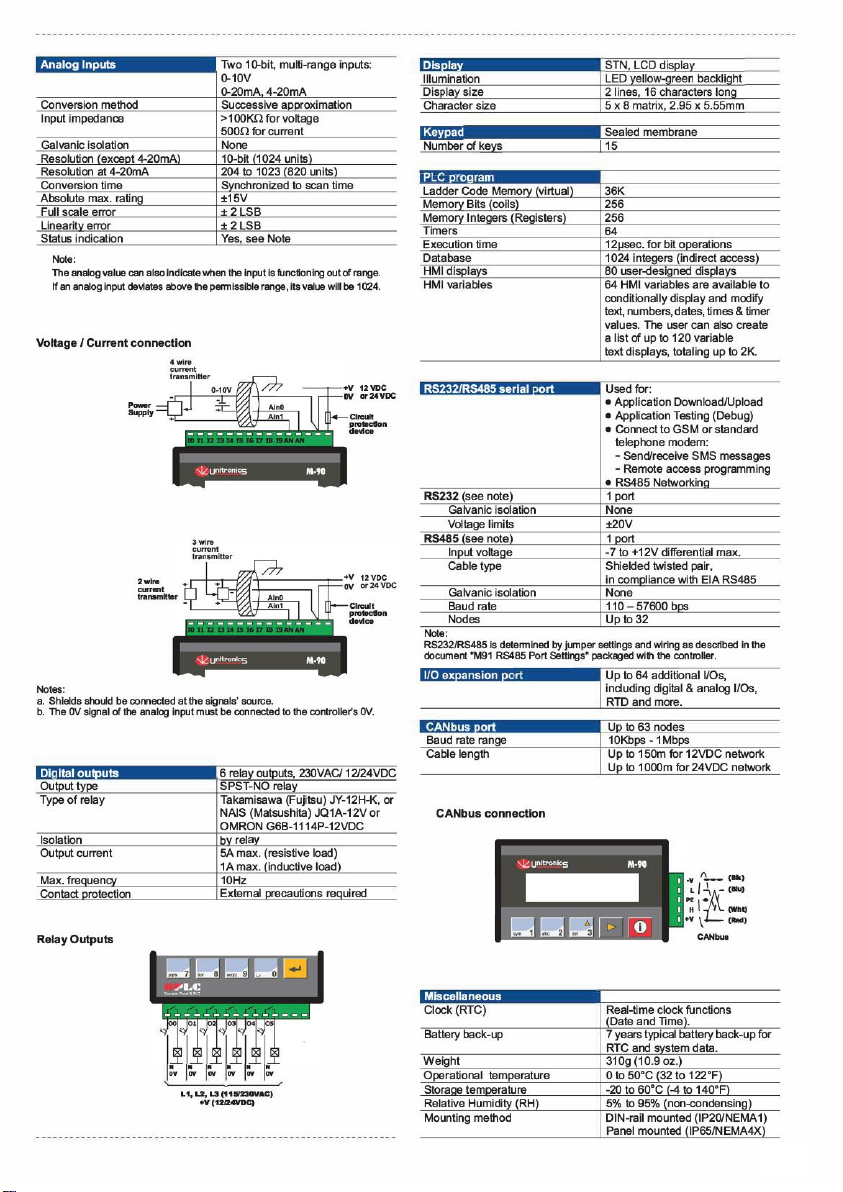

Detailed Installation Guides containing the I/O wiring diagrams for these models, technical specifications,

and additional documentation are located in the Technical Library in the Unitronics website:

https://unitronicsplc.com/support-technical-library/

Alert Symbols and General Restrictions

When any of the following symbols appear, read the associated information carefully.

Symbol

Meaning

Description

Danger

The identified danger causes physical and property damage.

Warning

The identified danger could cause physical and property damage.

Caution

Use caution.

▪Before using this product, the user must read and understand this document.

▪All examples and diagrams are intended to aid understanding, and do not guarantee operation.

Unitronics accepts no responsibility for actual use of this product based on these examples.

▪Please dispose of this product according to local and national standards and regulations.

▪Only qualified service personnel should open this device or carry out repairs.

▪Failure to comply with appropriate safety guidelines can cause severe injury or property

damage.

▪Do not attempt to use this device with parameters that exceed permissible levels.

▪To avoid damaging the system, do not connect/disconnect the device when power is on.

Environmental Considerations

▪Do not install in areas with: excessive or conductive dust, corrosive or flammable gas,

moisture or rain, excessive heat, regular impact shocks or excessive vibration, in

accordance with the standards given in the product’s technical specification sheet.

▪Do not place in water or let water leak onto the unit.

▪Do not allow debris to fall inside the unit during installation.

▪Ventilation: 10mm space required between controller’s top/bottom edges & enclosure walls.

▪Install at maximum distance from high-voltage cables and power equipment.

Vision V120™, M91™PLC

User Guide

V120-22-R2C

M91-2-R2C

Installation Guide

Mounting

Note that figures are for illustrative purposes only.

Dimensions

Model

Cut-out

View area

V120

92x92 mm (3.622”x3.622”)

57.5x30.5mm (2.26"x1.2")

M91

92x92 mm (3.622”x3.622”)

62x15.7mm (2.44"x0.61")

Panel Mounting

Before you begin, note that the mounting panel cannot be more than 5 mm thick.

1. Make a panel cut-out of the appropriate size:

2. Slide the controller into the cut-out, ensuring that the rubber seal is in place.

3. Push the mounting brackets into their slots on the sides of the panel as shown in the figure below.

4. Tighten the bracket’s screws against the panel. Hold the bracket securely against the unit while

tightening the screw.

5. When properly mounted, the controller is squarely situated in the panel cut-out as shown in the

accompanying figures.

User Guide

DIN-rail Mounting

1. Snap the controller onto the DIN rail as

shown in the figure to the right.

2. When properly mounted, the controller is

squarely situated on the DIN-rail as

shown in the figure to the right.

Wiring

▪Do not touch live wires.

▪This equipment is designed to operate only in SELV/PELV/Class 2/Limited Power

environments.

▪All power supplies in the system must include double insulation. Power supply outputs

must be rated as SELV/PELV/Class 2/Limited Power.

▪Do not connect either the ‘Neutral or ‘Line’ signal of the 110/220VAC to device’s 0V pin.

▪All wiring activities should be performed while power is OFF.

▪Use over-current protection, such as a fuse or circuit breaker, to avoid excessive currents

into the power supply connection point.

▪Unused points should not be connected (unless otherwise specified). Ignoring this

directive may damage the device.

▪Double-check all wiring before turning on the power supply.

Caution

▪To avoid damaging the wire, do not exceed a maximum torque of:

- Controllers offering a terminal block with pitch of 5mm: 0.5 N·m (5 kgf·cm).

- Controllers offering a terminal block with pitch of 3.81mm f 0.2 N·m (2 kgf·cm).

▪Do not use tin, solder, or any substance on stripped wire that might cause the wire

strand to break.

▪Install at maximum distance from high-voltage cables and power equipment.

Wiring Procedure

Use crimp terminals for wiring;

- Controllers offering a terminal block with pitch of 5mm: 26-12 AWG wire (0.13 mm2–3.31 mm2).

- Controllers offering a terminal block with pitch of 3.81mm: 26-16 AWG wire (0.13 mm2–1.31 mm2).

Installation Guide

1. Strip the wire to a length of 7±0.5mm (0.270–0.300“).

2. Unscrew the terminal to its widest position before inserting a wire.

3. Insert the wire completely into the terminal to ensure a proper connection.

4. Tighten enough to keep the wire from pulling free.

Wiring Guidelines

▪Use separate wiring ducts for each of the following groups:

oGroup 1: Low voltage I/O and supply lines, communication lines.

oGroup 2: High voltage Lines, Low voltage noisy lines like motor driver outputs.

Separate these groups by at least 10cm (4"). If this is not possible, cross the ducts at a 90˚angle.

▪For proper system operation, all 0V points in the system should be connected to the system 0V

supply rail.

▪Product-specific documentation must be fully read and understood before performing any wiring.

Allow for voltage drop and noise interference with input lines used over an extended distance.

Use wire that is properly sized for the load.

Earthing the product

To maximize system performance, avoid electromagnetic interference as follows:

▪Use a metal cabinet.

▪Connect the 0V and functional ground points (if exist) directly to the earth ground of the system.

▪Use the shortest, less than 1m (3.3 ft.) and thickest, 2.08mm² (14AWG) min, wires possible.

UL Compliance

The following section is relevant to Unitronics’ products that are listed with the UL.

The following models: V120-22-T1, V120-22-T2C, V120-22-UA2, V120-22-UN2, M91-2-R1,

M91-2-R2C, M91-2-R6, M91-2-R6C, M91-2-T1, M91-2-T2C, M91-2-UA2, M91-2-UN2

are UL listed for Hazardous Locations.

The following models: V120-22-R1, V120-22-R2C, V120-22-R34, V120-22-R6, V120-22-R6C,

V120-22-RA22, V120-22-T1, V120-22-T2C, V120-22-T38, V120-22-UA2, V120-22-UN2, M91-2-FL1,

M91-2-PZ1, M91-2-R1, M91-2-R2, M91-2-R2C, M91-2-R34, M91-2-R6, M91-2-R6C, M91-2-RA22,

M91-2-T1, M91-2-T2C, M91-2-T38, M91-2-TC2, M91-2-UA2, M91-2-UN2, M91-2-ZK, M91-T4-FL1,

M91-T4-PZ1, M91-T4-R1, M91-T4-R2, M91-T4-R2C, M91-T4-R34, M91-T4-R6, M91-T4-R6C, M91-T4-

RA22, M91-T4-T1, M91-T4-T2C, M91-T4-T38, M91-T4-TC2, M91-T4-UA2, M91-T4-UN2, M91-T4-ZK

are UL listed for Ordinary Location.

For models from series M91, that include “T4” in the Model name, Suitable for mounting on the flat

surface of Type 4X enclosure.

For examples: M91-T4-R6

UL Ordinary Location

In order to meet the UL ordinary location standard, panel-mount this device on the flat surface

of Type 1 or 4 X enclosures

User Guide

UL Ratings, Programmable Controllers for Use in Hazardous Locations,

Class I, Division 2, Groups A, B, C and D

These Release Notes relate to all Unitronics products that bear the UL symbols used to mark products

that have been approved for use in hazardous locations, Class I, Division 2, Groups A, B, C and D.

Caution

▪This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D, or Non-

hazardous locations only.

▪Input and output wiring must be in accordance with Class I, Division 2 wiring methods and

in accordance with the authority having jurisdiction.

▪WARNING—Explosion Hazard—substitution of components may impair suitability for

Class I, Division 2.

▪WARNING –EXPLOSION HAZARD –Do not connect or disconnect equipment unless

power has been switched off or the area is known to be non-hazardous.

▪WARNING –Exposure to some chemicals may degrade the sealing properties of material

used in Relays.

▪This equipment must be installed using wiring methods as required for Class I, Division 2

as per the NEC and/or CEC.

Panel-Mounting

For programmable controllers that can be mounted also on panel, in order to meet the UL Haz Loc

standard, panel-mount this device on the flat surface of Type 1 or Type 4X enclosures.

Relay Output Resistance Ratings

The products listed below contain relay outputs:

Programmable controllers, Models: M91-2-R1, M91-2-R2C,M91-2-R6C, M91-2-R6

▪When these specific products are used in hazardous locations, they are rated at 3A res.

▪when these specific products are used in non-hazardous environmental conditions, they are rated

at 5A res, as given in the product’s specifications.

Temperature Ranges

Programmable Logic Controllers, Models, M91-2-R1, M91-2-R2C, M91-2-R6C.

▪When these specific products are used in hazardous locations, they may be used only within a

temperature range of 0-40ºC (32- 104ºF).

▪When these specific products are used in non-hazardous environmental conditions, they function

within the range of 0-50ºC (32- 122ºF) given in the product’s specifications.

Removing / Replacing the battery

When a product has been installed with a battery, do not remove or replace the battery unless the

power has been switched off, or the area is known to be non-hazardous.

Please note that it is recommended to back up all data retained in RAM, in order to avoid losing data

when changing the battery while the power is switched off. Date and time information will also need to

be reset after the procedure.

UL des zones ordinaires:

Pour respecter la norme UL des zones ordinaires, monter l'appareil sur une surface plane de type de

protection 1 ou 4X

Installation Guide

Certification UL des automates programmables, pour une utilisation en

environnement à risques, Class I, Division 2, Groups A, B, C et D.

Cette note fait référence à tous les produits Unitronics portant le symbole UL - produits qui ont été

certifiés pour une utilisation dans des endroits dangereux, Classe I, Division 2, Groupes A, B, C et D.

Attention

▪Cet équipement est adapté pour une utilisation en Classe I, Division 2, Groupes A, B, C et

D, ou dans Non-dangereux endroits seulement.

▪Le câblage des entrées/sorties doit être en accord avec les méthodes

de câblage selon la Classe I, Division 2 et en accord avec l’autorité compétente.

▪AVERTISSEMENT: Risque d’Explosion –Le remplacement de certains composants rend

caduque la certification du produit selon la Classe I, Division 2.

▪AVERTISSEMENT - DANGER D'EXPLOSION - Ne connecter pas ou ne débranche pas

l'équipement sans avoir préalablement coupé l'alimentation électrique ou la zone est

reconnue pour être non dangereuse.

▪AVERTISSEMENT - L'exposition à certains produits chimiques peut dégrader les propriétés

des matériaux utilisés pour l'étanchéité dans les relais.

▪Cet équipement doit être installé utilisant des méthodes de câblage suivant la norme Class I,

Division 2 NEC et /ou CEC.

Montage de l'écran:

Pour les automates programmables qui peuvent aussi être monté sur l'écran,

pour pouvoir être au standard UL, l'écran doit être monté dans un coffret avec une surface plane de

type 1 ou de type 4X.

Certification de la résistance des sorties relais

Les produits énumérés ci-dessous contiennent des sorties relais:

▪Automates programmables, modèles : M91-2-R1, M91-2-R6C, M91-2-R6, M91-2-R2C

▪Lorsque ces produits spécifiques sont utilisés dans des endroits dangereux, ils supportent

un courant de 3A charge résistive.

▪Lorsque ces produits spécifiques sont utilisés dans un environnement non dangereux, ils sont évalués

à 5A res, comme indiqué dans les specifications du produit Plages de temperatures.

Plages de température

Les Automates programmables, modèles: M91-2-R1, M91-2-R2C, M91-2-R6C.

▪Dans un environnement dangereux, ils peuvent être seulement utilisés dans une plage

de température allant de 0 et 40° C (32- 104ºF).

▪Dans un environnement non dangereux, ils peuvent être utilisés dans une plage de température allant

de 0 et 50º C (32- 122ºF).

Retrait / Remplacement de la batterie

Lorsqu'un produit a été installé avec une batterie, retirez et remplacez la batterie seulement si

l’alimentation est éteinte ou si l’environnement n’est pas dangereux.

Veuillez noter qu'il est recommandé de sauvegarder toutes les données conservées dans la RAM, afin

d'éviter de perdre des données lors du changement de la batterie lorsque l'alimentation est coupée. Les

informations sur la date et l'heure devront également être réinitialisées après la procedure.

User Guide

Installation Guide

User Guide

Installation Guide

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Unitronics Contrôleurs

Unitronics

Unitronics Samba SM70-J-TA22 Manuel utilisateur

Unitronics

Unitronics Samba SM70-J-RA22 Manuel utilisateur

Unitronics

Unitronics UniStream US5-B5-B1 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V130-33-T38 Manuel utilisateur

Unitronics

Unitronics Vision V350-35-T2 Manuel utilisateur

Unitronics

Unitronics Vision V130-TR6 Manuel utilisateur

Unitronics

Unitronics Jazz OPLC JZ20-R10 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V570-57-T34 Manuel utilisateur

Unitronics

Unitronics Vision700 Manuel utilisateur

Unitronics

Unitronics UniStream USC-B5-R38 Manuel utilisateur

Unitronics

Unitronics Jazz JZ10-11-R16L Manuel utilisateur

Unitronics

Unitronics Uni-COM UAC-CB-01RS2 Manuel utilisateur

Unitronics

Unitronics VisionV120-22-UN2 Manuel utilisateur

Unitronics

Unitronics UniStream Built-in Series Manuel utilisateur

Unitronics

Unitronics Vision OPLC V130-33-TA24 Manuel utilisateur

Unitronics

Unitronics UniStream Manuel utilisateur

Unitronics

Unitronics Samba OPLC SM43-J-R20 Manuel utilisateur

Unitronics

Unitronics UniStream USC-B10-RA28 Manuel utilisateur

Unitronics

Unitronics V120-22-R34 Manuel utilisateur

Unitronics

Unitronics Jazz OPLC JZ20-T40 Manuel utilisateur

Unitronics

Unitronics Vision V130-J-TA24 Manuel utilisateur

Unitronics

Unitronics Vision 230 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V130-33-T38 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V1040-T20B Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
