Ubiquiti Loco5AC-US Manuel utilisateur

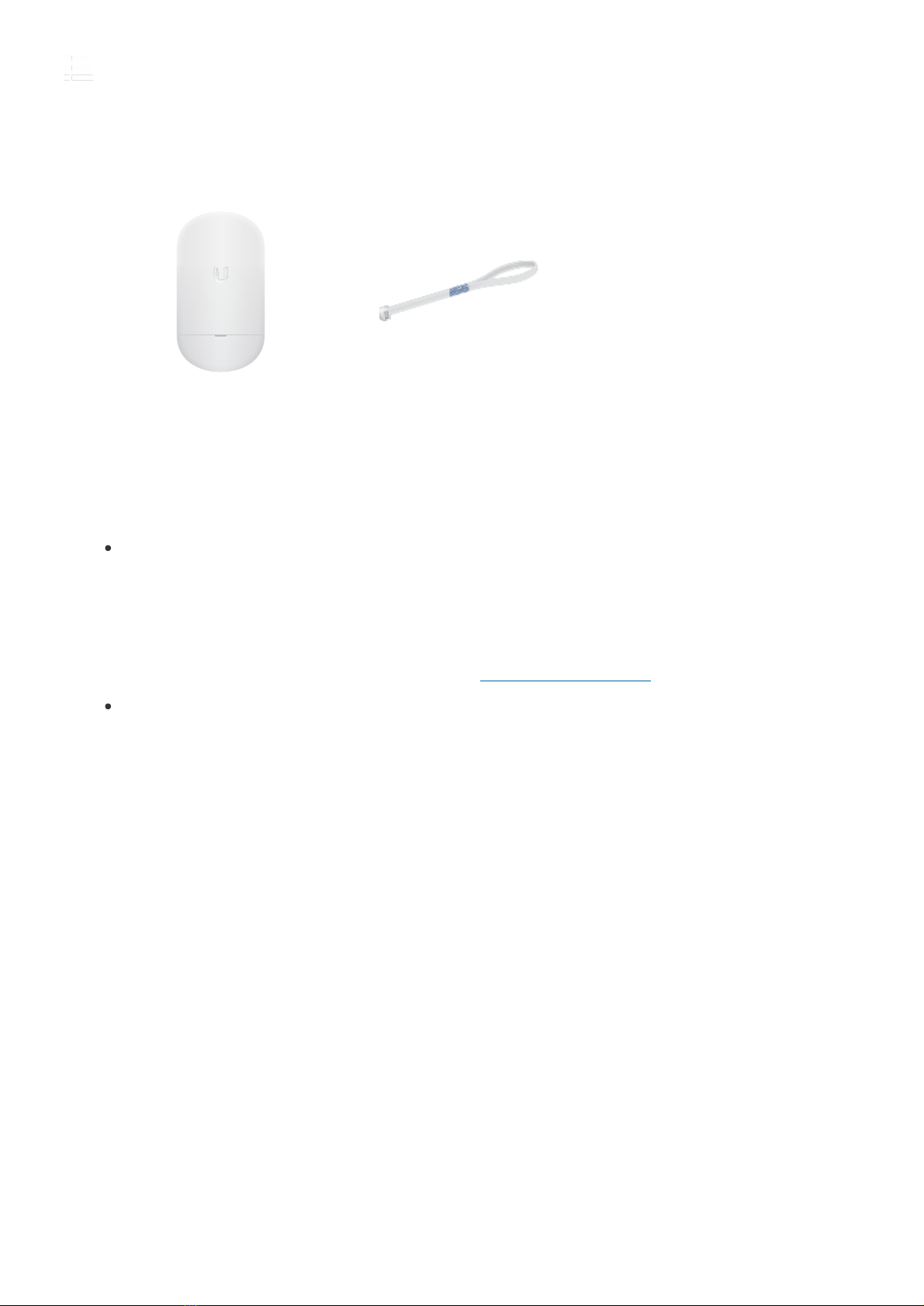

NanoStation loco Zip Tie

Package Contents

Installation Requirements

Shielded Category 5 (or above) cabling with drain wire should be used for all

outdoor wired Ethernet connections and should be grounded through the AC

ground of the PoE.

We recommend that you protect your networks from harmful outdoor

environments and destructive ESD events with industrial-grade, shielded Ethernet

cable from Ubiquiti. For more details, visit ui.com/toughcable

Surge protection should be used for all outdoor installations. We recommend that

you use two Ethernet Surge Protectors, model ETH-SP, one near the NanoStation

loco and the other at the entry point to the building. The ETH-SP will absorb

power surges and safely discharge them into the ground.

Loco5AC Quick Start Guide

Power LED

Ethernet Port

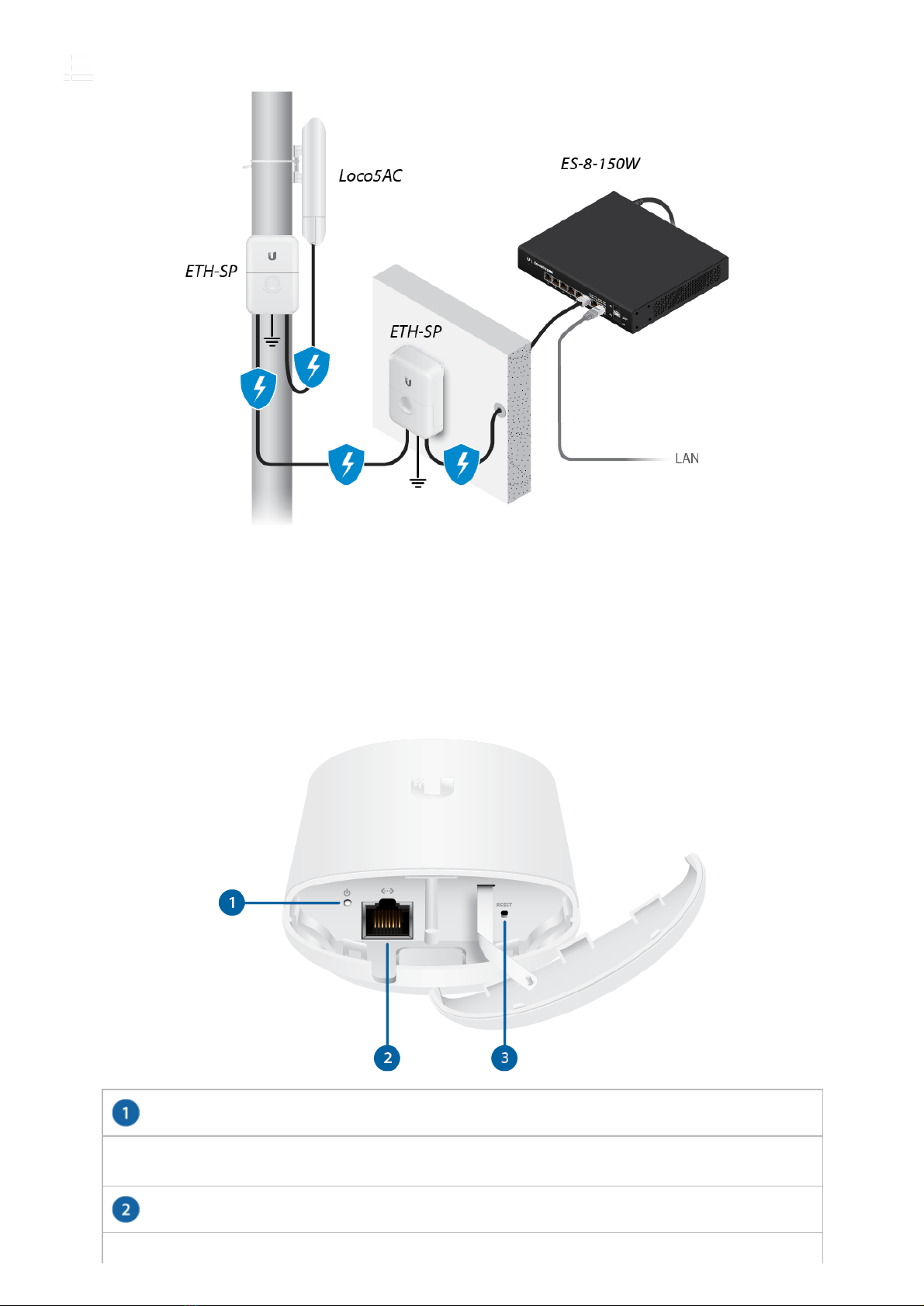

Diagram Showing Use of Ethernet Surge Protectors

Hardware Overview

Port View

The Power LED will light blue when the device is connected to a power source.

Loco5AC Quick Start Guide

Reset Button

10/100/1000 Ethernet port used to connect the power and should be connected

to the LAN and DHCP server.

To reset to factory defaults, press and hold the Reset button for more than 10

seconds while the device is powered on.

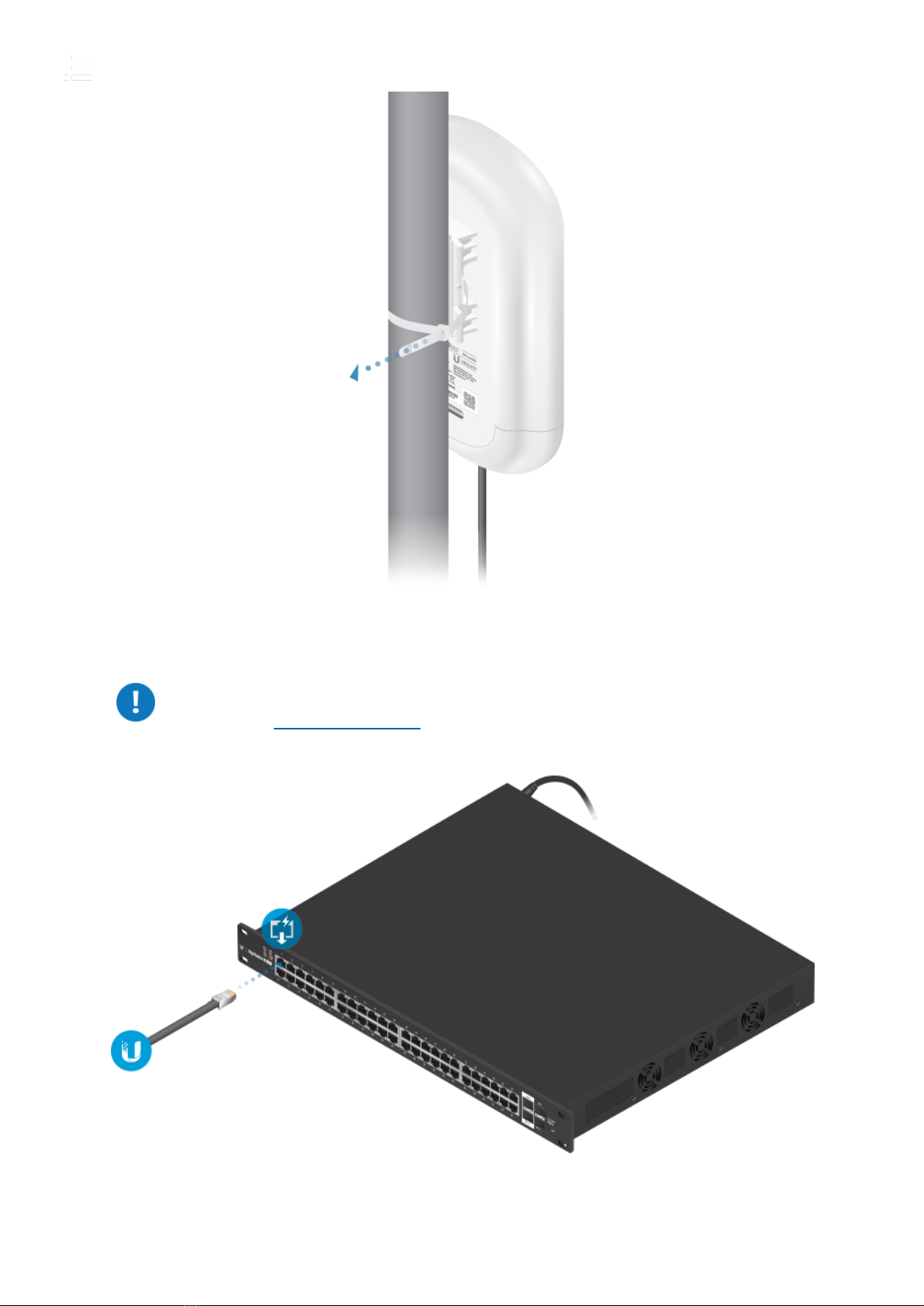

Hardware Installation

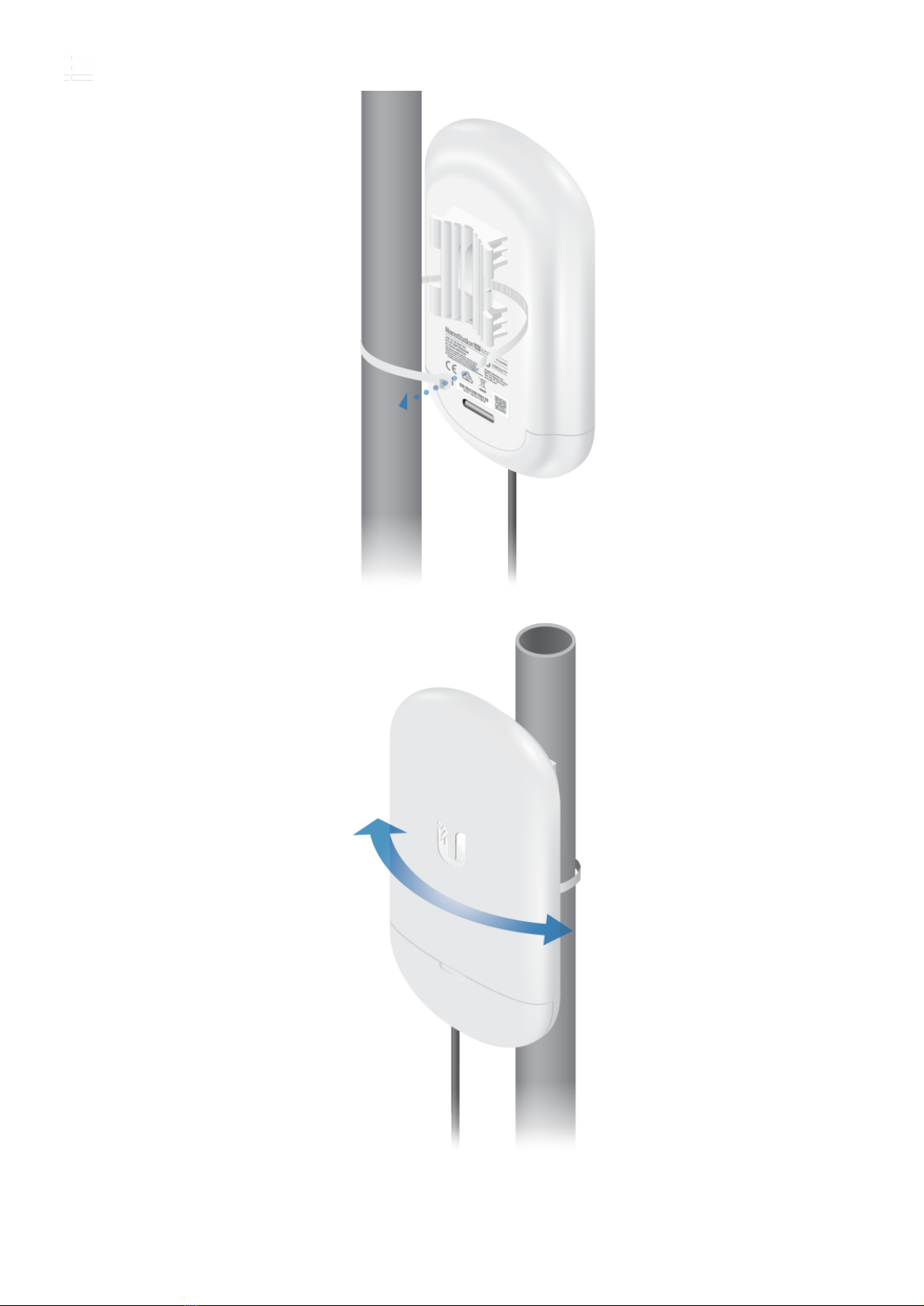

Pole Mount

Loco5AC Quick Start Guide

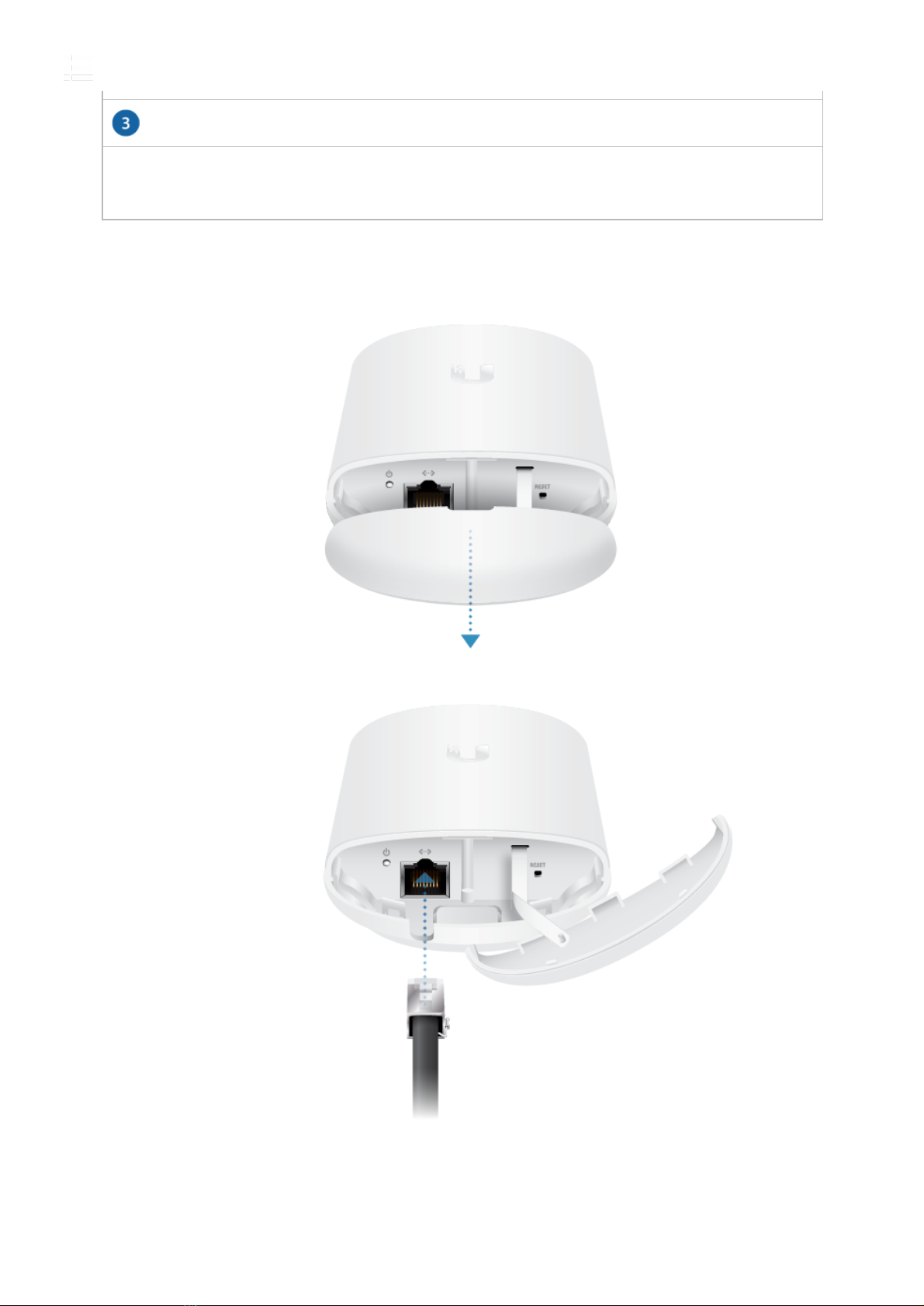

Connecting Power

WARNING: The switch port must comply with the power speciﬁcations

listed in this “Speciﬁcations”.

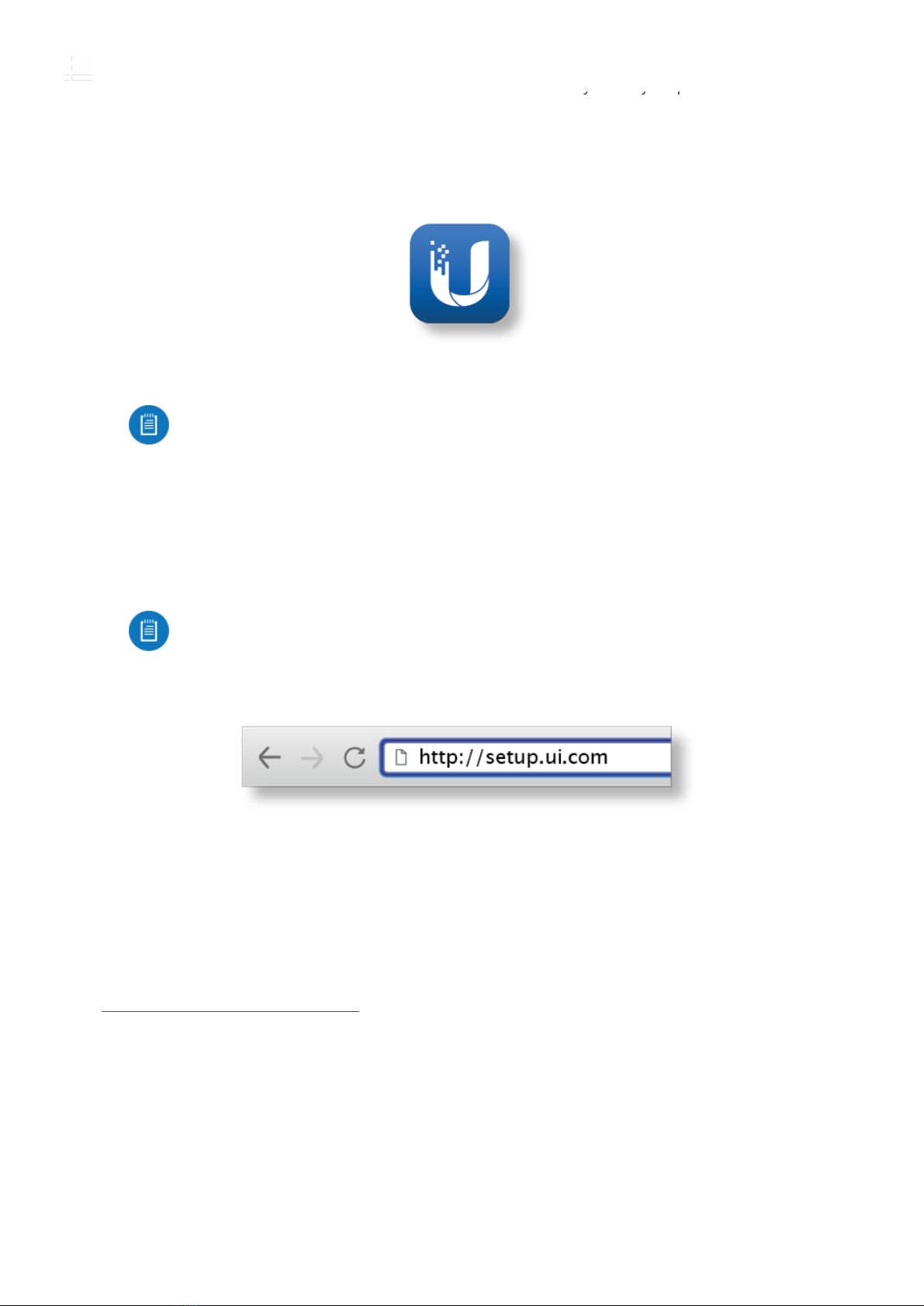

Accessing airOS via Wi-Fi

Loco5AC Quick Start Guide

Verify connectivity in the airOS® Conﬁguration Interface using the UISP™ app or

Web Portal. Both are available for 15 minutes immediately after you power on the

device. If necessary, you can power cycle the device to re-enable its Wi-Fi.

UISP App

1. Download the UISP app.

2. Connect your device’s Wi-Fi to the SSID named: <model>:<MAC Address>

3. Launch the app and follow the on-screen instructions.

Web Portal

1. Connect your device’s Wi-Fi to the SSID named: <model>:<MAC Address>

2. Launch your web browser and go to: http://setup.ui.com

3. Select your Country and Language. You must agree to the Terms of Use to use

the product. Click Continue.

4. Create a username and password. Conﬁrm your new password and then click

Save.

The airOS Conﬁguration Interface will appear, allowing you to customize your

settings as needed. For additional details, refer to the User Guide available at

ui.com/download/airmax-ac

Installer Compliance Responsibility

Devices must be professionally installed and it is the professional installer’s

responsibility to make sure the device is operated within local country regulatory

requirements.

The Output Power ﬁeld is provided to the professional installer to assist in meeting

regulatory requirements.

Note: Ensure that DHCP is enabled on your Wi-Fi adapter.

Note: Ensure that your Wi-Fi connection has DHCP enabled.

Loco5AC Quick Start Guide

Speciﬁcations

Loco5AC

Dimensions 179 x 77.5 x 59.1 mm

(7.05 x 3.05 x 2.33")

Weight 180 g (6.35 oz)

Processor MIPS 74K

Memory DDR2 64 MB

Antenna Gain 13 dBi

Networking Interface (1) 10/100/1000 Ethernet Port

Power Method Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return)

Power Supply 24V, 0.3A Gigabit PoE Supply*

Max. Power Consumption 7W

Supported Voltage Range 24V ±10%

ESD/EMP Protection ±24kV Contact / Air

Operating Temperature -40 to 70° C (-40 to 158° F)

Operating Humidity 5 to 95% Noncondensing

Certiﬁcations CE, FCC, IC

* Not included. Recommended PoE Adapter: POE-24-12W-G.

Operating Frequency (MHz)

Worldwide 5150 - 5875

US/CA U-NII-1 5150 - 5250

U-NII-2A 5250 - 5350

U-NII-2C 5470 - 5725

U-NII-3 5725 - 5850

Management Radio (MHz)

Worldwide 2412 - 2472

US/CA 2412 - 2462

Safety Notices

1. Read, follow, and keep these instructions.

2. Heed all warnings.

3. Only use attachments/accessories speciﬁed by the manufacturer.

WARNING: Do not use this product in location that can be submerged by water.

Loco5AC Quick Start Guide

WARNING: Avoid using this product during an electrical storm. There may be a remote

risk of electric shock from lightning.

Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current requirements

indicated on the manufacturer’s label. Connection to a different power source than those

speciﬁed may result in improper operation, damage to the equipment or pose a ﬁre hazard if

the limitations are not followed.

2. There are no operator serviceable parts inside this equipment. Service should be provided

only by a qualiﬁed service technician.

Limited Warranty

ui.com/support/warranty

The limited warranty requires the use of arbitration to resolve disputes on an individual basis,

and, where applicable, specify arbitration instead of jury trials or class actions.

Compliance

FCC

Changes or modiﬁcations not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions.

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operations of this equipment in a residential area is likely

to cause harmful interference in which case the user will be required to correct the interference

at his own expense.

This radio transmitter has been approved by FCC.

ISED Canada

CAN ICES-3(A)/NMB-3(A)

This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject

to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that may cause undesired

operation of the device.

This radio transmitter has been approved by ISED Canada.

Loco5AC Quick Start Guide

The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the

potential for harmful interference to co-channel mobile satellite systems.

CAN ICES-3(A)/NMB-3(A)

Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio

exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :

1. l’appareil ne doit pas produire de brouillage;

2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est

susceptible d’en compromettre le fonctionnement.

Le présent émetteur radio a été approuvé par ISDE Canada.

Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une

utilisation à l’intérieur aﬁn de réduire les risques de brouillage préjudiciable aux systèmes de

satellites mobiles utilisant les mêmes canaux.

IMPORTANT NOTE

Radiation Exposure Statement

This equipment complies with radiation exposure limits set forth for an uncontrolled

environment.

This equipment should be installed and operated with minimum distance 25 cm between the

radiator and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

AVIS IMPORTANT

Déclaration sur l’exposition aux rayonnements

Cet équipement est conforme aux limites prévues pour l’exposition aux rayonnements dans

un environnement non contrôlé.

Lors de l’installation et de la mise en fonctionnement de l’équipement, assurez-vous qu’il y

ait une distance minimale de 25 cm entre l’élément rayonnant et vous.

Cet émetteur ne doit être installé à proximité d’aucune autre antenne ni d’aucun autre

émetteur, et ne doit être utilisé conjointement à aucun autre de ces appareils.

Australia and New Zealand

Warning: This equipment is compliant with Class A of CISPR 32. In a residential

environment this equipment may cause radio interference.

Brazil

Nota: Este equipamento não tem direito à proteção contra interferência prejudicial e

não pode causar interferência em sistemas devidamente autorizados.

CE Marking

Loco5AC Quick Start Guide

CE marking on this product represents the product is in compliance with all directives that are

applicable to it.

Country List

AT BE BG CY CZ DE DK EE EL ES FI FR HR HU

IE IT LV LT LU MT NL PL PT RO SE SI SK UK

BFWA (Broadband Fixed Wireless Access) members noted in blue

Note: This device meets Max. TX power limit per ETSI regulations.

The following apply to products that operate in the 5 GHz frequency range:

Note: This device is restricted to indoor use only when operating in the 5150 - 5350

MHz frequency range within all member states.

Note: Operation in the 5.8 GHz frequency band is prohibited in BFWA member states.

Other countries listed may use the 5.8 GHz frequency band.

WEEE Compliance Statement

Declaration of Conformity

Online Resources

Loco5AC Quick Start Guide
