Ubiquiti RP5AC-PRISM Manuel utilisateur

5 GHz airMAX®ac

BaseStation with airPrism®

Active RF Filtering Technology

Model: R5AC-PRISM

Introduction

Thank you for purchasing the Ubiquiti Networks® Rocket®5ac

Prism™. This Quick Start Guide is designed to guide you

through installation and also includes warranty terms.

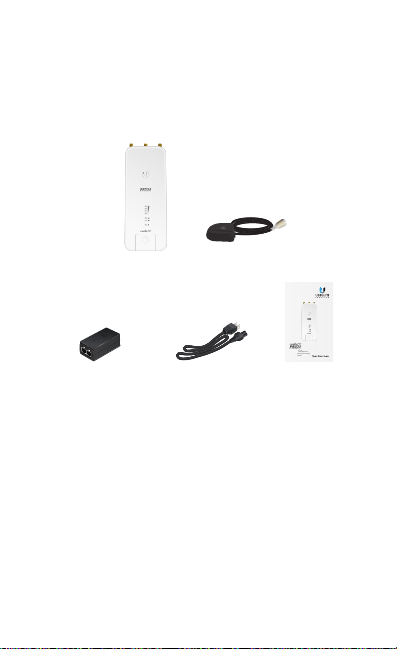

Package Contents

Rocket5ac Prism GPS Antenna

5GHz airMAX®ac

BaseStationwith airPrism®

ActiveRF Filtering Technology

Model:R5AC-PRISM

Gigabit PoE (24V, 0.5A)

with Mounting Bracket

Power Cord Quick Start Guide

Installation Requirements

• The GPS Antenna needs to have clear line of sight to thesky

for proper GPS operation.

• Shielded Category 5 (or above) cabling should be used for

all wired Ethernet connections and should be grounded

through the AC ground of the PoE.

We recommend that you protect your networks from

harmful outdoor environments and destructive ESD events

with industrial‑grade, shielded Ethernet cable from Ubiquiti

Networks. For more details, visit

www.ubnt.com/toughcable

cable and earth grounding must be used as conditions of product warranty. TOUGHCable™is

designed for outdoor installations. It is the customer’s responsibility to follow local country

regulations, including operation within legal frequency channels, output power, and Dynamic

Frequency Selection (DFS) requirements.

Hardware Overview

GPS

Antenna

Connector

RP-SMA

Antenna

Connector:

Chain 1

RP-SMA

Antenna

Connector:

Chain 0

LED Panel

Port Cover

LED Panel

Signal In airOS®, you can modify the wireless

signal strength threshold values for each LED on

the Wireless tab under Signal LED Thresholds. The

default values are shown below:

LED will light blue when the wireless

signal strength is above ‑65 dBm.

LED will light blue when the wireless

signal strength is above ‑73 dBm.

LED will light blue when the wireless

signal strength is above ‑80 dBm.

LED will light blue when the wireless

signal strength is above ‑94 dBm.

GPS GPS The GPS LED will light steady blue when the

GPS signal strength is sufficient. This requires a

minimum of three satellite connections.

LAN LAN The LAN LED will light steady blue when an

active Ethernet connection is made to the LAN

port and flash when there is activity.

Power The Power LED will light blue when the

device is connected to a power source.

Ports

LAN Port

Reset

Button

LAN The Gigabit Ethernet port is used to connect the power

and should be connected to the LAN.

Reset Button To reset to factory defaults, press and hold the

Reset button for more than 10 seconds while the Rocket is

poweredon. Alternatively, the Rocket may be reset remotely

via a Reset button located on the bottom of the Gigabit PoE

adapter.

Hardware Installation

The Rocket5ac Prism is designed to mount directly onto a

Ubiquiti airMAX RocketDish™antenna for Point‑to‑Point use or

an airMAX Sector antenna for Point‑to‑MultiPoint use.

1. Lift the release latch on the bottom of the Rocket and slide

the Port Cover off.

2. Connect an Ethernet cable to the LAN port.

3. Replace the Port Cover.

*640-00220-05*

640-00220-05

4. Connect the RF cables (included with the antenna) to the

RP-SMA Antenna Connectors located on top of the Rocket.

5. Attach the Rocket to the antenna.

a. Align the mounting tabs on the back of the Rocket with

the four mounting slots on the antenna.

b. Slide the Rocket down until it locks into place.

CHAIN1 GPS CHAIN0

Mounting on a RocketDish Mounting on a Sector Antenna

6. Attach the other end of the RF cables to the RF connectors

on the antenna.

CHAIN1 GPS CHAIN0

CHAIN1 GPS CHAIN 0

Connecting to a RocketDish Connecting to a Sector Antenna

7. Connect the GPS Antenna to the GPS Antenna Connector

on the Rocket.

CHAIN1 GPS CHAIN0

CHAIN1 GPS CHAI N 0

Connecting the GPS Antenna Connecting the GPS Antenna

8. Attach the protective shroud.

CHAIN1 GPS CHAIN0

Align the hash mark on the top

of the shroud with the notch on

the RocketDish. Rotate the shroud

clockwise until it locks into place.

Slide the protective shroud

down over the Rocket until it

locks into place on the Sector

antenna.

9. Place the GPS Antenna on the mounting hardware.

CHAIN1 GPS CHAIN0

Placement on a Dish Antenna Placement on a Sector Antenna

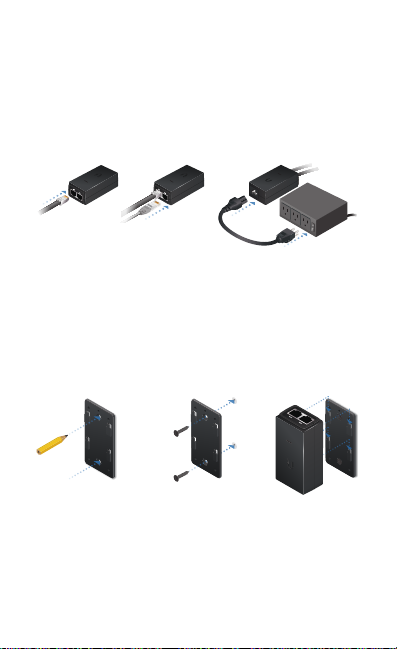

Connecting Power over Ethernet

1. Connect the Ethernet cable from the Rocket’s LAN port to

the adapter’s POE port.

2. Connect an Ethernet cable from your LAN to the adapter’s

LAN port.

3. Connect the Power Cord to the adapter’s power port.

Connect the other end of the Power Cord to a power outlet.

Mounting the PoE Adapter (Optional)

1. Remove the PoE Mounting Bracket from the adapter, place

the bracket at the desired location, and mark the two holes.

2. Pre‑drill the holes if necessary, and secure the bracket

using two fasteners (not included).

3. Align the adapter’s slots with the tabs of the PoE Mounting

Bracket, and then slide the adapterdown.
