Ubiquiti RocketM Manuel utilisateur

Rocket Metal Strap PoE Adapter (24V, 1A) (24V,

0.5A RocketM2 only)

Power Cord

Package Contents

Installation Requirements

Shielded Category 5 (or above) cabling should be used for all wired Ethernet

connections and should be grounded through the AC ground of the PoE.

We recommend that you protect your networks from harmful outdoor

environments and destructive ESD events with industrial-grade, shielded Ethernet

cable from Ubiquiti. For more details, visit ui.com/toughcable

Hardware Overview

RocketM Series Quick Start Guide

RP-SMAAntenna Connectors

Power LED

Ethernet LED

Signal LEDs

Used to attach RF cables (not included).

The Power LED will light green when the device is connected to a power source.

The Ethernet LED will light steady green when an active Ethernet connection is

made and ﬂash when there is activity.

RocketM Series Quick Start Guide

LAN

Reset Button

In airOS®, you can modify the wireless signal strength threshold values for each

LED on the Advanced tab under Signal LED Thresholds. The default values are

shown below:

The 10/100 Ethernet port is used to connect the power and should be connected

to the LAN and DHCP server.

To reset to factory defaults, press and hold the Reset button for more than 10

seconds while the device is already powered on.

Hardware Installation

The Rocket is designed to mount directly onto a Ubiquiti airMAX RocketDish™

antenna for Point-to-Point use or an airMAX Sector antenna for Point-to-MultiPoint

use.

1.

2.

RocketM Series Quick Start Guide

3.

4.

RocketM Series Quick Start Guide

5. 

RocketM Series Quick Start Guide

OR

6. 

OR

RocketM Series Quick Start Guide

7. 

OR

RocketM Series Quick Start Guide

Pole-Mounting

1.

2.

3.

RocketM Series Quick Start Guide

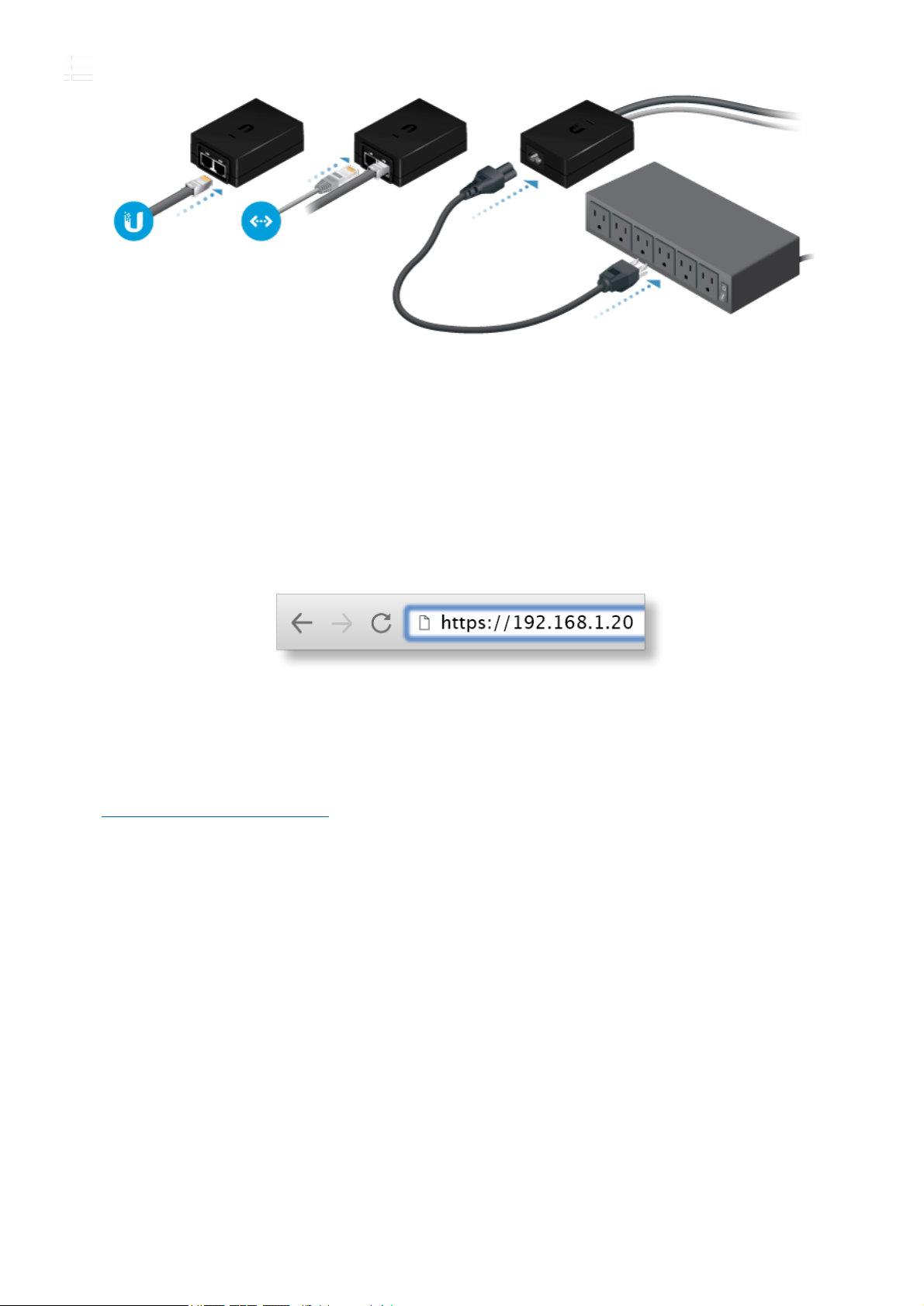

Connecting Power

WARNING: The switch port must comply with the power speciﬁcations

listed in this Quick Start Guide.

RocketM Series Quick Start Guide

OR

Accessing airOS

Verify connectivity in the airOS Conﬁguration Interface.

1. Make sure that your host system is connected via Ethernet to the device.

2. Conﬁgure the Ethernet adapter on your host system with a static IP address on

the 192.168.1.x subnet.

3. Launch your web browser and type https://192.168.1.20 in the address ﬁeld.

Press enter (PC) or return (Mac).

4. Enter ubnt in the Username and Password ﬁelds. Select your Country and

Language. You must agree to the Terms of Use to use the product. Click Login.

The airOS Conﬁguration Interface will appear, allowing you to customize your

settings as needed. For details, refer to the User Guide available at

ui.com/download/airmax

You can also manage your device using the Ubiquiti Internet Service Provider

Application. Setup using the UISP™ app requires the U-Installer, sold separately.

Installer Compliance Responsibility

Devices must be professionally installed and it is the professional installer’s

responsibility to make sure the device is operated within local country regulatory

requirements.

Antenna

Select your antenna from the list. If Calculate EIRP Limit is enabled, transmit output

power is automatically adjusted to comply with the regulations of the applicable

country. Note the requirements and antenna types listed below.

Cable Loss (When applicable)

RocketM Series Quick Start Guide
