TYAN THUNDER K8SR Manuel utilisateur

http://www.TYAN.com

Thunder K8SR S2881

Revision 1.01

part of this manual may be reproduced or translated without prior written

consent from TYAN Computer Corp.

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Thunder K8SR are trademarks of TYAN Computer Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

AMI, AMIBIOS8 are trademarks of American Megatrends Inc.

Phoenix, PhoenixBIOS are trademarks of Phoenix Technologies Ltd.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

Linux is a trademark of Linus Torvalds

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Broadcom®is a trademark of Broadcom Corporation and/or its subsidiaries

ATI and Rage XL are trademarks of ATI Corporation

Adaptec is a trademark of Adaptec Inc.

Silicon Image, SATALink are trademarks of Silicon Image

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to

printing. TYAN assumes no liability whatsoever, and disclaims any express or

implied warranty, relating to sale and/or use of TYAN products including

liability or warranties relating to fitness for a particular purpose or

merchantability. TYAN retains the right to make changes to product

descriptions and/or specifications at any time, without notice. In no event will

TYAN be held liable for any direct or indirect, incidental or consequential

damage, loss of use, loss of data or other malady resulting from errors or

inaccuracies of information contained in this document.

WWW.TYAN.COM

BEFORE YOU BEGIN…...................................................................4

CHAPTER 1: INTRODUCTION.........................................................5

HARDWARE SPECIFICATIONS..................................................................5

SOFTWARE SPECIFICATIONS ...................................................................6

CHAPTER 2: BOARD INSTALLATION............................................7

2.00–BOARD IMAGE ...............................................................................8

2.01–BLOCK DIAGRAM ..........................................................................9

2.02–BOARD PARTS,JUMPERS AND CONNECTORS .............................10

2.03–FAN CONNECTORS AND HARDWARE MONITORING....................15

2.04–INSTALLING THE PROCESSOR(S).................................................17

2.05–INSTALLING MOTHERBOARD IN CHASSIS...................................20

2.06–INSTALLING THE MEMORY .........................................................20

2.07–ATTACHING DRIVE CABLES........................................................23

2.08–INSTALLING ADD-IN CARDS........................................................24

2.09–CONNECTING EXTERNAL DEVICES.............................................25

CHAPTER 3: BIOS..........................................................................28

3.00–BIOS SETUP UTILITY..................................................................28

3.01–BIOS MAIN MENU ......................................................................30

WWW.TYAN.COM

3.02–BIOS ADVANCED MENU .............................................................31

3.03–BIOS PCI/PNPMENU.................................................................42

3.04–BIOS BOOT MENU ......................................................................44

3.05–BIOS SECURITY MENU ...............................................................46

3.06–BIOS CHIPSET SETTING MENU ..................................................47

3.07–POWER MENU..............................................................................52

3.08–BIOS EXIT MENU........................................................................56

CHAPTER 4: DIAGNOSTICS .........................................................57

APPENDIX I: GLOSSARY..............................................................58

TECHNICAL SUPPORT..................................................................63

WWW.TYAN.COM

Before you begin…

Check the box contents. The retail motherboard package should contain the

following items. If any are missing contact vendor/dealer for replacement

before continuing with the installation process

1 x Thunder K8SR motherboard

1 x 34-Pin floppy drive cable

2 x SATA Data Cable

1 x SATA Drive Power Adapter

1 x Ultra-DMA-100/66 IDE cable

1 x Thunder K8SR user’s manual

1 x Thunder K8SR Quick Reference guide

1 x TYAN driver CD

1 x Silicon Image SATARAID driver disk

1 x Silicon Image SATALink (IDE) driver disk

1 x ADAPTEC SCSI driver disk

1 x I/O shield

2 x CPU Retention Frame

WWW.TYAN.COM

Chapter 1: Introduction

Congratulations

You have just purchased the premier solution in high-end rackmount server

motherboards. This motherboard was designed from the ground up to

maximize cooling efficiency and performance in the same platform.

64-bit support, this platform supports, eight DIMM slots for 16GB of PC3200

DDR memory with ECC, Dual Gigabit Ethernet, integrated Serial ATA/SATA

RAID, optional SCSI and SODIMM ZCR support, and optional advanced

server management tools.

Hardware Specifications

Processor

Dual µPGA 940-pin ZIF sockets

Supports one or two AMD Opteron™

processors

128-bit DDR dual-channel memory

controller integrated in CPU

Chipset

AMD-8131™ PCI-X Tunnel

AMD-8111™I/O Hub

Winbond W83627HF Super I/O

Memory

128-bit DDR dual-channel memory

bus

Eight DIMM sockets (four per CPU)

Supports up to 16GB of DDR RAM

Requires registered RAM

Supports ECC or non-ECC

Supports DDR400*, 333, or 266.

Integrated I/O

One floppy, two serial (one pin header

& one DB-9 connector), & one parallel

port (pin header)

PS/2 KB/mouse connectors

Total four USB 1.1 connections (two

rear connectors and two front pin

headers)

Integrated EIDE Controller

Two ports for up to four EIDE devices

Supports up to ATA-133 IDE devices

Expansion Slots

Two PCI-X slots

- One 64-bit (3.3v) PCI-X slots

support up to 133 MHz on Bus B (PCI

Slot 1)

- One 64-bit (3.3v) PCI-X slot

supports maximum of 100 MHz on

Bus A (PCI Slot 2)

System Management

Analog Devices ADT7463 monitor IC

connected to SMBus 1.0

Total nine 3-pin fan headers (five with

control and monitoring, one with

monitoring only, and three without

monitoring or control)

2-pin Chassis Intrusion header

WWW.TYAN.COM

Integrated SATA Controller

Silicon Image SIL3114 SATA

Four SATA 1.0 channels

IDE RAID 0, 1, 0+1 (option)

48-bit LBA support

Integrated Gigabit Ethernet

Broadcom®BCM5704C Gb Ethernet

Two RJ-45 LAN connectors with

LEDs PCI-X Bridge A (64-bit

100MHz)

Two front Panel LED headers

Regulatory

FCC Class B (Declaration of

Conformity)

European Community CE

(Declaration of Conformity)

* DDR400 is supported with

Opteron™ model 246 and higher

BIOS

AMIBIOS8®on 4Mbit LPC Flash

ACPI 1.0b & 2.0

Serial Console Redirect

PXE via Ethernet

USB device boot

48-bit LBA Support

Form Factor

SSI EEB v3.0 footprint (13 x12”

330.2x304.8 mm)

EPS12V/SSI 2.0 (24pin + 8pin)

Universal power connector

Serial (one) and VGA (one)

connectors

Stacked USB 1.1 (two) connectors

Stacked PS/2 KB/Mouse connectors

Two side-by-side RJ-45 LAN

connectors with LED

Software Specifications

OS (Operating System) Support

Microsoft Windows 2000, XP, Server 2003

SuSE Server 8.x for AMD-64

Red Hat 8.0 and 9.0

Turbo Linux for AMD64

Other distributions of Linux pending validation

TYAN reserves the right to add support or discontinue support for any OS with

or without notice.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can

find information on all of TYAN’s products with FAQs, online manuals and

BIOS upgrades.

WWW.TYAN.COM

Chapter 2: Board Installation

Precaution: The Thunder K8SR supports EPS12V/SSI type power supplies

(24pin + 8pin) and will not operate with any other types. For proper power

supply installation procedures see page 26.

DO NOT USE ATX 2.x or ATXGES power supplies as they will damage the

board and void your warranty.

How to install our products right… the first time

The first thing you should do is read this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from

the antistatic bag. Unplug the power from your computer power

supply and then touch a safely grounded object to release static

charge (i.e. power supply case). For the safest conditions, TYAN

recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of

the board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into

your chassis, as well as installing the processor, memory, disk drives and

cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED

WWW.TYAN.COM

2.00 – Board Image

This picture is representative of the latest board revision available at the

time of publishing. The board you receive may or may not look exactly

like the above picture.

The following page includes details on the vital components of this

motherboard.

WWW.TYAN.COM

2.01 – Block Diagram

Thunder K8SR (S2881) Block Diagram

I/O Hub

8111

DIMM2 DIMM4

DIMM1 DIMM3DIMM1DIMM3

DIMM4 DIMM2

CPU 2CPU 1

Lower 64-bit

Upper 64-bit Upper 64-bit

Lower 64-bit

128-BitDualChannel

PCI-X

8131

PCI-X Slot 2

Broadcom 5704C

PCI-X Slot 1

ATA-133 EIDE x2

USB 1.1 front & rear

BIOS

EEPROM

ADT-7463

Hardware Monitor

ATI RageXL

SATA

3114

Floppy

PS/2

Serial & Parallel

PCI Bus

32bit/33MHz

SMBUS

LPC BUS

PCI-X BUS B

PCI-X BUS A

Adaptec AIC7902 SODIMM ZCR

Super

I/O

WWW.TYAN.COM

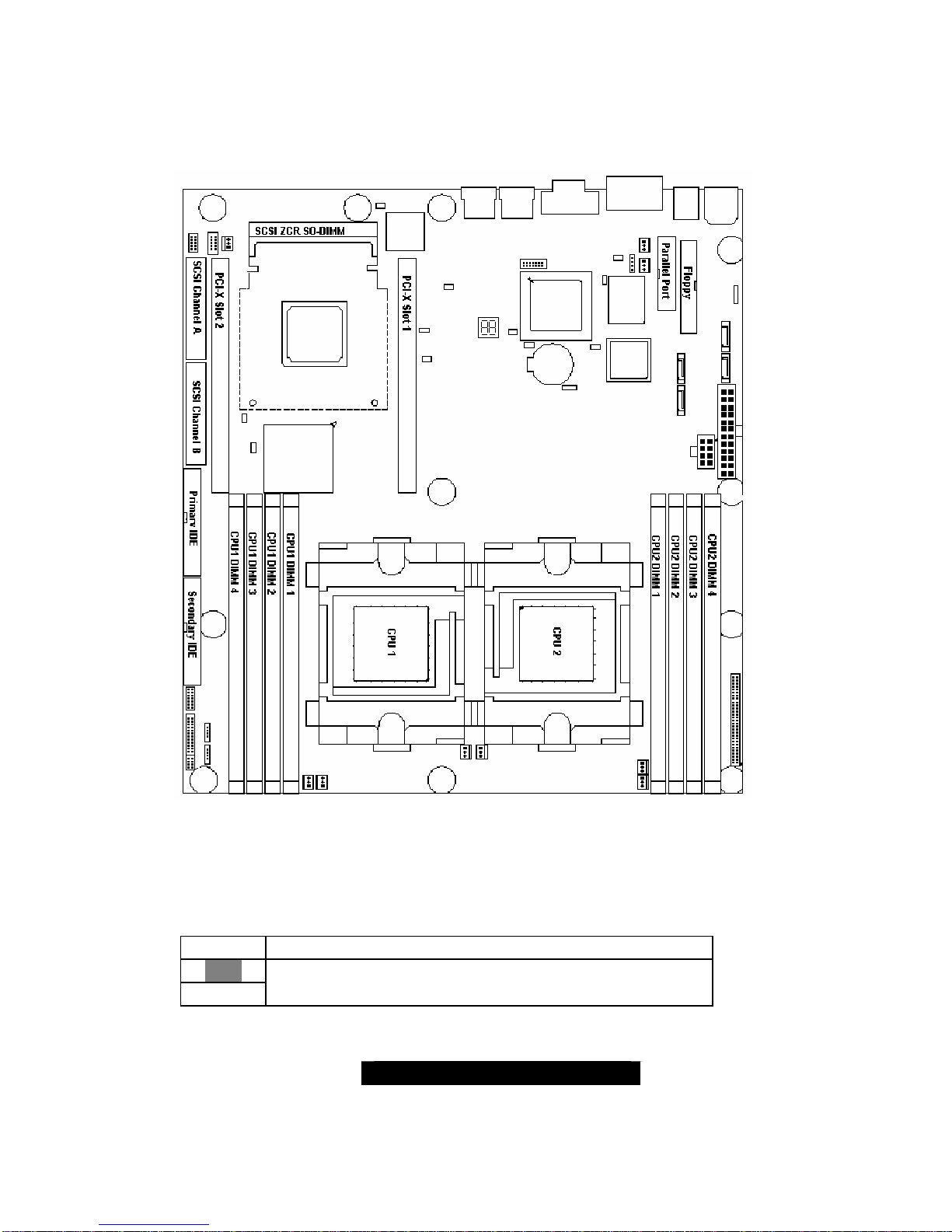

2.02 – Board Parts, Jumpers and Connectors

This diagram is representative of the latest board revision available at the time

of publishing. The board you receive may not look exactly like the above

diagram.

Jumper Legend

 OPEN - Jumper OFF without jumper cover

 CLOSED - Jumper ON with jumper cover

Key Pin Missing pin to indicate proper orientation

Autres manuels pour THUNDER K8SR

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TYAN Carte mère

TYAN

TYAN Tigercub 100 S1894 Manuel utilisateur

TYAN

TYAN THUNDER I7500 Manuel utilisateur

TYAN

TYAN S2932-E Manuel utilisateur

TYAN

TYAN S7016 Manuel utilisateur

TYAN

TYAN S2692 Manuel utilisateur

TYAN

TYAN S8212 Manuel utilisateur

TYAN

TYAN TOMCAT K8E-SLI Manuel utilisateur

TYAN

TYAN THUNDER TOMCAT H1000E Manuel utilisateur

TYAN

TYAN TRINITY KT400 Manuel utilisateur

TYAN

TYAN Tomcat n3400B S2925 Manuel d'exploitation et d'entretien

TYAN

TYAN S3227 Manuel utilisateur

TYAN

TYAN TIGER 133 Manuel utilisateur

TYAN

TYAN TIGER I7501X Manuel utilisateur

TYAN

TYAN Tiger MPX S2466 Instructions d'installation et d'utilisation

TYAN

TYAN TOMCAT I810EF Manuel utilisateur

TYAN

TYAN S5221 Manuel utilisateur

TYAN

TYAN THUNDER H2000M Manuel utilisateur

TYAN

TYAN TRINITY 510 Manuel utilisateur

TYAN

TYAN S7086 Manuel utilisateur

TYAN

TYAN Tiger 230T S2507T Manuel utilisateur

TYAN

TYAN Tomcat K8E-SLI S2866 Manuel utilisateur

TYAN

TYAN S7010 Manuel utilisateur

TYAN

TYAN TRINITY 371 Manuel utilisateur

TYAN

TYAN M4881 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
