TYAN TOMCAT K8E-SLI Manuel utilisateur

http://www.TYAN.com

Tomcat K8E-SLI ///

S2866

Version 1.2

this manual may be reproduced or translated without prior written consent from

TYAN Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Tomcat K8E-SLI are trademarks of TYAN Computer Corporation.

AMD, Athlon, and combinations thereof are trademarks of AMD Corporation.

Phoenix, Phoenix-AwardBIOS are trademarks of Phoenix Technologies.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Broadcom®is a trademark of Broadcom Corporation and/or its subsidiaries

ATI and Rage XL are trademarks of ATI Corporation

nVIDIA, nForce are trademarks of NVIDIA Corporation.

Notice

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to printing.

TYAN assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications

at any time, without notice. In no event will TYAN be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

http://www.TYAN.com

Table of Contents

Check the box contents! Page 4

Chapter 1: Introduction

1.1 Congratulations Page 5

1.2 Hardware Specifications Page 5

1.3 Software Specifications Page 7

Chapter 2: Board Installation

2.1 Board Image Page 10

2.2Block Diagram Page 11

2.3Board Parts, Jumpers and Connectors Page 12

2.4Installing the Processor Page 24

2.5Heatsink Retention Frame Installation Page 25

2.6Thermal Interface Material Page 26

2.7Heatsink Installation Procedures Page 27

2.8Finishing Installing Heatsink Page 29

2.9Tips on Installing Motherboard in Chassis Page 30

2.10 Installing the Memory Page 31

2.11 Attaching Drive Cables Page 33

2.12 Installing Add-In Cards Page 35

2.13 Installing Graphic Cards & SLI Bridge Page 36

2.14 Connecting External Devices Page 39

2.15 Installing the Power Supply Page 41

2.16 Finishing Up Page 41

Chapter 3: BIOS Setup

3.1 About the BIOS Page 43

3.2Setup Basics Page 43

3.3Getting Help Page 43

3.4 In Case of Problems Page 44

3.5BIOS Main Menu Page 44

3.6Standard CMOS Features Menu Page 46

3.7Advanced BIOS Menu Page 48

3.8Advanced Chipset Menu Page 54

3.9Integrated Peripherals Page 58

3.10 Power Management Menu Page 62

3.11 PnP/PCI Configurations Menu Page 65

3.12 PC Health Status Menu Page 66

3.13 Frequency/Voltage Control Menu Page 68

3.14

Load Fail-Safe/Optimized Defaults Page 69

3.15Supervisor/User Password Setting Page 69

3.16 Save & Exit Setup/Exit without Saving Page 70

Chapter 4: Diagnostics

4.1 Beep Codes Page 71

4.2 Flash Utility Page 71

http://www.TYAN.com

Appendix: SMDC Information

Page 72

Glossary Page 74

Technical Support Page 80

http://www.TYAN.com

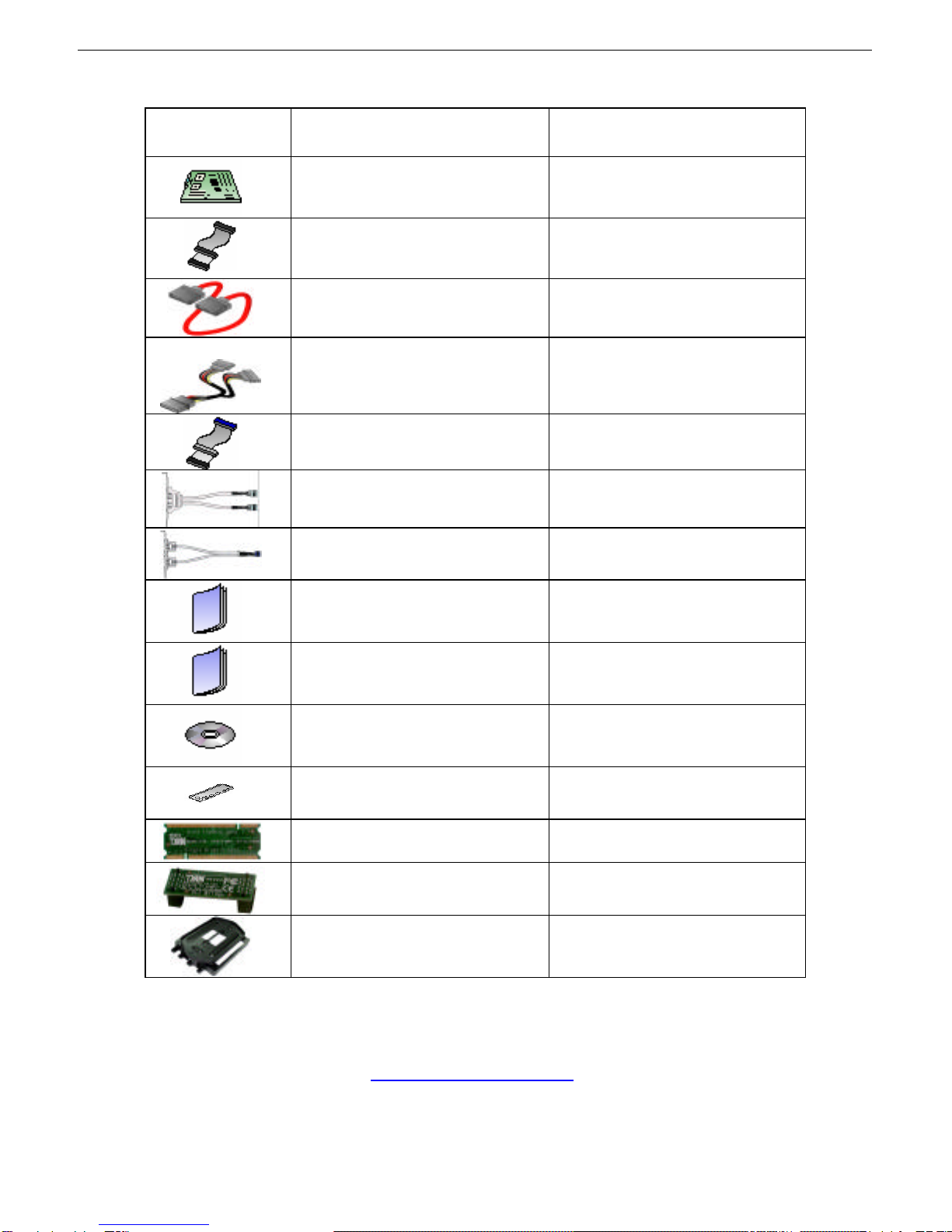

Check the box contents!

Item S2866A2NRF S2866G3NR

1x Tomcat K8E S2866A2NRF

motherboard 1x Tomcat K8E S2866G3NR

motherboard

1x 34-Pin floppy drive cable

4x SATA cable 4x SATA cable

2x SATA Drive Power Adapter

2x SATA Drive Power

Adapter

1x Ultra-DMA-100/66 IDE

cable 1x Ultra-DMA-100/66 IDE

cable

1x IEEE1394a Cable -

1x USB2.0 cable 1x USB2.0 cable

1x Tomcat K8E user’s

manual 1x Tomcat K8E user’s

manual

1x Tomcat K8EQuick

Reference guide 1x Tomcat K8E Quick

Reference guide

1x TYAN driver CD 1x TYAN driver CD

1x I/O shield 1x I/O shield

1 x SLI card 1 x SLI card

1 x SLI bridge -

1x Retention Module 1 x Retention Module

http://www.TYAN.com

Chapter 1: Introduction

1.1 -Congratulations

You have purchased one of the most powerful server solutions. The Tomcat

K8E-SLI (S2866) is a flexible AMD64 platform for multiple applications, based

on NVIDIA nForce4 Ultra or NVIDIA nForce pro2200 and SMSC DME1737

chipsets.

Designed to support AMD®Athlon™/Opteron™series processorsand 4GB

DDR 400/333 memory, the S2866with integrated Dual Gigabit Ethernet LAN,

built-in 16MB XGI XG20TM video and four serial ATA ports, is ideal for CPU,

memory, and video intensive applications such as CAD, Graphics Design, and

High Bandwidth Video Editing, etc.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can

find information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 -Hardware Specifications

Processor

•uPGA 939-pin socket

•AMD Athlon 64 939 processor up

to Athlon 64 4000+, Athlon64

FX57, X2, and 939 Opteron 144,

148, 152, 165, 170, 175

•Up to 1000 MHz Hyper-Transport

link support

Expansion Slots

•One x16 PCI-Econnector for

graphics at #6 slot

•One x16 PCI-E connector

supports SLI technology for x8

PCI-E signal at #4 (S2866A2NRF

only)

•One SODIMM socket for SLI card

•Three 32-bit, 33MHz PCI v2.2

slots

Integrated 2D/3D PCI Graphics

(S2866G3NR only)

•XGI XG20 PCI graphic controller

•16MB Frame Buffer of video

memory

Integrated LAN Controllers

•One Broadcom BCM5705 GbE

controller

-Operating at PCIv2.2 interface

-Pin headers for front panel LAN

LED

•One Intel82551 10/100 LAN

controller (S2866G3NR only)

-Operating at PCIv2.2 interface

-WOL/PXE support

-Pin headers for front panel LAN

LED

•One integrated nVIDIA MAC with

Marvell 88E1111-CAA Gigabit

http://www.TYAN.com

Chipset

•nVIDIA nForce pro2200

(S2866A2NRF only), supports

SLI technology

•nVIDIA nForce4 Ultra

(S2866G3NR only), doesn’t

support SLI technology

System Management

•SMSC DME1737 w/ hardware

monitoring

•Total six 4-pin Fan connectors,

FAN1, FAN2, FAN3, and CPU

FAN have both tachometer and

auto FAN control; FAN4 has only

auto FAN control with FAN3;

FAN5 always run.

•Temperature and voltage

monitoring

•Watchdog timer

Memory

•Dual memory channels

•Supports up to four DDR-400/333

DIMMs

•Up to 4GB of unbuffered,

ECC/non-ECC memory

Integrated PCI IDE

•Single channel master mode

supports two IDE devices

•Support for ATA-133/100/66/33

IDE drives and ATAPI compliant

devices

Integrated Serial ATA II

•Serial ATA Host controllers

embedded

•Supports four Serial ports running

at 3.0Gb/s

•NVRAID 0, 1, 0+1 and JBOD

support

•SATA activity LED connector

Ethernet PHY

-32-bit PCIv2.3interface

-WOL/PXE support

-Pin header for front panel LAN

LED

Intelligent Platform

Management Interface Header

(2x25 pin SMDC pin header)

•Tyan Server Management

Daughter card M3291 (optional)

Integrated Audio

(S2866A2NRF only)

•Realtek ALC655 audio CODEC

•AC’97 Rev.2.3 supported

•CD-in connector

Integrated PCI 1394a

(S2866A2NRF only)

•VIA VT6307 PCI FireWire (1394a)

controller

•Two 1394aports (via cable)

BIOS

•Award BIOS 8Mbit Flash

•Supports APM 1.2 & ACPI 1.0

•PnP, DMI2.0, WfM2.0 Power

Management

Power

•ATX 12V support, on board 4-

phase VRM

•Universal 24-pin + 8-pin power

connectors\

•4-pin auxiliary power connector

Form Factor

•ATX footprint, 9.6”x 12.0”

(244mmx305mm)

http://www.TYAN.com

Back Panel I/O Ports

•Stacked PS/2 mouse & keyboard

ports

•COM1 connector

•One 15-pin VGA port

•Three audio jacks (S2866A2NRF

only)

•Stacked two RJ45 ports for nVIDIA

and BCM5705 Gigabit LAN with

link/activity LED

•Stacked two USB2.0 ports and

one RJ45 for Intel82551 10/100

LAN with link/activity LED

(S2866G3NR only)

•Stacked two USB2.0 ports

(S2866A2NRF only)

Integrated I/O Interface

•Four USB2.0 ports (via cable)

•One COM port (via cable)

•Tyan 2x9 front-panel pin header

•2x25 pin SMDC pin header

Regulatory

•FCC Class B (Declaration of

Conformity)

•CE (Declaration of Conformity)

Special Accessories:

1. SLI card M5001

2. SLI bridge M5000

(S2866A2NRF only)

3. SLI Bracket (S2866A2NRF

only)

Two SKUs

S2866G3NR

S2866A2NRF

1.3 -Software Specifications

OS (Operating System) Support

Microsoft Windows 2000

Microsoft Windows XP (32bit & 64bit)

Microsoft Windows Server 2003 (32bit & 64bit)

SLES Serve 9.0 & SUSE Workstation 9.3

RHEL3 Update 5 (32bit & 64bit)

RHEL4 Update 1 (32bit & 64bit)

TYAN reserves the right to add support or discontinue support for any OS with

or without notice.

http://www.TYAN.com

Memo

http://www.TYAN.com

Chapter 2: Board Installation

You are now ready to install your motherboard. The mounting hole pattern of

the Tomcat K8E-SLI matches the ATX specification. Before continuing with

installation, confirm that your chassis supports anATX motherboard.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE

DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED

http://www.TYAN.com

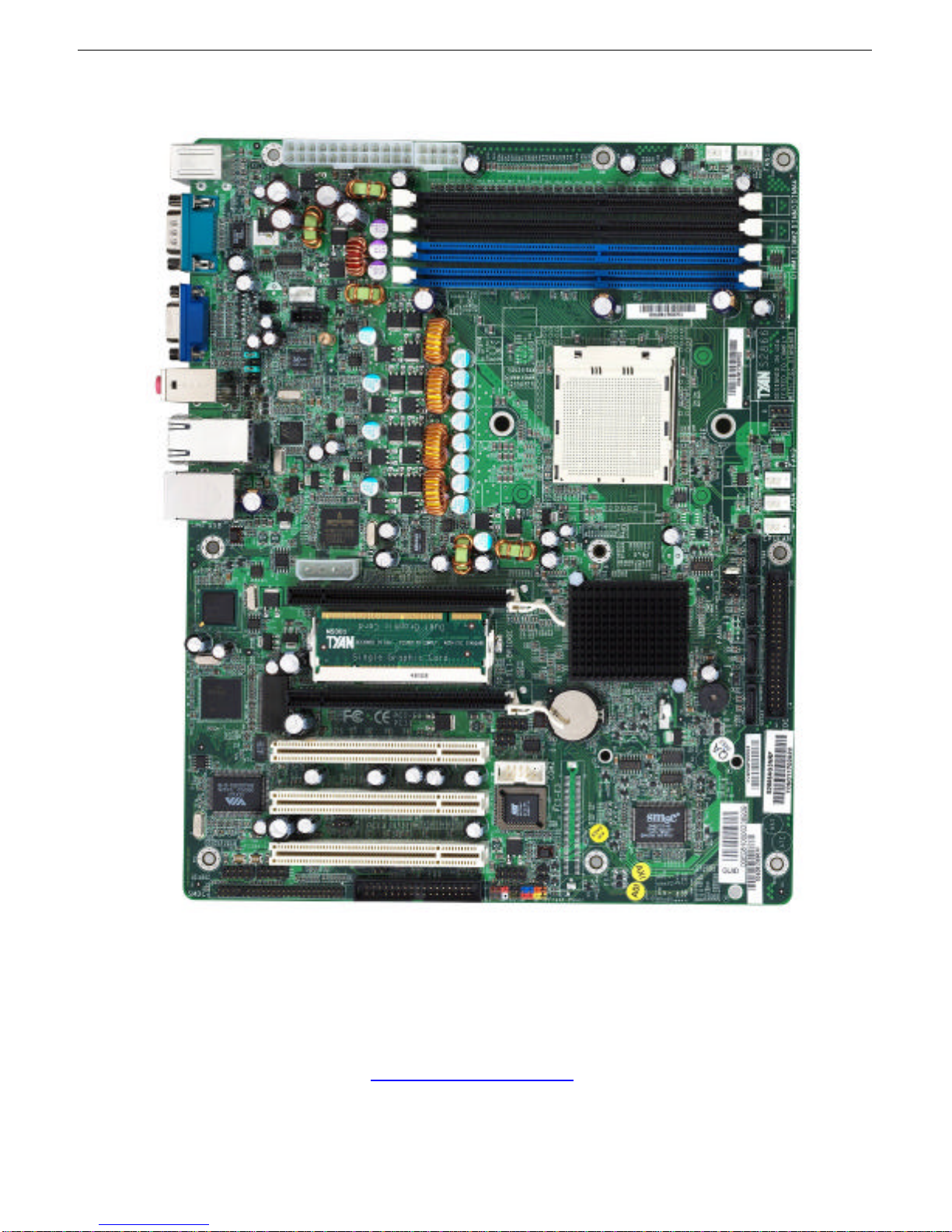

2.1-Board Image

This picture is representative of the latest board revision available at

the time of publishing. The board you receive may or may not look

exactly like the above picture.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TYAN Carte mère

TYAN

TYAN THUNDER K8HM Manuel utilisateur

TYAN

TYAN Tempest i5100W Manuel utilisateur

TYAN

TYAN S7103 Manuel utilisateur

TYAN

TYAN S5548GM4NED83-4T Manuel utilisateur

TYAN

TYAN S5512 Manuel utilisateur

TYAN

TYAN THUNDER 2400 Manuel utilisateur

TYAN

TYAN TIGER I7501S Manuel utilisateur

TYAN

TYAN S1570 AT Manuel utilisateur

TYAN

TYAN S8020 Manuel utilisateur

TYAN

TYAN Thunder n3600QX Manuel utilisateur

TYAN

TYAN TIGER I7501X Manuel utilisateur

TYAN

TYAN S5376 Manuel utilisateur

TYAN

TYAN Tiger K8WE Manuel utilisateur

TYAN

TYAN Tempest i5400XL Manuel utilisateur

TYAN

TYAN TITAN TURBO AT Manuel utilisateur

TYAN

TYAN Tempest i5000VF S5370 Manuel utilisateur

TYAN

TYAN TRINITY K7 Manuel utilisateur

TYAN

TYAN THUNDERBOLT Manuel utilisateur

TYAN

TYAN Tiger MP S2460 Manuel utilisateur

TYAN

TYAN TITAN TURBO ATX-2 Manuel utilisateur

TYAN

TYAN THUNDER I7505 Manuel utilisateur

TYAN

TYAN THUNDER I7525 Manuel utilisateur

TYAN

TYAN Tiger K8W S2875 Manuel utilisateur

TYAN

TYAN S5630 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
