TYAN THUNDER K8HR Manuel utilisateur

http://www.TYAN.com

Thunder K8HR /// S3891

Version 1.0

this manual may be reproduced or translated without prior written consent from

TYAN Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Thunder K8HR are trademarks of TYAN Computer Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

AMI, AMIBIOS8 are trademarks of American Megatrends Inc.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Broadcom®is a trademark of Broadcom Corporation and/or its subsidiaries

ATI and ES1000 are trademarks of ATI Corporation

Notice

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to printing.

TYAN assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications

at any time, without notice. In no event will TYAN be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

http://www.TYAN.com

Table of Contents

Check the box contents! Page 4

Chapter 1: Introduction

1.1 Congratulations Page 5

1.2 Hardware Specifications Page 5

1.3 Software Specifications Page 7

Chapter 2: Board Installation

2.1 Board Image Page 10

2.2 Block Diagram Page 11

2.3 Board Parts, Jumpers and Connectors Page 12

2.4 Tips on Installing Motherboard in Chassis Page 20

2.5 Installing the processor Page 21

2.6 Heatsink Retention Frame Installation Page 22

2.7 Thermal Interface Material Page 23

2.8 Heatsink Installation Procedures Page 24

2.9 Finishing installing the Heatsink Page 26

2.10 Installing the Memory Page 27

2.11 Attaching Drive Cables Page 30

2.12 Installing Add-In Cards Page 32

2.13 Installing Optional SO-DIMM Modules Page 33

2.14 Connecting External Devices Page 35

2.15 Connecting InfiniBand Devices Page 36

2.16 Installing the Power Supply Page 37

2.17 Finishing Up Page 37

Chapter 3: BIOS

3.1 BIOS Setup Utility Page 38

3.2 BIOS Menu Bar Page 39

3.3 BIOS Legend Bar Page 39

3.4 BIOS Main Menu Page 40

3.5 BIOS Advanced Menu Page 41

3.6 BIOS PCI/PnP Menu Page 62

3.7 BIOS Boot Menu Page 64

3.8 BIOS Security Menu Page 68

3.9 BIOS Chipset Menu Page 69

3.10 BIOS Exit Menu Page 77

Chapter 4: Diagnostics Page 78

Appendix I: Glossary Page 82

Appendix II: How to make a driver diskette Page 84

Technical Support Page 93

http://www.TYAN.com

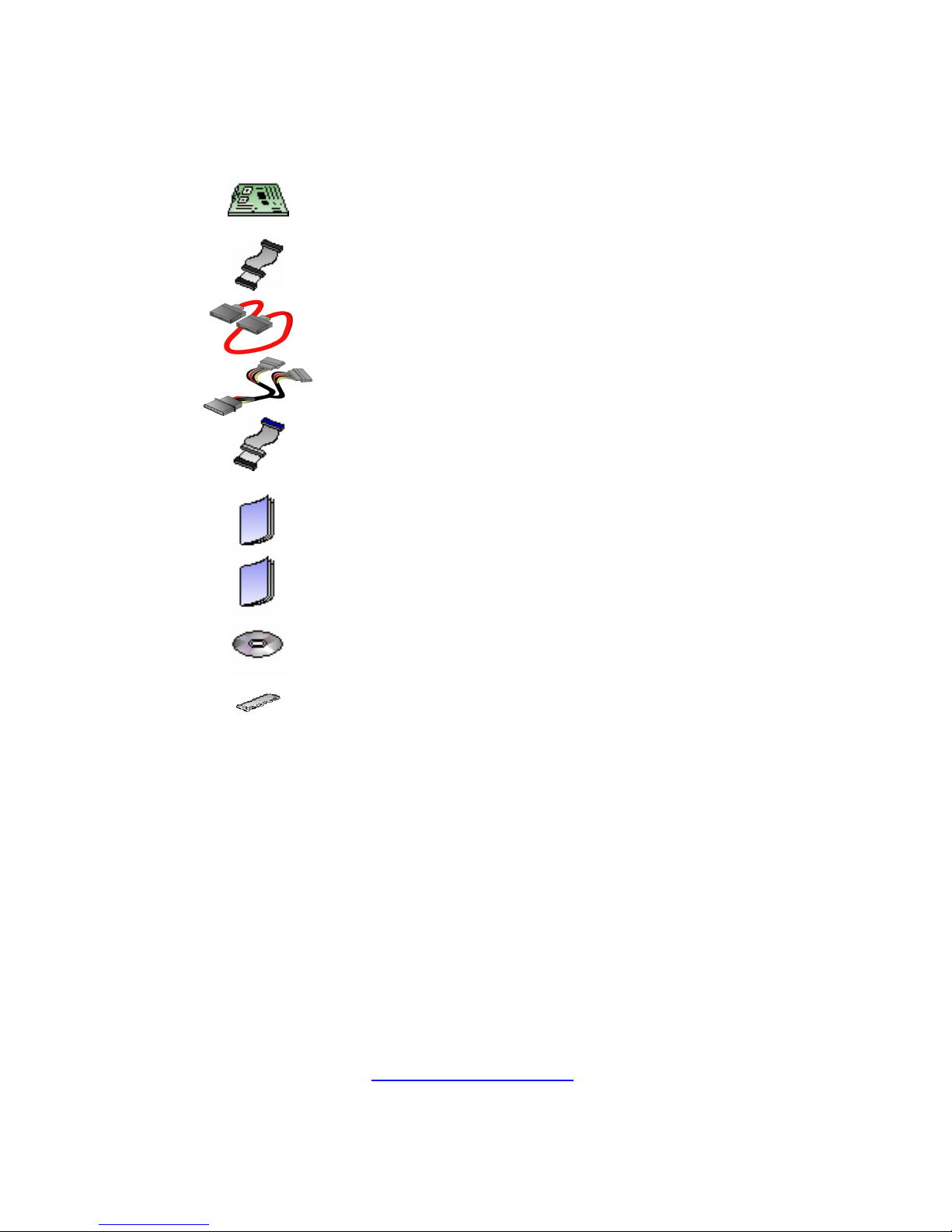

Check the box contents!

The retail motherboard package should contain the following:

1x Thunder K8HR S3891 motherboard

1x 34-Pin floppy drive cable

4 x SATA cables

2 x SATA Drive Power Adapters

1 x Ultra-DMA-100/66 IDE cable

1 x Thunder K8HR S3891 user’s manual

1 x Thunder K8HR S3891 Quick Reference

guide

1 x TYAN driver CD

1 x I/O shield

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

http://www.TYAN.com

Chapter 1: Introduction

1.1 - Congratulations

You have purchased one of the most powerful server solutions. The Thunder

K8HR (S3891) is a flexible AMD®Opteron™ platform for multiple applications,

based on ServerWorks BCM5780+BCM5785 chipsets.

Designed to support AMD®Opteron™ 200 series processor and 32GB DDR

400/333 memory, the S3891 with integrated Dual Gigabit Ethernet LAN, built-in

32MB ATI®ES1000 video and four serial ATA ports, is your best choice of

server board in high stable quality.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can

find information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 - Hardware Specifications

Processors

•Dual mPGA 940-pin sockets

•AMD Opteron™ 200 series

processor support

•VRD for 95W/80A (dual core) and

Rev E processors

Chipset

•ServerWorks BCM5780 +

BCM5785 (SB) chipset

•National PC87417 super I/O chip

Memory

•Dual memory channel bus

•Eight (8) DDR DIMM sockets

- Each socket 4 rank support

•Up to 32GB of registered

DDR400/333

•Supports ECC memory and

ChipKill

InfiniBand Network Controller

(optional)

Mellanox InfiniHost MT25204

single port

Memory on DIMM, PCIe x8

interface

TAROTM Storage Expansion

Proprietary 200-pin SO-DIMM

connector

Operating on PCI-X 133/100/66

MHz bus

Integrated Serial ATA RAID

(from BCM5785)

•Four (4) Serial ATA-II ports,

3.0Gb/s per port

•RAID (0,1, 5) support

Integrated Graphics Controller

ATI®ES1000 Controller

32MB DDR1 frame buffer

http://www.TYAN.com

Expansion Slots

One (1) PCI Express x16 slot (w/

dual x8* signals)

- From BCM5780

- Can support 1U riser with x8

signal*

*with IB controller, second PCIe x8

bus is allocated

One (1) PCI-X expansion slot

(133MHz, 64-bit)

- From BCM5785

- Low-profile connector

Two expansion slots total

Integrated I/O

Two 9-pin 16550 UART serial ports

(one via header)

One 15-pin VGA port

Four USB2.0 ports (two at rear,

two via header)

PS/2 mouse and keyboard

connectors

Integrated SATA connectors

Two RJ-45 10/100/1000 LAN ports

One InfiniBand connector (apart

from I/O backplane, optional)

Integrated LAN Controllers

•Integrated Dual Gigabit LAN

controllers

- Two (2) 10/100/1000 LAN ports

- From BCM5780

•Two front panel LED headers

•Two RJ-45 ports with LEDs

Power

4-phase onboard VRM for each

CPU

SSI 3.51, EPS 12V power

connector (24+8-pin)

- Split-plane design

Regulatory

FCC Class B (DoC)

Integrated PCI IDE (from

BCM5785)

Single-channel master mode

supports up to two IDE devices

Supports IDE drives and ATAPI-

compliant devices

Remote System Management

Support (optional)

Renesas H8S2167 BMC controller

BT, KCS, logging support

IPMI-over-LAN, remote on/off

capability

IPMI v1.5, v2.0 compliant

2x25 proprietary interface

Hardware Monitoring

(2) SMSC EMC6D103S H/W

monitor chips

CPU thermal & voltage monitor

support

4-pin fan monitoring headers

Eight (8) fan headers (4-pin

configuration, 3-pin backward

compatibility)

ID LED and button support

BIOS

AMI BIOS 8Mb Flash ROM

Supports ACPI 2.0, Serial Console

Redirect

PXE via Ethernet, USB device boot

PnP, DMI, WfM 2.0 power

management

User-configurable H/W monitoring,

Auto-detect HDD

Auto-detection of memory size,

multiple boot options

Multiple power management

modes, 48-bit LBA support

Watchdog timer

Form Factor

Ext. ATX (12” x 13”)

Stacked PS/2 keyboard and mouse

http://www.TYAN.com

European Community CE (DoC)

BSMI (optional)

connectors

Stacked USB 2.0 (two)

Side-by-side serial (one) and video

(one) connectors

Side-by-side RJ-45 (two)

connectors

1.3 - Software Specifications

OS (Operating System) Support

Microsoft Windows 2000

Microsoft Windows XP 32-bit

Microsoft Windows XP 64-bit

Microsoft Windows Server 2003 32-bit

Microsoft Windows Server 2003 64-bit

SUSE Professional 9.x and SLES 9

RHEL3 Update 4 and 5

RHEL4 Update 1

TYAN reserves the right to add support or discontinue support for any OS with

or without notice.

http://www.TYAN.com

Chapter 2: Board Installation

You are now ready to install your motherboard. The mounting hole pattern of

the Thunder K8HR matches the ATX specification. Before continuing with

installation, confirm that your chassis supports an ATX motherboard.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED

http://www.TYAN.com

2.1- Board Image

This picture is representative of the latest board revision available at

the time of publishing. The board you receive may or may not look

exactly like the above picture.
