TYAN TEMPEST I5000XT Manuel utilisateur

Tempest i5000XT /// S2696

Version 1.20

this manual may be reproduced or translated without prior written consent from

TYAN Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Tempest i5000XT are trademarks of TYAN Computer Corporation.

Intel, Greencreek, and combinations thereof are trademarks of Intel Corporation.

Phoenix, Phoenix-Award BIOS are trademarks of Phoenix Technologies.

Notice

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to printing.

TYAN assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications

at any time, without notice. In no event will TYAN be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

Table of Contents

Check the box contents! 3

Chapter 1: Introduction

1.1 Congratulations…………………………………………………………… 5

1.2 Hardware Specifications………………………………………………… 5

Chapter 2: Board Installation

2.1 Board Image……………………………………………………………… 8

2.2 Block Diagram……………………………………………………………. 9

2.3 Board Parts, Jumpers and Connectors………………………………... 10

2.4 Tips on Installing Motherboard in Chassis…………………………….. 19

2.5 Installing the Processor(s)………………………………....................... 20

2.6 Installing the Memory……………………………………………………. 23

2.7 Attaching Drive Cables………………………………………………….. 25

2.8 Installing Add-in Cards………………………………............................ 27

2.9 Connecting External Devices…………………………………………… 28

2.10 Installing the Power Supply……………………………………………... 29

2.11 Finishing up………………………………………………………………. 29

Chapter 3: BIOS Setup

3.1 About the BIOS…………………………………………………………… 30

3.2 BIOS Main Menu…………………………………………………………. 32

3.3 Advanced Menu………………………………………………………….. 38

3.4 Security Menu…………………………………………………………….. 55

3.5 Power Menu………………………………………………………………. 57

3.5 Boot Menu………………………………………………………………… 58

3.6 Exit Menu…………………………………………………………………. 60

Chapter 4: Diagnostics

4.1 Beep Codes………………………………………………………………. 61

4.2 Flash Utility……………………………………………………………….. 61

4.3 BIOS Post Code………………………………………………………….. 62

Appendix I: SMDC Information

Appendix II: How to Make a Driver Diskette

Glossary

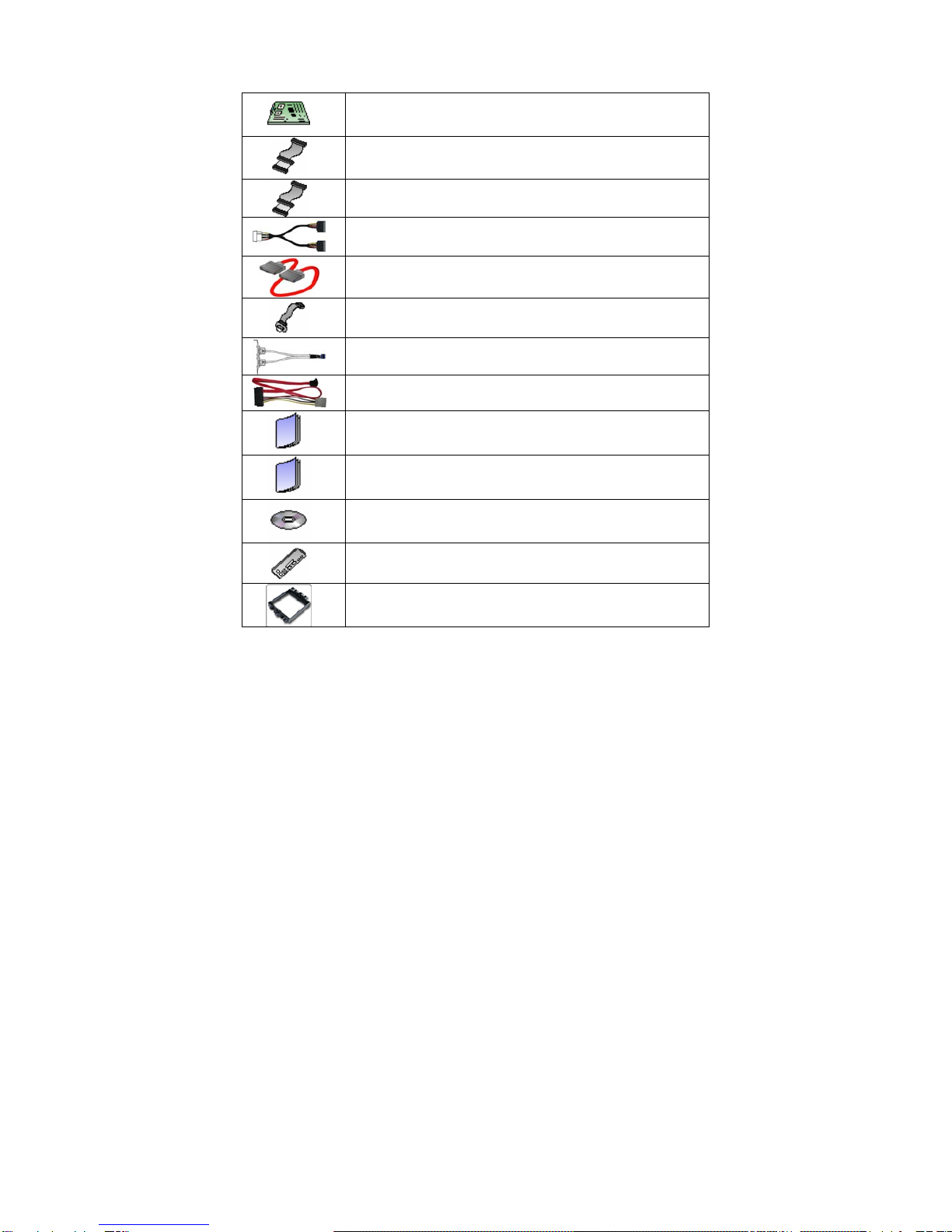

Check the box contents!

1x Tempest i5000XT motherboard

1x 34-Pin floppy drive cable

1 x Ultra-DMA-100/66/33 IDE cable

3 x Serial ATA power cable

6 x Serial ATA Cable

1x Cable set: 9-pin Serial and 25-pin Parallel

1 x USB2.0 cable

2 x SAS cable

1 x Tempest i5000XT user’s manual

1 x Tempest i5000XT Quick Reference guide

1 x TYAN driver CD

1 x I/O shield

2 x CPU Mounting Kit

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

Chapter 1: Introduction

1.1 - Congratulations

You have purchased one of the most powerful workstation solutions. The

S2696 is a flexible Intel®platform for multiple applications, based on the Intel®

5000X (Greencreek) MCH and ESB2 chipsets.

Designed with the Dual LGA771 sockets, the S2696 supports Intel®Xeon®

Multi-core processors and 16/32GB DDR2-533/667 FB-DIMM memory. The

S2696 is also featured with an integrated Dual Gigabit Ethernet LAN, six SATA

ports and eight SAS ports based on the integrated LSI SAS controller. It's

ideally design to provide a versatile workstation platform.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can

find information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 - Hardware Specifications

Processor

•Dual LGA771 sockets

•Supports up to (2) Intel® Xeon®Multi-core

processors

•VRD 11.0

Chipset

•Intel®5000X (Greencreek) MCH and

ESB2 chipset

•Supports 1333/1066/667 MHz FSB

•Winbond W83627EHG Super I/O Chip

Memory

•Eight (8) 240-pin DDR2 FB-DIMM*

sockets

•4 memory channels

•Supports ECC DIMMs

•Maximum of 16/32GB DDR2-533/667

*FB-DIMM: Fully Buffered DIMM

Integrated SATA-II RAID

•Six (6) SATA-II ports

•3.0 Gb/s per port

•RAID 0, 1, 5, 10 support

Integrated LAN Controllers

•Intel Gigabit from ESB2 (w/ dual ports

“Gilgal’) – ASF2.0

•Two RJ-45 ports with LEDs

Integrated FireWire (1394a)

Controller

•TI TSB43AB22 1394a controller

•1394a channel for rear (connector)

•1394a channel for front (header)

Integrated Audio Controller

•HDA link

•Realtek ALC888 controller (High

Definition Audio)

•Line-in, Line-out, Mic-in rear ports

•Front panel audio header

•CD-in, Aux headers(4-pin configuration)

•SPDIF in/out in rear

Expansion Slots

•Two (2) PCI Express x16 slots (one with

x4 signal from ESB2)

•One (1) PCI Express x8 slot (x4 signal

from ESB2)

•Two (2) PCI-X 133/100MHz slots from

ESB2

•One (1) PCI 32-bit 33MHz slot

•Total six expansion slots

Integrated I/O

•One (1) 9-pin 16550 UART serial port

•Eight USB 2.0 ports (four at rear I/O,

four for two pin headers)

•PS/2 mouse and keyboard connectors

•Six (6) standard/integrated SATA

connectors

•Two (2) RJ-45 10/100/1000 LAN ports

•One (1) IDE and one (1) floppy

connectors

•Eight (8) SAS ports

System Management

•ADI ADT7470 Hardware Monitor

•CPU thermal & voltage monitor support

•Five (5) fan headers (4-pin configuration)

Integrated SAS (Optional)

•LSI 1068E SAS controller

•Operates at PCI-E x4 bus from ESB2

•Eight (8) SAS ports

•Supports 1.5 and 3.0 Gb/s SAS and

SATA data transfer rates.

•Raid support: IM/IME/IS

BIOS

•Phoenix®BIOS on 8Mbit Flash ROM

•Supports ACPI 2.0

•PXE via Ethernet, USB device boot

•PnP, DMI 2.0, WfM 2.0 power

management

•User-configurable H/W monitoring

•Auto-configuration of hard disk types

•Multiple boot options

•48-bit LBA support

Trusted Platform Management

(TPM)

•Infineon SLB9635TT 1.2 (with 5000X-G

chipset)

Form Factor

•SSI/Extended ATX (12” x 13”)

•EPS12V/SSI (24+8+4 pin) power

connectors

•Stacked PS/2 keyboard and mouse

connectors

•Stacked Serial (1) and parallel (1)

connectors

•Two stacked USB 2.0 (two) and RJ-45

(1) connectors

•FireWire (1394a) connector

•Stacked Line-in, Line-out, Mic-in audio

connectors

Regulatory

•FCC Class B (DoC)/BSMI

•European Community CE (DoC)

Software Specifications

OS (Operating System) Support

Microsoft Windows 2000 Pro

Microsoft Windows XP Pro (32-bit)

Microsoft Windows XP Pro (64-bit)

TYAN reserves the right to add support or discontinue support for any OS with or

without notice.

Chapter 2: Board Installation

You are now ready to install your motherboard. The mounting hole pattern of

the S2696 matches the Extended ATX specification. Before continuing with

installation, confirm that your chassis supports an Extended ATX motherboard.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED

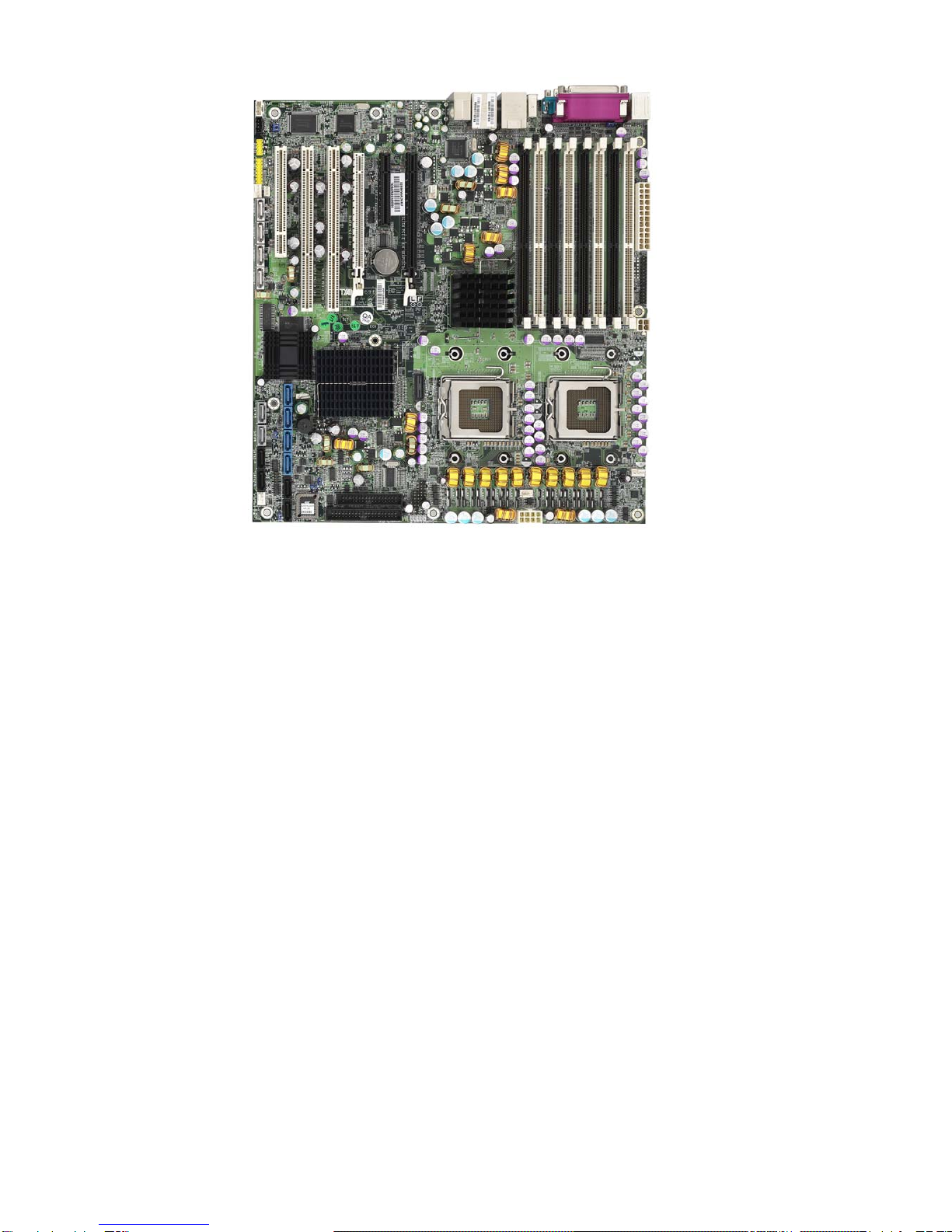

2.1- Board Image

This picture is representative of the latest board revision available at

the time of publishing. The board you receive may or may not look

exactly like the above picture.

2.2 - Block Diagram

S2696 Block Diagram

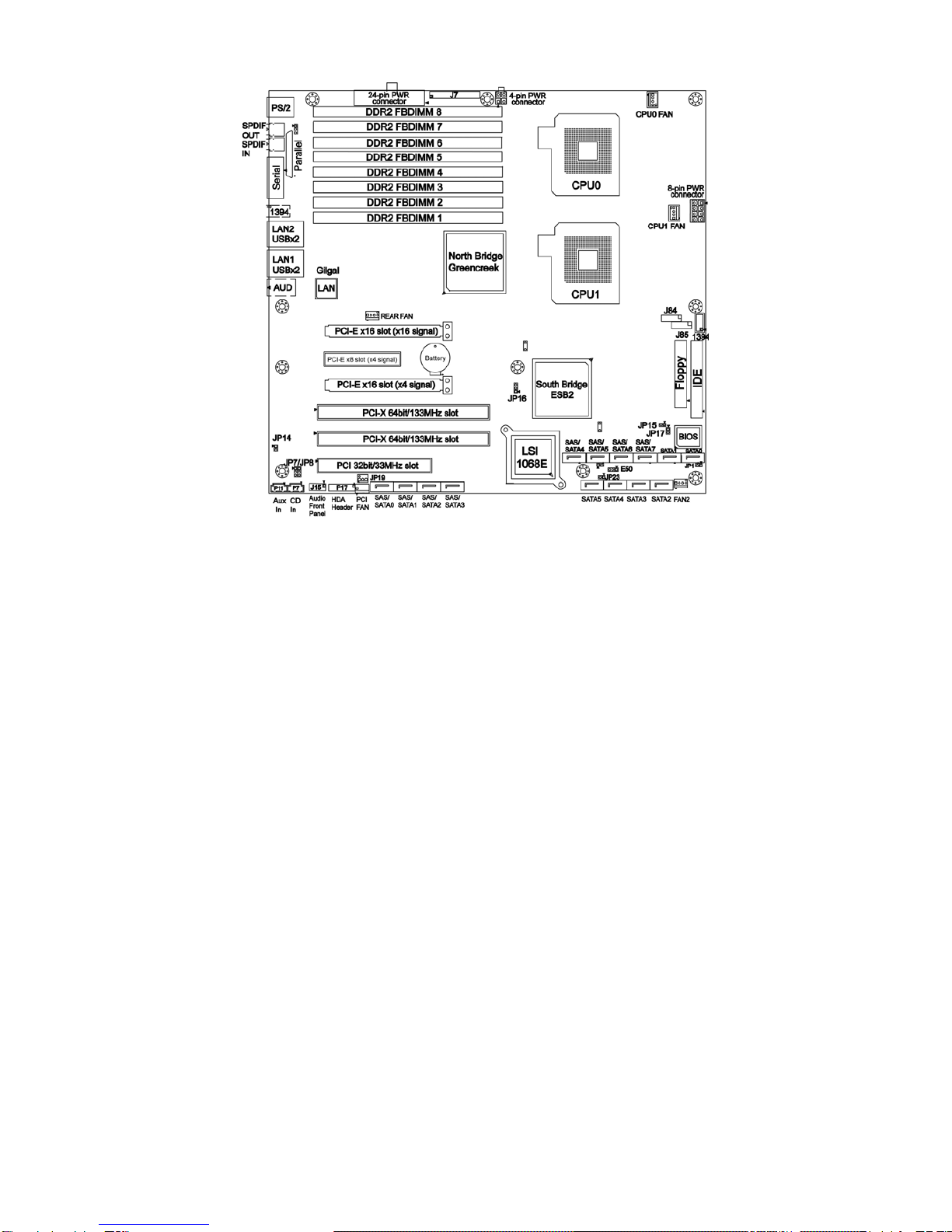

2.3 - Board Parts, Jumpers and Connectors

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.
