TYAN S7012 Manuel utilisateur

http://www.tyan.com

S7012

Version 1.0

registered trademark of MiTAC International Corporation.

Trademark

All registered and unregistered trademarks and company names contained in this

manual are property of their respective owners including, but not limited to the

following.

TYAN®is a trademark of MiTAC International Corporation.

Intel®Nehalem-EP Series and combinations thereof are trademarks of Intel

Corporation.

AMI, AMI BIOS are trademarks of AMI Technologies.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE is a trademark of Novell.

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Notice

Information contained in this document is furnished by MiTAC International

Corporation and has been reviewed for accuracy and reliability prior to printing.

MiTAC assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. MiTAC

retains the right to make changes to product descriptions and/or specifications at

any time, without notice. In no event will MiTAC be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

http://www.tyan.com

Table of Contents

Check the box contents! 3

Chapter 1: Introduction

1.1 Congratulations 5

1.2 Hardware Specifications 5

1.3 AST2050 Application 8

Chapter 2: Board Installation

2.1 Board Image 10

2.2 Block Diagram 11

2.3 Board Parts, Jumpers and Connectors 12

2.4 Installing the Processor and Heatsink 22

2.5 Thermal Interface Material 24

2.6 Finishing Installing the Heatsink 25

2.7 Tips on Installing Motherboard in Chassis 26

2.8 Installing the Memory 27

2.9 Attaching Drive Cables 29

2.10 Installing Add-in Cards 30

2.11 Installing I/O Shield 31

2.12 Connecting External Devices 32

2.13 Installing the Power Supply 33

2.14 Finishing up 33

Chapter 3: BIOS Setup

3.1 BIOS Main Menu 37

3.2 Advanced Menu 38

3.3 PCI PnP Menu 65

3.4 Boot Menu 67

3.5 Security Menu 71

3.6 Chipset Menu 72

3.7 Exit Menu 77

Chapter 4: Diagnostics

4.1 Beep Codes 79

4.2 Flash Utility 79

4.3 AMI BIOS Post Code 80

Glossary 83

Technical Support 89

http://www.tyan.com

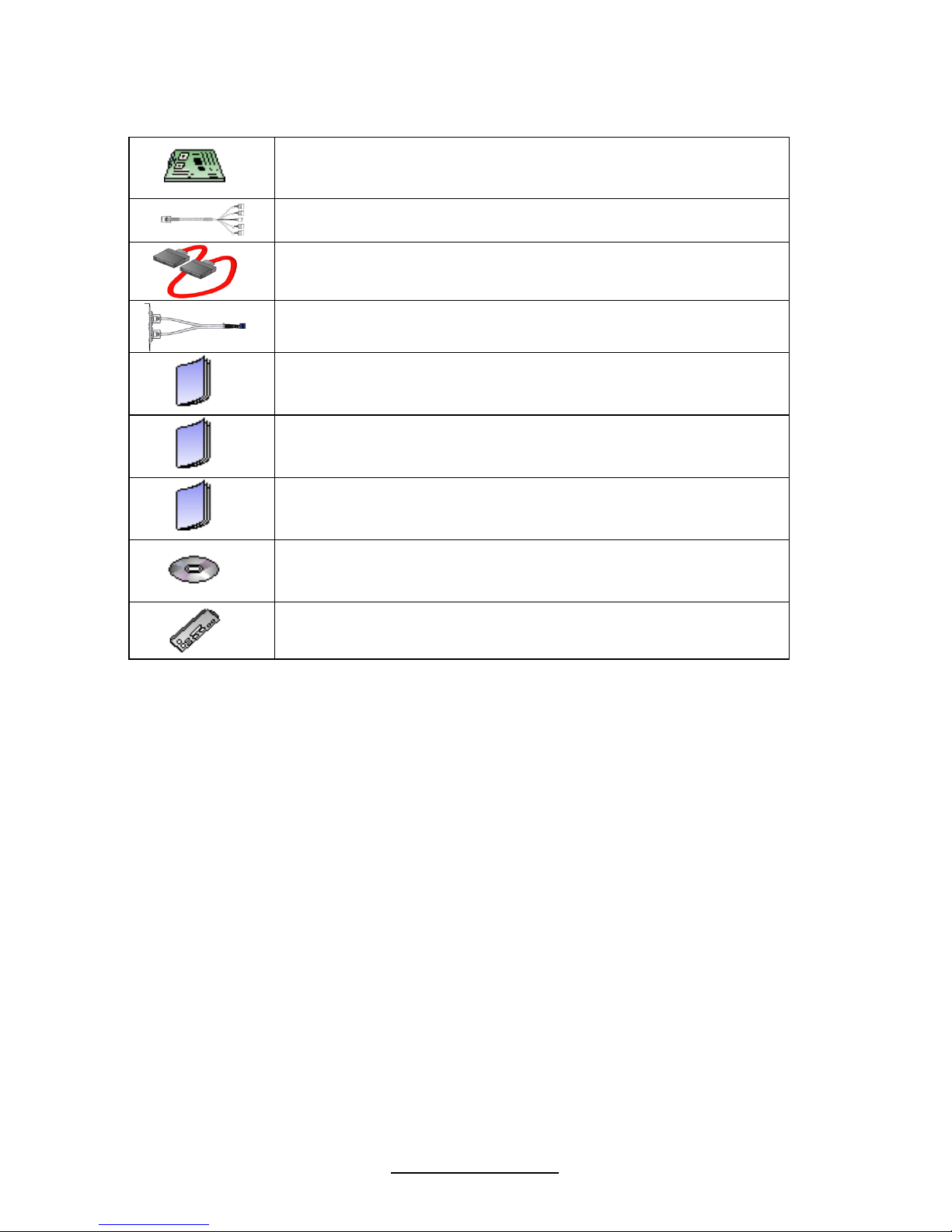

Check the box contents!

1x S7012 motherboard

2 x mini SAS Cable (optional)

6 x Serial ATA Cable

1 x USB2.0 cable

1 x S7012 User’s Manual

1 x S7012 Quick Reference Guide

1 x I/O Shield Installation Guide

1 x TYAN Installation CD

1 x I/O shield

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

http://www.tyan.com

NOTE

http://www.tyan.com

Chapter 1: Introduction

1.1 - Congratulations

You have purchased one of the most powerful server solutions. Based on Intel®

5520 and ICH10R chipsets, the S7012 is designed to support up to two Nehalem-

EP Series processors and up to 144GB DDR3-800/1033/1066/1333 memory,

providing a rich feature set and incredible performance. Leveraging advanced

technology from Intel, the S7012 is capable of offering scalable 32 and 64-bit

computing, high-bandwidth memory design, and lightning-fast PCI-E bus

implementation.

The S7012 not only empowers your company in today’s demanding IT environment

but also offers a smooth path for future application usage. All of this provides the

S7012 the power and flexibility to meet the needs of nearly any server application.

Remember to visit TYAN’s Website at http://www.tyan.com. There you can find

information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 - Hardware Specifications

Supported CPU

Series Intel Xeon 5500 series QC/DC processors

Socket Type / Q'ty LGA1366 / (2)

Max CPU wattage 130W

Processor

System Bus (MHz) Intel QuickPath Interconnect (QPI)

IOH / ICH Intel 5520 / ICH10R

Chipset

Super I/O Winbond W83627

Supported DIMM

Qty (18) DIMM sockets

DIMM Type / Speed Registered un-buffered DDR3 / 1333/1066/800

Capacity Up to 144GB at launch w/ dual rank RDIMMs

Memory

Memory channel 3-Channel

PCI-E (1) PCI-E x8 slot (w/ x4 link) / (4) PCI-E x8 slots (Gen 2)

Expansion

Slots Recommended

Tyan Riser Card M2088, PCI-E x8 1U riser card (left)

http://www.tyan.com

Port Q'ty (4)

LAN

Controller Intel 82574 / Intel 82576

Connector (2) Mini SAS connectors (support 8 ports)

Controller LSI SAS1068E

Speed 3.0 Gb/s

SAS

(optional)

RAID S/W RAID 0/1/1E

Connector (6)

Controller ICH10R

Speed 3.0 Gb/s

Storage

SATA

RAID S/W RAID 0/1/10/5 (Intel Matrix RAID)

Connector type D-Sub 15pin

Resolution 1600x1200

Graphic

Chipset Aspeed AST2050

USB (7) USB2.0 ports (4 at rear, 2 via cable, 1 type A

onboard)

COM (1) port (rear)

SAS (2) Mini SAS (4 in 1) connectors (optional)

VGA (1) D-Sub 15pin VGA port

RJ-45 (4) GbE ports

Power SSI 24-pin + 8-pin + 8-pin power connectors / EPS 12V

Front Panel (1) 2x12 pin SSI Front Panel header

Input

/Output

SATA (6) SATAII connectors

Chipset Winbond W83793G

Voltage Monitors voltage for CPU, memory, chipset & power

supply

Fan Total (5) 4-pin headers

System

Monitoring

Temperature Monitors temperature for CPU & system environment

http://www.tyan.com

LED Fan fail LED indicator / Over temperature warning

indicator

Others Chassis intrusion detection / Watch Dog timer support

Onboard Chipset Onboard Aspeed AST2050

AST2050 IPMI

Feature

IPMI 2.0 compliant baseboard management controller

(BMC) / Supports storage over IP and remote platform-

flash/ BIOS update / USB 2.0 virtual Hub

Server

Management

AST2050 iKVM

Feature

24bit High quality video compression / Dual 10/100 Mb/s

MAC interfaces

Brand / ROM size 4MB / AMI / SPI Flash ROM

BIOS

Feature

Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE

Boot / ACPI 2.0 power management /Power on mode

after power recovery / User-configurable H/W monitoring

/ Auto-configurable of hard disk types / Multiple boot

options

Form Factor SSI EEB

Form Factor

Board Dimension 12"x13" (305x330mm)

Operation

System OS supported list Please refer to the OS supported list at

http://www.tyan.com/tech/os_support1.aspx

FCC (Doc) Class B

CE (Doc) Yes

C-Tick Yes

Regulation

VCCI Yes

Operating Temp 10° C ~ 35° C (50° F~ 95° F)

Non-operating

Temp - 40° C ~ 70° C (-40° F ~ 158° F)

Operating

Environment

In/Non-operating

Humidity 90%, non-condensing at 35° C

RoHS RoHS 6/6 Complaint Yes

Motherboard (1) TYAN motherboard

Manual (1) User's manual / (1) Quick Ref. Guide

Installation CD (1) TYAN Installation CD

I/O Shield (1) I/O Shield

SATA (6) SATA signal cables

Accessory

list

Cable

SAS (2) Mini-SAS 1-to-4 cables (optional)

http://www.tyan.com

USB (1) USB bracket cable

Optional

accessories

for future

upgrade

Riser Card

M2088, PCI-Ex8 1U riser card (right)

For more information on M2088, refer to

http://www.tyan.com/product_accessories_list.aspx?rid=3

1.3 - AST2050 Application

Please visit the TYAN Web Site at http://www.tyan.com to download the latest

AST2050 User’s Guide.

http://www.tyan.com

Chapter 2: Board Installation

You are now ready to install your motherboard. The mounting hole pattern of the

S7012 matches the SSI EEB specification. Before continuing with installation,

confirm that your chassis supports an SSI EEB motherboard.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic

bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED.

http://www.tyan.com

2.1- Board Image

S7012

This picture is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above

picture.
