Thunder HEsl-T Manual

Revision 1.01

S2688

reproduced or translated without prior written consent from TYAN Computer Corp.

All registered and unregistered trademarks and company names contained in this manual are

property of their respective owners including, but not limited to the following.

TYAN, Thunder HEsl-T S2688 are trademarks of TYAN Computer Corporation.

Intel, Intel Pentium, combinations thereof are trademarks of Intel Corporation.

ServerWorks, ServerSet III HE-SL, combinations thereof are trademarks of BC/ServerWorks, Corp.

Adaptec is a trademark of Adaptec, Inc.

AMI, AMI BIOS are trademarks of American Megatrends Inc.

Microsoft, Windows are trademarks of Microsoft Corporation.

IBM, PC, AT, PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Micronics is a trademark of Micronics Corporation.

Portable Document Format (PDF) is a trademark of Adobe Corporation.

Information contained in this document is furnished by TYAN Computer Corporation and has been

reviewed for accuracy and reliability prior to printing. TYAN assumes no liability whatsoever, and

disclaims any express or implied warranty, relating to sale and/or use of TYAN products including

liability or warranties relating to fitness for a particular purpose or merchantability. TYAN retains the

right to make changes to product descriptions and/or specifications at any time, without notice. In

no event will TYAN be held liable for any direct or indirect, incidental or consequential damage,

loss of use, loss of data or other malady resulting from errors or inaccuracies of information

contained in this document.

http://www.TYAN.com

Table of Contents

Before you begin…

Chapter 1: Introduction

1.1 Congratulations

1.2 Hardware Specifications

1.3 Software Specifications

Chapter 2: Board Installation

2.1 Jumper Layout

2.2 Front Panel Connector

2.3 CMOS Reset

2.4 Force 33MHz Click for PCI Bus1

2.5 Force 33MHz Click for PCI Bus2

2.6 Host Bus Clock Frequency

2.7 CPU Core-to-Bus Multiplier

2.8 Add-in Drive Controller LED

2.9 External PC Speaker

2.10 Server Management Card

2.11 USB Port 2, 3 connectors

2.12 COM Port 2

2.13 LAN Activity LED

2.14 Mounting the motherboard

2.15 Installing Memory

2.16 Installing the CPU and Cooling Fan

2.17 Connecting IDE/Floppy Drives

2.18 Installing Add-in Cards

2.19 Connecting PS/2, USB, Serial

2.20 Connecting the Power Supply

2.21 You’re Done!

Chapter 3: BIOS Setup

3.1 Main Setup

3.2 Advanced

3.2a Super I/O Configuration

3.2b IDE Configuration

3.2c Floppy Configuration

3.2d Boot Settings Configuration

3.2e Onboard Device Configuration

3.2f Event Log Configuration

3.2g Chipset

3.2h PCIPnP

3.2i Power Management Setup

3.2j Power

3.2kSecurity

3.8 Exit

Chapter 4: Installing the Hard Drives

SCSI Setup Section

Chapter 5: System Resources

5.1 Beep Codes

5.2 Flash Utility

……………………………………………..Page 1

……………………………………………..Page 5

……………………………………………..Page 6

……………………………………………..Page 7

……………………………………………..Page 8

..……………………………………………Page 8

..……………………………………………Page 9

……………………………………………Page 10

……………………………………………Page 11

……………………………………………Page 12

……………………………………………Page 13

……………………………………………Page 15

……………………………………………Page 17

……………………………………………Page 18

……………………………………………Page 19

……………………………………………Page 20

……………………………………………Page 21

……………………………………………Page 22

……………………………………………Page 23

……………………………………………Page 24

……………………………………………Page 25

……………………………………………Page 26

……………………………………………Page 27

……………………………………………Page 29

……………………………………………Page 39

http://www.TYAN.com

Appendix I: Hardware Monitoring Information

Appendix II: About Adaptec NightHawk

(2000S) Compatibility

Appendix III: Glossary

Technical Support

……………………………………………Page 40

……………………………………………Page 41

……………………………………………Page 42

……………………………………………Page 47

http://www.TYAN.com

Before you begin…

Check the box contents!

The retail motherboard package should contain the following:

1x Thunder HEsl-T motherboard

1x 34-Pin floppy drive cable

1x Ultra-DMA-100/66/33 IDE cable

1x Ultra160 SCSI cable (for optional SCSI if included onboard)

1x Cable set: 9-pin Serial

1x Thunder HEsl-T user’s manual

1x TYAN driver CD

1x Adaptec 7899W NT Ultra160 SCSI driver diskette (if optional SCSI included)

1x I/O shield with 2 LAN ports

If any of these items are missing, please contact your vendor/dealer for replacement before

continuing with the installation process.

http://www.TYAN.com

Chapter 1: Introduction

1.1 Congratulations!

You are now the owner of the TYAN Thunder HEsl-T motherboard, the most reliable, high

performance motherboard for dual Pentium III processing. Designed to be portable as well as

flexible, the Thunder HEsl-T can fit into standard ATX chassis and 2U rackmount chassis. This

platform utilizes ServerWorks’ high-performance ServerSet III HE-SL chipset, enabling next

generation application and platform support. Intel Pentium III processors between 500MHz and

1.266GHz* are supported in single and dual configuration. *Please see TYAN’s website for

updates and information concerning CPU information and support:

http://www.tyan.com

This integrated performance board is supported in an ATX form factor. Features of the Thunder

HEsl-T include onboard UltraDMA-33 (Ultra160SCSI with onboard Adaptec controller) and

multiple boot options.

With both I/O and drive controller support onboard, dual 64-bit PCI slots provide upgrade solutions

for future add-in cards. Integrated 2D/3D graphics provided by the onboard ATI RAGE XL

controller enables ease of use into 2U and larger, chassis. Dual onboard LAN ports provide

connectivity without add-in overhead.

The Thunder HEsl-T supports up to 6GB of Registered ECC PC133 SDRAM.

Remember to visit TYAN’s Website at http://www.tyan.com. There you can find information on all

of TYAN’s products with FAQs, distributors list and BIOS setting explainations.

1.2 Hardware Specifications

Processor

•Dual PGA370 ZIF sockets

•Supports up to two Intel Pentium III

processors

•Supports Intel’s Pentium III Processor DP

•One onboard VRM (VRM 8.5) supports 2

CPUs

•Front-side bus support for 100/133MHz

Chipset

•ServerWorks ServerSet III HE-SL

•Integrated I/O APIC

•CSB5 south bridge

•CIOB north bridge

•National 87417 Super I/O ASIC

Memory

•Four 3.3v 168-pin DIMM sockets

•Supports up to 6GB of Registered

PC133/100 SDRAM

•Supports ECC (72-bit) memory

Integrated LAN

•Dual Intel 82559 LAN controllers

•10/100Mbps max data rate per controller

Integrated 2D/3D Graphics

•ATI RAGE XL graphics controller

•4MB frame buffer (SDRAM)

•Standard 15-pin analog VGA port

Integrated SCSI (manufacturing option)

•Adaptec AIC-7899W controller

•Dual-channel Ultra160 SCSI support

•160MB/sec max data throughput per

channel

•Supports up to 4 LVD SCSI devices per

channel

Hardware Monitoring

•Winbond W83782D hardware monitoring

ASIC

•CPU Temp, voltage and fan monitoring

http://www.TYAN.com

Expansion Slots

•4 64-bit/66MHz (three 5v, one 3.3v) PCI

slots

•2 32-bit/33MHz PCI slots

Integrated PCI IDE

•Dual-channel master mode

•Up to four E-IDE drives

•Support for DMA/ATAPI devices

Integrated I/O

•One floppy connector supports up to two

drives (second one via optional slim FD

connector)

•Two 9-pin 16550-based serial ports (one via

optional cable)

•One 25-pin SPP/ECP/EPP parallel port (via

optional cable)

•Four USB ports (two via optional cable)

•PS/2 keyboard and mouse ports

BIOS

•AMI 4Mb BIOS Flash ROM

•Auto-configure IDE drive types

•Multiple boot options

•DMI 2.0 compliant

Form Factor

•ATX footprint (12” x 9.6”, 304.8mm x

243.84mm

•One 20-pin ATX power connector

•One Serial port and one VGA port

•Stacked USB (two) ports

•Side-by-side LAN (two) ports

•Stacked keyboard and mouse ports

Regulatory

•FCC DoC (declaration of Conformity)

•European Community of CE (declaration of

Conformity)

1.3 Software Specifications

OS Windows NT/2000

http://www.TYAN.com

Chapter 2: Board Installation

Installation

You are now ready to install your motherboard. The mounting hole pattern of the Thunder HEsl-T

matches the ATX system board specifications. Your chassis should support a standard ATX

motherboard form factor.

How to install our products right… the first time

The first thing you should do is read this user’s manual. It contains important information which will

make configuration and setup much easier. Here are some precautions you should take when

installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic bag.

Unplug the power from your computer power supply and then touch the power supply.

For the safest conditions, TYAN recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board.

(3) Avoid touching the motherboard components, IC chips, connectors, and leads.

(4) Avoid touching memory module contacts and IC chips

(5) Place the motherboard on a grounded antistatic surface or on the antistatic bag from

which it came in.

Having reviewed the precautions above, the next step is to take the motherboard out of the

cardboard box and static bag, hold it by its edges and place it on a grounded antistatic surface,

component side up. Inspect the board for damage.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.TYAN.com

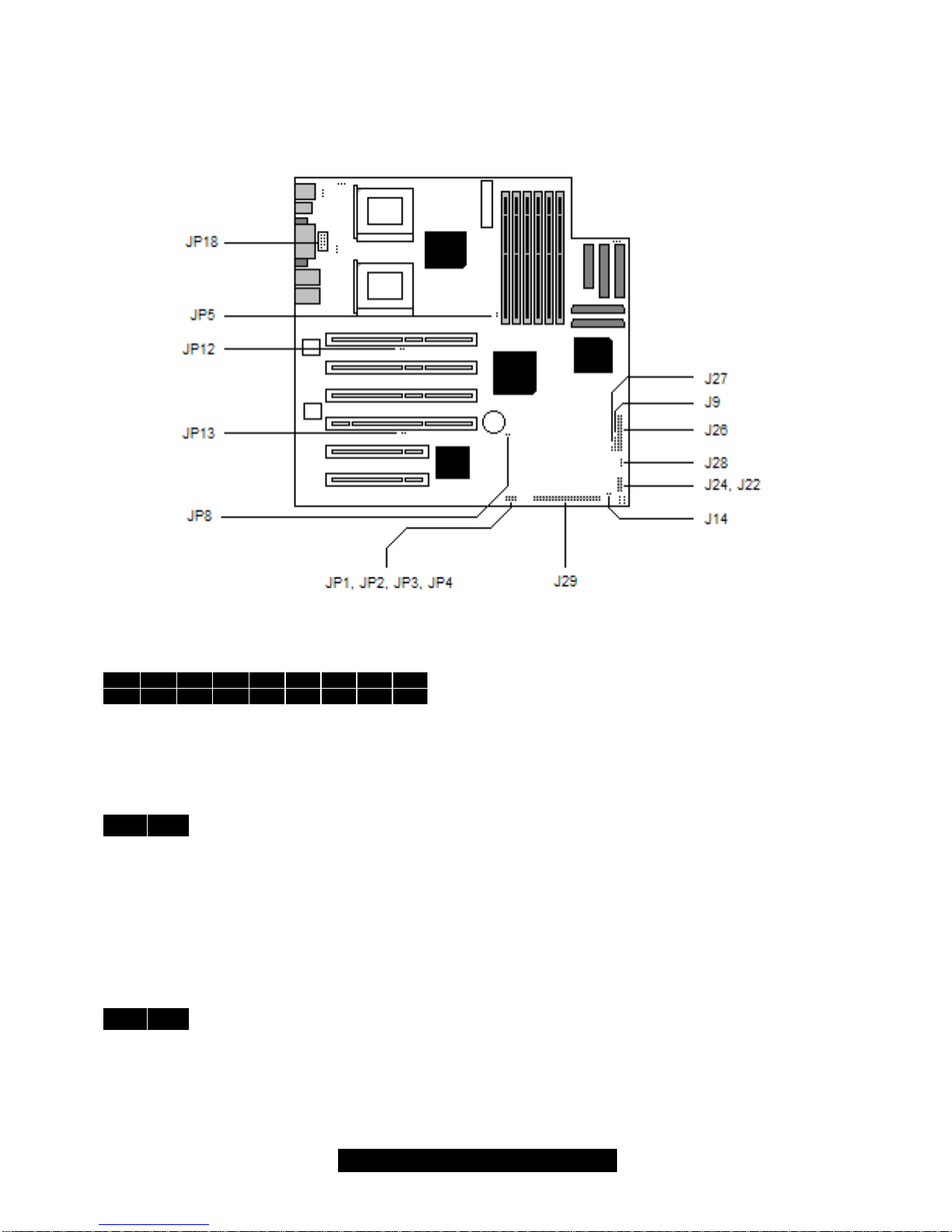

2.1 – Jumper Section

Pin outs for certain connectors are available on the TYAN website: http://www.TYAN.com

2.2 – Front Panel Connector (J26)

17 15 13 11 9 7 5 3 1

18 16 14 12 10 8 6 4 2 1,3: HD LED

2,4: Power LED

5,7: Reset Switch

6,8: Power Switch

2.3 – CMOS Reset (JP8)

1 2 1,2: Connect these two pins together to reset the CMOS settings in case an incorrect

setting causes system instability or you have forgotten your system/setup password.

-Power off the system and disconnect the power supply.

-Close pins 1 and 2 on JP8

-Wait about 5 seconds

-Open pins 1 and 2 on JP8

-Reconnect the power supply and power on the system

2.4 – Force 33MHz Click for PCI Bus 1 (JP12)

1 2 Closed: All devices on PCI Bus1 (slots J31, J32, J33) will run at 33MHz Only.

Open (default): PCI Bus1 can run at 66MHz or 33MHz. Actual speed is determined

by the PCI card(s) plugged into J31/J32/J33. If any card is only 33MHz capable, all

cards in Bus1 will run at 33MHz. If all cards support 66MHz, or if no cards are

installed, then Bus1 will run at 66MHz.

http://www.TYAN.com

2.5 – Force 33MHz Click for PCI Bus 2 (JP13)

1 2 Closed: All devices on PCI Bus2 (slots J35 and onboard SCSI) will run at 33MHz

Only.

Open (default): PCI Bus1 can run at 66MHz or 33MHz. Actual speed is determined

by the PCI card plugged into J33. If any card is only 33MHz capable, all cards in Bus1

will run at 33MHz. If all cards support 66MHz, or if no cards are installed, then Bus1

will run at 66MHz.

2.6 – Host Bus (FSB) Clock Frequency Select (JP5)

Closed: Host Bus clock frequency is fixed at 100 MHz, regardless of processor type.

Use this setting to force Host Bus clock to 100 MHz when using 133 MHz FSB

CPU(s).

Open (default): Host Bus clock frequency is determined by the type of processor(s)

installed. For CPUs that support 133 MHz Front Side Bus (FSB), Host Bus clock will

be automatically set at 133 MHz, but can be over-ridden to 100 MHz if JP5 is closed.

For CPUs that are only capable of operating at 100MHz FSB, Host Bus frequency will

be auto-configured to 100MHz, and 133 MHz is NOT possible.

2.7– CPU Core-to-Bus Frequency Multiplier Select (JP1-4)

These jumpers allow you to adjust the processor core multiplier. However, retail processors will

not allow multiplier adjustment.

JP1 JP2 JP3 JP4 JP1 JP2 JP3 JP4 Ratio

Open

Short

Open

Short

Open

Short

Open

Short

Open

Short

Open

Short

Open

Short

Open

Short

Open

Short

Open

Short

Open

Short

Open

Short

Open

Short

Open

Short

Open

Short

Open

Short

Open

Short

Open

Short

Open

Short

4.0x

4.5x

5.0x

5.5x

6.0x

6.5x

7.0x

7.5x

8.0x

8.5x

9.0x

9.5x

10.0x

10.5x

11.0x

11.5x

12.0x

4.0x is the default setting.

Note: Whatever the multiplier is set to, the setting will apply to both CPUs. These settings only

affect non-retail (engineering sample, Q-spec) CPUs. For a production (S-spec) CPU, the

multiplier is fixed inside the CPU, and these jumpers will not have any affect regardless of their

setting.

http://www.TYAN.com

2.8 – Add-in Drive Controller Activity LED (J27)

2Connect your chassis front panel IDE LED to this jumper for activity monitoring of all

drives connected to the onboard IDE controllers.

2.9 – External PC Speaker (J28)

Connect your chassis speaker to these pins for speaker functionality.

2.10 – TYAN Server Management Daughter Card (SMDC) connector (J29)

You may use this connector for the server management card (purchased separately).

2.11 – USB Port 2, 3 Connectors (J24, J22)

1 1

2 2

3 3

4 4

5 5

JP24 JP22

You may use these connectors for front panel USB connectors if your chassis

allows.

2.12 – COM Port 2 (J18)

1 1

2 2

3 3

4 4

You may use the included COM2 cable in this connector if you wish to use the

second serial port.

2.13 LAN Activity LED (J9)

You may use the following pins for LAN activity LED.

Pins 1 and 2 are for LAN1 activity

Pins 3 and 4 are for LAN2 activity

Table des matières

Autres manuels TYAN Carte mère

TYAN

TYAN S5642 Manuel utilisateur

TYAN

TYAN Tempest i5000XT S2696 Manuel utilisateur

TYAN

TYAN S1830 TSUNAMI AT Manuel utilisateur

TYAN

TYAN TYAN S1471 Manuel utilisateur

TYAN

TYAN TRINITY I845E Manuel utilisateur

TYAN

TYAN THUNDER I7500 Manuel utilisateur

TYAN

TYAN 1.00 Manuel technique

TYAN

TYAN TIGER I7501X Manuel utilisateur

TYAN

TYAN S5545 Manuel utilisateur

TYAN

TYAN S8010 Manuel utilisateur

TYAN

TYAN TOMCAT IVS D Manuel utilisateur

TYAN

TYAN S7040 Manuel utilisateur

TYAN

TYAN Tigercub 100 S1894 Manuel utilisateur

TYAN

TYAN S8238 Manuel utilisateur

TYAN

TYAN TOMCAT I7221A Manuel utilisateur

TYAN

TYAN THUNDER K7X Manuel utilisateur

TYAN

TYAN S3227 Manuel utilisateur

TYAN

TYAN Tempest i5000VF S5370 Manuel utilisateur

TYAN

TYAN TSUNAMI ATX Manuel utilisateur

TYAN

TYAN TRINITY I875P Manuel utilisateur

TYAN

TYAN S8226 Manuel utilisateur

TYAN

TYAN Thunder n6550EX Manuel utilisateur

TYAN

TYAN S7053 Manuel utilisateur

TYAN

TYAN Thunder K8WE S2895 Instructions d'installation et d'utilisation

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
