TYAN S2692 Manuel utilisateur

http://www.tyan.com

Tiger i5000XL /// S2692

Version 1.0

this manual may be reproduced or translated without prior written consent from

TYAN Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Taro and Tiger i5000XL are trademarks of TYAN Computer Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

Intel, Xeon, and combinations thereof are trademarks of Intel Corporation.

Nvidia and nForce are trademarks of Nvidia Corporation

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

Linux is a trademark of Linus Torvalds

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Notice

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to printing.

TYAN assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications

at any time, without notice. In no event will TYAN be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

http://www.tyan.com

Table of Contents

Chapter 1: Introduction

1.1 Congratulations Page 5

1.2 Hardware Specifications Page 5

Chapter 2: Board Installation

2.1 Board Image Page 8

2.2 Block Diagram Page 9

2.3 Board Parts, Jumpers and Connectors Page 10

2.4 Mounting the Motherboard Page 22

2.5 Installing the Memory Page 23

2.6 Installing the Processor and Cooling Fan Page 25

2.7 Attaching Drive Cables Page 27

2.8 Installing Add-In Cards Page 29

2.9 Installing Optional SO-DIMM Modules Page 32

2.10 Connecting External Devices Page 33

2.14 Installing the Power Supply Page 34

2.15 Finishing Up Page 35

Chapter 3: BIOS

3.1 About the BIOS` Page 37

3.2 Main BIOS Setup Page 39

3.3 Main Page 40

3.4 Advanced Page 46

3.5 Security Page 58

3.6 Power Page 59

3.7 Boot Page 60

3.8 Exit Page 61

Chapter 4: SATA/RAID Setup

4.1 BIOS Configuration Page 63

4.2 Installing Serial ATA (SATA) hard disks Page 63

4.3 Adaptec RAID Configuration Utility Page 64

4.4 Manage Array Page 64

4.5 Create Array Page 66

4.6 Add/Delete Hotspare Page 68

4.7 Initialize Drives Page 68

4.8 Disk Utilities Page 70

Chapter 5: Diagnostics

5.1 Beep Codes Page 73

5.2 Flash Utility Page 73

5.3 BIOS Post Code Page 74

Appendix I: SMDC Information Page 79

Appendix II: How to Make a Driver Diskette Page 81

Glossary Page 83

Technical Support Page 89

http://www.tyan.com

Check the box contents!

The retail motherboard package should contain the following:

1 x Tiger i5000XL S2692 motherboard

1 x 34-Pin floppy drive cable

2 x Ultra-DMA-133/100/66/33 IDE cable

1 x Tiger i5000XL S2692 User’s Manual

1 x Tiger i5000XL S2692 Quick Reference Guide

1 x TYAN driver CD

1 x I/O shield

1 x Cable set (9 pin serial and 24 pin parallel)

2 x CEK Spring

1 x Serial ATA power cable

2 x Serial ATA cable

1 x USB2.0 cable

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

http://www.tyan.com

NOTE

http://www.tyan.com

Chapter 1: Introduction

1.1 - Congratulations

Congratulations on your purchase of the powerful Dual Intel processor solution,

the Tiger i5000XL S2692. Based on Intel® 5000X Greencreek MCH and Intel®

6321ESB I/O Controller chipsets, the S2692 offers exceptional performance.

Compatible with EPS12V power supplies, the CEB form factor S2692 features

an onboard RealTek ALC888 audio controller, one 10/100/1000 Ethernet port

and SATA/RAID, which provides a versatile solution for your workstation needs.

Remember to visit TYAN’s Website at http://www.tyan.com. There you can find

information on all of TYAN’s products with FAQ’s, online manuals and BIOS

upgrades.

1.2 - Hardware Specifications

Processors

Dual LGA771 sockets

Supports up to two Dual-Core Intel®

Xeon® Processors 5000/5100 Series

processors

1333/1066 MHz FSB

VRD11.0

Chipset

Intel® 5000X Greencreek MCH +

Intel® 6321ESB I/O Controller

Winbond W82627EHF Super I/O

chip

Memory

Four 240-pin DDR2 FBDIMM sockets

Four memory channels

Supports ECC DIMMs

Maximum of 16/8GB DDR2-533/667

Integrated LAN Controllers

Intel® 82564 Gilgal Single-Port

GbE – ASF 2.0

One RJ-45 port with LEDs

Integrated I/O

One 9-pin 16550 UART serial port

Eight USB 2.0 ports (four at rear,

four via headers)

PS/2 mouse and keyboard

connectors

Six Standard/integrated SATA2

connectors

One RJ-45 10/100/1000 LAN

ports

One IDE and one Floppy

connectors

Integrated Serial ATAII (SATA-II)

RAID

Six (6) SATA-II ports

3.0 Gb/s per port

RAID 0, 1, 10 supported

BIOS

Phoenix TrustedCore BIOS on

8Mbit Flash ROM

Supports APM 1.2, ACPI 2.0

Serial Console Redirect

PXE via Ethernet, USB device

http://www.tyan.com

Expansion Slots

One (1) PCI Express x16 slot with

x16 signal

One (1) PCI Express x8 slot with x4

signal

One (1) PCI Express x16 slot with x8

signal

Two (2) PCI-X 133/100MHz slots

One (1) PCI 32-bit 33MHz slot

Total six (6) expansion slots

System Management

ADT7470 Hardware Monitor

CPU thermal & voltage monitor

support

Five (5) fan headers (4-pin

configuration)

Integrated Audio Controller

HDA link

RealTek ALC888 controller (High

Definition Audio)

Line-in, Line-out, Mic-in rear ports

SPDIF In/Out in rear

Front panel audio header

CD-in, Aux headers (4-pin

configuration)

Regulatory

FCC Class B (DoC)

European Community CE (DoC)

BSMI

boot

PnP, DMI 2.0 WfM 2.0 Power

Management

User-configurable H/W monitoring

Auto-configuration of hard disk

types

Multiple boot options

48-bit LBA support

Form Factor

CEB (12” x 10.5”)

EPS 12V/SSI (24+8 pin) power

connectors

Stacked PS/2 keyboard and

mouse connectors

One Serial port

Stacked USB 2.0 (2)

Stacked USB 2.0 (2) and RJ-45

(1) connectors

Stacked Line-in, Line-out, Mic-in

audio connectors

SPDIF port

Power

On board dual 4-phase VRM

EPS 12V (24-pin + 8-pin) power

connectors

http://www.tyan.com

Chapter 2: Board Installation

Precautions: The Tiger i5000XL supports SSI, EPS12V type power supplies

(24pin + 8pin) and will not operate with any other types. For proper power

supply installation procedures see page 37.

DO NOT USE ATX 2.x or ATXGES power supplies as they will damage the

board and void your warranty.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED.

http://www.tyan.com

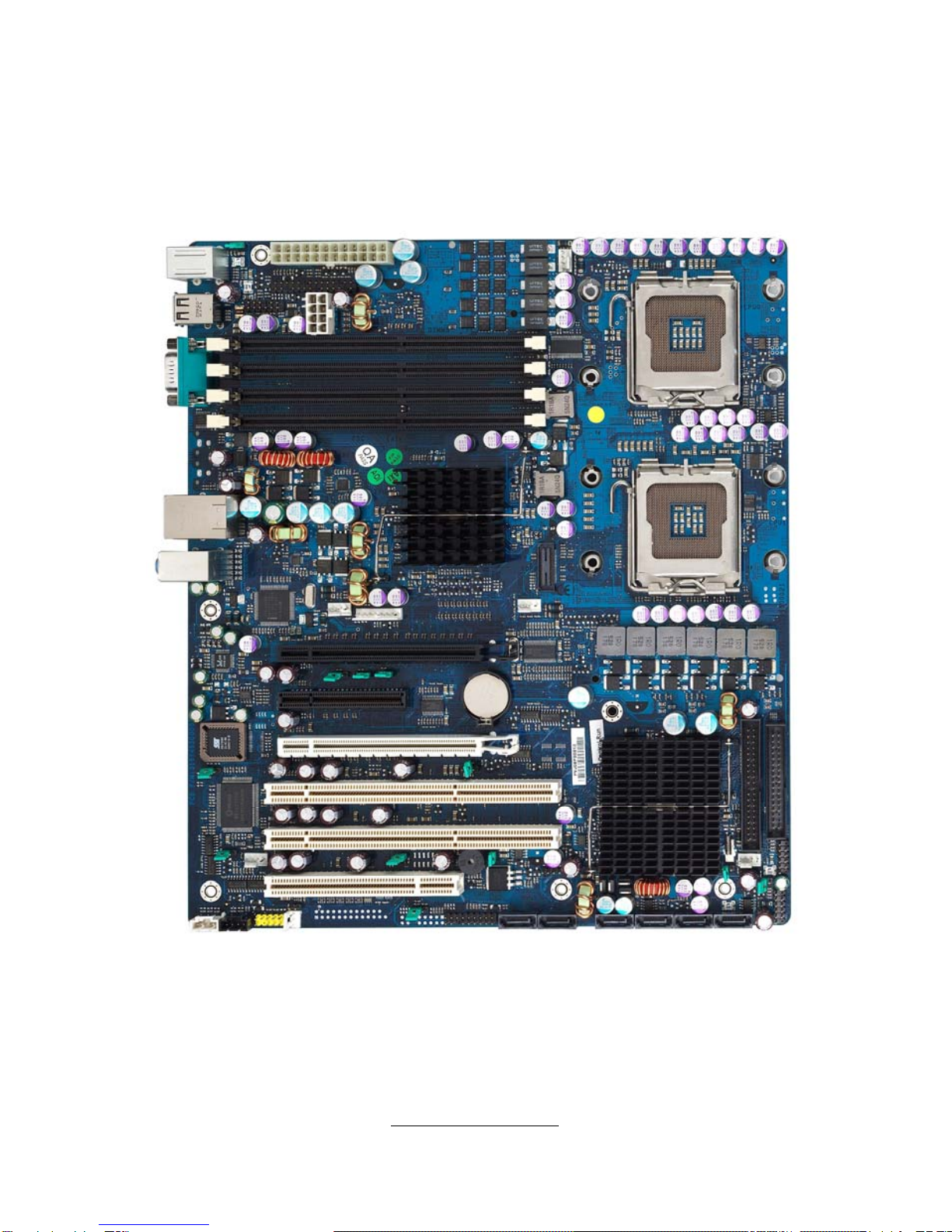

2.1- Board Image

This picture is representative of the latest board revision available at

the time of publishing. The board you receive may or may not look

exactly like the above picture.

The following page includes details on the vital components of this

motherboard.

http://www.tyan.com

2.2 - Block Diagram

Tiger i5000XL (S2692) Block Diagram

http://www.tyan.com

2.3 - Board Parts, Jumpers and Connectors

JP16

PS/2

KB/MS

USBx2

COM

RJ45

USBx2

L-in

L-out

Mic

JP25

CN1

J12

J1 3 CN3

DIMM0

DIMM1

DIMM2

DIMM3

CN21

CPU0

CPU1

CN20

CN22 J11

PCIEx16 Slot(x16)

CN24

JP20

JP23

JP15

JP26 JP18

CN19

JP5 SATA0 SATA1 SATA2 SATA3 SATA4 SATA5 CN15

CN28

FDD

IDE

CN23

JP19

JP27

PCIEx8Slot(x4)

PCIEx16 Slot(x8)

PCIX 133Slot

PCI 33 Slot

JP7 JP8 JP6

JP24

JP14

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.

Jumper Legend

 OPEN - Jumper OFF, without jumper cover

 CLOSED – Jumper ON, with jumper cover
