TYAN S1686D

TAHOE2I ATX

Pentium II 233 through 300 MHz

440 FX PCI-ISA System Board

Revision 1.0

2S1686D-001-01 http://www.tyan.com

Based on Rev 0.3 (5/20/97)

3S1686D-001-01

TABLEOFCONTENTS

1. Introduction....................................................................... 4

1.1Overview................................................................4

1.2Hardware Specifications..........................................5

1.3Software Specifications.......................................... 6

1.4Manual Organization .............................................. 6

1.5Manual Conventions.............................................. 7

1.6CPU Prototypes .................................................... 7

2. BoardInstallation.............................................................. 9

2.1 Unpacking.............................................................. 9

2.2Installationof the motherboard ............................... 9

2.3S1686DBoardLayout&JumperLocations..............10

2.4CMOS RTC............................................................16

2.5Installingcables and Connectors ............................16

2.6DRAM Installation ...............................................18

2.7L2CacheMemory/SRAMMemory..........................19

2.8VRM(VoltageRegulatorModules).......................... 19

2.9PeripheralDevice Installation...................................19

2.10ConnectingthePower Supply..................................19

3. CPUInstallation andRemoval ........................................ 20

3.1InstallationofPentiumIIBoxed(Active)Processors.20

3.2Installing CPUs...................................................... 21

3.3InstallingCPU Cooling Fans.................................... 21

3.4InstallationandRemovalofPassiveProcessors....... 22

4.1TroubleshootingProcedures.................................... 25

4.2TechnicalSupportProcedures.................................27

4.3ReturningMerchandisefor Service.......................... 27

4.Troubleshooting .............................................................. 20

Appendix:LM78SystemHardwareMonitorandLANDesk

ClientManager (LDCM)...................................................... 28

4S1686D-001-01 http://www.tyan.com

Chapter1:Introduction

1.1 Overview

The S1686D system board--TAHOE 2I ATX, is a quality, high performance,

dual processing motherboard designed for Intel's latest generation Pentium II

microprocessors. This motherboard utilizes Intel's 440FX PCI series chipset and

supports CPU speeds of 233MHz to 300MHz. The S1686D, designed for a dual

system, will also support two Pentium Pro processors with Tyan riser cards.

The S1686D's PCI Local Bus provides high performance capabilities that

are ideal for a wide range of demanding applications such as: CAD, CAM, CAE,

networking, multi-user environments, database management, desktop publishing,

image processing, 3D animation and video production.

This integrated system board achieves high reliability with numerous

features and yet is small enough to be supported in an "ATX" form-factor. Some

of the features included are: on-board dual channel PCI PIO (Mode 3 & 4), DMA

(Mode 2) IDE, on-board floppy controller, and on-board high speed I/O.

To provide you with the best board possible on the market, Tyan has also

incorporated into the board design the newest technologies available in the

industry. These new features include the following:

1. LM78 Power Monitoring (See Appendix for details).

2. Power off through Software for Windows 95: This function allows the

user to turn off the ATX power supply and shut down the system by clicking on

the "Shut Down" button on the "Start Menu"without hitting the power on/off

switch on the case.

3. Recovery after Power Interruption: When this function is set to

"Enabled" in the CMOS Setup, the power of the system will be automatically

turned on as soon as the power is recovered after a power interruption (outage).

The user does not need to hit the Power-on switch on the case to turn on the

system power.

4. Wake on LAN: The S1686D provides the capability for the user to turn

on a system through another server in the Local Area Network.

5. An on-board 12V to 5V Convertor gives support for keyboards with

built-in speakers, such as NMB Concert Master Keyboards.

For more information about your S1686 D board, please refer to Tyan

Computer's web site located at http://www.tyan.com

5S1686D-001-01

1.2 Hardware Specifications/Features

The S1686D board is designed for the demanding end-user who wants to

accomplish complicated tasks in a user-friendly environment. To achieve this

purpose, the main board includes the following features:

CPUInformation Intel Pentium II233 MHz through300 MHz (233MHz,

266MHz,300MHz)CPUs.

Two Pentium II Processor slots

SupportsPentium Pro 150-200 MHz(150 MHz,

166MHz,180MHz,200MHz)processors

Dual on-board CPU fan headers

(*This features allows you to choose from an array of

processor speeds and CPU types)

ChipsetInformation Intel 440 FX series (Natoma) chipset.

25/30/33 MHz PCI bus

(*This newest and fastest Pentium II chipset

offers the fastest performance available on the

market and ensures compatibility of your

system.)

System RAM Eight-72 pin SIMMs (4 double banks)

Supports 5V or 3.3V memory

Supports EDO (Extended Data Out), FPM (Fast

Page Mode), ECC (Error Correcting Code) or

Parity checking

(*This feature gives you many options and

upgrade paths for various memory types and

sizes--up to 512 MB)

Disk Drive & System I/O

Two PCI Bus Mastering EIDE channels

Supports EIDE CD-ROMs

PIO Mode 3 & 4 (up to 17 MB/sec DTR)

Bus Mastering Mode (up to 22MB/sec DTR)

Two floppy drives (up to 2.88 MB)

Two ATX serial ports support 16550 UART's

One ATX ECP/EPP parallel port

6S1686D-001-01 http://www.tyan.com

1.3 Software Specifications

BIOS Award or AMI Plug 'n' Play flash BIOS

Deep green and Energy Star compliant.

ATX CMOS setup, BIOS/CHIPSET setup

andhard disk utility included.

Support for easy BIOS upgrades with flash

chip.

Operating System Operates with MS-DOS, Windows 3.x, Windows

for Work Group 3.x, Windows 95, Windows NT

OS/2, Novell Netware, and SCO Unix.

Tyan is also a Solaris certified manufacturer.

1.4 Manual Organization

Chapter 1 "Introduction" describes the features and performance of the

S1686D system.

Chapter 2 "Installation" describes the procedures of setting up the system

board. Also refer to this Chapter for detailed information about jumper

settings.

Chapter 3 "Installation and Removal of the CPU" gives detailed instruc-

tions on the installation and removal of the latest Pentium II--Boxed and

Passive CPU's.

If you encounter any problem, refer to Chapter 4 "Trouble-shooting",

which describes trouble-shooting procedures for the system.

7S1686D-001-01

Pins 1&2: Open

Pins 3&4: Close

(Shorted)

Pin 1 2 3 4

Referto AddendumA(AMI BIOSSetup)andAddendumB(AwardBIOSSetup)

for the BIOS Setup requirements and the CMOS Configuration Information,

including instructions to change the password, to format a hard disk, and to

troubleshoot CMOS errors. Both AMI and Award BIOS documents are also

available in the ADOBE Acrobat format. Please refer to the Web Page located at

ftp://ftp.tyan.com/manual/s1686da.pdf for AMI and ftp://ftp.tyan.com/manual/

s1686db.pdffor Award BIOSinformation.

1.5 Manual Conventions

In this manual, the following terms are used in reference to setting up jumpers:

1. When the term "close" is used, the pin (pins) specified for the jumper should

be connected (closed), and the circuit of the connecting pins will be shorted.

2. When the term "open" is used, the pin (pins) specified for the jumper should

not be connected, and the circuit of the connecting pins will not be shorted.

1.6 CPU Prototypes

Currently, Intel produces two types of Pentium II processors: the Active (Boxed)

Processor, and the Passive Processor. (Refer to the pictures shown on Page 8).

These two types of processors are essentially the same in design. The only

difference between these two types of processors lies in their cooling methods.

The Active Processor is equipped with a cooling fan, and the Passive Processor

is equipped with a heat sink. These two types of CPUs provide the user with the

same function, and should be installed in the "Pentium II" (SEC) slots on the

motherboard. (Refer to Chapter 3 for the installation and removal of Pentium II

Processors).

Although the S1686D motherboard is designed for a dual system, it can also

accommodate a single CPU. However, when a single CPU configuration is

chosen, the Pentium II CPU should be installed in the Pentium II Primary slot as

mentioned in Chapter 3.

8S1686D-001-01 http://www.tyan.com

Pentium II Boxed (Active) CPU

Shown with Power Connector for Fan

Pentium II (Passive) CPU

Shown with Heatsink

9S1686D-001-01

Chapter2:BoardInstallation

2.1 Unpacking

2.1.1.Item Checklist

The motherboard package should contain the following:

S1686DMotherboard

OneIDE 40pin cable

One 34 pin floppy cable

User's Manual

2.1.2.Precautionarymeasuresbeforehandlingthemotherboard

Since the motherboard contains sensitive electronic components which can

easily be damaged by static electricity, the motherboard should be left in its

original packaging until it is ready to be installed.

Before you open the carton of your computer, do the following:

1. Make sure that you stand on an Anti-static mattress. (Do not stand on a rug or

carpet.)

2. It is also strongly recommended that you wear an anti-static strap. (Anti-static

straps can be purchased at computer hardware stores.)

3. With the power supply plugged in and the system turned off, touch an unpainted

area of the system chassis before handling the motherboard or any component.

Remember to repeat the above steps whenever you handle the motherboard or its

components.

2.1.3.Properhandlingofthemotherboard

After opening the S1686D motherboard carton, remove the board by holding its

edges. Place it on a grounded anti-static surface with the component side up.

Inspect the board for damage. Do not touch the bottom of the board. (Note: DO

NOT APPLY POWER TOTHE BOARDIF ITHASBEEN DAMAGED!)

2.2. Installation of the Motherboard

You are now ready to install your motherboard. The mounting hole pattern of the

S1686D matches the ATX system board specifications. Please install the board

in the chassis designed for a standard ATX board form factor.

10S1686D-001-01 http://www.tyan.com

Parallel Port

PCI Slot 1

PCI Slot 2

PCI Slot 3

PCI Slot 4

PCI Slot 5

ISA Slot 1

ISA Slot 2

ISA Slot 3

MouseKB

BIOS (CMOS)

AMI/AWARD

Com2

Keyboard

442FX

PCI

PentiumIIPrimary(SEC) Slot

SIMM1

Voltage Regulator Module

Primary IDE

Secondary IDE

FDDCON

I/O APIC

J57J56

J51J52J49J50 J55J53J54J47J48J46

J39

J37

J30J36

J24J25

J17J18

J20

1 J7 J15J16

J11-14

J1J2

J31J32

J42

J44

J38

PIIX3

J29

CPU Ret.Bracket

441FX

PentiumII Second (SEC).Slot

CPU

Ret.Brack

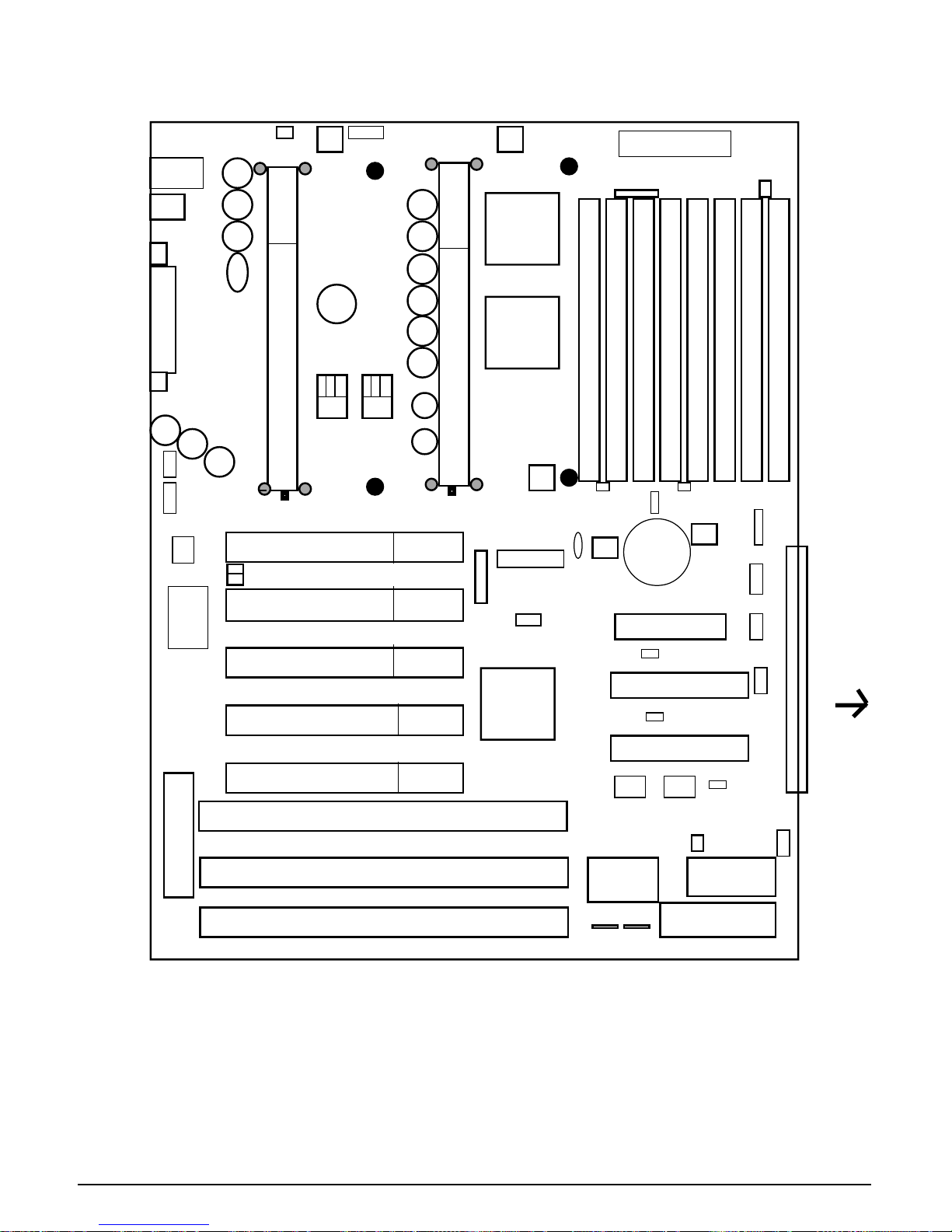

2.3.1MotherboardLayout

Module(key) notch

Heat Sink Hole

RTC

(FormoreinformationaboutthisMotherboard,pleasevisitourWebPageand

Clickablemotherboardsathttp://www.tyan.com/html/faq.html.)

J26J27

SIMM2

SIMM3

SIMM4

SIMM5

SIMM6

SIMM7

SIMM8

Power Supp.

JP1

J3J4

Voltage Convert

U55

USB

J22

Com1

CPUFan CPUFan

J23

SMC

1J60

CHS Fan

J35CON4

J40

J28

J41

KeyLock

TB LED

TBSW

J33J34

(J29:SeePin Definitionon P.11)

CPU Ret.Bracket

J19

J43

Table des matières

Autres manuels TYAN Carte mère

TYAN

TYAN S7002 Manuel utilisateur

TYAN

TYAN Tiger i7505 Manuel utilisateur

TYAN

TYAN TOMCAT I875P Manuel utilisateur

TYAN

TYAN Thunder K8WE S2895 Manuel utilisateur

TYAN

TYAN TOMCAT N3400B Manuel utilisateur

TYAN

TYAN S8030 Manuel utilisateur

TYAN

TYAN 1.00 Manuel utilisateur

TYAN

TYAN Tomcat i945GM S3095 Manuel utilisateur

TYAN

TYAN Thunder HEsl S2567 Manuel utilisateur

TYAN

TYAN TRINITY I845 Manuel utilisateur

TYAN

TYAN Thunder i7500 Pro S2721 Manuel utilisateur

TYAN

TYAN TRINITY I845DDR Manuel utilisateur

TYAN

TYAN Thunder n3600W S2935 Manuel utilisateur

TYAN

TYAN THUNDER HESL-T Manuel utilisateur

TYAN

TYAN TEMPEST I5000PX Manuel utilisateur

TYAN

TYAN THUNDER 2500 Manuel utilisateur

TYAN

TYAN S5560 Manuel utilisateur

TYAN

TYAN S7066 Manuel utilisateur

TYAN

TYAN S7012 Manuel utilisateur

TYAN

TYAN S7086 Manuel utilisateur

TYAN

TYAN S8026 Manuel utilisateur

TYAN

TYAN THUNDER 2 ATX Manuel utilisateur

TYAN

TYAN S7055 Manuel utilisateur

TYAN

TYAN Thunder 100 S1836 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
