Ventilation Testing

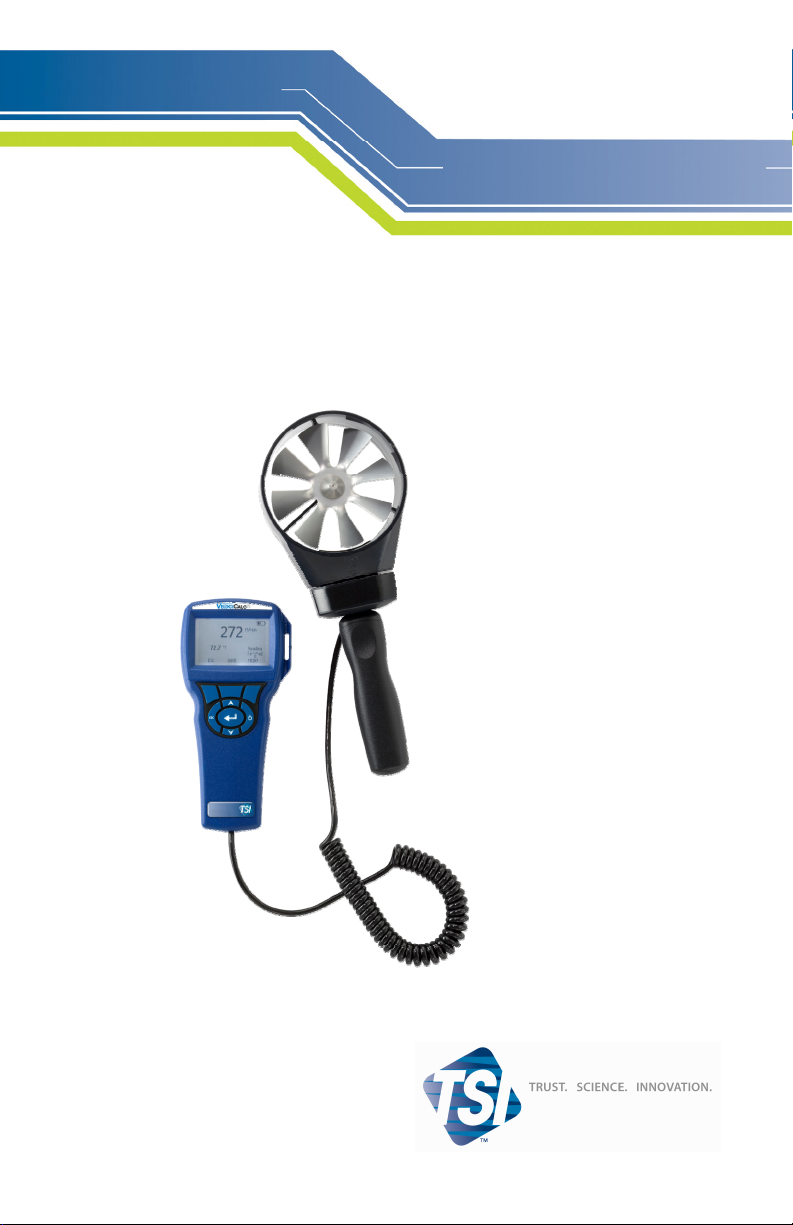

VELOCICALC®

Air Velocity Meter

Model 5725

Operation and Service Manual

ENERGY AND COMFORT

Address

TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA

Fax No.

(651) 490-3824

LIMITATION OF WARRANTY AND LIABILITY (effective July 2000)

Seller warrants the goods sold hereunder, under normal use and service as described in the

operator's manual, shall be free from defects in workmanship and material for twenty-four (24)

months, or the length of time specified in the operator's manual, from the date of shipment to the

customer. This warranty period is inclusive of any statutory warranty. This limited warranty is

subject to the following exclusions:

a. Hot-wire or hot-film sensors used with research anemometers, and certain other

components when indicated in specifications, are warranted for 90 days from the date of

shipment.

b. Parts repaired or replaced as a result of repair services are warranted to be free from

defects in workmanship and material, under normal use, for 90 days from the date of

shipment.

c. Seller does not provide any warranty on finished goods manufactured by others or on any

fuses, batteries or other consumable materials. Only the original manufacturer's warranty

applies.

d. Unless specifically authorized in a separate writing by Seller, Seller makes no warranty

with respect to, and shall have no liability in connection with, goods which are

incorporated into other products or equipment, or which are modified by any person other

than Seller.

The foregoing is IN LIEU OF all other warranties and is subject to the LIMITATIONS stated

herein. NO OTHER EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR

PARTICULAR PURPOSE OR MERCHANTABILITY IS MADE.

TO THE EXTENT PERMITTED BY LAW, THE EXCLUSIVE REMEDY OF THE USER OR

BUYER, AND THE LIMIT OF SELLER'S LIABILITY FOR ANY AND ALL LOSSES,

INJURIES, OR DAMAGES CONCERNING THE GOODS (INCLUDING CLAIMS BASED

ON CONTRACT, NEGLIGENCE, TORT, STRICT LIABILITY OR OTHERWISE) SHALL

BE THE RETURN OF GOODS TO SELLER AND THE REFUND OF THE PURCHASE

PRICE, OR, AT THE OPTION OF SELLER, THE REPAIR OR REPLACEMENT OF THE

GOODS. IN NO EVENT SHALL SELLER BE LIABLE FOR ANY SPECIAL,

CONSEQUENTIAL OR INCIDENTAL DAMAGES. SELLER SHALL NOT BE

RESPONSIBLE FOR INSTALLATION, DISMANTLING OR REINSTALLATION COSTS

OR CHARGES. No Action, regardless of form, may be brought against Seller more than 12

months after a cause of action has accrued. The goods returned under warranty to Seller's

factory shall be at Buyer's risk of loss, and will be returned, if at all, at Seller's risk of loss.

Buyer and all users are deemed to have accepted this LIMITATION OF WARRANTY AND

LIABILITY, which contains the complete and exclusive limited warranty of Seller. This

LIMITATION OF WARRANTY AND LIABILITY may not be amended, modified or its terms

waived, except by writing signed by an Officer of Seller.

Service Policy

Knowing that inoperative or defective instruments are as detrimental to TSI as they are to our

customers, our service policy is designed to give prompt attention to any problems. If any

malfunction is discovered, please contact your nearest sales office or representative, or call

Customer Service department at ((800) 874-2811 (USA) or (1) 651-490-2811 (International).

iii

CONTENTS

CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION ............ 1

CHAPTER 2 SETTING-UP.................................................................3

Supplying Power to the Model 5725............................................... 3

Installing the Batteries ...............................................................3

Using the Optional AC Adapter .................................................3

Attaching the Handle .................................................................3

Using the Optional Articulating Extension .................................3

Connecting to a Computer..............................................................3

CHAPTER 3 OPERATION .................................................................5

Keypad Functions ...........................................................................5

Common Terms ..............................................................................5

Menus .............................................................................................6

DISPLAY SETUP.................................................................................6

SETTINGS .........................................................................................6

FLOW SET UP....................................................................................6

DATA LOGGING .................................................................................6

Measurements...........................................................................6

Log Mode/Log Settings .............................................................6

Delete Data................................................................................7

% Memory .................................................................................7

LogDat2™ Downloading Software .................................................7

CHAPTER 4 MAINTENANCE............................................................9

Recalibration...................................................................................9

Cases.............................................................................................. 9

Storage ...........................................................................................9

CHAPTER 5 TROUBLESHOOTING................................................11

APPENDIX A SPECIFICATIONS.....................................................13

Chapter 1

Unpacking and Parts Identification

Carefully unpack the instrument and accessories from the shipping

container. Check the individual parts against the list of components below..

If anything is missing or damaged, notify TSI immediately.

1. Carrying case

2. Instrument

3. USB cable

4. CD-ROM with Downloading Software

Chapter 2

Setting-up

Supplying Power to the Model 5725

The Model 5725 VELOCICALC Air Velocity Meter is powered with four size

AA batteries.

Installing the Batteries

Insert four AA batteries as indicated by the diagram located on the

inside of the battery compartment. The Model 5725 is designed to

operate with either alkaline or NiMH rechargeable batteries, although it

will not recharge NiMH batteries. Battery life will be shorter if NiMH

batteries are used. Carbon-zinc batteries are not recommended because

of the danger of battery acid leakage.

Using the Optional AC Adapter

When using the AC adapter, the batteries (if installed) will be bypassed.

Be sure to provide the correct voltage and frequency, which is marked

on the back of the AC adapter. The AC adapter will not recharge the

batteries.

Attaching the Handle

To attach the handle, screw the handle into the bottom of the rotating

vane head until secure. Remove the handle after use to prevent damage

to either the head or the handle.

Using the Optional Articulating Extension

The articulating extension allows you to secure the vane head at nearly

any angle. Once you have attached the articulating extension, you can

unscrew the swivel adjustment bolt, and adjust the angle of the elbow.

You can then adjust the pivot position of the head by partially

unscrewing the head from the handle and tightening it with the knurled

knob, located underneath the vane head.

Connecting to a Computer

Use the Computer Interface USB Cable provided with the Model 5725 to

connect the instrument to a computer for downloading stored data or for

remote polling. Connect the end labeled “COMPUTER” to the computer

USB port and the other end to the data port of the Model 5725. Then run the

LogDat2 downloading software. Within the LogDat2 software, either select

the tests to be downloaded or double-click on a test to open it.

4Chapter 2

For more information on how to download stored data see Chapter 3 section

titled LogDat2™ Downloading Software.

Caution: This symbol is used to indicate that the data port

of the Model 5725 is not intended for connection to a

public telecommunications network. Connect the USB

data port only to another USB port.

Chapter 3

Operation

Keypad Functions

ON/OFF Key Press to turn the Model 5725 on and off. During

the power up sequence the display will show the

following: Model Number, Serial Number,

Software Revision and Last Date Calibrated.

Arrow (ST) Keys Press to scroll through choices while setting a

parameter.

(Enter) Key Press to accept a value or condition.

Arrow (gor h) and

Menu Soft Keys

Press arrow keys to change choices while setting a

parameter. Press the Menu soft key to select the

Menu selections, which are Display Setup,

Settings, Flow Setup, Data Logging and

Calibration.

Common Terms

In this manual there are several terms that are used in different places. The

following is a brief explanation of the meanings of those terms.

Sample Consists of all of the measurement parameters

stored at the same time.

Test ID A group of samples. The statistics (average, minimum,

maximum, and count) are calculated for each test ID.

The maximum number of test IDs is 100.

Time Constant The time constant is an averaging period. It is used

to dampen the display. If you are experiencing

fluctuating flows, a longer time constant will slow

down those fluctuations. The display will update

every second, but the displayed reading will be the

average over the last time constant period. For

example, if the time constant is 10 seconds, the

display will update every second, but the displayed

reading will be the average from the last 10 seconds.

This is also referred to as a “moving average”.

6 Chapter 3

Menus

DISPLAY SETUP

Display setup menu is where you will setup the desired parameters to be

displayed on the running screen. With a parameter highlighted you can then

use the ON soft key to have it show up on the running screen or select the

OFF soft key to turn off the parameter. Use PRIMARY soft key to have a

parameter show up on the running screen in a larger display. Only one

parameter can be selected as a primary, and up to 2 secondary parameters

can be selected at one time.

SETTINGS

Settings menu is where you can set the general settings. These include

Language, Beeper, Select Units, Time Constant, Contrast, Set Time, Set

Date, Time Format, Date Format, Number Format, Backlight and Auto Off.

Use the gor hsoft keys to scroll through the settings for each option and

use the key to accept settings.

FLOW SET UP

In Flow Setup mode, there are 3 types: Round Duct, Rectangle Duct and

Duct Area. Use the gor hsoft keys to scroll through the types and then

press the key to accept the desired type. To change the value, highlight the

Enter Settings option and press the key.

DATA LOGGING

Measurements

Measurements to be logged are independent of measurements on the

display, and must therefore be selected under DATA LOGGING Æ

Measurements.

Log Mode/Log Settings

You can set Log Mode to Manual or Auto-save.

•Manual mode does not automatically save data, but instead prompts

the user to save a sample.

•In Auto-save mode, the user manually takes samples that are

automatically logged.

•In Cont-key mode, the user starts taking readings and logging by

pressing the key. The instrument will continue taking

measurements until the key is pressed again.

Table des matières

Autres manuels TSI Instruments Instrument de mesure

TSI Instruments

TSI Instruments Alnor Velometer 6000 Series Manuel utilisateur

TSI Instruments

TSI Instruments 3302A Manuel utilisateur

TSI Instruments

TSI Instruments 8495 Manuel d'utilisation

TSI Instruments

TSI Instruments VelociCalc 9555 Instructions de montage

TSI Instruments

TSI Instruments AIRASSURE PM2.5 Manuel d'utilisation et d'entretien

TSI Instruments

TSI Instruments VelociCalc Plus 8384 Manuel d'utilisation

TSI Instruments

TSI Instruments AccuBalance 8370 Manuel d'utilisation

TSI Instruments

TSI Instruments Airflow TA500 Series Manuel d'utilisation

TSI Instruments

TSI Instruments BlueSky 8145 Manuel utilisateur

TSI Instruments

TSI Instruments DustTrak 8520 Instructions d'installation et d'utilisation

TSI Instruments

TSI Instruments 9555 Series Manuel d'utilisation

TSI Instruments

TSI Instruments ALNOR 9880 Manuel utilisateur

TSI Instruments

TSI Instruments 3080 Series Manuel d'utilisation

TSI Instruments

TSI Instruments QUESTemp 32 Manuel utilisateur

TSI Instruments

TSI Instruments 3321 Manuel d'utilisation

TSI Instruments

TSI Instruments AIRASSURE 8144 Manuel utilisateur

TSI Instruments

TSI Instruments SidePak AM520 Manuel utilisateur

TSI Instruments

TSI Instruments VELOCICALC 9515 Manuel d'utilisation

TSI Instruments

TSI Instruments HM685 Manuel utilisateur

TSI Instruments

TSI Instruments ALNOR MicroManometer AXD 550 Manuel utilisateur

TSI Instruments

TSI Instruments AirPro AP500 Manuel utilisateur

TSI Instruments

TSI Instruments 4040 Manuel d'utilisation

TSI Instruments

TSI Instruments 8525 Manuel d'utilisation

TSI Instruments

TSI Instruments IAQ-CALC 7545 Manuel d'utilisation

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
