TRONXY X3A Manuel utilisateur
Step 1 Assemble Base Frame
Parts:
2020 Aluminium profile 375mm –4pcs
Acrylic corner cushion –4pcs
L-Shape connector (with grub screw) –4pcs
M4-10mm screw –12pcs
M4 T-Nut –12pcs
Connect each aluminium profiles using 4pcs L-
Shape connector, then tighten the grub screws.
Mount the 4pcs acrylic corner cushion, secure
them with M4-10mm screw and T-Nut.
Step 2 Placing Z-axis Slide Rail
Parts:
2020 Aluminium profile 440mm –2pcs
Corner bracket –4pcs
M5-25mm screws -2pcs
M4-8mm screws –8pcs
M4 T-Nut –8pcs
Place 2pcs 440mm aluminium profiles on the
base , secure them with M5-25mm screws.
Fix the Z-axis slide rails using 4pcs corner bracket,
secure them with M4-8mm and T-Nuts
Ensure the correct distance.
(Front –248mm , Back –127mm )
Step 3 Assemble Z Motor Bracket
Parts:
42 Motor bracket –2pcs
M4-8mm –4pcs
M4 T-Nut –4pcs
Attach the motor bracket to the bottom of Z slide
rail , both centre lines must be vertical. Then
secure them with M4-8mm screw and T-nuts.
Step 4 Assemble Bed Frame
Parts:
2020 Aluminium profile 415mm –1pcs
Bed frame –1pcs
Wheel –4pcs
Plastic pillar –4pcs
M5-35mm- 4pcs
M5 Nut –4pcs
Secure the wheels in place using M5-35mm
screws and Nut ,using plastic pillar between
wheel and bed frame.
Insert the aluminium profile between the wheels
and add this assembly to the base frame made
previously.
Step 5 Placing Y-axis Slide Rail
Parts:
Corner bracket –2pcs
M4-8mm screw –4pcs
M4 T-Nut –4pcs
Place each end of the Y axis slide rail to the
middle of the base aluminium profiles. Connect
them with corner bracket , next secure it using
M4-8mm screw and T-nut .
The 2pcs corner bracket had been smoothed flat.
different than others.
Step 6 Assemble Y-axis Belt Pulley
Parts:
Belt pulley –1pcs
Y Pulley mount (acrylic) –1pcs
M5-25mm screw –1pcs
M5 Nut –2pcs
M6 washer –2pcs
M5 washer –2pcs
M4-8mm screw –2pcs
M4 T-Nut - 2pcs
Take 1pcs M5-25mm screw and insert the Pulley
mount, secure it with M5 nut , then insert the
washers and belt pulley , secure them using M5
nut.
Secure the Y belt pulley assembly to the front of
the Y slide rail using 2pcs M4-8mm screws and
nuts.
Tighten screws gently to avoid damaging the
acrylic.
Step 7 Assemble Y axis Motor
Parts:
Limit switch –1pcs
42 stepper motor –1pcs
GT2-16 Pulley (with grub screw in it)–1pcs
Y motor mount (Acrylic) –1pcs
M3-6mm screw –4pcs
M4-8mm screw –2pcs
M4 T-Nut - 2pcs
M2-10mm screw –2pcs
M2 Nut –2pcs
Secure the limit switch to motor mount using
2pcs M2-10mm screws and nuts. Then secure
the motor mount to the back of the Y slide rail
using 2pcs M4-8mm screws and T-nuts.
Insert the GT2-16 pulley to the motor shaft,
tighten the grub screw in the pulley. Next Secure
the stepper motor to the motor mount using
4pcs M3-6mm screws.

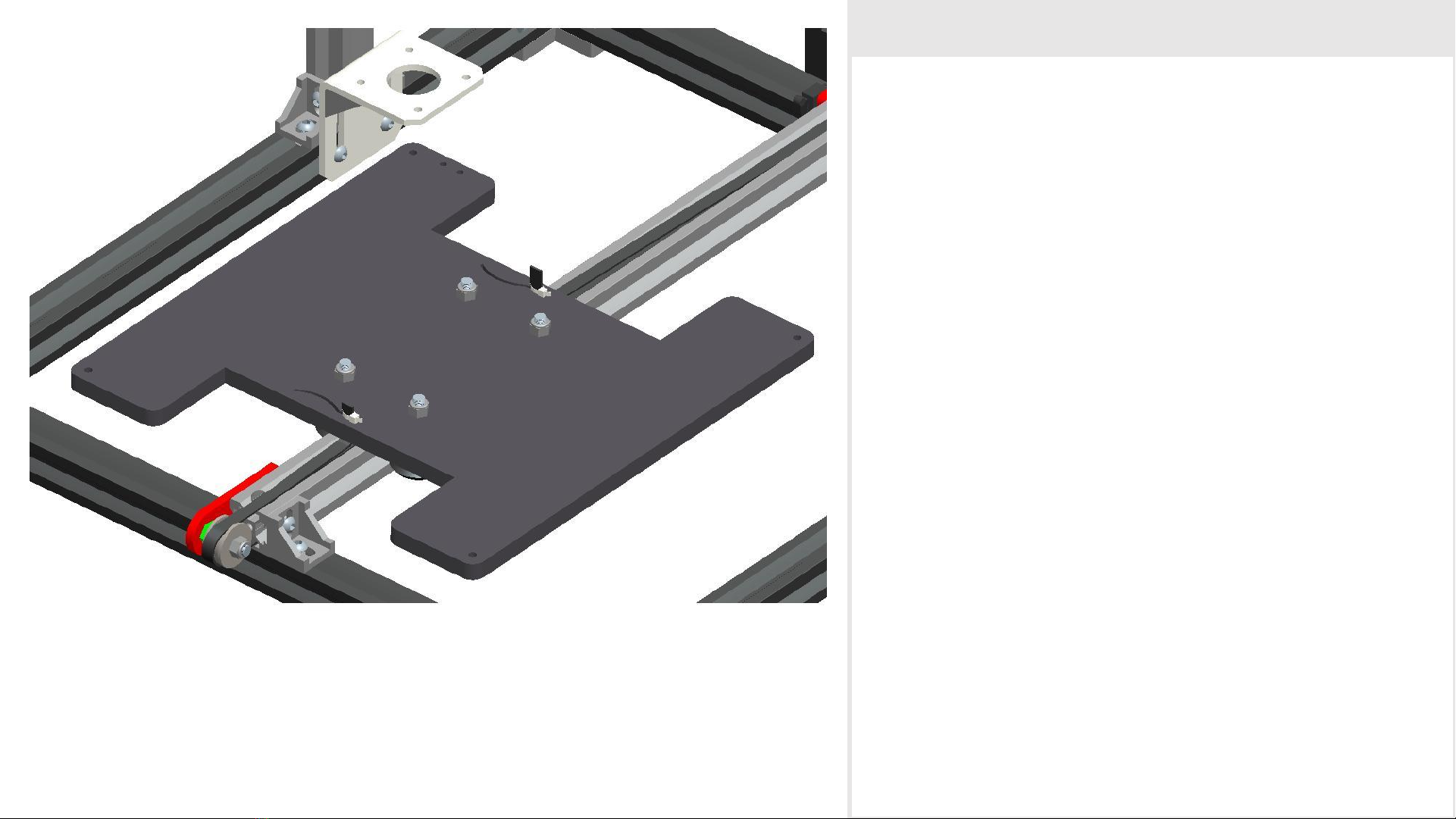

Step 8 Instal Y axis Timing Belt
Parts:
GT2 Timing belt –1pcs
Zip-ties –2pcs
Tighten one end of the timing belt to the bed
frame using a zip-ties .
Run the other end of timing belt along the
aluminium profile, through the Y-GT2-16 Pulley
and Belt pulley . Then tighten it to the bed frame
using zip-ties as shown in the picture .
Step 9 Assemble Z Carriage_Left
Parts:
42 Motor bracket –1pcs
Sliding plate (acrylic) –2pcs
Brass nut –1pcs
Brass nut holder_L –1pcs
Plastic pillar –6pcs
Wheel –3pcs
M5-45mm screw –3pcs
M4-12mm screw –6pcs
M3-16mm screw –2pcs
M5 Nut –3pcs
M4 Nut –6pcs
M3 Nut –2pcs
Assemble the motor bracket and one sliding plate
using 4pcs M4-12mm screws and nuts.
Put the brass nut into the holder_L using 2pcs
M3-16mm screws and nuts, then secure the
holder with one sliding plate using 2pcs M4-
12mm screws and nuts.
Insert 3pcs M5-45mm screws to the sliding plate,
Put the wheels into M5-45mm screws, using
plastic pillars between wheel and acrylic, secure
them using M5 nuts.
Please pay attention to the installing direction.
