TRONXY D01 Manuel utilisateur
Attention
Please check if the all the items are included
in the packing list before installing the
printer . If you have any questions, please
contact customer service.
Please use the machine in a ventilated, dry,
clean and flat environment
The machine contains high speed moving
parts and high temperature parts. Children
are not allowed to use the machine without
permission
Part of the accessories are consumable,
the warranty time is different
Turn off the power in the urgent situation
Do not refit or disassemble the core parts
of the machine without permission
Relevant information is stored in
SD card, please check
Note: Please make sure the voltage is consistent with the
local voltage before printing.If not, please adjust it (110V-
220V）
Directory
1. Machine parameters ………………………… 2
2. Packing list ………………………………… 3
3. Machine details ……………………………… 4
4. Installation ………………………………… 5
5. Wiring connection …………………………… 7
6. Structure debug ……………………………… 8
7. Operation & Print ………………………… 9
8. Failure cause analysis ………………………15
Tronxy FaceBookSupport
1
Service email ：Support@tronxy.com
Print parameters：
Print size ：220*220*220mm
Print accuracy ：0.05-0.3mm
Print principle ：FDM（fused deposition molding）
Nozzle size ：0.4mm
Nozzle quantity ：1
Print speed ：20-150mm/s（advise 60mm/s）
Position accuracy ：X/Y -0.0125mm，Z –0.000625mm
Filaments support ：PLA、ABS
Temp parameters：
Print environment ：8-40℃
Nozzle temp ：275℃（MAX）
Software：
Slicer ：Tronxy、Cura、Simplify3D
Input format ：.stl、.obj
Output format ：.gcode
Connection ：SD card、USB cable
Power supply：AC 110/220V 50/60Hz DC 24V/360W
Machine parameters：
Machine size ：380*400*405mm
Package size ：470*450*310mm
Weight ：≈15kg
1. Machine parameters
2
3
Above frame Base Aluminum Polished rod Screw
Flange linear
bearing
Hotbed
module
Lattice glass TITAN
Extruder
kits
Filament
holder
Filament Filament tube Power line USB cable Shovel
Clips Aluminum
cover
Reader
（
with SD Card
）
Print head Quick
connector
Screws Tools
Notes：Please check the package list after receiving the
printers
If you have any questions, please contact the after-service
team
2、package list
2
Number Name Number Name Number Name
1Above aluminum 8Pint head 15
Flange linear
bearing
2X axis motor 9Y axis motor 16 Coupling
33030R aluminum 10 Hotbed 17 Filament holder
4Base 11 Hand screw nut 18 Filament
sensor
5
110V-220V
Trasfer switch
12 3.5 inches touch screen 19 TITAN Extruder Module
6Power switch 13 polished rod
7Filament tube 14 Screw
1
3
4
5
6
7
8
9
11
12
10
16
17
18 14
15
13
4
19
3、Machine Structure

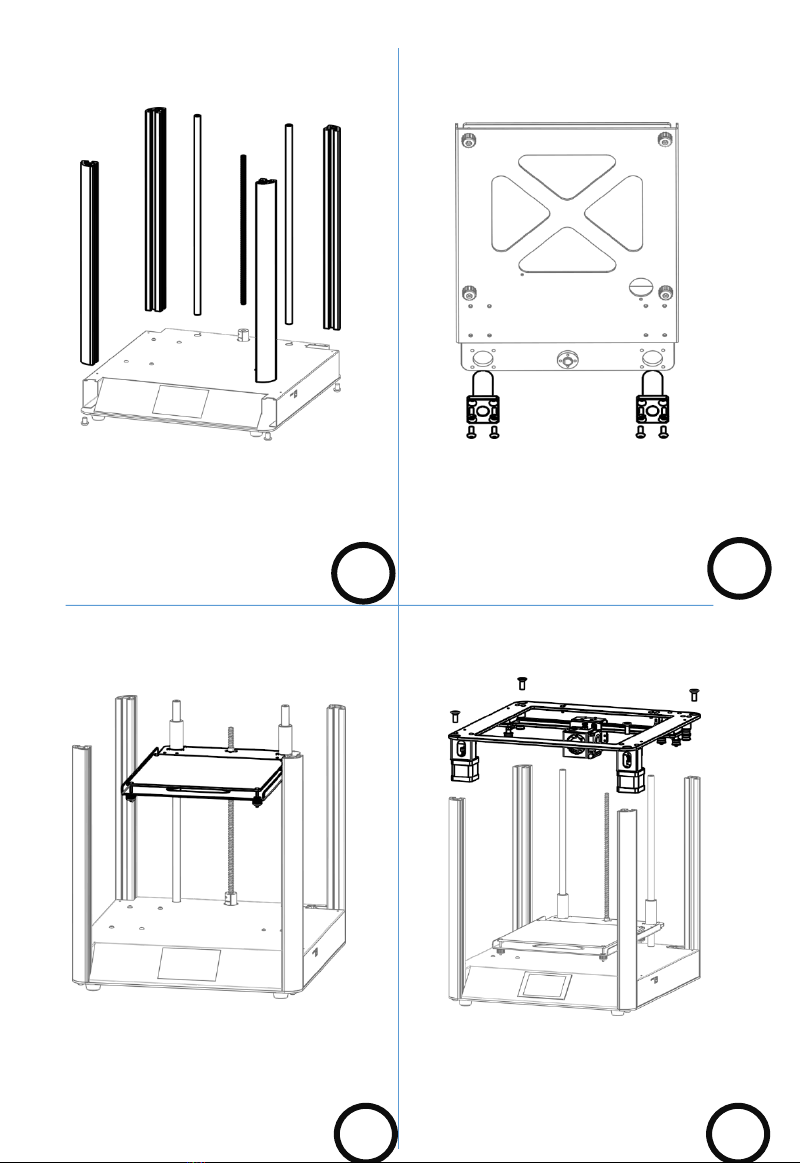

4、Installation steps
1
5
2
3 4
Install base . aluminum 、
polished rod 、screws Install flange linear bearing
Install hotbed module Install above frame
1、Firm the base and Aluminum using the
four HM8*10 screws
2、Firm the base and polished rod using
two KM4*12 screws
3、Please loose the coupling screws then
insert the screws ,finally, close the
coupling
1、Using four HM4*8 screws to install the
Flange bearing into the hotbed module
1、Slide the flange linear bearing to the
polished rod and slide it slowly
2, Manually rotate the lead screw, let the
brass nut slide into the lead screw
1、Using four KM8*16 screws to firm
the above frame and aluminum
2、Using two KM4*12 nscrews to forn
the polished rod and Aluminum
5
6
6
Install filament
holder
Install the filament pipe
Install TITAN Extruder
module
7
1、Install the TITAN extruder module into
the above frame using the two
KM3*8 screws
1、Firm the filament holder into the base
using the two HM4*8 screws
1、Connect the filament guide tube into the
filament pipe of the print head and connect
the other side of it into the Titan extruder
filament pipe
Note : The print head filament guide tube
must be inserted all to the end totally .
Otherwise it will cause nozzle colgged.
Then we finished the installation. If the
instruction is not so clear , please
watch the install video or contact the
after –service team .
5、Wiring diagram
7
Power 110V-220V transfer
switch
16P Transfer cable
Filament sensor
E motor cable
Z axis limit switch
X axis motor cable
Y axis motor wores
Hotbed lines and thermistor
wire
Y axis limit switch
Note：The X and Y axis wires are inserted into
aluminum and sealed them using the profile cover .
Use the cable tie to tie the 16P transfer cable and
the guide tube, The rest can be firmed on the
TITAN extruder mounting plate with a tie.
6、Structure adjustment
Slide the print heat to check if the movement is smooth 。Check if
the belt is loose , if yes , tighten it and locking the screws . If the
whole frame is loose we can tighten the screws directly . Make sure
the printer is in a stable situation when beginning printing.
8
