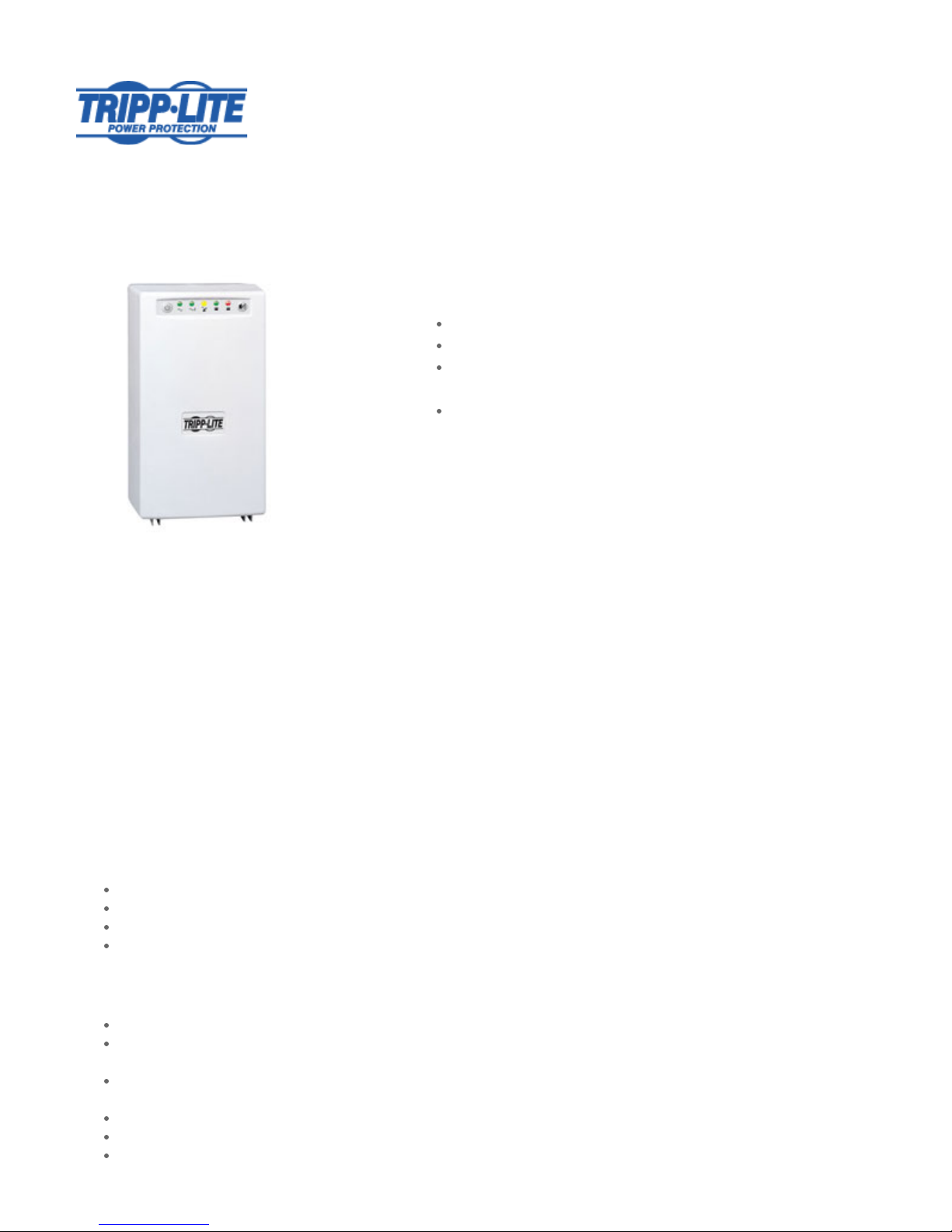

Model #: SMX700HG

SmartPro Medical Grade .7kVA 230V Line interactive Tower UPS, full isolation, USB & Serial ports

Highlights

700VA line interactive tower UPS

Maintains 230V nominal output over an input range of 155 to 274V

Professional features include serial port, USB port, IEC320 plug & outlets,

built-in isolation transformer

Input: IEC320 C14 (230V 3.6A) / Output: 6 IEC320 C13 (230V)

Description

Tripp Lite's SMX700HG offers medical-grade UPS protection with built-in line interactive voltage regulation, intelligent monitoring and unattended

shutdown capability. Tested to CE/IEC 60601-1 as medical electrical equipment. Built-in isolation transformer with Faraday shield removes common

mode noise while maintaining full AC surge suppression in all modes. Resistant to electrostatic discharge. Includes high quality hospital-grade plug

and outlets. 700VA power handling capacity supports computers, inter-networking equipment and other critical loads during commercial power

failures. Line interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274 back to normal 230V levels, saving

battery reserves for use only during complete power failures. Includes 6 outlets, diagnostic LEDs and built-in USB & RS-232 communications ports

that work with downloadable PowerAlert Software and cabling to provide automatic unattended shutdown of connected network and PC applications.

Applications

Tested to CE/IEC 60601-1. UPS provides ultimate safety and reliability for patient point of care solutions, telemedicine, nurse's stations, wireless

communications systems, electronic prescribing applications, medical imaging and mission critical equipment. Not recommended for life support

applications.

Package Includes

SMX700HG Medical Grade UPS System

One USB and One DB9 monitoring cable

Warranty information

Instruction manual

Features

Ideal UPS protection for applications in medical patient-care areas where UL 60601-1 listed medical electrical equipment is required

Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge

suppression in all modes

Line-interactive voltage regulation corrects brownouts and overvoltages from 155 to 274 volts back to usable 230V output levels, without

using battery power

Hospital-grade plug and outlets offer added degree of safety and reliability to input/output connections

Full line isolation offers a higher degree of safety and prevents operational problems in sensitive electronic equipment

Resistant to electrostatic discharge

Supports loads up to 700VA/450 watts

36 minutes half load runtime (with 350VA load), 14.5 minutes full load runtime (with 700VA load)

6 protected hospital-grade outlets; IEC C14 inlet on 6-inch dongle

RS-232 and USB monitoring ports for remote monitoring and unattended shutdown

PowerAlert unattended shutdown software available via free download from www.tripplite.com (cabling included)

Complete surge protection, line isolation and EMI/RFI noise filtering

5 diagnostic LEDs indicate AC present, on battery, voltage correction, overload & battery low/replace

Battery replacement door

Grounding lug

Specifications

OUTPUT

Output Volt Amp

Capacity (VA)

700

Output Watt Capacity

(watts)

450

Nominal Output

Voltage(s) Supported

230V

Frequency

compatibility

50/60 Hz (auto-selectable)

Output voltage

regulation (line mode)

-18%, +8%

Built-in UPS output

receptacles

6 C13 outlet(s)

INPUT

Rated input current (at

maximum load)

3.6A

Nominal Input

Voltage(s) Supported

230V AC

UPS input connection

type

C14 inlet

UPS Input cord length

(ft.)

6 inch dongle., 16 gauge

UPS Input cord length

(m)

1.83

Recommended

Electrical Service

10A 230V

Voltage compatibility

(VAC)

230

BATTERY

Full load runtime

(minutes)

14.5 min. (450w)

Half load runtime

(minutes)

36 min. (225w)

DC system voltage

(VDC)

Battery recharge rate

(included batteries)

Less than 3.6 hours from 10% to 90%

Replacement battery

cartridge (internal

UPS battery

replacement)

RBC53

Battery Access Battery access door allows hot swap battery replacement without powering connected equipment off

Typical battery

lifespan

3-6 years, depending on usage

VOLTAGE REGULATION

Voltage regulation

description

Line interactive UPS offers 2 boost levels of brownout correction and a single level of overvoltage adjustment to

maintain usable, computer grade output without consuming battery power over an input voltage range of 155 to

274V AC

Overvoltage correction Input voltages between 206 and 245V AC are reduced by 9%

Undervoltage

correction

Input voltages between 183 and 199 are boosted by 10%

Severe undervoltage

correction

Input voltages between 155 and 182 are boosted by 21%

Direct pass through Input voltages between 200 and 244V AC are passed through unchanged

LEDS ALARMS & SWITCHES

LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Alarms 3 function audible alarm indicates power failure conditions (4 short beeps every 10 seconds), overload (continuous

short beeps) and low battery (continuous tone)

Switches Yes, includes 2 front panel mounted push-button switches for system enable, self-test and alarm cancel functions

SURGE / NOISE SUPPRESSION

UPS AC suppression

joule rating

340 joules

EMI / RFI AC noise

suppression

Yes

AC suppression

response time

Instantaneous

PHYSICAL

Installation form

factors supported with

included accessories

Tower

Installation form

factors supported with

optional accessories

Wallmount (UPSWM - tower mounting kit)

UPS / Power Module

dimensions in primary

form factor (height x

width x depth / inches)

12.8 x 7.5 x 9

UPS / Power Module

dimensions in primary

form factor (height x

width x depth / cm)

32.5 x 19 x 22.9

UPS / Power Module

weight (lbs)

42.1

UPS / Power Module

weight (kg)

19.1

UPS Shipping

dimensions (height x

width x depth / inches)

18.5 x 12.2 x 13.4

UPS Shipping

dimensions (height x

width x depth / cm)

47 x 31 x 34

Shipping weight (lbs) 45.4

Shipping weight (kg) 20.4

UPS housing material PVC

Cooling method Cooling via rear-exit cooling fan

ENVIRONMENTAL

Operating

Temperature Range

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature

Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr.

(full load)

208.6

Battery mode BTU /

hr. (full load)

189.1

COMMUNICATIONS

Communications

interface

USB; DB9 Serial

Software and cabling

included

PowerAlert UPS monitoring software is available via free download from www.tripplite.com for all common network

and standalone operating systems. Ships with 2 cables, 1-USB to USB & 1-DB9 to DB9

LINE / BATTERY TRANSFER

Transfer time 5 milliseconds

Low voltage transfer

to battery power

(setpoint)

155

High voltage transfer

to battery power

(setpoint)

274

SPECIAL FEATURES

Cold Start (startup in

battery mode during a

power failure)

Cold-start operation supported

Appearance Attractive gray tower UPS

CERTIFICATIONS

Certifications Tested to CE/IEC 60601-1, FCC Class B (Emissions)

WARRANTY

Product Warranty

Period (International)

2-year limited warranty

Product Warranty

Period (Mexico)

2-year limited warranty

Product Warranty

Period (Puerto Rico)

2-year limited warranty

More information, including related products, owner's manuals, and additional technical specifications, can be found online at

www.tripplite.com/en/products/model.cfm?txtModelID=4028.
