Tripp Lite SmartOnline Single-Phase 10kVA Manuel utilisateur

Owner’s Manual

1111 W. 35th Street • Chicago, IL 60609 USA

Customer Support: (773) 869-1234 • Application Services: (773) 869-1236 • www.tripplite.com

SmartOnline™

Single-Phase 7.5kVA & 10kVA

Intelligent True On-Line UPS Systems (Rackmount/Tower)

• Includes power module, external battery module and PDU

• Detachable PDU features outlets and maintenance bypass switch* • Rackmount and tower adaptable

*An optional detachable hardwire PDU is available; contact Tripp Lite for details.

Not suitable for mobile applications.

Important Safety Warnings

Mounting

Connection

Features

Operation

Storage and Service

Warranty and Warranty Registration

Español/Français

16/32

Optional Connection 9

Manual Bypass Operation 10

WARRANTY

REGISTRATION:

chance to win a FREE Tripp Lite

product—www.tripplite.com/warranty

Important Safety Warnings

SAVE THESE INSTRUCTIONS. This manual contains important instructions and warnings that should be followed during the installation and

maintenance of all Tripp Lite SmartOnline Rackmount/Tower UPS Systems and their batteries.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, direct sunlight, dust and conductive contaminants.

• Install your UPS in a structurally sound area. Your UPS is extremely heavy; take care when moving and lifting the unit.

• Only operate your UPS at indoor temperatures between 32° F and 104° F (between 0° C and 40° C). For best results, keep indoor

temperatures between 62° F and 84° F (between 17° C and 29° C).

• Leave adequate space around all sides of the UPS for proper ventilation.

• Do not install the UPS near magnetic storage media, as this may result in data corruption.

UPS Connection Warnings

• The power supply for this unit must be single-phase rated in accordance with the equipment nameplate. It also must be suitably grounded.

Equipment Connection Warnings

• Do not use Tripp Lite UPS Systems in life support applications in which a malfunction or failure of a Tripp Lite UPS System could

cause failure or significantly alter the performance of a life support device.

• Connect your UPS power module’s grounding terminal to a grounding electrode conductor.

• The UPS is connected to a DC energy source (battery). The output terminals may be live when the UPS is not connected to an AC supply.

Maintenance Warnings

• Your UPS power module and battery module(s) do not require routine maintenance. Do not open them for any reason. There are no

user-serviceable parts inside.

Battery Warnings

• Do not operate your UPS without connecting it to an external battery module.

• Connect only Tripp Lite battery modules to your UPS power module’s external battery connector.

• Batteries can present a risk of electrical shock and burn from high short-circuit current. Observe proper precautions. Unplug and turn

off the UPS and disconnect the battery module from the UPS before performing battery replacement. Use tools with insulated

handles. Battery replacement should only be performed by authorized service personnel using the same number and type of batteries

(Sealed Lead-Acid). Do not open the UPS or batteries; there are no user-serviceable parts inside. Do not short or bridge the battery

terminals with any object. CAUTION: Do not dispose of batteries in a fire, as this could cause them to explode. The batteries in your

battery module are recyclable; refer to local codes for disposal requirements. In the USA call 1-800-SAV-LEAD (1-800-728-5323),

1-800-8-BATTERY (1-800-822-8837), or visit www.rbrc.com for complete recycling information.

• Do not open or mutilate the batteries. Released electrolyte is harmful to the skin and eyes, and may be toxic.

• Fuses should be replaced only by factory authorized personnel. Blown fuses should be replaced only with fuses of the same number

and type.

• Service and repair should be done only by trained personnel. During any service work to the UPS, it should be turned off or manually

bypassed via the transformer. Note that potentially lethal voltages exist within this unit as long as the battery supply

is connected.

• Do not connect or disconnect battery module(s) while the UPS is operating from the battery supply or when the detachable PDU is

not in bypass mode.

• During “hot-swap” battery module replacement your UPS will be unable to provide battery backup in the event of a blackout.

Mounting (Rack)

4-Post Mounting

Connect the two segments of each shelf using the included attached screws and

wing nuts . Leave the screws slightly loose so that the shelves can be adjusted in

the next step.

Adjust each shelf to fit your rack, then mount them in the lowest available space

of your rack with the screws, nuts and washers provided . Note that the support

ledges should face inward. Tighten the wingnuts that connect the shelf segments .

Attach mounting ears to the front mounting holes of your equipment using

the screws provided . The ears should face forward.

Using an assistant, lift your equipment and slide it onto the mounting shelves.

Attach your equipment to the rack by passing the screws, nuts and washers

(user-provided) through its mounting ears and into the rack rails.

To mount your equipment in a 2-post rack, you must purchase a Tripp Lite 2-Post

Rackmount Installation Kit (model: 2POSTRMKIT, sold separately) for each module

installed. See the Installation Kit's owner's manual for complete mounting instructions.

Mount your equipment in either a 4-post or 2-post rack or rack enclosure.The user must determine the fitness of hardware and procedures

before mounting. If hardware and procedures are not suitable for your application, contact the manufacturer of your rack or rack enclosure.

The procedures described in this manual are for common rack and rack enclosure types and may not be appropriate for all applications.

Note: The power module and battery module must be installed in separate shelves.

2-Post (Telecom) Mounting

Mounting (Tower)

The UPS system is shipped with two sets of plastic feet and extensions that

can be used to tower mount the UPS’s power module, a battery module and a second

battery module (9U total).

Adjust the feet to a width of 10.25 inches (26 cm) for a UPS power module and

battery module, or to a width of 15.375 inches (39 cm) for three units. Align the feet

in your installation area, approximately 10 inches (26 cm) apart. Have one or more

assistants help you place the units on their sides in the feet. The control panel of

the UPS should be the UPS’s upper corner and face outward.

Rotate the power module’s Control Panel to view it easier while the UPS is tower

mounted. Insert a small screwdriver, or other tool, in the slots on either side of the

Control Panel. Pop the panel out; rotate it; and pop the panel back into place.

Mount all modules in an upright, tower position using included base stands. The user must determine the fitness of hardware and procedures

before mounting.

Features

Before installing and operating your UPS, familiarize yourself with the location and function of the features of each component.

Power Module Front Panel Controls

1. LCD DISPLAY: This backlit (16 × 2 character) dot matrix display indicates a wide range of UPS operating conditions and diagnostic

data. It also displays UPS settings and options when the UPS is in setup mode.

2. ON/MUTE BUTTON: Press this button and hold it until you hear a beep to turn the UPS system’s inverter ON. If the UPS’s battery

alarm is sounding, press this button to silence it.

3. SCROLL DOWN/EXIT SETUP BUTTON: This button allows you to browse through different options and power readings on the

LCD display. Momentarily pressing it causes the LCD screen to display a different power reading (see “Operation”, pg. 12). Pressing it

and the SCROLL UP Button together puts the UPS in setup mode, where this button is used to scroll through setup options and to exit

setup mode.

4. SCROLL UP/SELECT BUTTON: This button allows you to browse through different options and power readings on the LCD dis-

play. Momentarily pressing it causes the LCD screen to display a different power reading (see “Operation”, pg. 12). Pressing it and the

SCROLL DOWN Button together puts the UPS in setup mode, where this button is used to select setup options.

5. OFF BUTTON: Press this button until you hear a beep to turn the UPS system’s inverter OFF.

6. O/P (OUTPUT) LED: This green light will illuminate to indicate your UPS is supplying AC power to connected equipment.

7. DC/AC (INVERTER) LED: This green light will illuminate to indicate the UPS’s DC/AC inverter is activated.

8. BYPASS LED: This green light will illuminate when the UPS is providing filtered mains power without engaging its converter or

inverter. If this LED is lit, connected equipment will not receive battery power in the event of a blackout.

9. AC/DC (Converter) LED: This green light will illuminate to indicate the UPS’s AC/DC converter is charging the connected battery pack(s).

10. BATTERY LED: This red light will illuminate when the UPS is discharging the battery to provide connected equipment with AC

power. An alarm will sound which can be silenced by pressing the ON/MUTE Button. This LED will remain lit after the alarm is

silenced.

11. I/P (INPUT) LED: This green light will illuminate to indicate an AC input supply is present.

12. ACCESS SLOTS: To rotate the controls, insert a flathead screwdriver into these slots and gently lever the panel out. Taking care not

to excessively twist or yank the cables connecting the controls to the rest of the UPS, turn the controls to the desired orientation and

reinsert them.

2345

6879

12 12

Features (Rear Panel)

see page 7 for feature descriptions

Power Module 1

567

Battery Module

Detachable Power Distribution Unit

Front Rear Left Side

Features (Rear Panel)

continued

Power Module Feature Description

1. Input Terminal Block: Use these terminals to connect your power module to the detachable PDU.

2. External Battery Connector: Use this to connect one or more Tripp Lite battery modules to the power module. Remove the cover for

access. The power module will not start without a connection to a charged battery module. Refer to the battery module owner’s manual

for connection instructions and safety warnings.

3. Exhaust Fan: This cools and ventilates the inside of the power module.

4. Accessory Slot: Remove the small cover panel to install optional accessories to remotely control and monitor your UPS system. Visit

Tripp Lite on the Web (www.tripplite.com) to learn about available SNMP, network management and connectivity products that may be

installed in this slot.

5. EPO (Emergency Power Off) Port: Used to connect the power module to a contact closure switch to enable emergency power off. See

“Optional Connection” section for details.

6. RS-232 Communication Port: This female DB9 serial port may be used to connect your UPS to a workstation or server. It uses RS-232

protocol to communicate with a connected computer. It is used with Tripp Lite software and the included serial cable to monitor and

manage the UPS remotely over a network and to automatically save open files and shut down equipment during a blackout. See

“Optional Connection” for details.

7. Dry Contact Interface Port: This female DB9 port sends contact-closure signals to indicate line-fail and low-battery status. See

“Optional Connection” for details.

Detachable Power Distribution Unit Feature Description

8. AC Output Receptacles: Accept direct plug-in connection of NEMA L6-30P or NEMA L6-20P equipment plugs.

9. AC Output Breakers: Control output power to the PDU's AC output receptacles.

10.Maintenance Bypass Switch: Permits qualified service personnel to remove the PDU from the power module for routine maintenance

without disrupting power to the load. When this switch is set to BYPASS the load will receive unfiltered AC utility power and no

battery backup power will be available in the event of a blackout. See the “Manual Bypass Operation” section for detailed manual bypass

procedures.

WARNING! For qualified service personnel only. If the complete bypass procedure (see “Manual Bypass Operation,” p. 10) is

not followed, the UPS will not be adequately powered down, presenting a risk of death or serious injury from contact with high

voltage.

11. Utility Input Terminal Block: Use these terminals to connect the PDU to utility power. To access the terminals, unscrew and remove

the terminal block cover.

12.Power Module Input Terminal Box: Use these terminals to connect the PDU to the Power Module.

13.Sliding Cover for Power Module Input Terminals: Slide this cover over the terminals after detaching the PDU from the Power

Module during manual Bypass Operation (p. 10).

14. Input Terminal Block Cable Access: Located on the left side of the PDU.

Battery Module Feature Description

15. Input Connector: Use this connector to daisy chain additional battery modules onto the first. Remove the cover panel for access. Refer

to the battery module owner’s manual for connection instructions and safety warnings.

16. Output Cable: Use this cable to connect the battery module to the power module or to another battery module. The power module will

not start without a connection to a charged battery module. Refer to the battery module owner’s manual for connection instructions and

safety warnings.

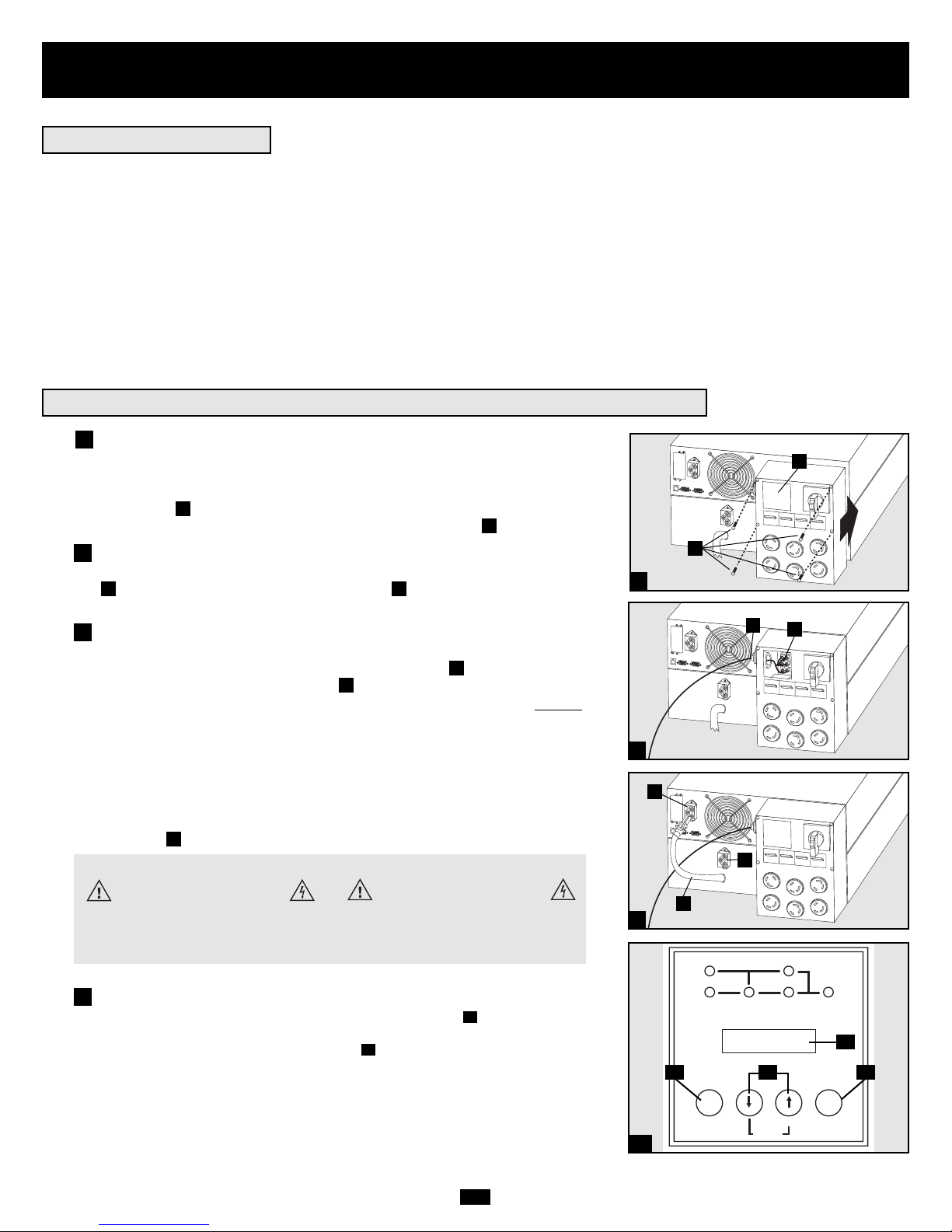

Attach the PDU to the Power Module and Battery

Module.

Align and connect the PDU's power module input terminals with the terminals

on the back of the Power Module. Secure the PDU to the Power Module with

four screws . Before proceeding further, ensure that the Bypass Switch is set

to NORMAL. Remove the utility input terminal block cover .

Hardwire the PDU to a Utility Power Source.

Pass a user-supplied cable through the knockout on the left side of the PDU

and connect it to the PDU's input terminals . Replace the terminal block

cover. Connect the other end of the cable to a utility power source.

Connect the battery module to the power module.

Consult the owner’s manual that came with your battery module. Fully insert

the connector on the end of the battery module’s cable into the connector

on the rear panel of the power module . Small sparks may occur; this is nor-

mal. NOTE: the power module does not contain internal batteries and will not

start until a battery module is connected. The battery modules are fully charged

prior to shipping. However, before expecting full backup capability (particularly

if the battery module has been stored for an extended period) after the UPS system

is connected to a utility power source, allow the battery module to recharge for

12 hours. Once the UPS system is in use, it will charge the batteries and maintain

the charge level automatically. If needed, connect additional battery modules

in a daisy-chain with each module’s cable inserted into the previous module’s

connector .

Connection

• Wiring must be done by a qualified electrician.

• When making wiring connections, observe the cable connection regulations appropriate to your area [e.g. National Electrical Code (NEC)

in the U.S.] at all times. Be sure to install an easily accessible disconnect switch in your installation wiring so you may cut off the UPS’s

AC input during fires and other emergencies. Ensure that cables are fitted with cable sleeves and are secured by connector clamps.

Tighten connections with a torque of not less than 24-28 inch-pounds (2.7-3.2 NM).

• Make sure that your equipment is properly grounded.

• Using cables of improper size may damage your equipment and cause fire hazards. Choose appropriate cabling and protection circuits to

make wiring connections. Ground conductors must be the same size and type as the power conductors used.

• See the product case for input and output ratings and refer to National Electrical Code (NEC) guidelines for proper wire gauge and

output protection circuit requirements.

Connecting Modules to Each Other and to Utility Power and Equipment

Hardwiring Cautions

Contacts on Power/Battery Module

WARNING! High Voltage!

Risk of electrical shock!

Due to the presence of high voltage internal

batteries, even without AC present, these

contacts are live!

Do not let these contacts touch any surface!

Contacts on Detachable PDU

WARNING! High voltage!

Risk of electrical shock!

If AC is present and Bypass Switch is set to

"Bypass", these contacts are live!

Do not let these contacts touch any surface!

I/P BYPASS

BATTERY AC/DC DC/AC O/P

OFFON

MUTE SELECT

SETUP

Power ON

Turn UPS inverter ON: Press the UPS's “ON” Button until you hear a

beep to begin inverter operation. Your UPS will perform a brief self-test and

show the results on the LCD Display . See “Startup Self-Test” in the

“Operation” section for the display sequence.

Cold Start (optional): To use your UPS as a stand-alone power source when

AC input power is unavailable (i.e. during a blackout), you can “cold start”

your UPS and power connected equipment from the UPS's battery. Your UPS's

battery must be at least partially charged for this operation to succeed. Press

and hold the “ON” Button until you hear a beep to cold start your UPS. The

LCD Display will show ON BATTERY MODE. Battery power will begin

discharging. Some electronic equipment may draw more amps during startup;

when cold starting, consider reducing the initial load on the UPS.

Configure UPS output: Put the UPS into bypass mode by holding the OFF

button down until the UPS beeps, then put the UPS into setup mode by

holding down both of its scroll buttons at once. Scroll through the setup

options and select the appropriate setting for each of the following options.

Output Voltage: Select 200, 208, 220, 230 or 240V AC.

Output Frequency: The UPS will automatically select 50 or 60 Hz to match

the input.

Economy Mode: The UPS can provide true on-line operation with zero trans-

fer time. It can also operate in a more energy-efficient line-interactive mode.

Select “Economy On” to put the UPS in line-interactive mode. Select

“Economy Off” to put the UPS in on-line mode. After setting these options,

exit the setup mode with the scroll buttons , then exit bypass mode by hold-

ing the ON button down until the UPS beeps.

Turn UPS output power ON: Press the ON button until the UPS beeps.

Turn the UPS Output Circuit Breakers ON. (The UPS Output Circuit

Breakers are located on the detachable PDU .) Turn the Manual Bypass

Switch from BYPASS to NORMAL. The UPS will now provide output

power through its AC outlets to connected equipment.

Power OFF (optional)

Turn UPS inverter OFF: Press the UPS's “OFF” Button until you hear a

beep. Your load will still be energized. The inverter is now off, but your UPS

is not fully deactivated. The LCD Display will show BYPASS MODE

Turn UPS output power OFF: Turn off the Output Circuit Breakers locat-

ed on the detachable PDU . Your load will no longer be energized, and the

LCD Display will be dark.

Connection

continued

Plug Your Equipment into the PDU's Outlets.

Your UPS is designed to support electronic equipment only. You will overload

your UPS if the total VA rating for all the equipment you connect exceeds the

UPS's output capacity. Do not connect household appliances or laser printers

to the UPS's outlets. To find your equipment's VA ratings, look on their name-

plates. If the equipment is listed in amps, multiply the number of amps by the

input voltage (240V, 208V or 120V) to determine VA. (Example: 1 amp × 120 =

120 VA).

Optional Connection

The following connections are optional. Your UPS system will function properly

without these connections.

RS-232 Serial Communication Connection

Use the included cable to connect the power module's RS-232 port to

the communication port on your computer. This will allow full network

monitoring and control of your UPS system. Install on your computer the

Tripp Lite PowerAlert Software appropriate to your computer's operating

system.

Note: RS-232 serial communications are unavailable for PowerAlert Software

monitoring while the SNMP/WEB Card is installed in the UPS system's accessory slot.

Removing the SNMP/WEB Card from the accessory slot will restore the availability of

RS-232 serial communications for PowerAlert Software monitoring.

1a/1b

I/P BYPASS

BATTERY AC/DC DC/AC O/P

OFFON

MUTE SELECT

SETUP

Manual Bypass Operation(for power module maintenance or replacement)

The UPS system includes a self-contained power/battery module along with an independ-

ent, detachable PDU with a bypass switch. This switch allows qualified service personnel

to remove the detachable PDU from the power/battery module for routine maintenance

without disrupting power to connected loads. While this switch is set to “BYPASS”, con-

nected equipment will receive unfiltered AC utility power, but the equipment will not

receive battery power in the event of a blackout.

Note: If desired, an optional hardwire detachable PDU is also available separately from

Tripp Lite. Contact Tripp Lite for details.

WARNING! For qualified service personnel only. Failure to follow the bypass proce-

dure completely will not adequately power down the UPS power/battery module,

resulting in the continued risk of death or injury from potential contact with high

voltage. The UPS's power/battery module and detachable PDU are extremely heavy.

This procedure requires several people to perform.

Step 2

UPS Power/Battery Module Removal

STEP 1. Disable PowerAlert Software and disconnect communication cables from the

communication ports on the UPS power/battery module.

STEP 2. Press UPS's “OFF” Button , if the UPS is powered, until you hear a beep and

see a “BYPASS MODE” message shown in the LCD Display .

STEP 3. Turn the detachable PDU's Bypass Switch to “BYPASS”.

STEP 4. If an external battery module is connected to the UPS , disconnect it from the UPS.

The UPS power/battery module is now safely powered down and it can be detached

from the PDU to perform maintenance/replacement.

Steps 1, 3 & 4

Contact-Closure Communication Connection

Use a user-supplied contact-closure DB9 cable to connect the power module's

Dry-Contact port to the communication port on your computer or other equipment.

This will allow basic contact-closure signals to be sent to and from the UPS. Refer

to diagram and table to determine the signals carried by this port. Install on

your computer the Tripp Lite PowerAlert Software appropriate to your computer's

operating system.

EPO Port Connection

This optional feature is only for those applications which require connection to a

facility’s Emergency Power Off (EPO) circuit. When the power module is con-

nected to this circuit, it enables emergency shutdown of the output. Using the

included cable , connect the power module’s EPO port to a user-supplied remote

switch. The pin assignments for the EPO port are shown in diagram . Note: if

there is a short between pins 2 and 3, 2 and 5, 4 and 5, or 3 and 4, the UPS system

will power off.

Internal SNMP/WEB Card Insertion

Remove the small cover panel from the accessory slot to use optional accessories

to remotely monitor and control your UPS. Contact Tripp Lite Customer Support

at (773) 869-1234 for more information, including a list of available SNMP, net-

work management and connectivity products.

1d1c

12V



EPO PIN ASSIGNMENT

12 V

>2 sec



54321

9876



COM NC

lm in. > 3.3 mA

BACK-UP REMOTE SHUTDOWN SIGNAL

FROM EXTERNAL

SIGNAL FROM COMPUTER

COM NC

LOW BATTERY

MAXIMUM CAPACITY OF DRY CONTACT: AC250V/3A • DC30V/3A

DRY CONTACT INTERFACE DIAGRAM

UPS

Operating

Mode Pin 8,3 Pin 1,3 Pin 6,3

Normal OPEN OPEN *

Back Up CLOSE * *

Low Battery CLOSE CLOSE *

Fault * * CLOSE

* Inactive: may be in either state

DRY CONTACT INTERFACE TABLE

1c 1d

Optional Connection

continued

Note: RS-232 serial communications are unavailable for PowerAlert Software monitoring while the SNMP/WEB Card is installed in the UPS system's accessory

slot. Removing the SNMP/WEB Card from the accessory slot will restore the availability of RS-232 serial communications for PowerAlert Software monitoring.

Autres manuels pour SmartOnline Single-Phase 10kVA

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Tripp Lite UPS

Tripp Lite

Tripp Lite POS500 Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU2200RMNAFTA Manuel utilisateur

Tripp Lite

Tripp Lite OMNIVSX850 Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU5000RT4UTF Guide de configuration

Tripp Lite

Tripp Lite SmartPro Rackmount SMX500RT1U Guide de configuration

Tripp Lite

Tripp Lite SmartPro 2200XLT Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU5000RT3UHV Manuel utilisateur

Tripp Lite

Tripp Lite UPS System AVRX550U Manuel utilisateur

Tripp Lite

Tripp Lite RBC36-SLT Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro 3U Rackmount Manuel utilisateur

Tripp Lite

Tripp Lite BCINTERNET500 Manuel utilisateur

Tripp Lite

Tripp Lite INTERNETX525 Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SLT SMX750SLT Manuel utilisateur

Tripp Lite

Tripp Lite SMART1500LCDXL Manuel utilisateur

Tripp Lite

Tripp Lite OmniSmart Instructions d'installation et d'utilisation

Tripp Lite

Tripp Lite SmartPro SMART700SER Manuel utilisateur

Tripp Lite

Tripp Lite I Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline 220/230/240V Input/Output Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro VS SMART2200VSXL Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline 3-Phase UPS Systems SU20KX Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro AG-03AD Series Manuel utilisateur

Tripp Lite

Tripp Lite RBC5A Manuel utilisateur

Tripp Lite

Tripp Lite Internet Office INTERNET350SER Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU1000RTXL2U Guide de configuration

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
