Tripp Lite ECO350UPS Manuel utilisateur

UPS Systems

Models:

ECO350UPS, ECO550UPS, ECO650UPSM, ECO750UPS,

ECO850LCD, ECO900LCDU2, ECO900UPSM

(Series Number: AG-0306, AG-0310, AG-0313, AG-0315,

AG-0316, AG-0318, AG-0319)

Owner’s Manual

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an

ISOBAR6ULTRA surge protector—

a $100 value!

www.tripplite.com/warranty

Español 21 • Français 41

18-10-462-9338D5.indb 1 1/2/2019 4:16:47 PM

Table of Contents

Important Safety Instructions 3

Quick Installation (All Models) 5

Basic Operation for Models with an LED Interface 8

(ECO350UPS, ECO550UPS, ECO650UPSM, ECO750UPS, ECO900UPSM)

Basic Operation for Models with an LCD Panel 11

(ECO850LCD, ECO900LCDU2)

UPS Features 15

Battery Replacement 17

Storage and Service 18

Product Registration 19

Regulatory Compliance 19

18-10-462-9338D5.indb 2 1/2/2019 4:16:47 PM

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during the

installation, maintenance and storage of the UPS and batteries. Failure to heed

these warnings may affect the warranty.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, conductive contaminants, dust

or direct sunlight.

• For best performance, keep the indoor temperature between 32º F and 104º F

(0º C and 40º C).

• Leave adequate space around all sides of the UPS for proper ventilation.

• Optional mounting: The UPS may be securely mounted in a horizontal or vertical position.

To mount, use two screws (not provided) to secure the UPS rear keyholes to a ﬂat surface.

UPS Connection Warnings

• Connect your UPS directly to a properly-grounded AC power outlet. Do not plug the UPS into

itself; this will damage the UPS.

• Do not modify the UPS plug, and do not use an adapter that would eliminate the UPS

ground connection.

• Do not use extension cords to connect the UPS to an AC outlet.

• If the UPS receives power from a motor-powered AC generator, the generator must provide

clean, ﬁltered, computer-grade output.

• The mains socket outlet that supplies the UPS should be easily accessible and located near

the UPS.

Equipment Connection Warnings

Install in accordance with National Electrical Code standards ANSI/NFPA

70 and Canadian Electrical Code, Part I, C22.1.

Short-circuit backup protection and overcurrent protection is provided by

the building installation.

To reduce the risk of ﬁre, connect only to a circuit with a maximum 20A

provided branch circuit overcurrent protection in accordance with the

National Electrical Code, ANSI/NFPA 70 and the Canadian Electrical Code,

Part I, C22.1. The plug on the power supply cord is intended to serve as

the disconnect device. Be sure that the socket-outlet is installed near the

equipment and is made easily accessible.

The UPS is intended for use on a TN power distribution system.

Important Safety Instructions

18-10-462-9338D5.indb 3 1/2/2019 4:16:47 PM

Important Safety Instructions

• Use of this equipment in life support applications where failure of this equipment can

reasonably be expected to cause the failure of the life support equipment or to signiﬁcantly

affect its safety or effectiveness is not recommended.

• Do not connect surge protectors or extension cords to the output of your UPS. This might

damage the UPS and may affect the surge protector and UPS warranties.

• Connect the UPS to an outlet that is adequately protected against excess currents, short

circuits and earth faults as part of the building installation.

Battery Warnings

• Batteries can present a risk of electrical shock and burn from high short-circuit current.

Observe proper precautions. There are no user-serviceable parts inside the UPS. Do not

open the UPS except to perform battery replacement. Do not open batteries. Do not

short or bridge the battery terminals with any object. Released material is harmful to the

skin and eyes. It may be toxic. Unplug and turn off the UPS before performing battery

replacement. Use tools with insulated handles. Battery replacement should be performed

only by authorized service personnel using the same number and type of batteries (sealed

lead-acid). Do not dispose of the batteries in a ﬁre. Tripp Lite offers a complete line of UPS

System Replacement Battery Cartridges (R.B.C.).Visit Tripp Lite on the Web at www.tripplite.

com/products/battery-ﬁnder to locate the speciﬁc replacement battery for your UPS.

CAUTION: A battery can present a risk of electrical shock and high short-

circuit current. Contact with any part of a grounded battery can result in

electrical shock. The following precautions should be observed when working

on batteries:

• Remove watches, rings or other metal objects.

• Use tools with insulated handles.

• Wear rubber gloves.

• Do not lay tools or metal parts on top of batteries.

• Disconnect charging source and load prior to installing or maintaining the battery.

• Remove battery grounds during installation and maintenance to reduce likelihood

of shock.

• Remove the connection from ground if any part of the battery is determined to be

grounded.

UPS and Battery Recycling

Tripp Lite products use sealed lead-acid batteries, which are highly recyclable.

Call Tripp Lite at 1.773.869.1234 or visit www.tripplite.com/support/recycling-

program for more information on recycling the batteries or any other Tripp Lite

product. Please refer to local codes for disposal requirements.

18-10-462-9338D5.indb 4 1/2/2019 4:16:47 PM

STEP 1: Plug the UPS into

a properly grounded outlet.

After plugging the UPS into a wall outlet, the surge

only outlets will begin passing power.

Note: The UPS will not turn on automatically in the

presence of live utility power.

STEP 2: Plug your equipment

into the UPS.

There are two sets of outlets on your UPS. Outlets

marked SURGE ONLY / do not provide battery

backup power during power outages. Connect

common desktop items like printers, scanners and

other accessories not requiring battery support to

these outlets. Outlets marked BATTERY BACKUP /

offer UPS battery backup support during power

failures. Connect your vital computer equipment

into these outlets.

Your UPS is designed to support electronic

equipment only. You will overload the UPS if the

total volt-amp (VA) ratings for all the equipment

connected to the BATTERY BACKUP /

outlets exceed the UPS output capacity. To

ﬁnd your equipment’s VA ratings, look on their

nameplates. If the equipment is listed in amps

(A), multiply the number of amps by 120 to

determine VA. For example: 1A × 120 =

120VA. If you suspect you have overloaded the

outlets, remove some equipment.

STEP 3: Turn the UPS on.

Press and hold the power switch next to the status

LED or LCD screen until the alarm begins to sound,

then release.

The UPS alarm will sound twice as the battery

backup outlets begin passing power and the UPS

charger engages as necessary to keep batteries

fully charged.

Your UPS is now ready to protect equipment

connected to the battery backup outlets from

blackouts, brownouts, overvoltages and power

failures.

Quick Installation (All Models)

18-10-462-9338D5.indb 5 1/2/2019 4:16:48 PM

Quick Installation (All Models)

Both UPS models include USB communication

ports and tel/DSL/Ethernet surge protection jacks

(not compatible with PoE applications). These

connections are optional, as the UPS will work

properly without these connections.

If you experience LED/LCD issues when turning on your UPS, please refer to the table below:

Models Problem Solution (All Models)

ECO350UPS, ECO550UPS,

ECO650UPSM (1 LED)

The PROTECTED LED does

not illuminate when the UPS

is turned ON.

1. Make sure the UPS is

plugged into a live AC outlet.

2. Press and hold the power

button to turn on the UPS. A

beep should sound when the

UPS starts.

3. If the UPS still does not

start, contact Tripp Lite Tech

Support for assistance.

ECO750UPS, ECO900UPSM

(3 LEDs)

The PROTECTED LED does

not illuminate when the UPS

is turned ON.

ECO850LCD, ECO900LCDU2

(LCD Panel)

The LCD panel does not

illuminate for 20 seconds

when the UPS is ﬁrst turned

on.

Optional Installation

18-10-462-9338D5.indb 6 1/2/2019 4:16:48 PM

Quick Installation (All Models)

ECO Energy Saving

The ECO Energy Saving feature allows your UPS system to save energy by automatically

turning off designated outlets when your computer or other item connected to the “MASTER”

outlet is turned off or in standby mode. The ECO feature is disabled by default.

To enable ECO Energy Saving:

1 Connect nonessential devices that you would like to be automatically powered OFF and

ON to the “CONTROLLED BY MASTER OUTLET” receptacles. Make sure that any devices

connected to these outlets can be powered off automatically without interrupting your

internet connection, local network or other essential services.

2 Select the device from your equipment conﬁguration, such as a desktop computer, AV

receiver or other vital component and connect its power cord to the designated “MASTER”

outlet on the UPS. This master device will serve as the trigger to automatically power-on

all equipment connected to “CONTROLLED BY MASTER OUTLET” receptacles whenever the

device connected to the “MASTER” outlet is powered-on. When the device connected to the

“MASTER” outlet is turned off or enters a low-power sleep mode, devices connected to the

“CONTROLLED BY MASTER OUTLET” receptacles will automatically be powered off.

3 To enable ECO energy-saving mode, double-click the UPS power button while the UPS is

turned on and running from utility power. The UPS conﬁrms ECO mode is engaged via the

LED or LCD interface:

• On single LED models, the green LED ﬂashes off every 10 seconds

• On 3 LED models, the green LED to the left of the PROTECTED LED will ﬂash off every

10 seconds

• On LCD equipped models, the display will report ECO when the ECO status screen

is activated

4 Once ECO energy-saving mode is enabled, the UPS will automatically turn OFF all devices

connected to the “CONTROLLED BY MASTER OUTLET” receptacles approximately 3 minutes

after the device connected to the “MASTER” outlet is turned off or enters a low-power

sleep mode. (The 3 minute delay ensures the controlled outlets remain powered ON during

a reboot). Devices connected to “CONTROLLED BY MASTER OUTLET” receptacles are

automatically powered ON when the device connected to the “MASTER” outlet is powered

back on.

Note: A minimum load is required on the “MASTER” outlet in order for controlled outlets to power ON,

as stated in the table below.

Model Required Load

ECO350UPS 15W

ECO550UPS 21W

ECO650UPSM 23W

ECO750UPS 23W

ECO850LCD 21W

ECO900UPSM 24W

ECO900LCDU2 24W

18-10-462-9338D5.indb 7 1/2/2019 4:16:48 PM

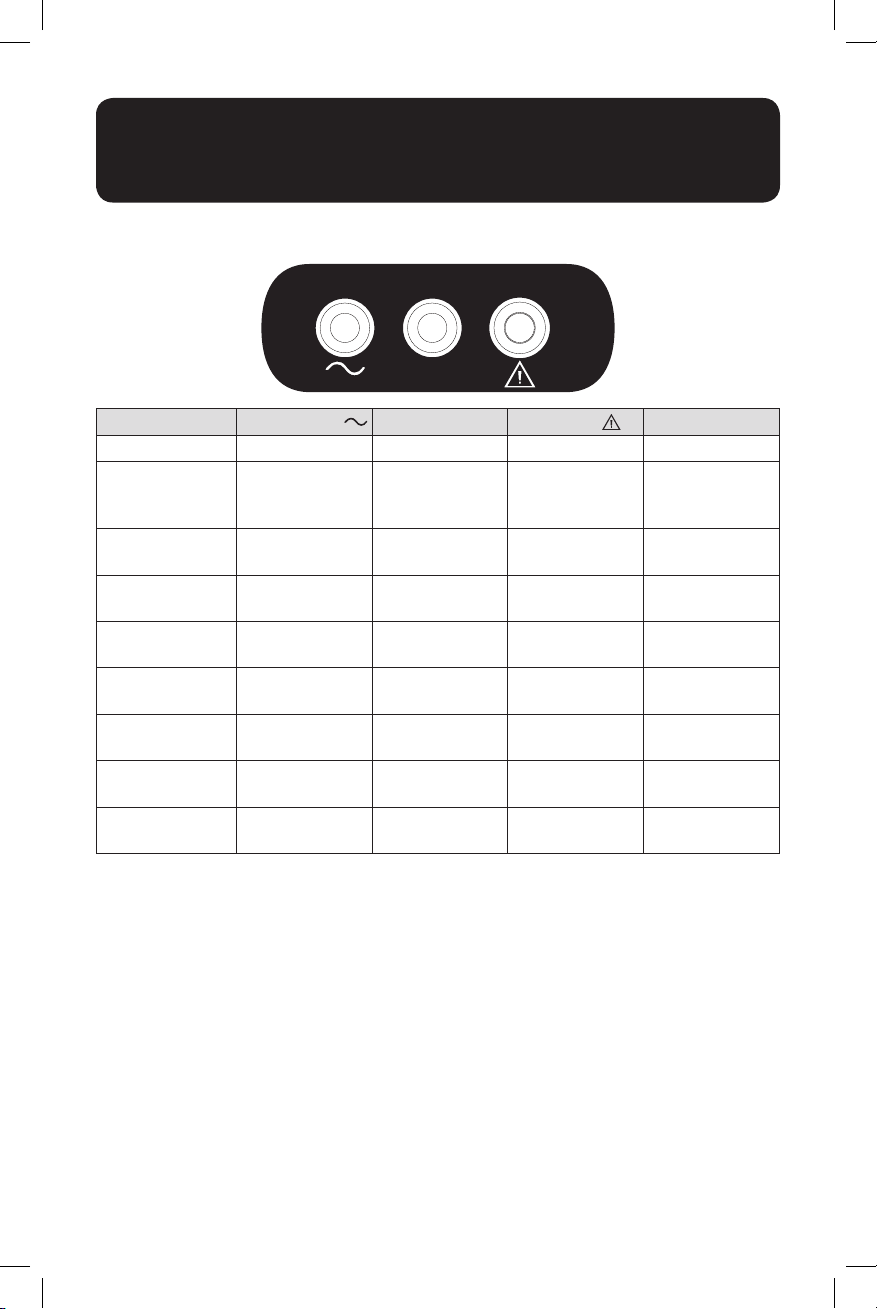

Basic Operation

for Models with an LED Interface (ECO350UPS, ECO550UPS,

ECO650UPSM, ECO750UPS, ECO900UPSM)

UPS ON/OFF

• Plug the UPS into a live, grounded outlet: The SURGE ONLY outlets will begin passing

power.

• Plug equipment into the UPS: You will overload the UPS if the total volt-amp (VA) ratings

for all the equipment connected to the BATTERY BACKUP outlets exceed the UPS output

capacity. To ﬁnd your equipment’s VA ratings, look on their nameplates. If the equipment is

listed in amps (A), multiply the number of amps by 120 to determine VA. For example:

1A × 120 = 120VA.

• Turn the UPS on: Press and hold the power button next to the STATUS LEDs. The UPS

alarm will beep once brieﬂy and the left-side green LED will illuminate. The BATTERY

BACKUP outlets will begin passing AC line power. The UPS will automatically recharge

internal batteries as needed. Once turned on, your UPS is ready to protect connected

equipment from blackouts, brownouts, overvoltages and transient surges.

• Turn the UPS off: Press and hold the power button next to the STATUS LEDs.

Note: UPS system will function properly upon initial startup; however, maximum runtime for the unit’s

battery will only be accessible after it has been charged for 24 hours.

Quick Installation (All Models)

To disable ECO Energy Saving:

Double-click the UPS power button while the UPS is turned on and running from utility power.

The UPS conﬁrms ECO mode is OFF via the LED or LCD interface:

• On single LED models, the green LED will be lighted continuously

• On 3 LED models, the green LED to the left of the PROTECTED LED will be lighted

continuously

• On LCD equipped models, the display will report ECO when the ECO status screen is off

Note: The “CONTROLLED BY MASTER OUTLET” receptacles available on the “SURGE ONLY” bank of

outlets provide surge and noise suppression only, they do not provide battery backup. During a power

failure, these outlets will be off regardless of whether the ECO energy-saving feature is enabled or

disabled. Select models include one battery-backup supported “CONTROLLED BY MASTER OUTLET”

receptacle.

18-10-462-9338D5.indb 8 1/2/2019 4:16:48 PM

1 LED Indicator

(ECO350UPS, ECO550UPS, ECO650UPSM Models)

Basic Operation

for Models with an LED Interface (ECO350UPS, ECO550UPS,

ECO650UPSM, ECO750UPS, ECO900UPSM)

Description Green “PROTECTED” LED Alarm

Line Mode

On (ﬂashes off every 3 seconds if

ECO Energy Saving feature enabled)

Off

Battery Mode On, ﬂashes off every 10 seconds

Off

Battery Low On, ﬂashes off every 1 second Sounds every

1 second

Line Mode

Overload Alert* On Sounds every

0.5 second

Line Mode

Overload Fault* Off Sounds

continuously

Battery Mode

Overload Alert** Flashes Sounds every

0.5 second

Battery Mode

Overload Fault** Off UPS will shut

down

Replace Battery On Sounds every

1 minute

Fault Condition Off Sounds

continuously

*Line Mode Overload Alert Condition - 110%±10%, goes to fault after 5 minutes; Overload Fault Condition

- 120%±10%, goes to fault immediately

**Battery Mode Overload Alert Condition - 110%±10%, shuts down in 5 seconds; Battery Mode Overload

Fault Condition - 120%±10%, shuts down immediately

18-10-462-9338D5.indb 9 1/2/2019 4:16:48 PM

3 LED Indicators (ECO750UPS, ECO900UPSM Models)

Description Green LED 1 Green LED 2 Red LED Alarm

Line Mode On On Off Off

Battery Mode Off

On (ﬂashes

OFF every 10

seconds)

Off Off

Battery Low Off On (ﬂashes

every 1 second) On

Sounds every

1 second

Line Mode

Overload Alert* On On Off

Sounds every

0.5 second

Line Mode

Overload Fault* Off Off On Sounds

continuously

Battery Mode

Overload Alert** Off Flashes Off Sounds every

0.5 second

Battery Mode

Overload Fault** Off Off Off Off

Replace Battery On On Flashes on every

1 minute

Sounds every

1 minute

Fault Condition Off Off On Sounds

continuously

*Line Mode Overload Alert Condition - 110%±10%, goes to fault after 5 minutes; Overload Fault Condition

- 120%±10%, goes to fault immediately.

**Battery Mode Overload Alert Condition - 110%±10%, shuts down in 5 seconds; Battery Mode Overload

Fault Condition - 120%±10%, shuts down immediately.

Basic Operation

for Models with an LED Interface (ECO350UPS, ECO550UPS,

ECO650UPSM, ECO750UPS, ECO900UPSM)

PROTECTED

18-10-462-9338D5.indb 10 1/2/2019 4:16:48 PM

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Tripp Lite UPS

Tripp Lite

Tripp Lite POS500 Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART3000RMXL2U Guide d'installation

Tripp Lite

Tripp Lite AG-02F0 Series Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro 700 HG Instructions d'installation et d'utilisation

Tripp Lite

Tripp Lite SmartPro SMART2600RM2U Guide d'installation

Tripp Lite

Tripp Lite BC Personal Datashield BCPERS300 Manuel utilisateur

Tripp Lite

Tripp Lite SMX1000LCD Manuel utilisateur

Tripp Lite

Tripp Lite OmniSmart Full Isolation UPS Systems... Manuel utilisateur

Tripp Lite

Tripp Lite HTRL15UPS Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline 3-Phase 10kVA Manuel utilisateur

Tripp Lite

Tripp Lite SMART1000LCDU Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline Manuel utilisateur

Tripp Lite

Tripp Lite Internet Office INTERNET750U Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART5000RT3U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU50K3/3INTPM Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro UPS System SMART550USB Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART750RM1U Manuel utilisateur

Tripp Lite

Tripp Lite SMART1500LCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMARTINT2200VS Manuel utilisateur

Tripp Lite

Tripp Lite SMX1500LCD Manuel utilisateur

Tripp Lite

Tripp Lite OMNIVSX850 Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU8000RT3UG Manuel utilisateur

Tripp Lite

Tripp Lite PRO550X Manuel utilisateur

Tripp Lite

Tripp Lite G1000UB Guide de configuration

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
