Owner’s Manual

4K/60 HDMI over Cat6 Extenders

and Extender/Splitters

Extender Kit Models: B127-1A1-HH, B127-002-2H2,

B127-004-H4H and B127-2A1-HH

Local Unit Models: B127-002-H, B127-004-H and B127-008-H

Remote Unit Models: B127-100-H, B127-100-H-SR

and B127-200-H

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

tripplite.com/warranty

Este manual esta disponible en español en la página de

Tripp Lite : www.tripplite.com/support

Ce manuel est disponible en français sur le site Web de

Tripp Lite : www.tripplite.com/support

Русскоязычная версия настоящего руководства представлена на

веб-сайте компании Tripp Lite по адресу: www.tripplite.com/support

20-02-371-933918_Rev C.indd 120-02-371-933918_Rev C.indd 1 3/6/2020 1:46:30 PM3/6/2020 1:46:30 PM

Package Contents

Product Features

B127-1A1-HH

B127-2A1-HH

B127-002-2H2

B127-004-H4H

B127-002-H

B127-004-H

B127-008-H

B127-100-H

B127-200-H

B127-100-H-SR

Local Unit (L),

Remote Unit (R) or Both (B) B B B B L L L R R R

External Power Supplies

(0 or 1) 1111111000

Mounting Hardware Y Y Y Y Y Y Y Y Y N

All

• Support a maximum video resolution of 4K (3840 x 2160) @

60 Hz with 4:4:4 Chroma Subsampling

• Support up to 7.1-channel surround sound audio

• HDMI 2.0, HDCP 2.2 and HDR compatible

• Plug and play—no software or drivers required

20-02-371-933918_Rev C.indd 220-02-371-933918_Rev C.indd 2 3/6/2020 1:46:30 PM3/6/2020 1:46:30 PM

Product Features

B127-1A1-HH

• HDMI over Cat6 Power-over-Cable (PoC) Extender Kit

• Extends a 4K (3840 x 2160) @ 60 Hz signal up to 125 ft. (38 m)

from the source

• Built-in local HDMI port supports multi-resolution technology, enabling

the connection of local monitors of various resolutions without affecting

the extended 4K @ 60 Hz signal to connected 4K-compatible displays

• Remote receiver unit features built-in equalization (EQ) control and

auto EDID image adjustment

• Includes mounting hardware that enables both the local transmitter

and remote receiver units to be wall-mounted, rack-mounted or pole-

mounted

B127-2A1-HH

• HDMI over Cat6 Power-over-Cable (PoC) Extender Kit

• Extends a 4K (3840 x 2160) @ 60 Hz signal up to 125 ft. (38 m)

from the source

• Built-in local HDMI port supports multi-resolution technology, enabling

the connection of local monitors of various resolutions without affecting

the extended 4K @ 60 Hz signal to connected 4K-compatible displays

• Remote receiver unit features two HDMI output ports with built-in

equalization (EQ) control and auto EDID image adjustment

• Includes mounting hardware that enables both the local transmitter

and remote receiver units to be wall-mounted, rack-mounted or pole-

mounted

20-02-371-933918_Rev C.indd 320-02-371-933918_Rev C.indd 3 3/6/2020 1:46:30 PM3/6/2020 1:46:30 PM

Product Features

B127-002-2H2

• HDMI over Cat6 Power-over-Cable (PoC) 2-Port Splitter/Extender Kit

• Extends a 4K (3840 x 2160) @ 60 Hz signal up to 125 ft. (38 m)

from the source

• Remote receiver unit features built-in equalization (EQ) control and

auto EDID image adjustment

• Kit includes a 2-Port Splitter Extender and two Remove Receivers

• Includes mounting hardware that allows unit to be wall-mounted,

rack-mounted or pole-mounted

B127-004-H4H

• HDMI over Cat6 Power-over-Cable (PoC) 4-Port Splitter/Extender Kit

• Extends a 4K (3840 x 2160) @ 60 Hz signal up to 125 ft. (38 m)

from the source

• Remote receiver unit features built-in equalization (EQ) control and

auto EDID image adjustment

• Kit includes a 4-Port Splitter Extender and four Remote Receivers

• Includes mounting hardware that allows unit to be wall-mounted,

rack-mounted or pole-mounted

• Built-in local HDMI port supports multi-resolution technology, enabling

the connection of local monitors of various resolutions without affecting

the extended 4K @ 60 Hz signal to connected 4K-compatible displays

B127-002-H

• 2-Port HDMI over Cat6 Extender/Splitter Local Transmitter Unit

• Splits an HDMI signal into two

• Works with remote receiver units to extend an HDMI signal past the

15 ft. (4.5 m) distance limitation

20-02-371-933918_Rev C.indd 420-02-371-933918_Rev C.indd 4 3/6/2020 1:46:30 PM3/6/2020 1:46:30 PM

Product Features

• Includes mounting hardware that allows unit to be wall-mounted,

rack-mounted or pole-mounted

B127-004-H

• 4-Port HDMI over Cat6 Extender/Splitter Local Transmitter Unit

• Splits an HDMI signal into four

• Built-in local HDMI port supports multi-resolution technology, enabling

the connection of local monitors of various resolutions without affecting

the extended 4K @ 60 Hz signal to connected 4K-compatible displays;

this port can also be used to daisy-chain additional B127-004-H units

(up to three units can be daisy-chained together)

• Works with remote receiver units to extend an HDMI signal past

the 15 ft. (4.5 m) distance limitation

• Includes mounting hardware that allows unit to be wall-mounted,

rack-mounted or pole-mounted

B127-008-H

• 8-Port HDMI over Cat6 Extender/Splitter Local Transmitter Unit

• Splits an HDMI signal into eight

• Built-in local HDMI port supports multi-resolution technology, enabling

the connection of local monitors of various resolutions without affecting

the extended 4K @ 60 Hz signal to connected 4K-compatible displays;

this port can also be used to daisy-chain additional B127-008-H units

(up to three units can be daisy-chained together)

• Works with remote receiver units to extend an HDMI signal past the

15 ft. (4.5 m) distance limitation

• Includes mounting hardware that allows unit to be wall-mounted,

rack-mounted or pole-mounted

20-02-371-933918_Rev C.indd 520-02-371-933918_Rev C.indd 5 3/6/2020 1:46:30 PM3/6/2020 1:46:30 PM

Product Features

B127-100-H

• HDMI over Cat6 Power-over-Cable (PoC) Remote Receiver Unit

• Works with B127-002-H and B127-004-H extender/splitters to

extend a 4K/60 Hz signal up to 125 ft. (38 m) from the source

• Built-in equalization (EQ) and EDID allows control for auto image

adjustment

• Includes mounting hardware that allows unit to be wall-mounted,

rack-mounted or pole-mounted

B127-200-H

• HDMI over Cat6 Power-over-Cable (PoC) Remote Receiver Unit

• Works with B127-002-H and B127-004-H extender/splitter units to

extend a 4K @ 60 Hz signal up to 125 ft. (38 m) from the source

• Built-in equalization (EQ) and EDID allows control for auto image

adjustment

• Includes mounting hardware that enables unit to be wall-mounted,

rack-mounted or pole-mounted

• Supports up to two HDMI Displays

B127-100-H-SR

• HDMI over Cat6 Power-over-Cable (PoC) Short Distance Remote

Receiver Unit

• Works with B127-002-H and B127-004-H extender/splitters to

extend a 4K/60 Hz signal up to 50 ft. (15 m) from the source

• Built-in equalization (EQ) and EDID allows control for auto image

adjustment

Optional Accessories:

• N202-Series Cat6 24 AWG Solid-Wire Patch Cables

• P569-XXX-CERT or P568-XXX-2A Series High-Speed HDMI 2.0 Cables

20-02-371-933918_Rev C.indd 620-02-371-933918_Rev C.indd 6 3/6/2020 1:46:30 PM3/6/2020 1:46:30 PM

Disclaimer

Before installation, please check the following settings of your source(s)

and TV/monitor(s):

1. Set to display 60 Hz. Double-check factory settings, as default can

be set to a lower frequency (Hz) than advertised.

2. Ensure the input setting of your monitor is set at HDMI 2.0. Some

displays may have default setting at HDMI 1.4

3. Verify your monitor has the HDR feature enabled. Some displays

may have this feature disabled as a factory setting.

4. Check if the Ultra HD (UHD) Deep Color setting is enabled on your TV/

monitor. Conﬁrm with your TV/monitor manufacturer which HDMI ports

support UHD Deep Color.

Note: To connect a local monitor to your installation, the UHD Deep Color setting

may need to be disabled on your local TV/monitor (depending make/mode) to

achieve 4K 60 Hz resolution.

20-02-371-933918_Rev C.indd 720-02-371-933918_Rev C.indd 7 3/6/2020 1:46:30 PM3/6/2020 1:46:30 PM

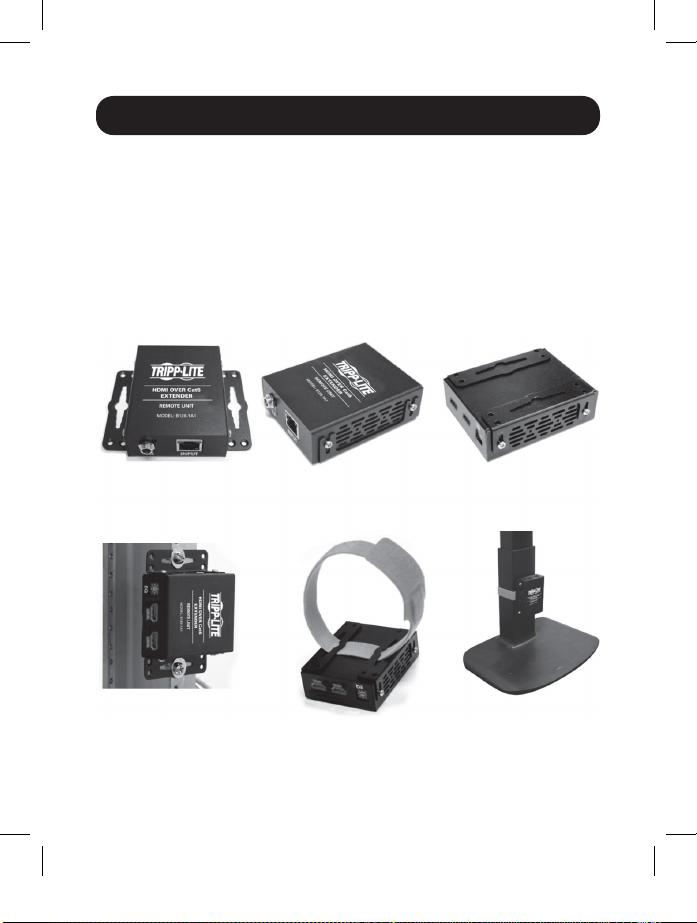

Mounting Instructions (select models only)

The B127-1A1-HH, B127-2A1-HH, B127-002-2H2, B127-004-H4H,

B127-002-H, B127-004-H, B127-008-H, B127-100H and B127-200H

include includes mounting hardware that allows for a variety of mounting

methods. The following images illustrate how the included mounting

brackets can be attached for different installations.

Note: The model shown in the below images is for illustrative purposes only. Your

product may vary by model number, size or port orientation. The mounting options

for all over IP units are the same.

Wall-mount

19" Rack-mount Pole-mount

20-02-371-933918_Rev C.indd 820-02-371-933918_Rev C.indd 8 3/6/2020 1:46:30 PM3/6/2020 1:46:30 PM

Standard Extender Kit Installation

Installation Instructions for B127-1A1-HH

Notes:

1) Test to ensure the entire installation works properly before pulling cables through

ceilings/walls.

2) To achieve maximum distance and performance, use 24 AWG solid-wire Cat6

cable. Using stranded-wire Cat6 cable, or cable with a gauge (AWG) size higher

than 24 AWG, will result in shorter extension distance. Higher gauge cabling,

such as 26 AWG, has a more limited transmission capability than lower gauge

cabling. All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid-wire

cabling.

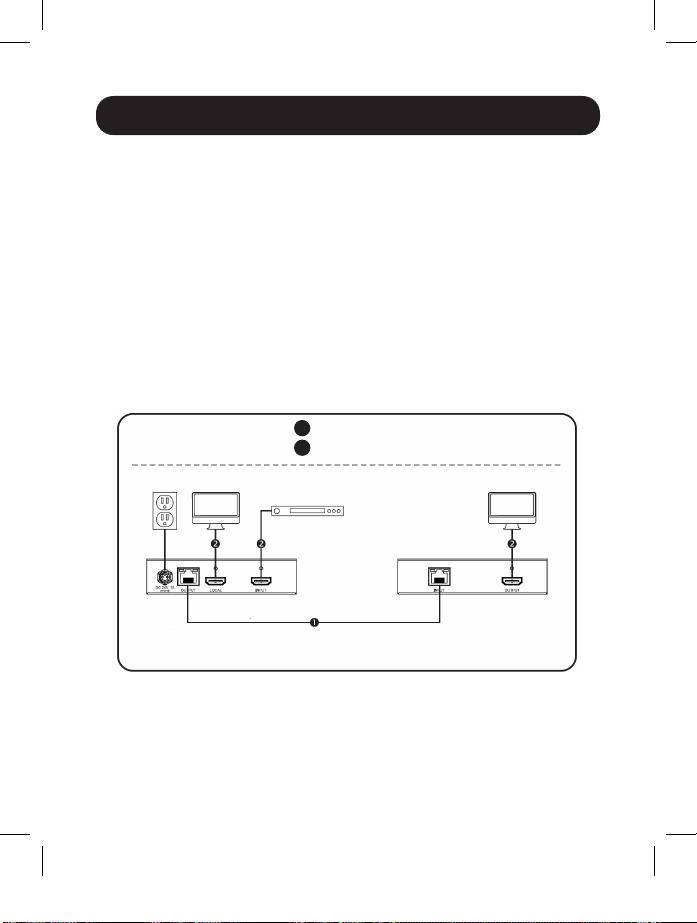

3) The installation diagram shows a B127-1A1-HH unit.

4) External power is not required for remote receiver units due to Power-over-Cable

(PoC) technology incorporated in the transmitter units.

OPTIONAL LOCAL

MONITOR HDR PLAYER

LOCAL

TRANSMITTER

REMOTE

RECEIVER

Up to 125 ft. (38 m) at 4K/60 Hz

Up to 125 ft. (38 m) Cat6 cable at 4K/60 Hz

Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60 Hz

1. Make sure all equipment in the installation—such as TVs, Blu-ray

players and the transmitter—is powered OFF.

2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or

P568-XXX-2A Series cables), connect the HDMI source to the INPUT

port on the local transmitter unit.

20-02-371-933918_Rev C.indd 920-02-371-933918_Rev C.indd 9 3/6/2020 1:46:30 PM3/6/2020 1:46:30 PM

Standard Extender Kit Installation

3. Optional for B127-1A1-HH: Using an HDMI 2.0 cable (such as

Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect

a local monitor to the LOCALOUT port on the B127-1A1-HH local

transmitter unit.

Note: Monitors with lower resolutions such as 1080p or 4K @ 30 Hz can be

connected to the local HDMI port without affecting the 4K @ 60 Hz signal.

4. Using Cat6 cable, connect the RJ45 port on the local transmitter unit

to the RJ45 port on the remote receiver unit.

5. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or

P568-XXX-2A Series cables), connect the remote receiver unit’s HDMI

port to a monitor.

6. Turn the power on to your connected TVs/monitors. The LOCAL

(orange) LED will illuminate to indicate local port has been connected

to a display.

7. Connect the external power supply to the local transmitter unit and

plug it into an available wall outlet or (optional) a Tripp Lite Surge

Protector, Power Distribution Unit (PDU) or Uninterruptible Power

Supply (UPS). The POWER (green) LED on the local transmitter unit

will illuminate to indicate the unit is receiving power from the external

power supply. The POWER (green) LED on the remote receiver unit

will illuminate to indicate the unit is receiving power from the local

transmitter unit through PoC technology.

8. Turn on the power to the HDMI source. The OUTPUT (orange) LED

on the local transmitter unit illuminates to indicate a signal is being

received from the source.

9. The (orange) RJ45 LED will illuminate on both local transmitter and

remote receiver units to indicate a signal is being received from

source to display. The screen should now display on the connected

monitor.

20-02-371-933918_Rev C.indd 1020-02-371-933918_Rev C.indd 10 3/6/2020 1:46:30 PM3/6/2020 1:46:30 PM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Tripp Lite Extenseur

Tripp Lite

Tripp Lite B125-101-60-WP Manuel utilisateur

Tripp Lite

Tripp Lite : B140-002 Manuel utilisateur

Tripp Lite

Tripp Lite U007-40M Manuel utilisateur

Tripp Lite

Tripp Lite B130-101A Manuel utilisateur

Tripp Lite

Tripp Lite B121-000 Manuel utilisateur

Tripp Lite

Tripp Lite B150-1A1-HDMI Manuel utilisateur

Tripp Lite

Tripp Lite B203-101-PNPINT Manuel utilisateur

Tripp Lite

Tripp Lite B127U-111-PDPD Manuel utilisateur

Tripp Lite

Tripp Lite B126-1A1-WHD1 Manuel utilisateur

Tripp Lite

Tripp Lite B127-1A1-WHD1 Manuel utilisateur

Tripp Lite

Tripp Lite P142-06N-SC4K Manuel utilisateur

Tripp Lite

Tripp Lite B136-100-WP-1 Manuel utilisateur

Tripp Lite

Tripp Lite P130-000-AUDIO2 Manuel utilisateur

Tripp Lite

Tripp Lite B140-002-DD Manuel utilisateur

Tripp Lite

Tripp Lite B162-100-POE Manuel utilisateur

Tripp Lite

Tripp Lite NPOE-EXT-1G30WP Manuel utilisateur

Tripp Lite

Tripp Lite B051-000-AC Manuel utilisateur

Tripp Lite

Tripp Lite B126-1A1-PLHD Manuel utilisateur

Tripp Lite

Tripp Lite P130-000-AUD4K6 Manuel utilisateur

Tripp Lite

Tripp Lite Wireless Console Extender B014-000 Manuel utilisateur

Tripp Lite

Tripp Lite B125-150 Manuel utilisateur

Tripp Lite

Tripp Lite B130-101A-WP Manuel utilisateur

Tripp Lite

Tripp Lite 8TLB122000 Manuel utilisateur

Tripp Lite

Tripp Lite B126-1A1-WP Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
